High-HP FD track car question

Anyone here running over 400 RWHP on road courses? I'm curious as to:

* Your estimated curb weight with driver and fluids
* What brake setup you're running (calipers, pads, ducts, etc.)
* If you're happy with the braking performance and durability for sprint race distances

Thanks! I'm in the process of evaluating the RB braking system but I'd like to know what works out there for the faster FDs.

-ch
hyperion is offline
Old 10-19-07, 12:23 PM
  #2
Senior Member
5 Year Member

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by hyperion View Post
Anyone here running over 400 RWHP on road courses? I'm curious as to:

* Your estimated curb weight with driver and fluids
* What brake setup you're running (calipers, pads, ducts, etc.)
* If you're happy with the braking performance and durability for sprint race distances

Thanks! I'm in the process of evaluating the RB braking system but I'd like to know what works out there for the faster FDs.

-ch
450hp here,set up for Road racing,2400 pounds(excluding driver)
brakes;Kit from N-Techengineering ,that include front/rear calipers/disc,pads,lines,ducts etc
Giampiero is offline
Old 10-19-07, 12:28 PM
  #3
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Might want to also include tracks driven on, lap times and level of run group.
gracer7-rx7 is offline
Old 10-21-07, 04:33 AM
  #4
Re-engineering everything
10 Year Member
Thread Starter
iTrader: (2)

Join Date: Feb 2002
Location: Bay Area, CA
Posts: 751
Likes: 0
Received 0 Likes on 0 Posts
Bump! C'mon, I know there are more of you out there!

Gracer, great idea. I'd love to see some lap times at some well-know tracks.

Also, Giampiero--do you have a thread with pics/stats on your car? I'd love to see what you're doing to get 450HP and 2400lbs!

-ch
hyperion is offline
Old 10-21-07, 06:50 AM
  #5
Senior Member
15 Year Member

rceron's Avatar

Join Date: Apr 2001
Location: Connecticut
Posts: 421
Likes: 0
Received 0 Likes on 0 Posts
There just aren't as many people with such cars anymore and those that fit this category aren't necessarily on this forum. I've run into several people at the track that have great cars but don't participate in this forum or the "big" mailing list.

From what I've seen the best brake setup to date are the AP-front 99 Spec- rear and also the Stoptech-front and 99 spec-rear combo. I believe the degree of success with such setups is subjective. I too have been watching the "Racing Brake" thread carefully to see if the new setup is better. I have my doubts given all the issues. In any case I may not have my car much longer.

R
rceron is offline
Old 10-21-07, 09:41 AM
  #6
Senior Member
5 Year Member

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by hyperion View Post
Bump! C'mon, I know there are more of you out there!

Gracer, great idea. I'd love to see some lap times at some well-know tracks.

Also, Giampiero--do you have a thread with pics/stats on your car? I'd love to see what you're doing to get 450HP and 2400lbs!

-ch

I did not start a tread with all the info and pictures as yet,the car is not finish yet(95%).
If you search my posts you will see some pictures of some mods.....
I will use my car for next year Caribbean Championship,races in Jamaica,Barbados,Guyana etc
The weight actually was down to 2100 ,but rules states that minimum weight has to be 2,400 for a 13B with turbo.....
Giampiero is offline
Old 10-21-07, 03:07 PM
  #7
Rotary Enthusiast
10 Year Member

jantore's Avatar

Join Date: May 2003
Location: Norway
Posts: 904
Likes: 0
Received 1 Like on 1 Post
Im running Ap 6 pot 330mm brakes in the front and stock in the rear. And i need more breaking power in the rear, right now it's way to much in the front compeard to the rear. So gonna go for either 99 spec, or the back break caliper system that has been posted on the forums.

JT
jantore is offline
Old 10-21-07, 04:19 PM
  #8
Rotary Poseur
10 Year Member

HedgeHog's Avatar

Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes on 0 Posts
425rwhp
2828lbs (fueled, no driver) - oink
Front: AP Racing 5200 4-pot, 13" rotors, SS lines, Ferodo DS3000 pads
Rear: Stock, KVR Performance slotted rotors, SS lines, Ferodo DS2500 pads
Fluid: ATE Racing Super Blue
929 Master cylinder
285/30-18 Kumho V710 tires

- I run on a brake eating track. Fade and control is good. I would like to have more bias towards the rear. The RB rear kit sounds like a good complement since it can use OEM caliper sized pads (more options).
HedgeHog is offline
Old 10-21-07, 05:01 PM
  #9
Re-engineering everything
10 Year Member
Thread Starter
iTrader: (2)

Join Date: Feb 2002
Location: Bay Area, CA
Posts: 751
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by HedgeHog View Post
425rwhp
2828lbs (fueled, no driver) - oink
Front: AP Racing 5200 4-pot, 13" rotors, SS lines, Ferodo DS3000 pads
Rear: Stock, KVR Performance slotted rotors, SS lines, Ferodo DS2500 pads
Fluid: ATE Racing Super Blue
929 Master cylinder
285/30-18 Kumho V710 tires

- I run on a brake eating track. Fade and control is good. I would like to have more bias towards the rear. The RB rear kit sounds like a good complement since it can use OEM caliper sized pads (more options).
Any cooling ducts? Your car sounds very, very close to mine in terms of power/weight.

How many days/laps do you get out of a set of pads?

-ch

Last edited by hyperion; 10-21-07 at 05:06 PM.
hyperion is offline
Old 10-22-07, 12:58 AM
  #10
Rotary Poseur
10 Year Member

HedgeHog's Avatar

Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes on 0 Posts
No ducts but was so tempted after seeing GooRoo's incredible set!

I've only done 2 track days on these pads (4 x 25 min sessions) but I think they'll last me another 2-4 sessions. This includes the 1.5 hr drive to/from venue each way through city and rural paths. Previously, I ran HPS and cooked them in 6 laps. Like pedal to the floor, cooked. Same everything else.

Friend's dad recommended the Ferodo DS3000 to me....he runs a 996TT modded to 500+ hp. I think Max Cooper runs these too.

Other item of note is that I recall the AP Racing CP5200 calipers comes with aluminum pistons. I think Gene Felber did a group buy via essexparts.com for stainless steel pistons to minimize heat soak/xfer. Essex no longer offers this... But GooRoo may still offer them (http://www.2dperformance.com/shims.asp).

*btw, I still have to install ur tank cover...had to run with full tanks still*


Originally Posted by hyperion View Post
Any cooling ducts? Your car sounds very, very close to mine in terms of power/weight.

How many days/laps do you get out of a set of pads?

-ch
HedgeHog is offline
Old 10-22-07, 01:09 AM
  #11
Re-engineering everything
10 Year Member
Thread Starter
iTrader: (2)

Join Date: Feb 2002
Location: Bay Area, CA
Posts: 751
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the info, Hedge!

I'll poke GooRoo to see if he'll post some pics of his ducts on this thread...

-ch
hyperion is offline
Old 10-22-07, 01:50 PM
  #12
93-FD
10 Year Member
iTrader: (4)

GooRoo's Avatar

Join Date: Jul 2002
Location: Minneapolis, MN
Posts: 782
Likes: 0
Received 0 Likes on 0 Posts
This is a repost from Hedgehog's thread earlier in the spring, I'll update it with this year's results in another post:

Ok, to add to what everyone else has said, with a modified car and good tires those pads are not going to be sufficient. As an example, I started last year with stock brakes and about 300rwhp, and using R-comps I was cooking HT-10 front pads and front rotors every 1.5 hours of track time. Rears were lasting about 6-8 hours of track time. This is with 20-25 minute sessions, and I did have some ducting dumping air off the nose into the rotors. The fluid would be cooked after 5-6 laps in each session (depending on the track - more or less) and the pedal would be very squishy by the end of a weekend. When I wasn't attuned to it, it seemed very sudden. One corner, brakes are fine, next corner, no brakes. As I became more used to it I was able to better predict when it was going to happen, and creep up to the edge. Anyway, it was borderline no longer safe, and I'd have to slow down quite a bit to be careful.

Midway through the year I added in some titanium backing plates, and I no longer boiled the fluid anymore, but a couple additional laps and the pedal would get very hard, without slowing the car! Textbook pad fade from overheating. Definite improvement but I obviously still needed more heat capacity in the front brakes.

Fast-forward to this year and I upgraded to Damian's old 993TT calipers and custom rotors in the front. I had purchased a set of N-Tech aluminum plates, but couldn't use them because they didn't fit the rotors. If you want a set of the N-Tech plates for 13" rotors, I have that set for sale - new and unused. Here's the link: https://www.rx7club.com/showthread.php?t=634299

It took alot of work, and more $$$ and time than I wanted, but I'm very happy with the result of the project: (as always, click pics for the full size images)

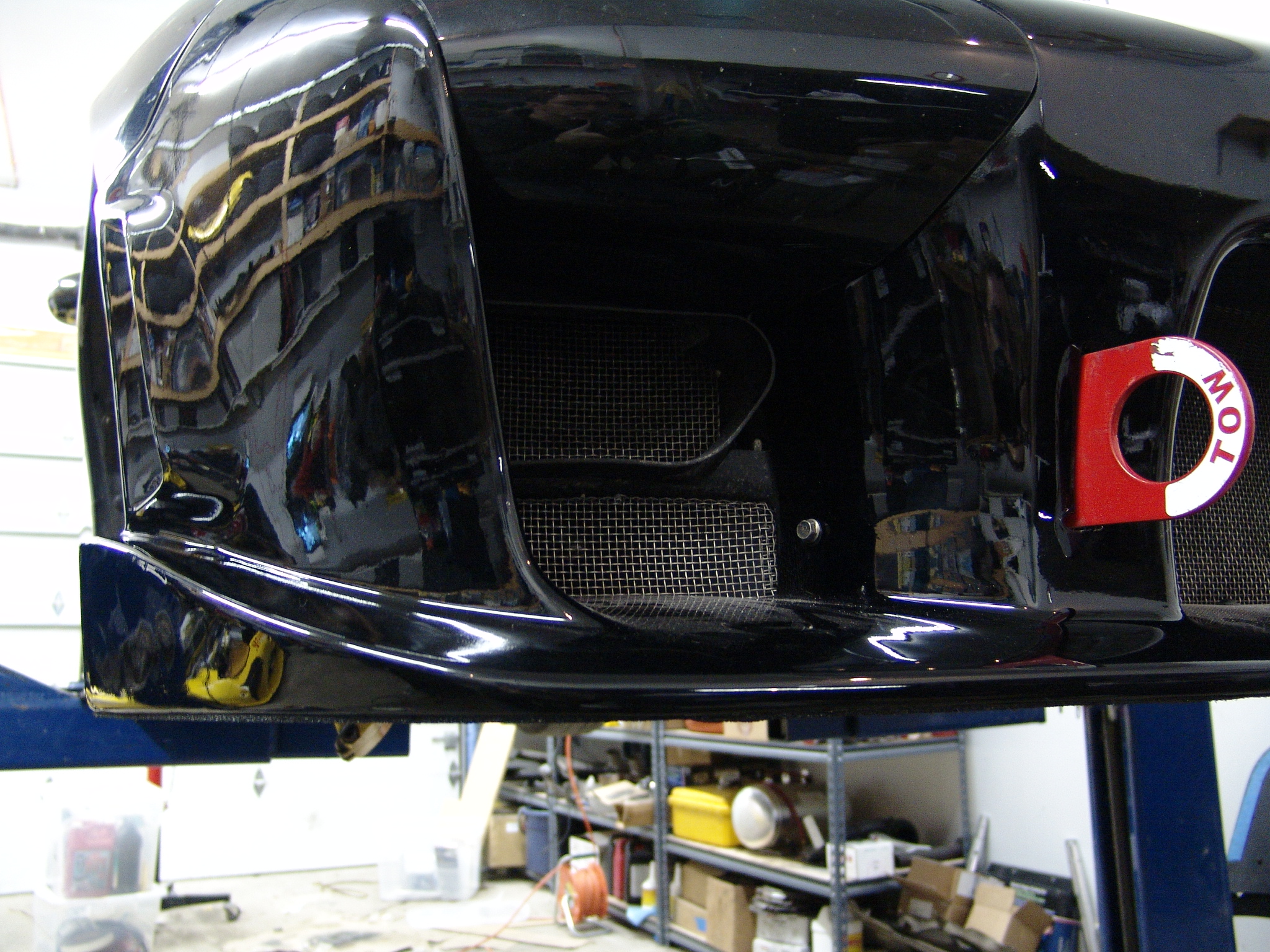

Here's where the air enters the ducting, just below the oil coolers. This is a 7x3" duct that I got from RacerPartsWholesale with #6 stainless mesh over the top to prevent stuff from getting in. It's bolted to the nose and held tight to the oil lines with zip ties.

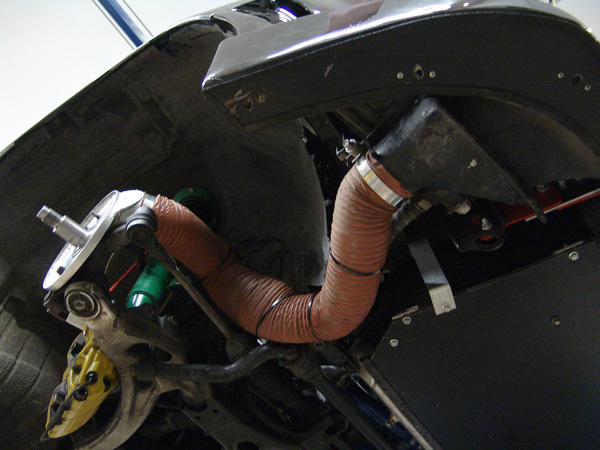

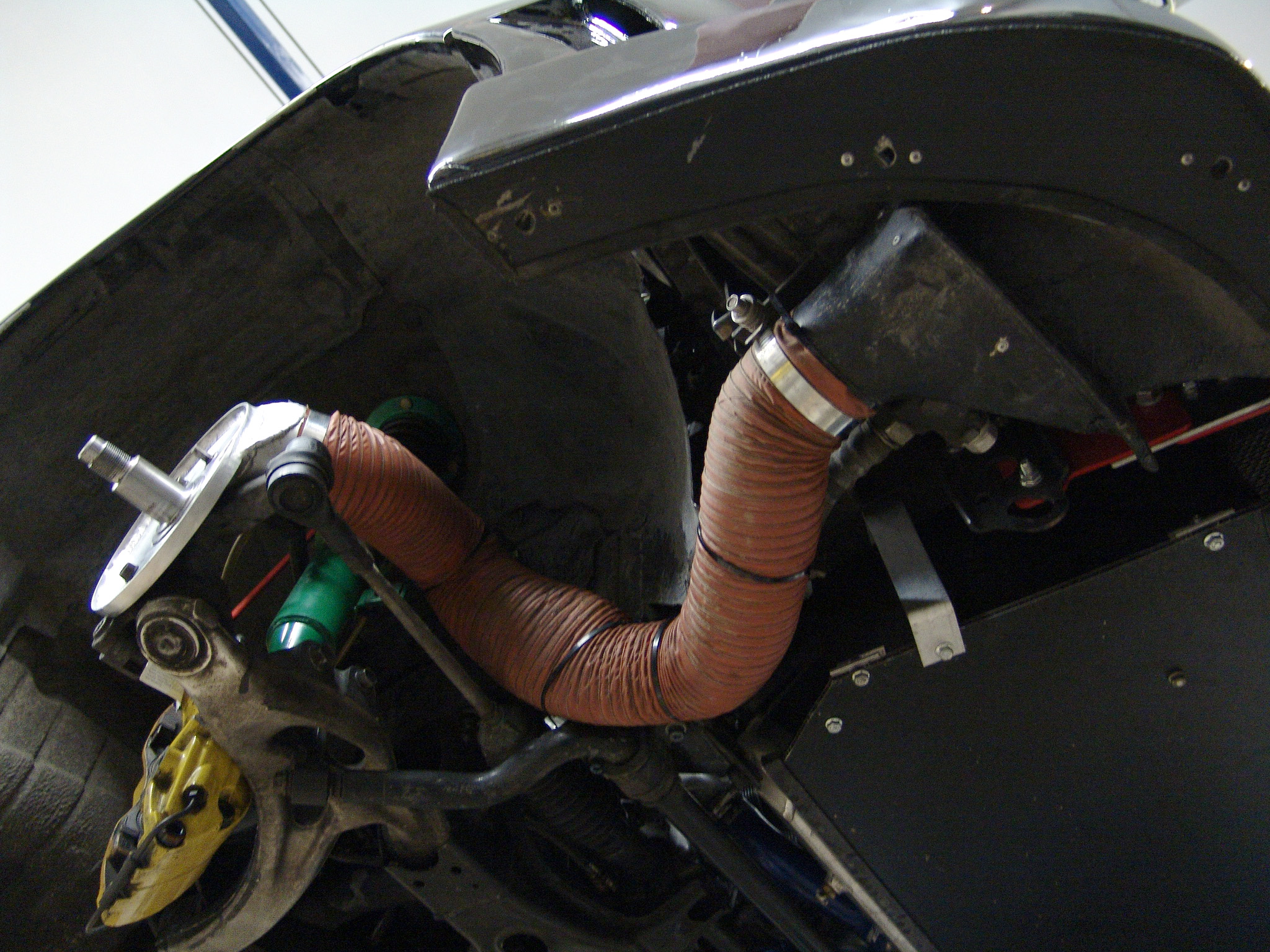

Here's the routing of the brake duct hose. This is the same 3" silicone hose that Crispy uses I think, again from RacerPartsWholesale. You have to be circuitious here to avoid hitting it when you turn the wheels full lock. I was able to smash the hose into an oval and keep it tight to the wall with zip ties. Also the top part is tied to the a-arm with ties as well. It is fastened on each end with a 3" Breeze stainless constant torque hose clamp.

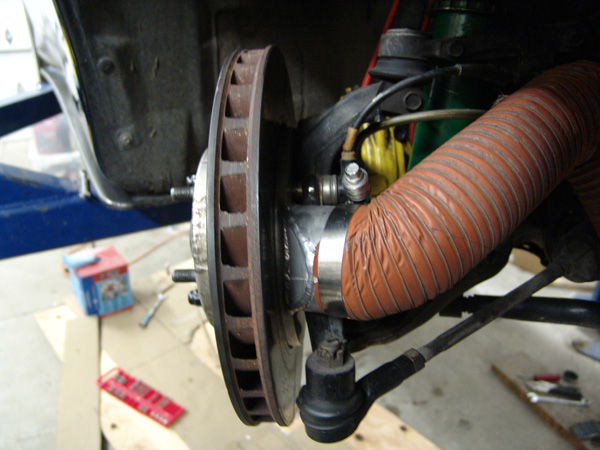

Here's the backside where the hose is clamped to the duct. I did roll a bead on the piping so it won't disconnect itself. You can also see that the edge of the duct actually goes inside the lip of the rotor, in this case about 3-4mm. It is flush with the position of the original stock plate so there is a 10mm lip around the edge of the main plate to make this happen.

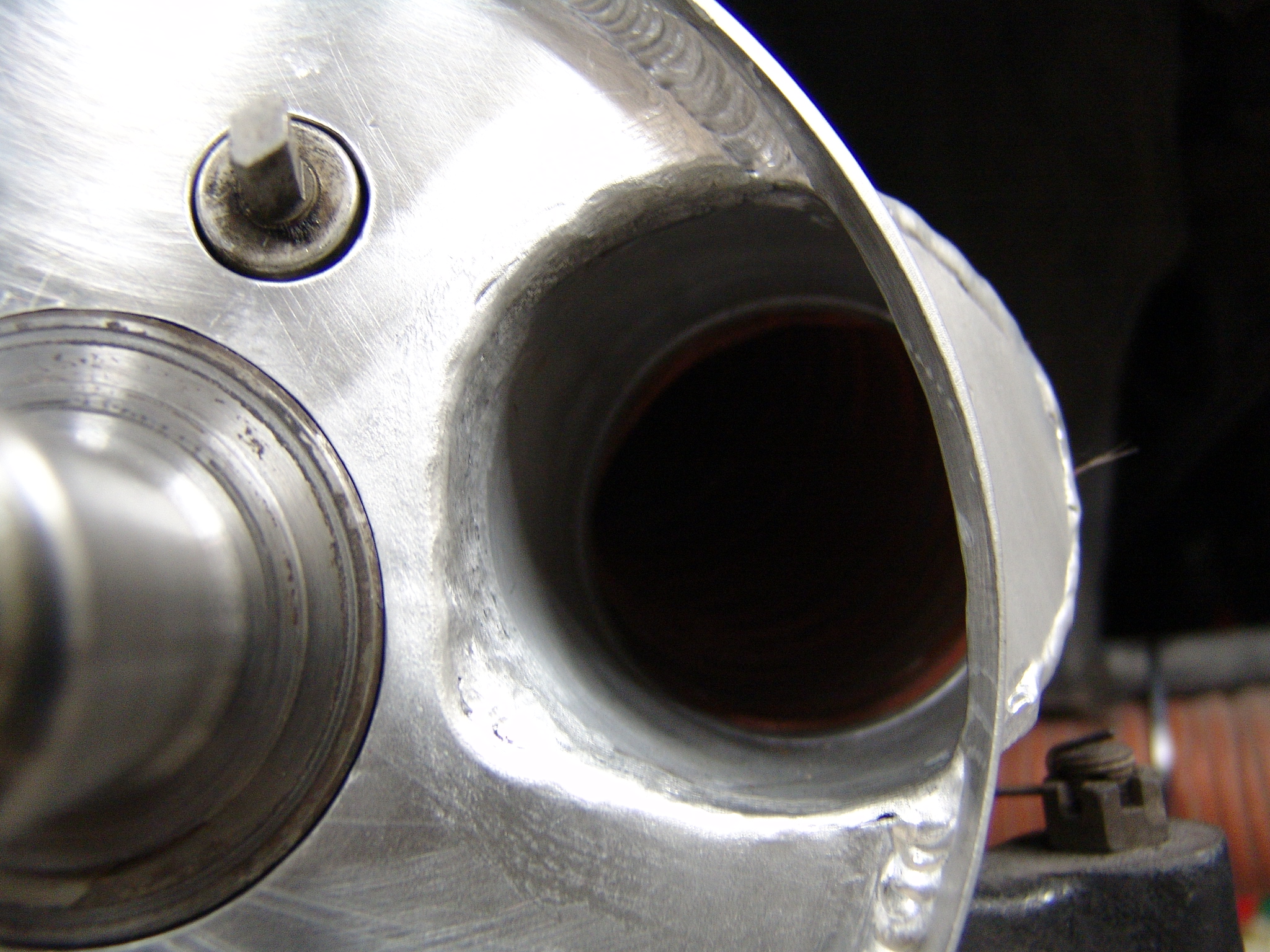

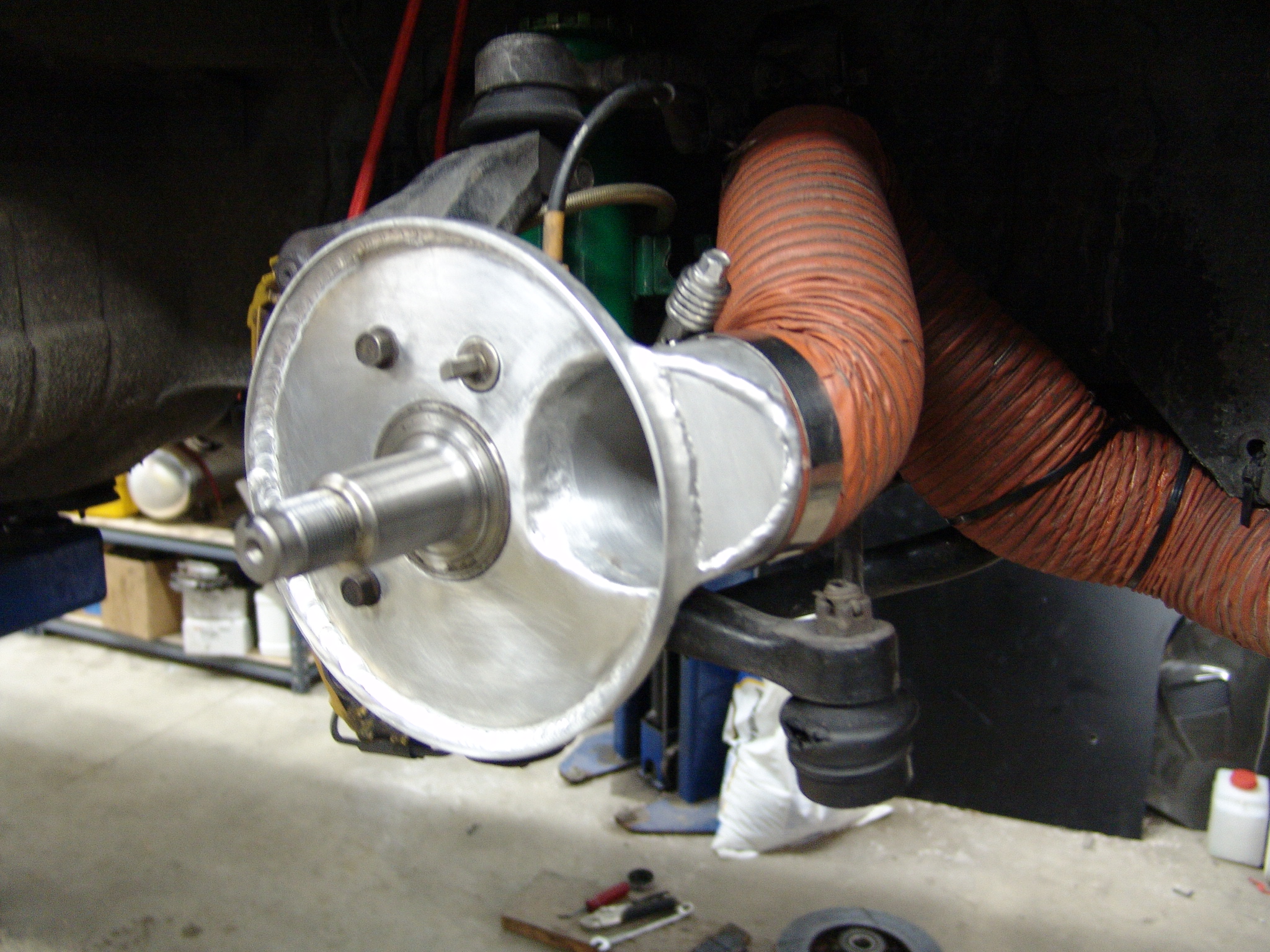

Here's the duct opening. I'm really proud of this part, it took a while to make and is practically art. about 75-80% of the hose area is able to get inside of the 12.67" (322mm) rotors I'm using. You can also see there's a bolt missing here that would normally hold the stock plate on. I modified the spindle and cut the part that normally holds the threads for that bolt to get more room for my opening. This is the main way I was able to make the hose input area so big. I did this because Damian did the same thing for his ducts.

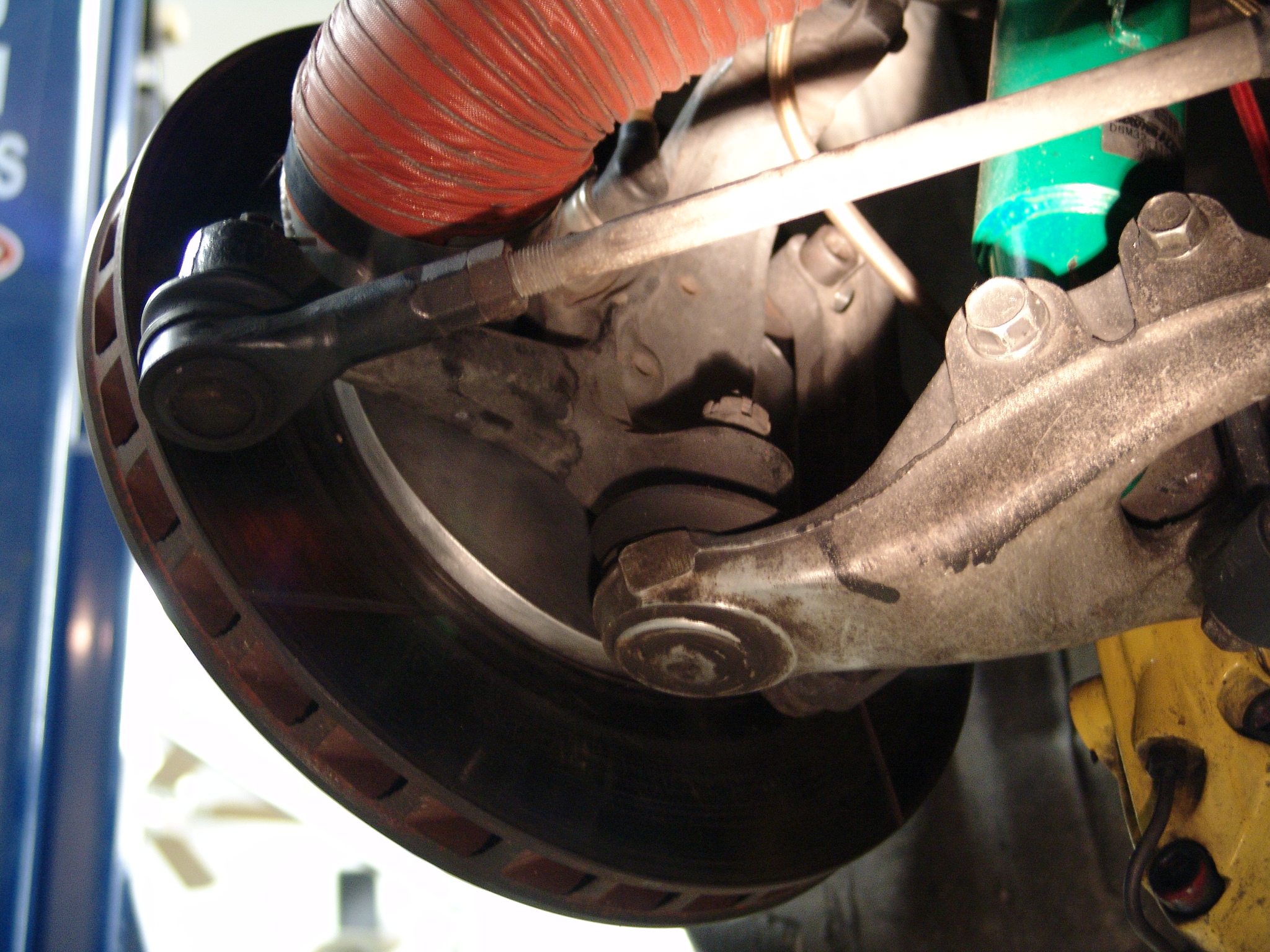

Here's the plates from the back, you can see how closely they fit inside the rotors, I would say not more than 1mm gap at any point around the rotor. You could ask how I was that precise, and I'd have to say that I spent alot of time fitting, sanding, and refitting in the end I let the rotor itself do the final 'clearancing' hahaha. The entire brake duct is sealed except for that small gap, so ALL air is coming from the nose of the car.



Sorry about the quality on this one, but here's one last pic so you can see the welding work to seal the inside of the duct and the overall shape. The material is 6061-T6 Aluminum in 1/8" thickness. Thickness was chosen because of the removal of the one bolt. With the lip around the edge and the welding this thing is SOLID, and I would say it weighs something like 1-1.5 lbs. Sure would have been nice to go carbon fiber, but cost was prohibitive.



So, results? This setup now with Hawk Blue pads all the way around is capable of braking for 20-30 minute sessions even though I upped the power 10-15% with the pads getting better and better as they warm up. Not once have I had any sort of fade even over 4 days on the track. I also have used less than 1/2 one set of pads. Depending on the outside temp I actually tape off part of the ducts to get the rotors/pads up to operating temp! I'm going to switch pads simply because I don't like the corrosive dust, but that's more of a cosmetic deal.

To answer your original question, I think the thread you are talking about was the one I started last year...

https://www.rx7club.com/showthread.php?t=564700

However I think you should get proper ducting from the front of the car IN ADDITION to better race pads and titanium shims and you will be good to go. I spent probably twice as much last year on pads and rotors last year because I didn't get the proper setup in the first place, and the brakes were always questionable.
GooRoo is offline
Old 11-23-07, 11:59 PM
  #13
Senior Member

Join Date: Apr 2007
Location: Vancouver BC
Posts: 315
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by jantore View Post
Im running Ap 6 pot 330mm brakes in the front and stock in the rear. And i need more breaking power in the rear, right now it's way to much in the front compeard to the rear. So gonna go for either 99 spec, or the back break caliper system that has been posted on the forums.

JT
So kind of measurement did you take to come to the conclusion that you require bigger rear brakes as opposed to more rear bias?
wthx100 is offline
Old 11-24-07, 01:01 PM
  #14
Rotary Enthusiast
10 Year Member

John Magnuson's Avatar

Join Date: Dec 2002
Location: San Diego, CA
Posts: 1,147
Likes: 0
Received 0 Likes on 0 Posts
Hyperion,

I think you saw my street/track car setup at Laguna seca a couple weeks ago:

https://www.rx7club.com/3rd-generation-specific-1993-2002-16/pictures-my-custom-brake-duct-inlets-397125/

Wilwood SL-6 calipers with 13" rotors in front and '99 spec in back. N-tech brake ducts. Making about 350 RWHP (dynodynamics). Car weighs about 2750lbs without driver and can withstand continuous hard use at laguna seca for a whole weekend on one set of pads (something the stock brakes couldn't come close to doing)

I've been running pads by Raybestos which will last a LOT longer than the Porterfield R4 pads I used to use. Sometimes I can get several weekends out of a set - depending on the track.

On my other FD - a dedicated race car - I have AP racing front calipers and the 99spec rear. Front brakes are ducted. About 400rwhp and 2400lbs without driver. No fade issues at all - but I have not had this car at Laguna Seca which is certainly the hardest on brakes for a high HP car in California.
John Magnuson is offline
Old 11-24-07, 02:22 PM
  #15
Re-engineering everything
10 Year Member
Thread Starter
iTrader: (2)

Join Date: Feb 2002
Location: Bay Area, CA
Posts: 751
Likes: 0
Received 0 Likes on 0 Posts
Hey, John! Thanks for the post. I'm going to be at Laguna on the 4th with SpeedVentures and the 6th with TrackMasters. I had a decent test at Infineon with the Hawk pads so I'm going for broke (literally) at Laguna to see what they can do.

This time around I've got temperature strips for the calipers and heat-sensitive paint for the rotors. I should be able to determine whether or not I'm working in the optimum range for brakes.

I may do ducts anyway just to be able to tune the temps, but I'd really like to get this to work sans ducts if possible...

-ch
hyperion is offline
Old 11-24-07, 04:29 PM
  #16
Rotary Enthusiast
10 Year Member

John Magnuson's Avatar

Join Date: Dec 2002
Location: San Diego, CA
Posts: 1,147
Likes: 0
Received 0 Likes on 0 Posts
Good luck with your testing! I really liked your car - it is much better sorted out than most conversion cars and very clean.

I'd love to hit Laguna Seca again this year but I don't think I can make it happen. San Diego is kind of far.

- John
John Magnuson is offline
Old 11-25-07, 05:20 PM
  #17
Junior Member
5 Year Member

Rotary Kid's Avatar

Join Date: Mar 2006
Location: Florida
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
that brake cooling duct is awesome. does anybody make that for an FC?
Rotary Kid is offline
Old 11-25-07, 06:41 PM
  #18
RIP Mark
5 Year Member
iTrader: (2)

YaNi's Avatar

Join Date: May 2006
Location: Dublin, OH
Posts: 657
Likes: 0
Received 0 Likes on 0 Posts
Mazda Motorsports and AWR both sell brake ducts
YaNi is offline
Old 11-25-07, 09:07 PM
  #19
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,348
Received 43 Likes on 28 Posts
track brakes for a high hp FD.... are we there yet?

no.

the stock FD system is 68/32.

the RB system adds a huge uptick in rotor mass but is 70/30. the controlling issue being the need for an E brake therefore the required retention of the stock rear caliper.

the RB larger rear rotor helped by moving longitudinal balance from 71/29 to 70/30

i am overall delighted w the setup for the majority of FD owners. when combined w the ABS and, perhaps different pads front and rear you have a really nice setup.

a year ago when i first spoke w RB i was just looking for more rear brakes. i am still looking for more rear brakes.

going really fast on a road course requires alot of rear brakes, more rear weight, more rear rubber, and finally, the ability to adjust brake bias from the cockpit on the track. brakes can win poles and races.

i know. i have won 27 National SCCA Races in GT3, the June Sprints twice and have a 2nd at the Runoffs at Road Atlanta as well as 2 3rds and a 4th. i have held the lap record at Blackhawk Farms, Road America, Mid Ohio, Indianapolis Raceway Park, Brainerd and Road Atlanta.

there is a feel to maximum braking. the car hunkers down over the rear tires. it doesn't trip over it's nose.

you will never get there w a non-adjustable system. depending on the track during the race you may find yourself adjusting while racing.

back to the FD.

the bottom line is the car needs more rear piston area. a 4 piston rear caliper.... a caliper w 1 inch pistons would balance at 68/32. that's back to OEM but we need more. a 1.125 piston would be 63/37 w the RB rear rotor.

once we have too much rear it is simple to add a cockpit adjustable brake proportioning valve and de-emphasize until max braking is achieved.

i would like to run a RB caliper w smaller pistons if available. if not Wilwood makes a 1.125 4 piston that Max Cooper runs. i will adapt it to the RB rear rotor.

i plan to fixture an E brake and have some ideas that i will share as i get into the project.

the snow is about ready to fly in wisconsin and i will be addressing the brake issue this december.

howard coleman
Howard Coleman CPR is offline
Old 11-27-07, 10:53 AM
  #20
Rotary Freak
iTrader: (8)

Join Date: Oct 2004
Location: FL
Posts: 2,845
Received 2 Likes on 2 Posts
Originally Posted by howard coleman View Post
track brakes for a high hp FD.... are we there yet?

no.

the stock FD system is 68/32.

the RB system adds a huge uptick in rotor mass but is 70/30. the controlling issue being the need for an E brake therefore the required retention of the stock rear caliper.

the RB larger rear rotor helped by moving longitudinal balance from 71/29 to 70/30

i am overall delighted w the setup for the majority of FD owners. when combined w the ABS and, perhaps different pads front and rear you have a really nice setup.

a year ago when i first spoke w RB i was just looking for more rear brakes. i am still looking for more rear brakes.

going really fast on a road course requires alot of rear brakes, more rear weight, more rear rubber, and finally, the ability to adjust brake bias from the cockpit on the track. brakes can win poles and races.

i know. i have won 27 National SCCA Races in GT3, the June Sprints twice and have a 2nd at the Runoffs at Road Atlanta as well as 2 3rds and a 4th. i have held the lap record at Blackhawk Farms, Road America, Mid Ohio, Indianapolis Raceway Park, Brainerd and Road Atlanta.

there is a feel to maximum braking. the car hunkers down over the rear tires. it doesn't trip over it's nose.

you will never get there w a non-adjustable system. depending on the track during the race you may find yourself adjusting while racing.

back to the FD.

the bottom line is the car needs more rear piston area. a 4 piston rear caliper.... a caliper w 1 inch pistons would balance at 68/32. that's back to OEM but we need more. a 1.125 piston would be 63/37 w the RB rear rotor.

once we have too much rear it is simple to add a cockpit adjustable brake proportioning valve and de-emphasize until max braking is achieved.

i would like to run a RB caliper w smaller pistons if available. if not Wilwood makes a 1.125 4 piston that Max Cooper runs. i will adapt it to the RB rear rotor.

i plan to fixture an E brake and have some ideas that i will share as i get into the project.

the snow is about ready to fly in wisconsin and i will be addressing the brake issue this december.

howard coleman

Can't wait to see what you come up with. . .

:-) neil
M104-AMG is offline
Old 11-27-07, 11:25 AM
  #21
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
Chris,
I've treaded lightly in the RB brake thread, but my impression is that this doesn't need to be so difficult. I'm braking down from 155+ at VIR, 155 at WGI, and 150 at Summit with no significant issues.

That's a StopTech front, OE MC & rears, Ti backing plates, dedicated front ducting, AP 600 fluid, and PFC 01/97's. All in all a fairly pedestrian setup. I might upgrade the rear or the MC at some point, but it isn't urgent. Car is 2750 lbs, 345 whp, 285 hoosiers, running 2:12 at VIR, 2:13 at WGI.

Fritz has probably run every setup out there, and seemed to like either Porsches or Brembos, with whatever rears without too much problem, and he was coming down from 165 and running 2:08's in Brad's old car. That had Porsches & 99/willwood rears with a custom MC.
ptrhahn is offline
Old 05-29-08, 03:41 PM
  #22
Rotary Freak
iTrader: (8)

Join Date: Oct 2004
Location: FL
Posts: 2,845
Received 2 Likes on 2 Posts
Howard,

any progress on getting more rear brake bias now that you have a RB setup upfront ?

:-) neil
M104-AMG is offline
Old 06-01-08, 01:46 PM
  #23
Defined Autoworks
iTrader: (6)

FDWarrior's Avatar

Join Date: May 2007
Location: Ohio
Posts: 678
Likes: 0
Received 0 Likes on 0 Posts
Im planning on getting on the the track this summer. Im looking at a Project Mu brake setup. This thread is helpfull, thanks.
FDWarrior is offline
Old 06-02-08, 12:40 PM
  #24
****** of disaster
10 Year Member
iTrader: (1)

thetech's Avatar

Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes on 0 Posts
FWIW, I haven't had any actual braking problems using the stock FC brakes (same calipers as the FD but a smaller rotor). I just cracked a brake rotor but I'm pretty sure it's due to a defective rotor rather than anything else.

Car is 2450lbs wet (no driver), 530rwhp, 30-35 minute sessions.

I have the brakes well ducted very similarly to GooRoo's setup but using the AWR backing plates for the FC. I'm also going to be using some 3" NASCAR-type fans in the 3" hose to help.
thetech is offline
Old 12-08-09, 10:07 PM
  #25
Rotary Freak
iTrader: (8)

Join Date: Oct 2004
Location: FL
Posts: 2,845
Received 2 Likes on 2 Posts
Howard,

any update ?

:-) neil

Originally Posted by M104-AMG View Post
Howard,

any progress on getting more rear brake bias now that you have a RB setup upfront ?

:-) neil
M104-AMG is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Feffman
Midwest RX-7 Forum
1
09-01-15 07:30 AM
Professorpeanutrx7
New Member RX-7 Technical
5
08-15-15 01:38 PM
Feffman
Racing Kills Lounge
0
08-15-15 06:19 AM


Thread Tools
Search this Thread
Quick Reply: High-HP FD track car question


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
