heatsheilding and reflection materials

ok so considering the Horizontal Mount W/ducting and fans im working on my car.....i was considering my options for lowering enginebay heat...to minimize the amnt of heatsoak the cooling stuff will deal with...

now a few things...

1. i do NOT want to go to water to air...as thats more electronics that can fail...ontop of the resevior i dont want weight balance thrown off

2. the intercooler and radiator are ducted for outside air via .040 5052 aluminum...


ok so ....i figured wrapping the downpipe with exhuast wrapp would be good...and sheilding the charge piping AFTER the intercooler before the throttle body...and leaving the piping tahts from the turbo to the intercooler unwrapped because i presume taht it radiates more heat than it takes in

(in an effort to have lower intake temps)

also an aluminum airbox thats sheilding duct work into the fender and front headlight...area to gulp up cooler air

..SO.... should i use relective foil tape for the airbox? and sheild the intake air via foil refelective tape?

i hope u guys get my idea....thanks for the intel!
--MAstermind-- is offline
Old 08-01-06, 06:27 PM
  #2
Senior Member
5 Year Member

Join Date: Feb 2006
Location: mooresville
Posts: 454
Likes: 0
Received 0 Likes on 0 Posts
well you have two options for reflective sheilding. cheap,expensive...

cheap..... but works pretty good. thick cardbord with good sized airgap between layers covered in aluminum tape

expensive and only work's a little better. gold adhesive heat sheild, tyvex, Nasa panels all of which are can be found through either BSR products, CV products, or any number of race supply house's
sereneseven is offline
Old 08-02-06, 10:47 AM
  #3
Banned. I got OWNED!!!
Thread Starter

Join Date: May 2004
Location: San Antonio
Posts: 778
Likes: 0
Received 0 Likes on 0 Posts
thanks for the input!!!!!!!! any other suggestions?!
--MAstermind-- is offline
Old 08-02-06, 11:28 AM
  #4
Haven't we ALL heard this
15 Year Member

Wankel7's Avatar

Join Date: Mar 2001
Location: Indiana
Posts: 3,948
Likes: 0
Received 0 Likes on 0 Posts
I have been wondering the same thing...the cold pipe coming off my fmic get so toasty from the heat around them.

Wonder if it would do any good to wrap the piping in exhaust wrap?

James
Wankel7 is offline
Old 08-02-06, 12:19 PM
  #5
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Wankel7
I have been wondering the same thing...the cold pipe coming off my fmic get so toasty from the heat around them.

Wonder if it would do any good to wrap the piping in exhaust wrap?

James
What counts is intake air temps. Air moves through that pipe so quickly that the air isn't suddenly heating up again after leaving the intercooler. You won't see a difference in AIT by trying to sheild that pipe. The pipe can be 1000 degrees but if the AIT is good why bother?
DamonB is offline
Old 08-02-06, 02:41 PM
  #6
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
Header wrap on the downpipe will cool your engine bay down a bit, rotary exhaust is HOT.

Originally Posted by DamonB
What counts is intake air temps. Air moves through that pipe so quickly that the air isn't suddenly heating up again after leaving the intercooler. You won't see a difference in AIT by trying to sheild that pipe. The pipe can be 1000 degrees but if the AIT is good why bother?
You're probably right on that one, though no matter how fast the air is moving, some heat will make its way into the air, especially on really hot days when everything in the engine bay is getting heat soaked. Whether it's enough to matter is something that could be tested by someone with a scientific inclination and a little free time. I'd wager that it's probably worth the few ounces of weight it would add.
Gene is offline
Old 08-02-06, 02:54 PM
  #7
Haven't we ALL heard this
15 Year Member

Wankel7's Avatar

Join Date: Mar 2001
Location: Indiana
Posts: 3,948
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DamonB
What counts is intake air temps. Air moves through that pipe so quickly that the air isn't suddenly heating up again after leaving the intercooler. You won't see a difference in AIT by trying to sheild that pipe. The pipe can be 1000 degrees but if the AIT is good why bother?
I see what you are saying on that...the pipe into the intake gets so hot I can't touch it...I would imagine that would do something to the intake temps. I guess there is only one way to find out...i need to test it

James
Wankel7 is offline
Old 08-02-06, 03:47 PM
  #8
Banned. I got OWNED!!!
Thread Starter

Join Date: May 2004
Location: San Antonio
Posts: 778
Likes: 0
Received 0 Likes on 0 Posts
well i have decided that with my coming Rtek...ill test the temp differences before and after!

it uses the AFM and the throttle body air temp sensor....SO ill test that!

ill first drive it as it is...(ill take pics of that setup) and log OUTSIDE air temps night and day...log that and use the logs from the Rtek to chart my data!

THEN ill finish up my aluminum intake enclousre and suck air from fender well.... test that and then test the downpipe and turbo wrapped versions....and log all data! night and day!

THEN we shall see how it does.....

Last edited by --MAstermind--; 08-02-06 at 03:52 PM.
--MAstermind-- is offline
Old 08-02-06, 03:48 PM
  #9
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
I bet the amount of heat that this intercooler pipe could ever dream to add even on a terribly hot day is absolutely nothing compared to what the hot aluminum intake manifold on top of the engine adds after the air has already passed through that pipe...

Originally Posted by Wankel7
I see what you are saying on that...the pipe into the intake gets so hot I can't touch it...
So does the throttle body, UIM, LIM and the block. They have a tremendously greater ability to add heat to the intake air because they are much more massive and therefore hold more heat. If you don't change these it's pointless to worry about the pipe IMO; it's nothing in the scheme of things. If you want to make this a just for the hell of it scientific project your focus should be on the much more massive and dense intake manifolds rather than the ic piping.

If I wanted to test what the pipe can do to AIT I wouldn't experiment with sheilding or wrapping, I'd head 180 degrees opposite. Freeze the pipe inside ice and then perform pulls. If a frozen pipe doesn't offer lower AIT than a merely wrapped or sheilded pipe sure won't either. The places to make gains in AIT are the intercooler itself and the intake manifold.

Last edited by DamonB; 08-02-06 at 03:59 PM.
DamonB is offline
Old 08-04-06, 06:11 PM
  #10
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
Thin stainless steel

I had an issue with heat from the turbo soaking the passenger side brake lines in my road race 2nd Gen. I built a thin stainless heat shield around the turbo turbine. A small bit of ducting in the front signal light hole to direct cold air and the intake and brake lines are much cooler.

-Trent
TrentO is offline
Old 08-05-06, 10:36 AM
  #11
Big Snail
5 Year Member

93FD3S's Avatar

Join Date: Dec 2001
Location: San Antonio
Posts: 1,230
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Wankel7
I have been wondering the same thing...the cold pipe coming off my fmic get so toasty from the heat around them.

Wonder if it would do any good to wrap the piping in exhaust wrap?

James

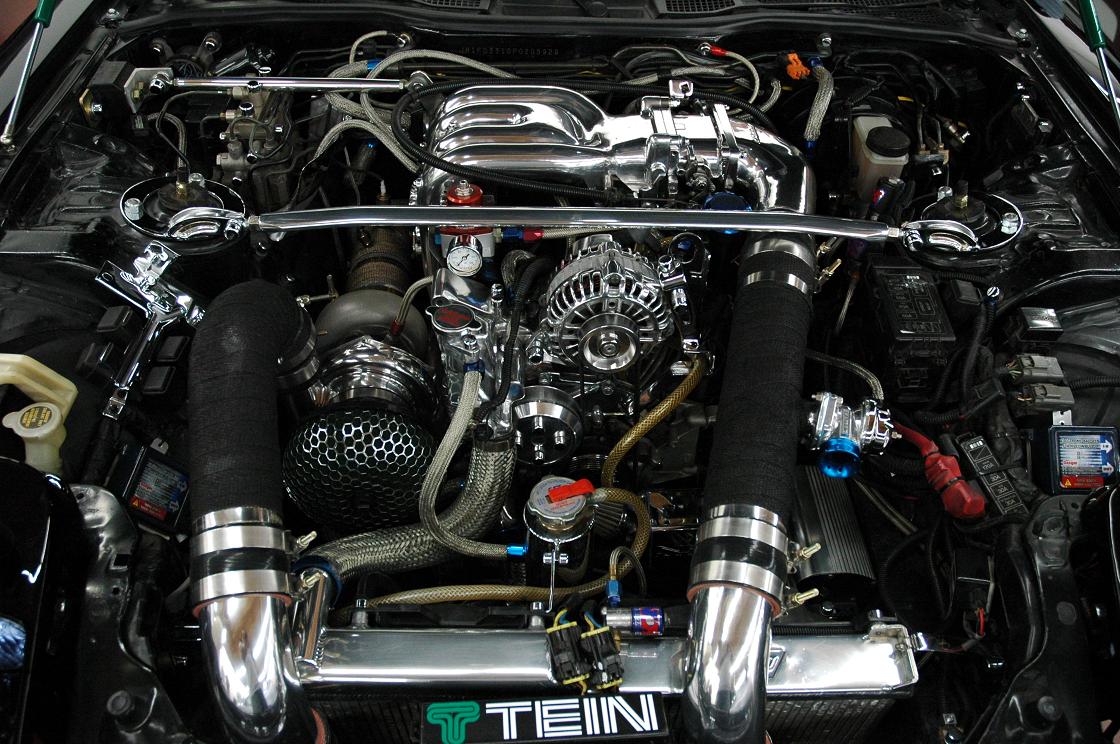

I'm running 3" intercooler piping with heat wrap on them. I was actually surprised to see a noticeable difference in AIT. I'm in south Texas and on a hot 100 degree day I noticed a 3-4 C drop in AIT (PFC reading). I have both the hot and cold pipes wrapped. The results really surprised me. I was hesitant at first because I didn't want to cover up my nicely polished intercooler piping. With those results I'm willing to sacrifice a little bling in my engine bay.

Heres a pic...
Attached Thumbnails heatsheilding and reflection materials-rx7-engine.jpg
93FD3S is offline
Old 08-05-06, 12:50 PM
  #12
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
Couldn't you acheive the same result (only prettier) by ceramic coating those pipes instead?




Originally Posted by 93FD3S
I'm running 3" intercooler piping with heat wrap on them. I was actually surprised to see a noticeable difference in AIT. I'm in south Texas and on a hot 100 degree day I noticed a 3-4 C drop in AIT (PFC reading). I have both the hot and cold pipes wrapped. The results really surprised me. I was hesitant at first because I didn't want to cover up my nicely polished intercooler piping. With those results I'm willing to sacrifice a little bling in my engine bay.

Heres a pic...
ptrhahn is offline
Old 08-05-06, 01:24 PM
  #13
Big Snail
5 Year Member

93FD3S's Avatar

Join Date: Dec 2001
Location: San Antonio
Posts: 1,230
Likes: 0
Received 1 Like on 1 Post
Originally Posted by ptrhahn
Couldn't you acheive the same result (only prettier) by ceramic coating those pipes instead?
Yes but I would of had to pay shipping to Dallas and it would of cost at least 4 times more. It wouldn't of been cost effective. I spent a total of 25 bucks for that mod.
93FD3S is offline
Old 08-07-06, 12:48 PM
  #14
Senior Member
10 Year Member

Rx_treme's Avatar

Join Date: Feb 2001
Location: Glendale, AZ
Posts: 337
Likes: 0
Received 0 Likes on 0 Posts
No I've had my pipes both. First they were wrapped then I paid $$$ to have them all ceramic coated and AIT went up very slightly (2c) but not worth the money.
Rx_treme is offline
