Race Car Tech Discuss anything related to road racing and auto X.

Is this a full bridge?? What carb?

Old 12-25-17, 05:32 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
Is this a full bridge?? What carb?

Bought a 13b 6 port rebuilt engine and seller said full bridge with ported turbo exhaust.

I'm trying to determine what carburetor I need for endurance racing.

Is this a full bridge? He gave me a used 650 Holley. If that works, what jets?

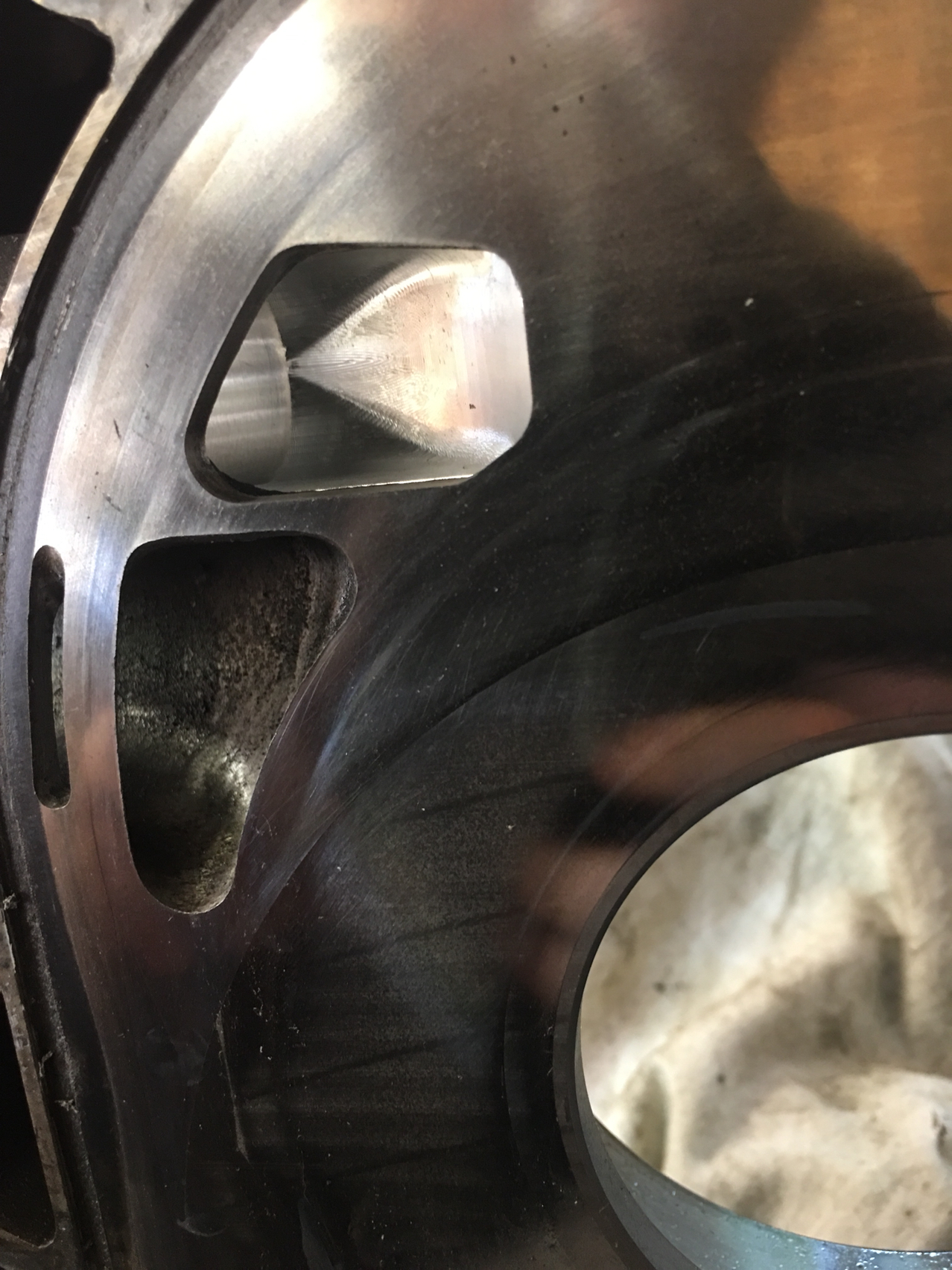

Is this a full bridge?? What carb?-photo324.jpg
shadow993 is offline
Old 12-25-17, 08:41 PM
  #2
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,988
Liked 124 Times in 103 Posts
Pics of other two irons?
GoodfellaFD3S is offline
Old 12-26-17, 12:20 AM
  #3
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
That's all I have. I didn't save the others.

I only ask , bc other pics of full bridge have another eyebrow.

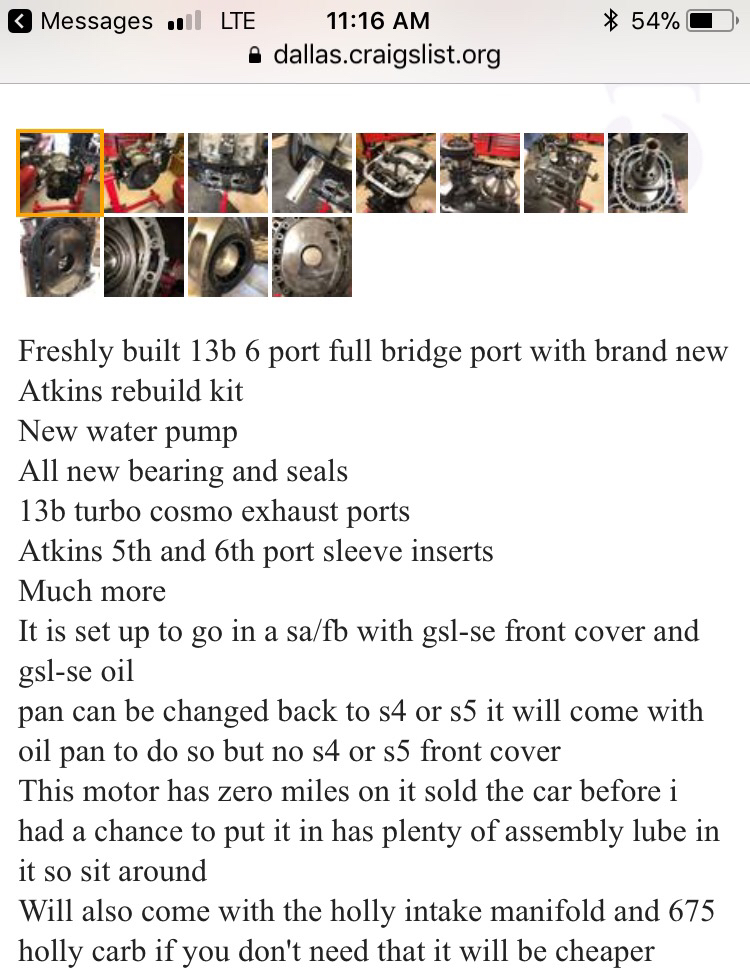

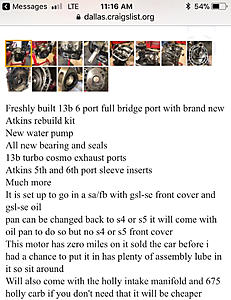

Here is the description... Is this a full bridge?? What carb?-photo43.jpg
shadow993 is offline
Old 12-26-17, 06:35 PM
  #4
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,652
Liked 37 Times in 34 Posts
"Full bridge" generally means primary and secondary ports are ported.

I haven't had a 6 port half bridge that felt all that great. They had nice mid range power but nothing like a four port. I tried several different methods of bridge porting, I had something like four different iterations of 6 port bridge.
peejay is offline
Old 12-26-17, 07:29 PM
  #5
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
He did a great job porting everything.

Based on this site... http://www.mazdarotary.net/porting.htm

It looks like he did a full bridge. Since this will be a track car, my only concern is fuel economy.
shadow993 is offline
Old 12-29-17, 03:35 PM
  #6
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
Ok... he said he left the 5th and 6th port alone , but did Atkins insert.

This is a pic of what he did. He bridged and ported all plates with the exception above.

Is this a full bridge?? What carb?-photo446.jpg

Last edited by shadow993; 12-30-17 at 06:57 AM.
shadow993 is offline
Old 12-30-17, 09:14 AM
  #7
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,652
Liked 37 Times in 34 Posts
Run it if you got it. I would never waste time bridge porting anything with '86-up side housings unless I was willing to cut the coolant seal, which I am not.
peejay is offline
Old 12-30-17, 11:54 AM
  #8
DPG Burnout
iTrader: (51)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,057
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by peejay View Post
Run it if you got it. I would never waste time bridge porting anything with '86-up side housings unless I was willing to cut the coolant seal, which I am not.
exactly! early 4 port engine or even T2 irons would have been way better to start with. what did you pay for that engine?
rotorholic is offline
Old 12-30-17, 12:16 PM
  #9
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
It's going to be a chump/lemon car, so I needed a fresh build.

$1000
shadow993 is offline
Old 12-30-17, 12:37 PM
  #10
DPG Burnout
iTrader: (51)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,057
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by shadow993 View Post
It's going to be a chump/lemon car, so I needed a fresh build.

$1000
You might be doing this twice soon, I couldn't build my own engine for a $1000 with buying a full rebuild kit and buying a good usable core, let us know how it goes after the first outing
rotorholic is offline
Old 12-30-17, 01:53 PM
  #11
Junior Member
Thread Starter

Join Date: Nov 2017
Location: plano
Posts: 26
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rotorholic
You might be doing this twice soon, I couldn't build my own engine for a $1000 with buying a full rebuild kit and buying a good usable core, let us know how it goes after the first outing
He's an RX7 nut, and just wanted his cost out of it.

He built it for his own car, so it's an honest build. He sold his FB before he could drop it in ...to someone that couldn't live without it. He also has an S4, and is going to drop a LS in it, so he's just raising funds for it.

He has cores and rotors throughout his garage.
shadow993 is offline
