FC Lexan side windows - mounting options

Old 06-06-12, 12:36 PM
  #1
Full Member
Thread Starter

Join Date: Mar 2002
Location: NC
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
NC FC Lexan side windows - mounting options

I'm looking to strip out the windows, but still have something there for towing or storage. I'd rather not fool with getting lexan to roll up/down without scratching. Have some of you mounted lexan to the frame? Have some photos and/or suggestions?
bradg is offline
Old 06-06-12, 11:01 PM
  #2
Banned. I got OWNED!!!
iTrader: (1)

Join Date: Jun 2006
Location: Denver
Posts: 697
Likes: 0
Received 0 Likes on 0 Posts
I use C channel aluminum to form a pair of guides to allow the lexan to slide up and down and use a nylon strap as a pull.
D Walker is offline
Old 06-06-12, 11:42 PM
  #3
FD pro licensed driver
10 Year Member
iTrader: (3)

TweakGames's Avatar

Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by D Walker View Post
I use C channel aluminum to form a pair of guides to allow the lexan to slide up and down and use a nylon strap as a pull.
Would love to see some pictures of your setup.
TweakGames is offline
Old 06-07-12, 09:15 AM
  #4
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Received 3 Likes on 3 Posts
I use the stock channels and have a longer than normal window. This allows me to push the window up from the bottom and it still fits into all the stock tracks and seals. This allows me to close the window when I need to wash the car or for overnights at the track and just push down on it to open it. If I want to save the 2 lbs (max), I just have to lift the back up first and it twists out of the frame super easy. I do the same thing on the Passnger side, but have 2 holes in the bottom that allows me to bolt it in with just the 2 bolts. It has been this way for over 10 years and works great.

The window is the same as a stock window, but longer in height.

Eric
23Racer is offline
Old 06-07-12, 12:12 PM
  #5
Full Member
Thread Starter

Join Date: Mar 2002
Location: NC
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 23Racer View Post
I use the stock channels and have a longer than normal window. This allows me to push the window up from the bottom and it still fits into all the stock tracks and seals. This allows me to close the window when I need to wash the car or for overnights at the track and just push down on it to open it. If I want to save the 2 lbs (max), I just have to lift the back up first and it twists out of the frame super easy. I do the same thing on the Passnger side, but have 2 holes in the bottom that allows me to bolt it in with just the 2 bolts. It has been this way for over 10 years and works great.

The window is the same as a stock window, but longer in height.

Eric
When you same it's the same as stock, you mean it's glass or lexan? If it's glass, where did you find one the same as OE except taller?
bradg is offline
Old 06-07-12, 12:16 PM
  #6
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by bradg View Post
When you same it's the same as stock, you mean it's glass or lexan? If it's glass, where did you find one the same as OE except taller?
Its a lexan window, sorry for not being clearer.

Eric
23Racer is offline
Old 06-07-12, 12:53 PM
  #7
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Received 3 Likes on 3 Posts
Here is a shot of the passenger side. You can see how it fits into the tracks and can't go up and down as somebody stuck a NACA duct into the window, LOL. It is nice and clean and a bit lighter than stock.

Eric
Attached Thumbnails FC Lexan side windows - mounting options-1024xsigmata1_2012charlesspivak-4799.jpg
23Racer is offline
Old 06-08-12, 10:20 PM
  #8
Formerly known as 25BP

25XP's Avatar

Join Date: Oct 2011
Location: NorCal
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
When you strip the door clean from all of the moldings it leaves a very nice surface ridge to mount the lexan window. I simply made a lexan window to fit the opening and drilled holes into it while it was secured in place with tape. Then I drilled slightly larger holes in the lexan to avoid cracking it and used machine screws to secure it into the door. I can easily remove the window at an event, and it holds tight during towing.
I painted the inside of the lexan black around the edge to simulate an actual window and use black screws. Simply to give the appreance of an actual window. You can add a thin strip of weather stripping if you want to attempt to get a better seal, however it almost is impossible unless you have many mounting screws.
Hope it helps,
25XP
25XP is offline
Old 06-09-12, 12:10 PM
  #9
Full Member
Thread Starter

Join Date: Mar 2002
Location: NC
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 25XP View Post
When you strip the door clean from all of the moldings it leaves a very nice surface ridge to mount the lexan window. I simply made a lexan window to fit the opening and drilled holes into it while it was secured in place with tape. Then I drilled slightly larger holes in the lexan to avoid cracking it and used machine screws to secure it into the door. I can easily remove the window at an event, and it holds tight during towing.
I painted the inside of the lexan black around the edge to simulate an actual window and use black screws. Simply to give the appreance of an actual window. You can add a thin strip of weather stripping if you want to attempt to get a better seal, however it almost is impossible unless you have many mounting screws.
Hope it helps,
25XP
Yep, this is sort of what I had in mind. Any photos handy?
bradg is offline
Old 06-09-12, 09:13 PM
  #10
Formerly known as 25BP

25XP's Avatar

Join Date: Oct 2011
Location: NorCal
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts

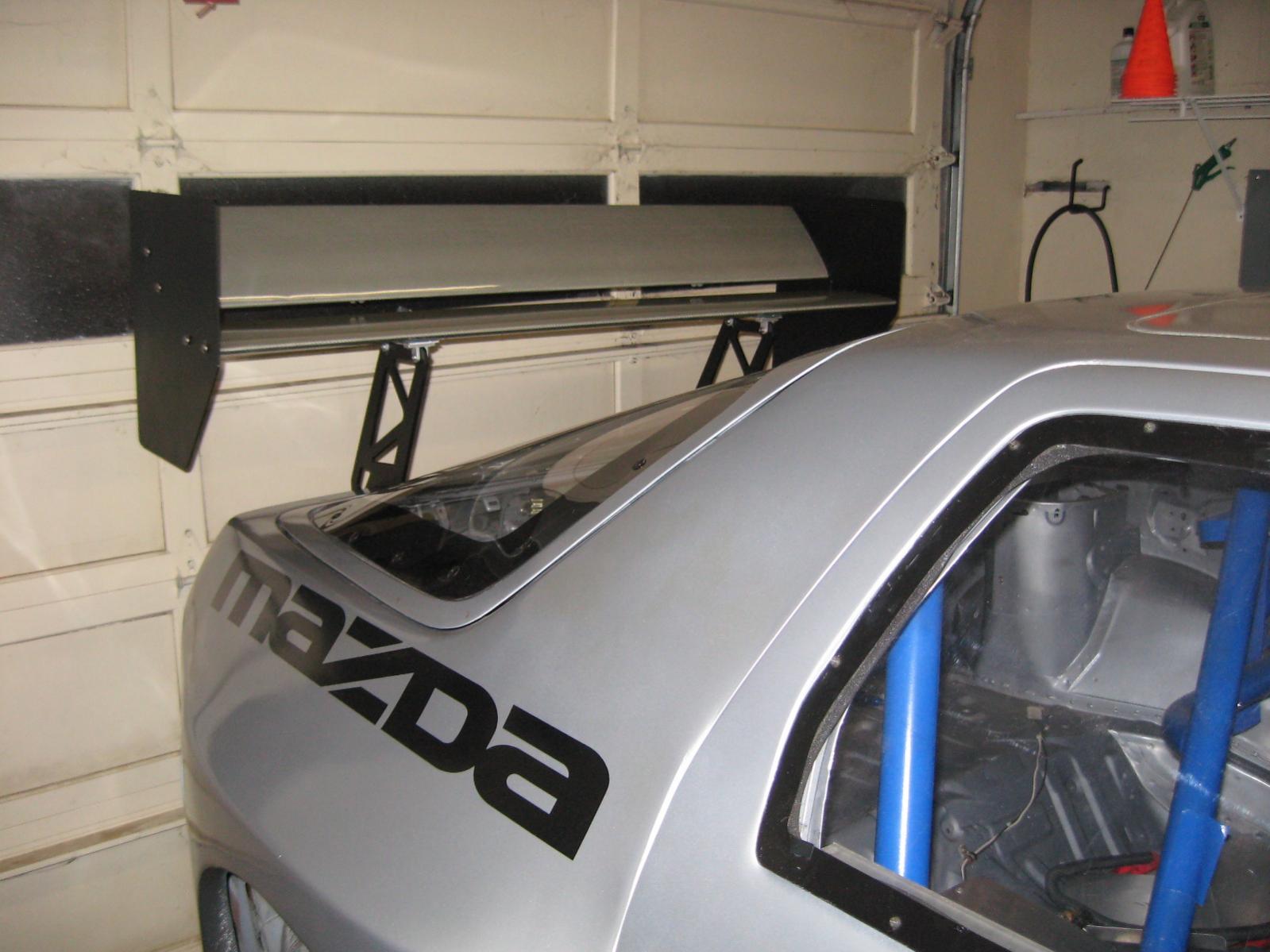

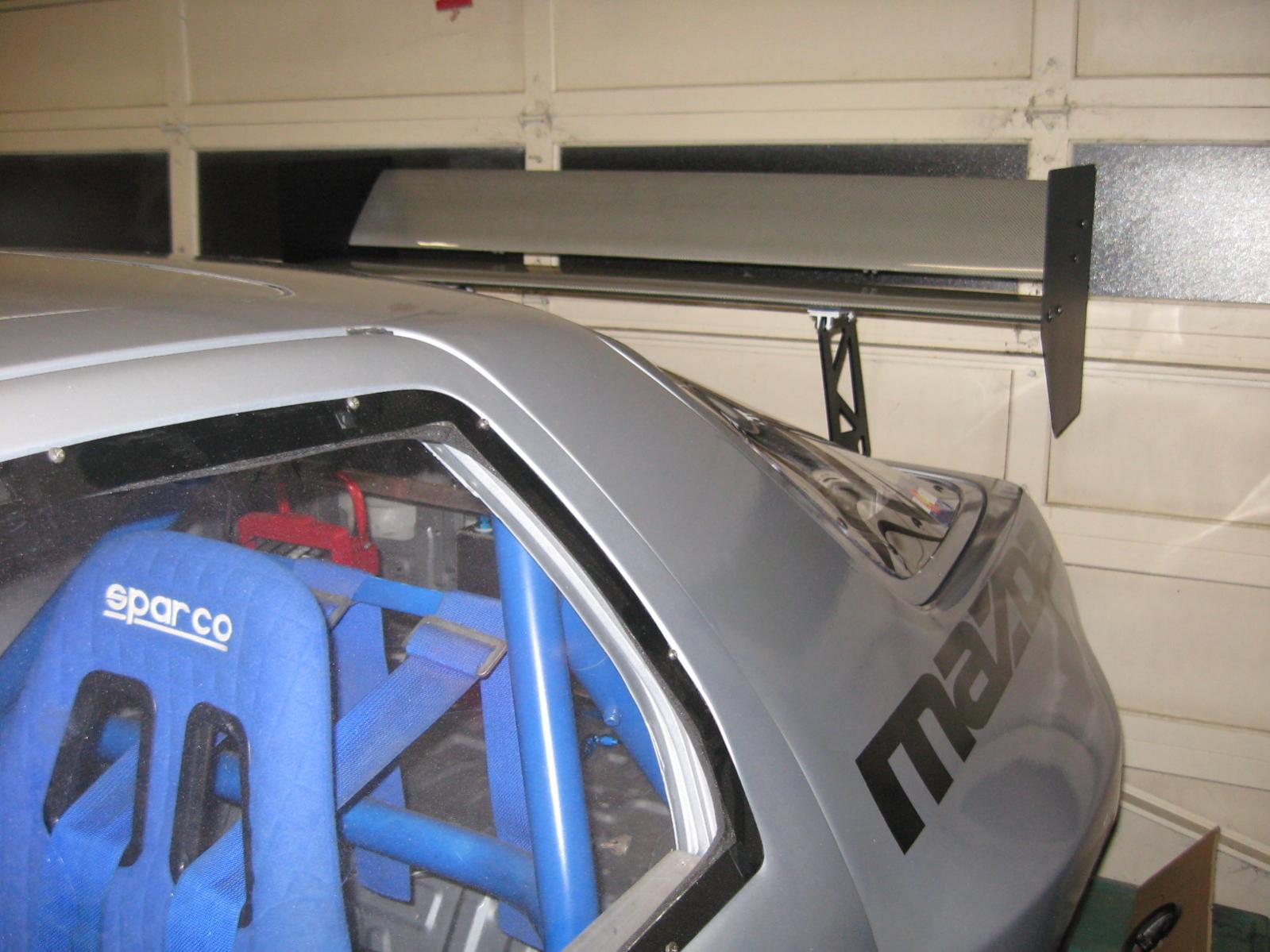

Not the best picture and the car is at Tri-Point right now, but you get the idea.
25XP
Attached Thumbnails FC Lexan side windows - mounting options-img_1224.jpg   FC Lexan side windows - mounting options-img_1222.jpg
25XP is offline
Old 06-10-12, 12:43 AM
  #11
Rotary Freak
10 Year Member
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
do you take the window off every event? seems like it would be kind of a pita with all the screws
Josh18_2k is offline
Old 06-10-12, 01:54 AM
  #12
Formerly known as 25BP

25XP's Avatar

Join Date: Oct 2011
Location: NorCal
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
There is already some assembly required at events such as the mounting the rear wing and the front splitter/air dam. There are only about 10 screws per window and they are small machine screws that zip in and out pretty quick and easily.
It only takes a few minutes.
I keep the passenger window in place unless it's just too hot out.
25XP
25XP is offline
Old 06-10-12, 07:03 PM
  #13
Full Member
Thread Starter

Join Date: Mar 2002
Location: NC
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Awesome. Thanks!
bradg is offline
