EWP users

Hi guys
Just recently fitted a Mezier EWP and new Davies Craig controller. What are people's water temps when driving? I'm having to block over 1/2 the rad off to try and get temps up to mid 80's. I have only just started running a new engine in so revs only upto 3500 and no boost. It water temps are not stable.

Anybody else having the same issues?

Cheers Mark
marky. is offline
Old 06-08-15, 09:20 AM
  #2
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,878
Received 24 Likes on 22 Posts
Do you have pictures of the install?
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 06-08-15, 11:22 AM
  #3
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts

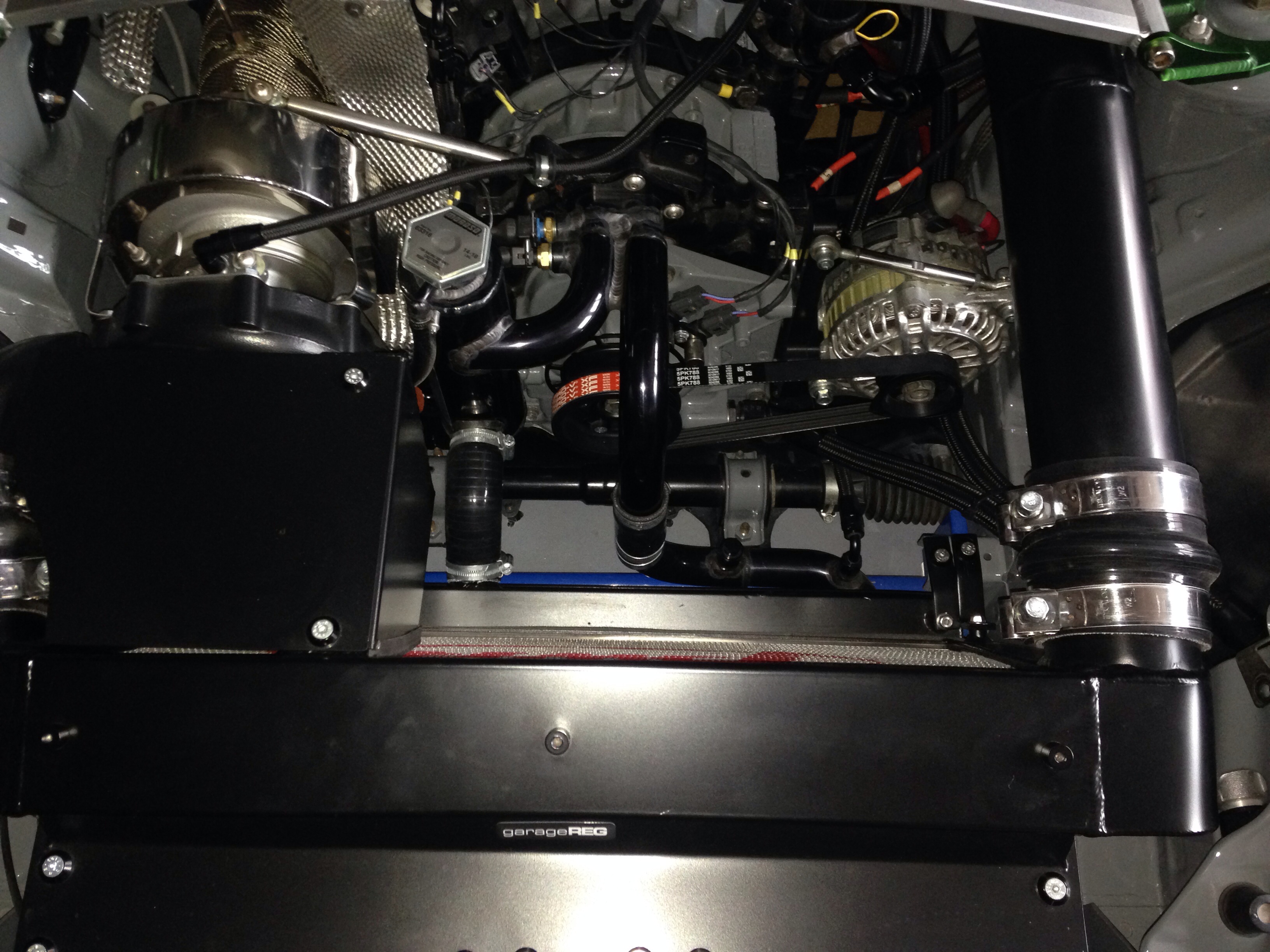

Yes running a v mount set up you can see how much of the rad is blocked off. You can 't see the pump as it's mounted out the way. New Davies Craig controller mounted in car and set to to run at 90 degrees
Attached Thumbnails EWP users-image.jpg
marky. is offline
Old 06-08-15, 11:24 AM
  #4
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts

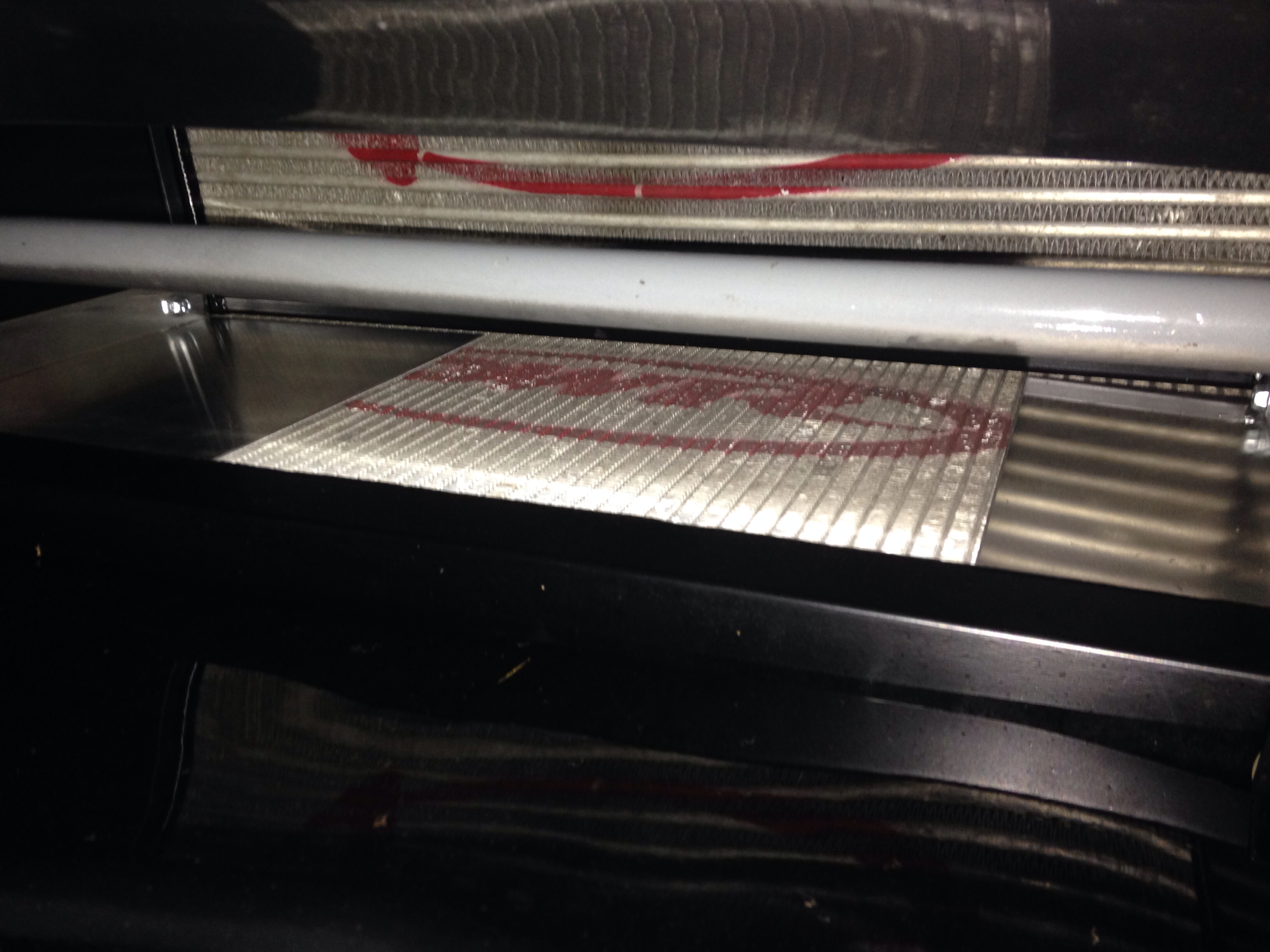

One of the rad blocked off
Attached Thumbnails EWP users-image.jpg
marky. is offline
Old 06-08-15, 11:45 AM
  #5
Rotary Freak
iTrader: (6)

Monsterbox's Avatar

Join Date: Jun 2006
Location: Birmingham, Al
Posts: 2,914
Received 56 Likes on 34 Posts
I'm not having issues, but I have a 20b w/ FMIC and I also haven't blocked off the bypass port. After blocking the bypass port we'll see if it gets any cooler. Maybe you need to raise your threashold on the fan controller?
Monsterbox is offline
Old 06-08-15, 12:16 PM
  #6
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Ok cheers I have set the controller at 95 degrees now so will see what happens. What is yours set to?
Cheers Mark
marky. is offline
Old 06-08-15, 03:19 PM
  #7
B O R I C U A
iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,370
Received 8 Likes on 8 Posts
Sorry, don't have any experience, but I do have a question. Who made the side alternator mount?
KNONFS is offline
Old 06-08-15, 03:35 PM
  #8
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
The bracket was made by a machining shop here in the uk. Couldn't find anything available for the FD front cover as most were for the FC front cover
marky. is offline
Old 06-09-15, 11:46 AM
  #9
Senior Member
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 339
Likes: 0
Received 0 Likes on 0 Posts
My application is a bit different since my radiator is rear mounted, but I would set your threshold higher.
DaveEstey is offline
Old 06-09-15, 12:44 PM
  #10
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Would you got to 100 degrees then?
marky. is offline
Old 06-09-15, 04:14 PM
  #11
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Just been out again tonight and set controller to 95 then to the Max at 100. Cruising along at 60-70 with an air temp of around 13 degrees the water temps range from 70ish to 80. When at a stop they rise slowly to 90 but once moving again drop quickly to 70 and sometimes lower. Don't know what else to do apart from block more of the rad off, there is only about 200mm left of open fins now?
marky. is offline
Old 06-13-15, 10:36 AM
  #12
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Anybody have any ideas at all?

Cheers Mark
marky. is offline
Old 06-13-15, 11:11 AM
  #13
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,828
Received 12 Likes on 11 Posts
Are you running a thermostat?
gracer7-rx7 is offline
Old 06-13-15, 01:30 PM
  #14
Senior Member
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 339
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gracer7-rx7 View Post
Are you running a thermostat?
You don't run a thermostat with these.

Where is your water temp sensor placed?
DaveEstey is offline
Old 06-13-15, 11:45 PM
  #15
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
The water temp sensor is placed at the front of the engine on the outlet pipe around where the original thermostat would be
marky. is offline
Old 06-14-15, 10:42 AM
  #16
10000 RPM Lane

Join Date: Oct 2006
Location: on the rev limiter
Posts: 184
Received 4 Likes on 4 Posts
It has nothing to do with the fan set point.

At 13*C/55*F air temp even on my Renesis RX8 with 83*C/180*F T-stat, OE radiator, & OE water pump it will run about the same temp as yours when cruising. I'd say it's normal with low air temperature and low engine load when there is air moving across the radiator.
TeamRX8 is offline
Old 06-14-15, 03:11 PM
  #17
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Will have to see when I've finished running the motor in and see what happens when it's run with some boost. Hopefully can take some of the blanking plates off
marky. is offline
Old 06-16-17, 01:55 PM
  #18
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
So a bit of a thread revival lol.
How is everybody getting on now with there EWP set ups? Any info or feedback at all?
Is it just case my mezier pump (55gpm) is pumping too much water through as I believe the DC 150 pump flows at (39.63gpm)
Is anyone else having to block off their radiator at all?
Thanks Mark
marky. is offline
Old 06-17-17, 10:28 PM
  #19
Full Member
iTrader: (5)

T2 vert's Avatar

Join Date: Jul 2001
Location: Bedford, Texas
Posts: 176
Likes: 0
Received 1 Like on 1 Post
Read this good info on installing a thermostat that should help you

https://www.rx7club.com/3rd-generati...ic+water+pumps
T2 vert is offline
Old 06-19-17, 03:18 PM
  #20
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
Ok thanks will do
marky. is offline
Old 06-20-17, 06:58 PM
  #21
Full Member
Thread Starter

Join Date: Sep 2008
Location: England
Posts: 126
Received 0 Likes on 0 Posts
I have been in touch with Davies Craig and they have advised the pump is pumping too much water hence the cool temps. They have said to block off one of my ally water pipes and then drill 2 5 mm holes in the plate for the water to be restricted and it will be a case of trial and error now, may need a few more holes to stabilise the temps and restrict flow slightly
marky. is offline
Old 11-02-17, 10:52 PM
  #22
Rotary Enthusiast
iTrader: (1)

Join Date: Dec 2004
Location: california
Posts: 764
Received 1 Like on 1 Post
Not sure if right thread, but has anyone verified the temp calibration on the Craig Davies EWP and the stock water temp sensor?
The location of my EWP temp sensor is on the outlet neck (where the cap goes and where you install the thermostat)
So essentially ~4" from the stock temp sensor on the back of the water pump. You can see both sensors.
The thermostat is bypassed.

The EWP sees higher temps, about 20 degrees more or so.
I am using the stock water temp sensor and calibration on the adaptronic.

Earlier today testing, below were the temps
EWP water temp 200*F
Stock water temp 180*F
Oil Pedestal Temp ~160*F
Ambient Temp ~60*F

The problem is the EWP alarm goes off at about 200*F, before my fans even come on.
