Building peripheral port housings/question

Race Car Tech Discuss anything related to road racing and auto X.

Building peripheral port housings/question

Old 01-06-16, 09:46 AM
  #1
'86 Can-Am
Thread Starter

seann's Avatar

Join Date: Sep 2005
Location: markdale, ont, canada
Posts: 29
Likes: 0
Liked 0 Times in 0 Posts
Building peripheral port housings/question

Anyone doing this, are you welding the tube to the inner surface of the rotor housing, and if so, what alloy?

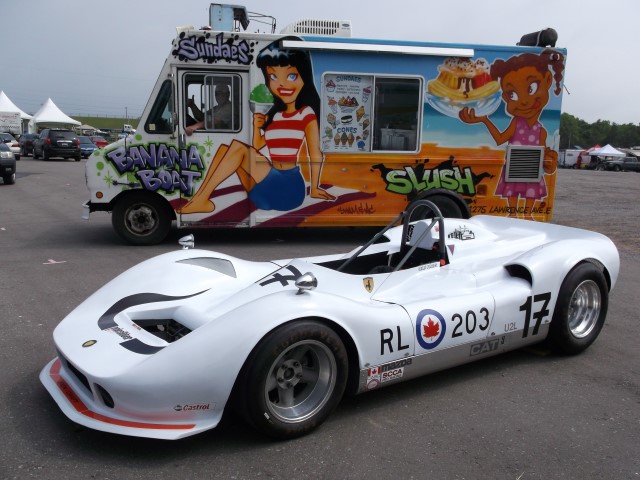

Attached Thumbnails Building peripheral port housings/question-dscf1622-copy-small-.jpg
seann is offline
Old 01-06-16, 11:15 AM
  #2
F'n Newbie...
iTrader: (5)

fendamonky's Avatar

Join Date: Sep 2006
Location: Nokesville, Va
Posts: 3,254
Liked 43 Times in 31 Posts
Call up Chip Ursu. He's kinda expensive, but his stuff is artwork!!

https://www.facebook.com/Chips-Motor...055/?pnref=lhc
fendamonky is offline
Old 01-07-16, 07:42 PM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,398
Likes: 0
Liked 108 Times in 98 Posts
the Japanese tuner method seems to work really well. you mill the hole for the port, and then you mill a slightly larger hole for the sleeve. there is enough meat that the sleeve can then have a flat end, and sit flat on the lip that you just machined in. there is a thread on the sleeve and outer housing wall. then it all gets sealed up with the material of your preference.

welding on the housing is not ideal, you don't want to warp it
j9fd3s is online now
Old 01-09-16, 08:21 AM
  #4
Coming to a track near u!
iTrader: (5)

RacerJason's Avatar

Join Date: Sep 2001
Location: Toronto
Posts: 3,855
Liked 2 Times in 1 Post
We use Chips or Guru for our housings. On the pricey side but saves time.
RacerJason is offline
Old 01-09-16, 09:42 AM
  #5
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,652
Liked 37 Times in 34 Posts
Key is that the sleeve really should be a close tolerance fit if not a press fit. The P-port that I built was a loose fit, and the housings crushed a few thou at the intake port because nothing was supporting it and I took the ports to within 12-13mm of the sides. No strength.
peejay is offline
