boxing in frame rails

Hey, i was searching around and found this for MIatas http://flyinmiata.com/index.php?dept=15

That is real nice, Anyone sell or fabricate this sort of stuff?

I need to measure my buddies miata, but what are the chances this thing fits a 2nd gen rx7? Just the frame rail part, not the middle

Last edited by initial D is REAL!; 04-03-08 at 02:53 AM.
initial D is REAL! is offline
Old 04-03-08, 10:32 AM
  #2
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
Measure it and post your results, this could be pretty useful. The autoexe product listed here at corksport might fit the bill too:

http://corksport.com/store/category/...sion_misc.html
Gene is offline
Old 04-03-08, 12:04 PM
  #3
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
I've got to wonder how much benefit there is to these in a non-convertable car.
ptrhahn is offline
Old 04-03-08, 12:40 PM
  #4
Senior Member
iTrader: (3)

Join Date: Mar 2007
Location: Orrtanna,Pa
Posts: 276
Likes: 0
Received 1 Like on 1 Post
Drag racers do this all the time. If you make enough torque and launch har you can actually twist the chassis on many cars. If you put in a rollcage it won't really help to dbox the frame rails unless they are weak or damaged.
Don49 is offline
Old 04-03-08, 01:14 PM
  #5
Rotary Enthusiast
Thread Starter

initial D is REAL!'s Avatar

Join Date: Mar 2007
Location: Pasadena
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ptrhahn View Post
I've got to wonder how much benefit there is to these in a non-convertable car.
Another reason I wouldnt mind this mod is because my frame rails are dented up from people not raising and supporting the car correctly.

Im sure it still helps a lot even though most of us have coupes
initial D is REAL! is offline
Old 04-03-08, 01:56 PM
  #6
Rotary Enthusiast
5 Year Member
iTrader: (1)

ZeroDrift's Avatar

Join Date: Sep 2005
Location: San Luis Valley
Posts: 770
Likes: 0
Received 0 Likes on 0 Posts
Look into stiffening the chassis with foam. I helped my girlfriend do that to her Miata, and I've done it to my FC. It really made a big difference in both cars, but most notable in her Miata.
ZeroDrift is offline
Old 04-03-08, 02:36 PM
  #7
RIP Mark
5 Year Member
iTrader: (2)

YaNi's Avatar

Join Date: May 2006
Location: Dublin, OH
Posts: 657
Likes: 0
Received 0 Likes on 0 Posts
It would be nice to use the frame rails as jacking points.

Since I'm in the middle of rust removal (replacing floorpan, frame rails, rockers), I'll see if I can get some pics this weekend. I am using 18 ga steel for the inner and outer frame rails. My brake is only 36" so the rails are going to be two pieces butt welded together.

I am also using 4lb/cubic foot urethane foam in every cavity. I won't have any results for a couple months, as I still have a TON of work to do and am running low on money (college induced poverty).

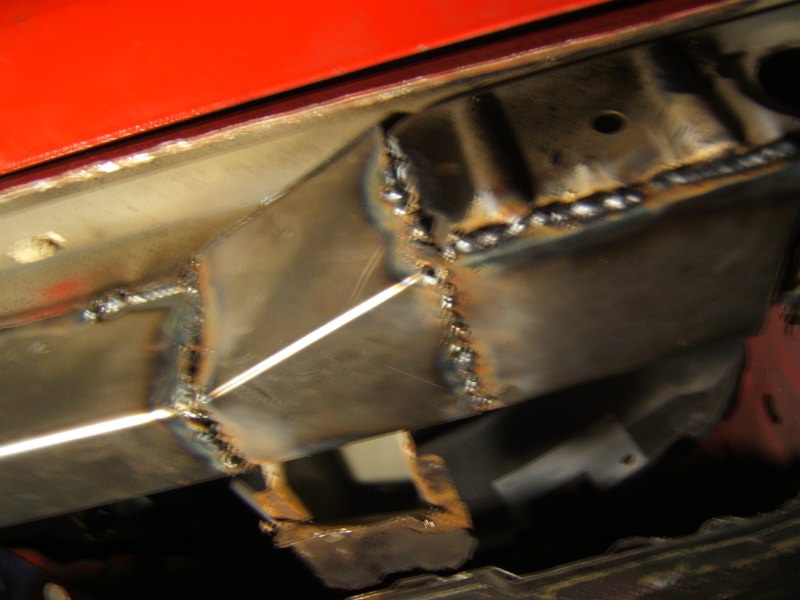

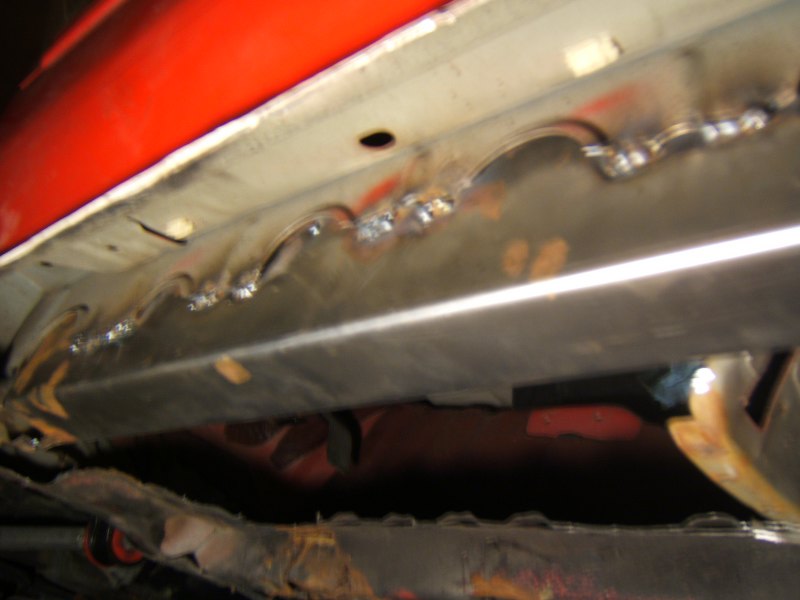

These are the outer frame rails that I got welded in over spring break. There is still an infinite amount of weld grinding left.
Attached Thumbnails boxing in frame rails-dscf2052_800x600.jpg   boxing in frame rails-dscf2053_800x600.jpg
YaNi is offline
Old 04-03-08, 06:57 PM
  #8
counting the days...
5 Year Member

BlackFireRX7's Avatar

Join Date: Mar 2005
Location: Canaan, CT
Posts: 186
Likes: 0
Received 0 Likes on 0 Posts
offroaders box their frames alot...

yea... doin any of the above will stiffen any car


if you ever plann to run this car in sanctioned compition do some research first to make sure it's allowed for the class you plan to run
