AWR FC EP Bodywork: What wheels?

What size wheels and tires fit under the AWR bodywork? Backspacing? Offset? I know EP cars run slicks, but I'd also be curious about DOT-R sizes.

Alternatively, Trent, how much rubber at you fitting to put down your 400rwhp?

Please and thank you.

glen

PS- AWR hasn't returned my email asking this question..
gkmccready is offline
Old 12-21-08, 12:51 PM
  #2
^^rotard for life^^
10 Year Member
iTrader: (3)

rob81gsl's Avatar

Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes on 0 Posts
not sure what everyone else is running but heres my setup. 15x10 diamond wheels with 6" back space all four corners, running 1/4 spacers all way around. (measurements were off just a tad) im using the 275-35-15 R6's. the 10 wide fronts dont tuck well behing the front bumper as i would like them too but i havent made myself a new one just yet. im putting down 425hp with total weight at 2550lbs with me, and the tires seem to be holding up well with great grip.

hope that helps some.

heres what they look like on my car





rob81gsl is offline
Old 12-21-08, 01:04 PM
  #3
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Do you have some larger pictures I could look at? The body work seems like a huge benefit for fitting rubber. Sounds like 5.75" for 10in wide is the magic. How's suspension clearance? Which suspension are you running? (Here's hoping you say GC 2.5" coil-overs...)

How's life in ST1 with the FC Turbo?
gkmccready is offline
Old 12-21-08, 01:11 PM
  #4
^^rotard for life^^
10 Year Member
iTrader: (3)

rob81gsl's Avatar

Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes on 0 Posts
im just running the ksport inverted monotube coilovers revalved for my spring rates. but ya 2.5" springs though. everything clears suspension just fine. had to use the 1/4 spacers in front to clear the calipers, i just spaced the rears too to keep track even.

sorry i dont have any bigger pics.

and its almost like a never ending battle to try to develop a car unless you gots lots of money (which i dont lol) but the challenge is the fun part for me
rob81gsl is offline
Old 12-21-08, 03:36 PM
  #5
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
rob81gsl, so the Diamonds don't clear the stock calipers? I was just measuring my car to get a set for rains. It did look like it was going to be close right at the caliper piston bumps. After looking at them I was going to go with 1/2" spacers but if 1/4" works I'd feel a little better even with 1/2"ARP studs.

Which style did you get, I have to live with 15x7's and 9.5 slicks.
jgrewe is offline
Old 12-21-08, 03:43 PM
  #6
^^rotard for life^^
10 Year Member
iTrader: (3)

rob81gsl's Avatar

Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes on 0 Posts
ya it was the bump that was my issue. the 1/4 spacer took care of it with the 6" backspace. its close as hell but has never hit.
rob81gsl is offline
Old 12-21-08, 05:44 PM
  #7
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Cool thanks. I have 3.5" backspace with 7" wide rims on the rears and that puts me .2" under the max allowed in EP. It looks like I'm going to order a pair for the front with 4" BS and work with my suspension and spacers to get the track I want.

For gkmccready, If the body is designed for EP it has to cover a 9.5" wide slick on a 7" wide rim with 3.5" BS. That get you to the max track, with the max rim width and biggest slick you can buy for a 7" rim. The tire itself ends up being about 10.5" wide when mounted but they are looking at contact patch. Hope that helps give you an idea of how far the fenders stick out from stock besides just saying its 2" wider. That way you can play with BS on whatever size rim you get and stuff a big tire between the fender and spring.
jgrewe is offline
Old 12-22-08, 09:23 AM
  #8
Rotary Freak
10 Year Member
iTrader: (7)

sub9lulu's Avatar

Join Date: Jun 2003
Location: FL
Posts: 2,739
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by jgrewe View Post
rob81gsl, so the Diamonds don't clear the stock calipers? I was just measuring my car to get a set for rains. It did look like it was going to be close right at the caliper piston bumps. After looking at them I was going to go with 1/2" spacers but if 1/4" works I'd feel a little better even with 1/2"ARP studs.

Which style did you get, I have to live with 15x7's and 9.5 slicks.
i am positive that the 16x10 0 offset Diamonds need a 5mm spacer to clear the front calipers
sub9lulu is offline
Old 12-22-08, 10:17 AM
  #9
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Yea, they use the same centers on all the offsets and just weld them in in a different spot so the offset doesn't matter to clear the caliper. Its just how the center is shaped.

When you bringing that car to my area Wilson? I want to get a closer look at it.
jgrewe is offline
Old 12-23-08, 01:29 PM
  #10
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
I'm running Enkei RPF1's 17x8 in front and 17x9 in the rear. ( I think both are in the 35 offset range) I run Yokohama A005 Slicks, 235/40/17 up front, 255/40/17 out back. Car sticks well. I have 25 mm wider frnders up front and the rears are rolled and stretched a little. Future plans may involve doing silly widebody things and going to a 18x10 front and 18x12.5 rear rim with 275/40/17 up front and a 315/35/17 slick in the rear. I've run steel wheels in the past and the center is too shallow, I had to run a 15 mm spacer for clearance. I'm debating a DTM style cheap wheel flare option. Here's a rough rendering of what I'm thinking:

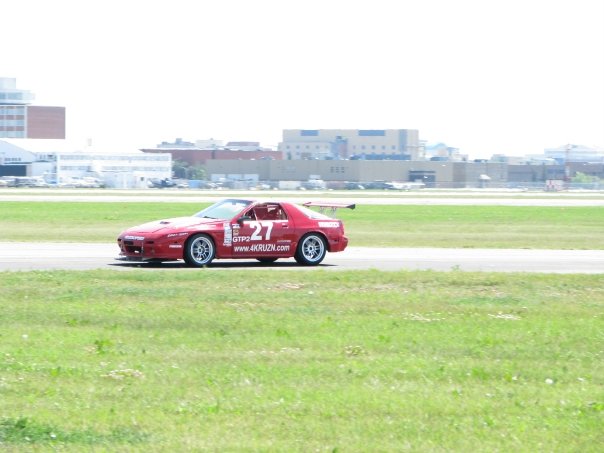

Underneath is a shot in action from last year with the 17" yokohama rubber and Enkei's

-Trent

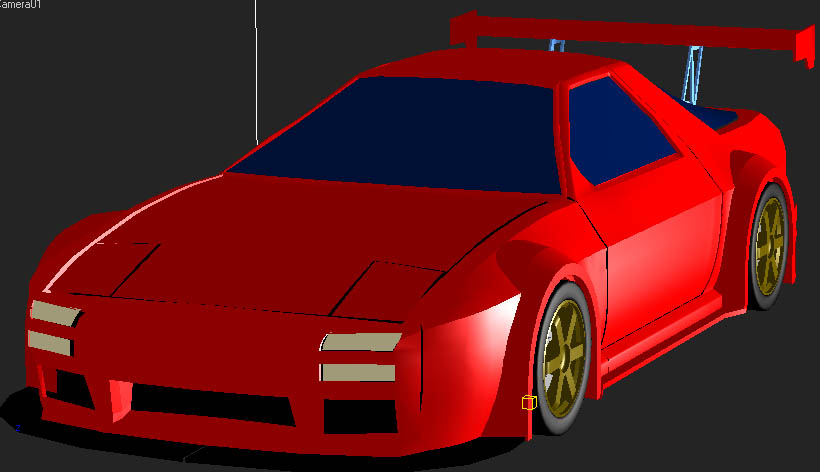

Attached Thumbnails AWR FC EP Bodywork: What wheels?-2ndgen1.jpg   AWR FC EP Bodywork: What wheels?-num27.jpg
TrentO is offline
Old 01-18-09, 09:37 PM
  #11
Cautious Angel
iTrader: (7)

2Fierce's Avatar

Join Date: Jul 2003
Location: toronto
Posts: 1,592
Likes: 0
Received 1 Like on 1 Post
what offset are those diamond stars on your car rob? I need a set of track wheels that look flush with my widebody. My current street wheels (enkei rpf1's) 17x10 +18 still have like an inch or so inwards in the rear.

thanks, Mikal
2Fierce is offline
Old 01-18-09, 10:47 PM
  #12
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 2Fierce View Post
what offset are those diamond stars on your car rob? I need a set of track wheels that look flush with my widebody. My current street wheels (enkei rpf1's) 17x10 +18 still have like an inch or so inwards in the rear.

thanks, Mikal
He covered it already, see below.

Originally Posted by rob81gsl View Post
not sure what everyone else is running but heres my setup. 15x10 diamond wheels with 6" back space all four corners, running 1/4 spacers all way around.
Black91n/a is offline
Old 01-25-09, 12:32 PM
  #13
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Thanks to everybody for responding. I think there's enough info here for me to figure out what will fit. I was concerned about getting enough tire under the car.
gkmccready is offline
Old 02-16-09, 10:44 PM
  #14
Full Member
5 Year Member

Blueman86's Avatar

Join Date: Aug 2005
Location: Maumee, OHIO
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
X2 Dimondracingwheels 16x10 0 offset Works On all 4 corners but do need the spacer up front!
Blueman86 is offline
Old 10-14-11, 05:47 PM
  #15
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Okay, waking this thread up again. Sorry.

Stock TurboII 16x7 +40 wheels. 5.625" backspacing. 2.375" frontspacing. 225/50r16 tires. EP fibreglass bodywork. Tire rubs the spring, but the car can still be rolled, so it's not an extreme rub.

Rear fenders seem to add about 3" room to the outboard size. Front fenders seem to add about 2".

My math says an 18x9.5 with 5.25" backspacing is 5.25" frontspacing which adds 3/8" inboard clearance and 2.875" to the outside. So that's about perfect for the rear, but nowhere close for the front. Could probably go with 5.5" backspacing and get rid of the rub which would still put me 2.625" outboard -- don't think the EP fenders add that much clearance up front.

18x9, 5.5" bs, 4.5" fs, 2.125" increase over stock while improving inboard clearance 1/8". That seems like the max for the front to me. The rear seems like it could tolerate an 18x10, 5.5" bs, 5.5" fs, 3.125" increase over stock.

Do folks running the EP (15x7, 3.5" bs, 9.5" slick) and/or running the 10in wide wheels have them sticking out of the front fenders? I'm guessing the answer is yes?

Thanks!
gkmccready is offline
Old 10-20-11, 12:41 AM
  #16
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Bueller?
gkmccready is offline
Old 10-20-11, 10:27 AM
  #17
trying to build a racecar

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
I'm not familiar with the term "front spacing"... I assume you mean the distance from the mounting face to the outside lip of the wheel. And if that's the case you might need to check your math. As 5.5" bs + 4.5" fs creates a 10" wide wheel, not 9".
Hate for you to order wheels only to be off by a full inch.
Travis R is offline
Old 10-20-11, 10:36 AM
  #18
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Travis R View Post
I'm not familiar with the term "front spacing"... I assume you mean the distance from the mounting face to the outside lip of the wheel. And if that's the case you might need to check your math. As 5.5" bs + 4.5" fs creates a 10" wide wheel, not 9".
Hate for you to order wheels only to be off by a full inch.
That's an artifact of how wheel manufacturers measure wheel width. The count where the tire sits between the lips and not the distance to the outside edges. If you measure the stock 16x7 wheels you'll find they measure "wider" than 7" if you try to measure the full outside to outside width.
gkmccready is offline
Old 10-20-11, 11:03 AM
  #19
trying to build a racecar

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
So then the bs/ fs numbers are to the outside edge of the wheel lip?
That makes sense. :thumbsup
Travis R is offline
Old 10-20-11, 11:06 AM
  #20
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Yup. Because bs/fs are for fitment to the chassis while the wheel width is for fitment of the tire.

Appreciate you looking out for me, though! Wouldn't be the first time I'd measured twice, cut once, and then had to buy new materials. :-)
gkmccready is offline
Old 11-12-11, 03:59 PM
  #21
B and B Racing
iTrader: (19)

Join Date: Nov 2011
Location: Sacramento, Ca.
Posts: 403
Likes: 0
Received 0 Likes on 0 Posts
25 mm offset
bandbmazda is offline
Old 11-14-11, 08:34 AM
  #22
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by TrentO View Post
I'm running Enkei RPF1's 17x8 in front and 17x9 in the rear. ( I think both are in the 35 offset range) I run Yokohama A005 Slicks, 235/40/17 up front, 255/40/17 out back. Car sticks well. I have 25 mm wider frnders up front and the rears are rolled and stretched a little. Future plans may involve doing silly widebody things and going to a 18x10 front and 18x12.5 rear rim with 275/40/17 up front and a 315/35/17 slick in the rear. I've run steel wheels in the past and the center is too shallow, I had to run a 15 mm spacer for clearance. I'm debating a DTM style cheap wheel flare option. Here's a rough rendering of what I'm thinking:
Underneath is a shot in action from last year with the 17" yokohama rubber and Enkei's

-Trent
Trent, I just picked up some 17x8 Forgelines with a 35mm offset. Based on your experience, would they fit under stock fenders with a 235x40x17 Toyo 888 on them?

Eric
23Racer is offline
Old 11-18-11, 03:51 PM
  #23
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Originally Posted by bandbmazda View Post
25 mm offset
With which wheel width?

From measuring from the current 16x7 TurboII wheels on the car... no room inboard in the front, about 2" outboard. In the rear there's an inch or so inboard, and maybe 2.5" outboard. Seems like a 10" wheel would fit the back, but a 9" wheel would be pushing it in the front if you wanted to keep it inside the fenders. And this is assuming you size tire width to wheel width and don't have over-hang.

The 15x7 to fit the 9.5" EP slick (10.4" wide) with 3.5" backspacing (0 offset) effectively moved the wheel 1.58"/40mm outboard to clear the strut. So if I could keep the section width within the wheel width it seems like a 10" wide wheel would be equivalent. And both seem like they'd stick outside the fenders in the front.

My head hurts... rob81gsl, those 15x10 with 5.75" backspacing and 275mm tires just don't seem to match my math and yet you've got them in there and working...
gkmccready is offline
Old 11-22-11, 04:20 PM
  #24
Senior Member
5 Year Member
Thread Starter

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Can anybody see a flaw in this logic?

16x7 +40 225/50r16 Slight inside rub, 9.2" section width
16x7 +40 205/55r16 Stock, 8.4" section width
15x7 +0 23x9.5x15 EP Slicks, 10.7" section width, wheel 1.57" further out

Compared to 225s the EP slicks add 1.5" to the section width (0.75" inside, 0.75" outside), but move the wheel out by 1.57", which gives the inside clearance necessary... effectively adding 0.82" of inner clearance. Looking at the 205s, EP slicks add 2.3" to section width (1.15" in & out) so you still gain 0.42" of inner clearance.

Groovy.

15x10 +0 275/35r18, 10.8" section width, wheel center line is same, but add 1.5" inside and outside while moving the wheel 1.57" out. Should give really close to the same clearance as the EP slicks, right? 10.7" vs 10.8" section and the wheel size is lost in the tire section width discussion?

18x10 +0 285/30r18, 11.5" section width. That's 0.8" wider than the EP slick, so 0.4" more inside & outside. Looking at the 205s the EP slicks gained 0.42" of clearance, and this would take back that clearance leaving me... with stock clearance? Yes? Even with a bunch of static negative camber this seems like it should work.

Can somebody double check my math, please? I'm also wondering if part of the clearance fun is that an EP slick is only 22.8" tall while my 225/50r16 is about 24.8" ... the 225s rub on the spring, but if they were shorter the top would miss the spring & perch...

Of course, I've ignored fender clearance now... but if my math seems right the 285s would stick out 0.4" further outboard than the EP slicks which is probably something that can be worked with? Or just run the cheater 255/35r18 Hoosiers with 10.3" tread and 10.8" section... lose 0.6" tread width, but gain 0.8" in section width to work with. And both the 255 and 285 work on 18x10 so a front/rear set up is easily workable...

Yes, I really am still looking in to this. I got keen on the 15x10s but needing the spacers and looking at available rubber I'm not so convinced now...
gkmccready is offline
