4 point SPARCO harness

I was looking into getting a 4 point and was wondering if anyone has one. (sparco specifically) I was wondering if they were much of an issue to hook up. If you could include pics of the hook up and such that would be great.
RX drift is offline
Old 11-12-05, 11:15 PM
  #2
Senior Member
5 Year Member

Join Date: Jul 2002
Location: Pittsburgh, PA, USA
Posts: 418
Likes: 0
Received 0 Likes on 0 Posts
Mounting does not consist of much more than some safe and calculated drilling. Just make ABSOLUTELY sure that you arent drilling through anything important, and also that the shoulder harnesses are mounted at the correct/safe angle.
MrDirt is offline
Old 11-12-05, 11:21 PM
  #3
Street style elitist

twilight slide's Avatar

Join Date: Dec 2004
Location: Dirty South. . . . Everett
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
i have one, it's mounted dangerously i used the holes where the carpet bolts down about half way into the back. I just drilled em out and tapped them for the eye bolts. a harness bar would be a good idea
twilight slide is offline
Old 11-13-05, 12:31 AM
  #4
Street style elitist

twilight slide's Avatar

Join Date: Dec 2004
Location: Dirty South. . . . Everett
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts

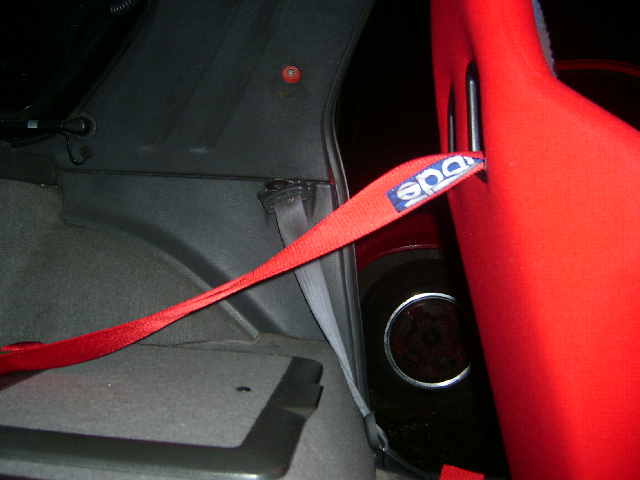

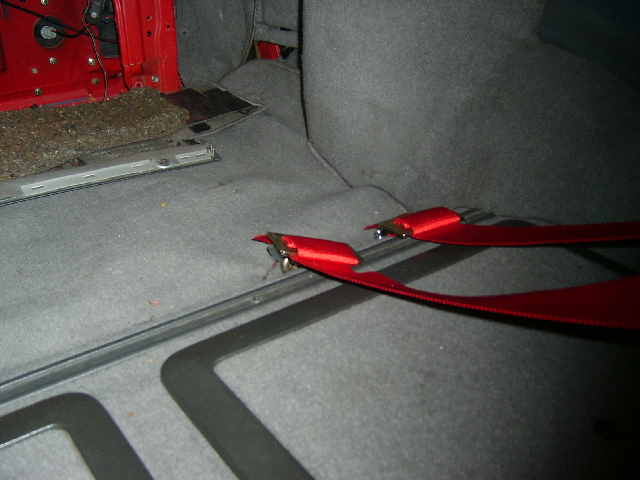

pics of my setup, i don't recommend you do this, i'm sure some safety guy will bitch me out
Attached Thumbnails 4 point SPARCO harness-sparco.jpg   4 point SPARCO harness-sparco2.jpg
twilight slide is offline
Old 11-13-05, 03:08 AM
  #5
Full Member
5 Year Member

Join Date: Oct 2005
Location: The Sticks Maine
Posts: 120
Likes: 0
Received 0 Likes on 0 Posts
Yeah Twilight you need to get a harness bar. With the way you have them mounted your 4 point is probably less safe than the regular belt. Race harnesses need to be attached so that they won't compress your spine when the belts get tensioned. That means the the rear anchor point need to be at about shoulder height. I hope you have a strong back.
tonybcrazy is offline
Old 11-13-05, 08:30 AM
  #6
Senior Member
5 Year Member
Thread Starter

RX drift's Avatar

Join Date: Aug 2005
Location: willis, VA
Posts: 303
Likes: 0
Received 0 Likes on 0 Posts
Iíve been looking around and I see a lot of people bolt straight down behind the seat and ii figure that that is all that I can do scene mine is a vert. And I didnít think that it could compress your spine as long as where the straps come through the seat is a little higher than you shoulder. I saw this diagram and it showed that it should be either 180 or 45-90 degrees out of the seat.

Last edited by RX drift; 11-13-05 at 08:35 AM.
RX drift is offline
Old 11-13-05, 09:10 AM
  #7
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Don't bolt the shoulder straps down to the floor behind the seat:

https://www.rx7club.com/suspension-wheels-tires-brakes-20/questions-harness-installation-443075/
Mahjik is offline
Old 11-13-05, 01:46 PM
  #8
zoom zoom go boom
10 Year Member

ForsakenRX7's Avatar

Join Date: Oct 2001
Location: Gainesville, Fl
Posts: 962
Likes: 0
Received 1 Like on 1 Post
ForsakenRX7 is offline
Old 11-13-05, 03:58 PM
  #9
Street style elitist

twilight slide's Avatar

Join Date: Dec 2004
Location: Dirty South. . . . Everett
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
TonyB, if you look at the link mahjik posted it, like the third post says NASA rules require a 20 degree angle or less. Now i'm a bit over that but not too much also for all the bitching people do, i have seen this(my) exact setup in a wrecked car, the guy and passenger walked away a-ok. but yeah a harness bar is in the works for piece of mind.
twilight slide is offline
Old 11-13-05, 04:39 PM
  #10
Track Addict
5 Year Member

Renesisfury's Avatar

Join Date: Jul 2005
Location: Chicago
Posts: 513
Likes: 0
Received 0 Likes on 0 Posts
so on an 8 ytou could use the points for the kids seat restraint for harnesses?
Renesisfury is offline
Old 11-14-05, 03:56 AM
  #11
Street style elitist

twilight slide's Avatar

Join Date: Dec 2004
Location: Dirty South. . . . Everett
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
renesisfury: in my friends s13 coupe he uses a bolt that's on top of the area behind the rear seats, i think that's the child restraint bolt, but i don't know how deep that hole goes on your 8. if it's deep enough and maintains a good angle, go for it.
twilight slide is offline
Old 11-14-05, 09:05 AM
  #12
Track Addict
5 Year Member

Renesisfury's Avatar

Join Date: Jul 2005
Location: Chicago
Posts: 513
Likes: 0
Received 0 Likes on 0 Posts
hmmm, how deep would it have to be?
Renesisfury is offline
Old 11-14-05, 12:44 PM
  #13
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
There are mounting tabs(welded nuts), and reinforcement for the rear seat shoulder belts in a TII. I used these as a mounting point for my AX harness bar. Basicly, I cut, bent, and welded two ears to a piece of 1.5" rigid (not thinwall, you can tell because the rigid is threaded) electrical conduit. Bolted through the ends. I was going to make them available, but liability concerns kept me from doing so. Look at Porsche 911 harness bars to see what I mean. I'll bet Kirk will make one for you esp. if you mention those mounting points. Carl
Carl Byck is offline
Old 11-16-05, 11:15 AM
  #14
zoom zoom go boom
10 Year Member

ForsakenRX7's Avatar

Join Date: Oct 2001
Location: Gainesville, Fl
Posts: 962
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Carl Byck
There are mounting tabs(welded nuts), and reinforcement for the rear seat shoulder belts in a TII. I used these as a mounting point for my AX harness bar. Basicly, I cut, bent, and welded two ears to a piece of 1.5" rigid (not thinwall, you can tell because the rigid is threaded) electrical conduit. Bolted through the ends. I was going to make them available, but liability concerns kept me from doing so. Look at Porsche 911 harness bars to see what I mean. I'll bet Kirk will make one for you esp. if you mention those mounting points. Carl

You wouldnt by chance have a pic of that would you?
ForsakenRX7 is offline
Old 11-16-05, 09:28 PM
  #15
Full Member
5 Year Member

DaveTurnerMotorsports's Avatar

Join Date: Oct 2005
Location: San Diego, CA
Posts: 169
Likes: 0
Received 0 Likes on 0 Posts
Yeah, that probably wouldn't pass tech. We're a NASA , TCRA and STUSA tech site, and I probably wouldn't let it slide. Also, the Sparco 2" 4-pt harness doesn't meet any real racing safety requirements and is up to whoever you are running with to allow it or make you run the stock 3-point belt. The Schroth Rally3 and one other Schroth belt are the only DOT/FMV-approved belts, even now that Shroth builds Sparco's belts they don't meet the requirement. Also, Schroth's Rally belts on the lap section have special side mounts that allow bends to make sure the angle on the belt is acceptable. FWIW, the guy who was running an STi a few months back at an STUSA open track day at Street of Willow crashed while wearing the Sparco 4-point 2" harnesses as was his passenger...the passenger submarined under the belts and ended up in the footwell, and he had removed the steering wheel/airbag (as designed the OEM belts allow for some degree of slack to time itself with the airbag) for a Sparco steering wheel......initial impact sent his head into the steering wheel and secondary forces then submarined him under the belt....email me if you want the gory pictures, definitely a lesson learned when wanting to use the "show car belts".

My $0.02
