13b N/A port timing need help

Hello,

Can some one help me with the port timin?

I build n/a 13b engine with Peripheral Port. My target is 300hp

I found these timings, what you think?
Mazda Factory Peripheral Port:
IO 86� BTDC
IC 75� ABDC
EO 73� BBDC
EC 65� ATDC

IO = Intake opens
IC = Intake closes
EO = Exhaust opens
EC = Exhaust closes

Can some one tell me good serious racing timings?

I apologize for the bad english language.

Please send pm or answer here.
postert is offline
Old 09-18-14, 04:35 PM
  #2
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,459
Received 58 Likes on 54 Posts
well, RB claims their housings can achieve 300 and from what i've read they're a little softer on power than the MFR housings, so theoretically if you use the MFR timings to build your housings, then you should achieve your goal.

if you're looking to go with custom timings, then i'm not sure how much help you're going to get on the forum. you will probably end up having to find a rotary engine builder that you can contact personally and then discuss it from there.

have you seen this?

https://www.rx7club.com/rotary-car-p...144200/page10/
diabolical1 is offline
Old 09-20-14, 05:46 AM
  #3
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diabolical1 View Post
well, RB claims their housings can achieve 300 and from what i've read they're a little softer on power than the MFR housings, so theoretically if you use the MFR timings to build your housings, then you should achieve your goal.

if you're looking to go with custom timings, then i'm not sure how much help you're going to get on the forum. you will probably end up having to find a rotary engine builder that you can contact personally and then discuss it from there.

have you seen this?

https://www.rx7club.com/rotary-car-p...144200/page10/
Yes i have seen. thanks anyway

i send e mail to racing beat. maybe they can help.

iI found a few timings on the Internet.

Turbo Peripheral Porting - Xtreme Auto Parts
postert is offline
Old 09-21-14, 01:02 AM
  #4
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diabolical1 View Post
well, RB claims their housings can achieve 300 and from what i've read they're a little softer on power than the MFR housings, so theoretically if you use the MFR timings to build your housings, then you should achieve your goal.

if you're looking to go with custom timings, then i'm not sure how much help you're going to get on the forum. you will probably end up having to find a rotary engine builder that you can contact personally and then discuss it from there.

have you seen this?

https://www.rx7club.com/rotary-car-p...144200/page10/

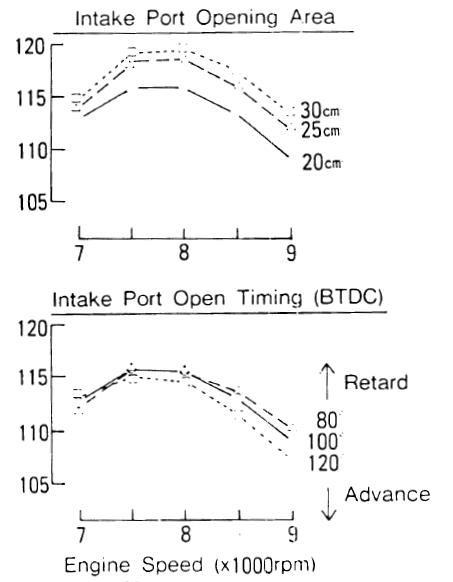

Here is what i find mfr housings timing and port area, to the left on the graph volumetric efficiency:
Attached Thumbnails 13b N/A port timing need help-intake_port.jpg
postert is offline
