10-01-07, 01:34 PM

#51

TEZTnTUNE

BUILD, TUNE, RACE, REPEAT

Join Date: Jan 2005

Location: NH/MA

Posts: 167

Likes: 0

Received 0 Likes on 0 Posts

you say your boost was set to 15psi? that would put u on lines p10-p11 between 14.2 and 15.9 psi. from 4800 to 8k you do have way too much advance for 91 octane. looks like a apex stock fd map with some timing add at idle but thats about it.

Reply Like

10-01-07, 08:15 PM

#52

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

With the fd map sensor we were at p17-19. p10 would be just coming it to boost. I don't know were you get p10-p11. If so you are off.
Thanks Robert

Reply Like

10-02-07, 05:44 PM

#53

TEZTnTUNE

BUILD, TUNE, RACE, REPEAT

Join Date: Jan 2005

Location: NH/MA

Posts: 167

Likes: 0

Received 0 Likes on 0 Posts

lol your right. here you are asking about your maps and im giving u misinformation. my bad i was adjusting injector correction in that area for my buddys ca18det and i had it ion my brain.

Reply Like

10-02-07, 06:05 PM

#54

TEZTnTUNE

BUILD, TUNE, RACE, REPEAT

Join Date: Jan 2005

Location: NH/MA

Posts: 167

Likes: 0

Received 0 Likes on 0 Posts

fc3s91 when she poped on you what where u doing? cruising? wot?

Reply Like

10-02-07, 06:11 PM

#55

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

I kicked up the gas and down shifted from 3rd to 2nd gear. Then rolled into the throttle. Then boom.

Reply Like

10-02-07, 06:16 PM

#56

TEZTnTUNE

BUILD, TUNE, RACE, REPEAT

Join Date: Jan 2005

Location: NH/MA

Posts: 167

Likes: 0

Received 0 Likes on 0 Posts

did ur tuner adjust any correction maps afteer u got off the rollers into the cooler night air?

Reply Like

10-02-07, 06:20 PM

#57

TEZTnTUNE

BUILD, TUNE, RACE, REPEAT

Join Date: Jan 2005

Location: NH/MA

Posts: 167

Likes: 0

Received 0 Likes on 0 Posts

if you made lots a pulls and your intake air temp was on the warmer side and u got into the cooler night air which would have been denser and shortened your saftey window just enough for her to pop on u. hell it also could have effected your AE enough to lean out away from your tip in afrs might have added to the effect. oh yea and not to mention the 91 octane(i.e. grape coolaid) gas u guys run prolly didnt help either.

Last edited by TEZTnTUNE; 10-02-07 at 06:37 PM.

Reply Like

10-21-07, 11:14 AM

#58

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

The engine is disassembled know. So I'll post pics tonight.
Thanks Robert

Reply Like

10-21-07, 08:40 PM

#59

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

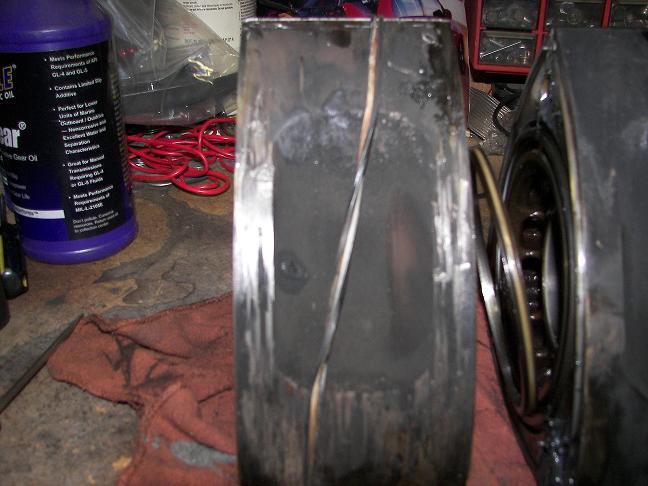

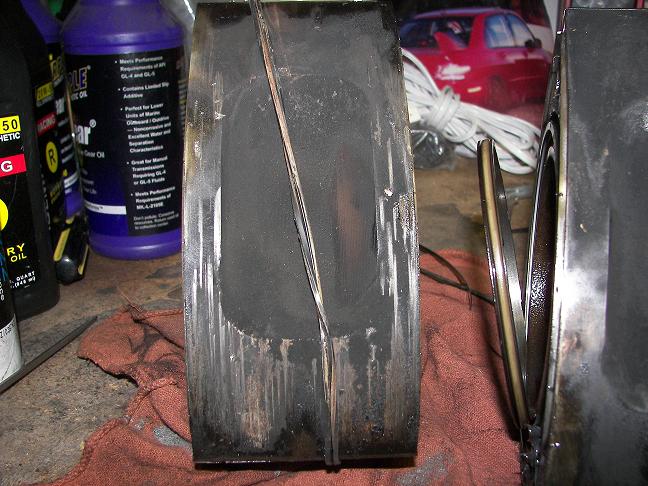

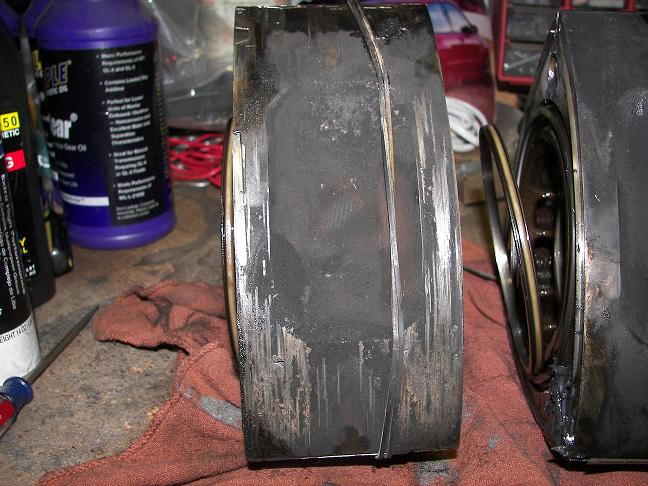

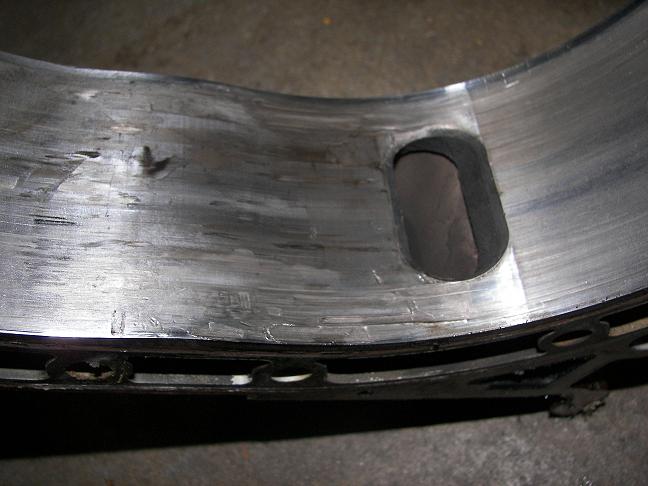

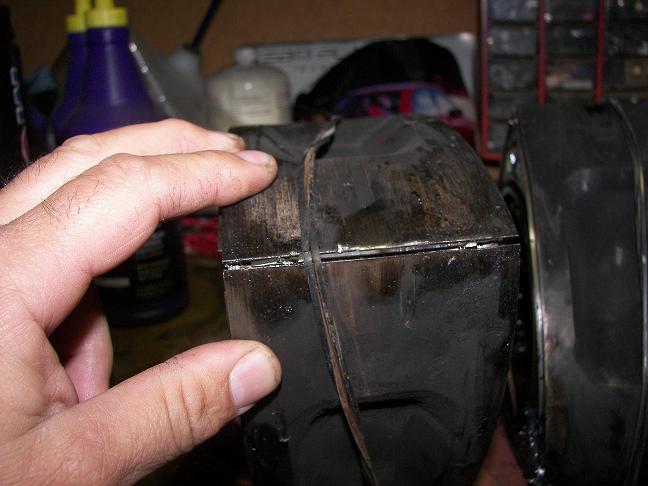

Here are pics of damage rear rotor and housing.

Attached Thumbnails

Reply Like

10-21-07, 08:41 PM

#60

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

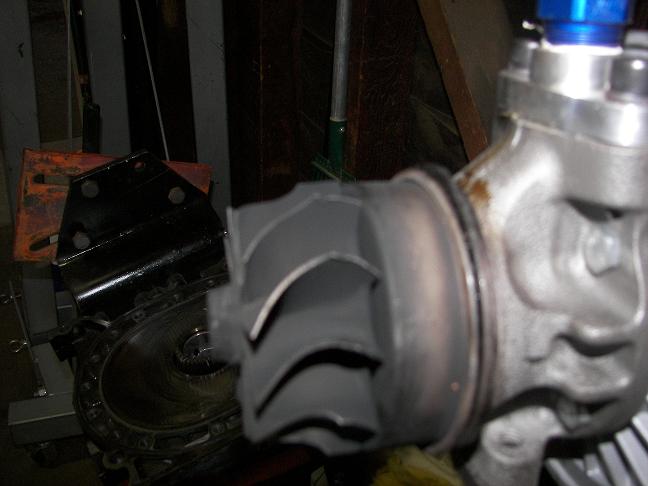

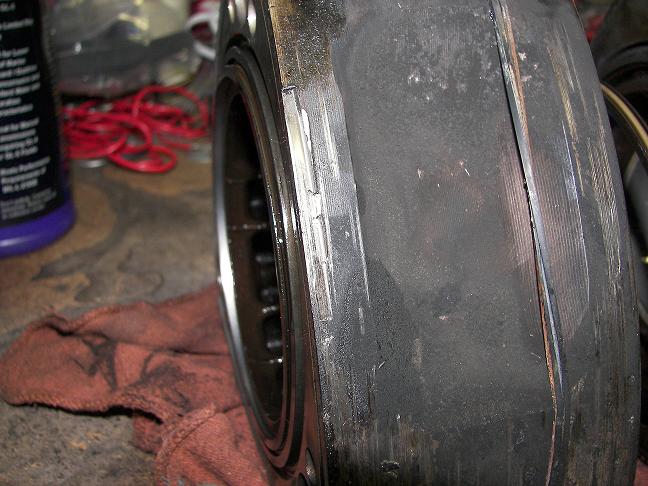

and some more

Attached Thumbnails

Reply Like

10-22-07, 05:52 AM

#61

rx72c

Rotary Freak

iTrader: (8)

Join Date: Jun 2003

Location: Australia

Posts: 2,800

Likes: 3

Received 115 Likes on 65 Posts

Another engine using mazda seals complete rubbish bin material.

Reply Like

10-22-07, 08:18 AM

#62

rxcited2

Magnet Boy

Join Date: Jan 2007

Location: NorCal

Posts: 251

Likes: 0

Received 1 Like on 1 Post

Man that is seriously F-ed up. Which seal is that wrapped around the rotor? It looks like an oil seal, but I've never heard of one stretching and wrapping itself around the rotor. Bizzare!

Sorry for your loss.

Reply Like

10-22-07, 10:23 AM

#63

charge

Senior Member

iTrader: (1)

Join Date: Sep 2004

Location: Germany

Posts: 337

Likes: 0

Received 0 Likes on 0 Posts

Damn! Wow

Reply Like

10-22-07, 10:33 AM

#64

rxcited2

Magnet Boy

Join Date: Jan 2007

Location: NorCal

Posts: 251

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by rxcited2

My bad, I suppose you're just holding the apex seals (whats left) in place with a used water jacket o-ring? Don't know what I was thinking, but it still looks like major self-destruction.

Were these in fact stock Mazda apex seals? What thickness and how many piece seals were they?

Reply Like

10-22-07, 11:05 AM

#65

Jason

The one

iTrader: (5)

Join Date: Jul 2001

Location: Fort Worth, TX

Posts: 3,862

Likes: 0

Received 4 Likes on 4 Posts

That looks like a rubberband holding the seal in place.

Reply Like

10-22-07, 11:44 AM

#66

Barry Bordes

"Elusive, not deceptive!”

Join Date: May 2007

Location: Slidell, LA

Posts: 930

Likes: 6

Received 13 Likes on 12 Posts

Were you using synthetic oil? I say that because of the way the oil seals have fallen out.
Barry

Last edited by Barry Bordes; 10-22-07 at 12:05 PM.

Reply Like

10-22-07, 01:43 PM

#67

cewrx7r1

Eye In The Sky

iTrader: (2)

Join Date: Feb 2001

Location: In A Disfunctional World

Posts: 7,895

Likes: 0

Received 114 Likes on 66 Posts

For a street ported engine, those exhaust ports look like stock FD ports.

Reply Like

10-22-07, 02:23 PM

#68

fc3s91

R.I.P Mark( Icemark )

Thread Starter

iTrader: (23)

Join Date: Nov 2001

Location: socal

Posts: 3,912

Likes: 0

Received 1 Like on 1 Post

They were stock 2mm mazda apex seals. I use the stock coolant seals to hold the apex seals in place. As for oil I used 20/50 royal purple.
Thanks Robert

Reply Like

12-06-07, 06:22 PM

#69

mdpalmer

T O R Q U E!

iTrader: (24)

Join Date: Jan 2004

Location: far far away

Posts: 2,034

Likes: 0

Received 1 Like on 1 Post

timing advance (actual VS logged)

Quote:

Originally Posted by BDC

At that 1.10bar boost, lead advance should be no more than 12-13*BTDC with no skinnier than a 10* split when using 91-93octane pump fuel. There's no need for alot of advance on a rotary, with the exception of possibly advancing 1 or possibly 2* once the RPM's are well past torque peak where the VE begins to take a nose-dive.

Hi, you mean lead advance is 12-13* BTDC actual or logged (since the PFC adds 1-2 degrees up top)? Thanks.

Reply Like

12-07-07, 10:54 AM

#70

BDC

BDC Motorsports

Join Date: Jun 2002

Location: Grand Prairie, TX

Posts: 3,667

Likes: 0

Received 6 Likes on 6 Posts

Quote:

Originally Posted by mdpalmer

Hi, you mean lead advance is 12-13* BTDC actual or logged (since the PFC adds 1-2 degrees up top)? Thanks.

Actual. What is logged is actual. The 1* and 2* at 4k and 6k respectively are added to what's in their IGL load spots but are shown on the log. If N15 and P15 for example has 10*, then the PFC will fire it at 12*.

B
