Power FC Advanced injFrSec
09-15-06, 04:27 PM
#2
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,893
Likes: 0
Received 114 Likes
on
66 Posts

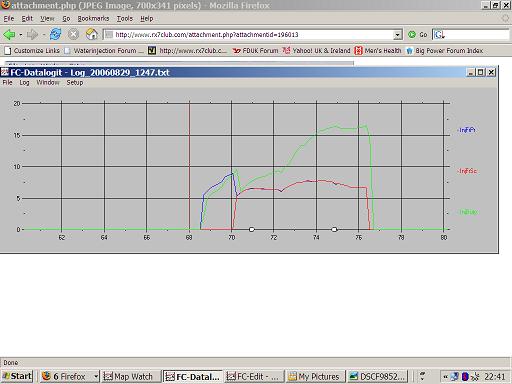

I do not know what it is a direct measure of, but it and it's partner (InjFrPr) need to be viewed together with the chart function. Then they will show how the injectors interact when the secondaries come on-line. I also view Inj Duty Cycle along with them to setup the injectors for a smooth transistion.

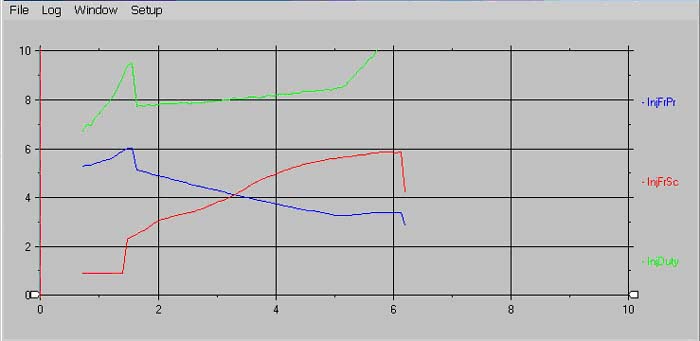

Attached is the results of CORRECTED 550/1600 sequencing.
Attached is the results of CORRECTED 550/1600 sequencing.
09-16-06, 06:48 PM
#4
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,893
Likes: 0
Received 114 Likes
on
66 Posts
You need to adjust your chart values so that you have two distinct and seperate
lines for each of the injectors like mine looks like. Then it will be easier to see what is happenging.
The parameter with the most affect on staging is the
"Secondary Transistion (ms)" value.

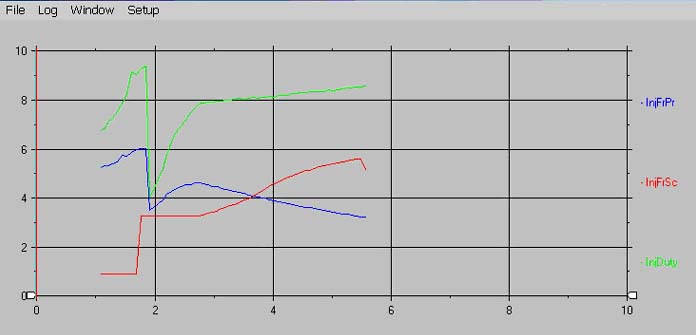

Attached is my UNCORRECTED 550/1600 sequencing.
Unfortunately the PFC/DL does not give you perfect injector control, as my CORRECTED is still not perfect, but the best I can get it.
The rule of: (850/ new inj) X 1.5 does not work!!!!!!!
Info on this is part of my DL/PFC tuning notes package.
lines for each of the injectors like mine looks like. Then it will be easier to see what is happenging.
The parameter with the most affect on staging is the
"Secondary Transistion (ms)" value.
Attached is my UNCORRECTED 550/1600 sequencing.
Unfortunately the PFC/DL does not give you perfect injector control, as my CORRECTED is still not perfect, but the best I can get it.
The rule of: (850/ new inj) X 1.5 does not work!!!!!!!
Info on this is part of my DL/PFC tuning notes package.
Last edited by cewrx7r1; 09-16-06 at 06:54 PM.
