In one of his many informative posts, Arghx discussed using a 3 Port MAC Valve for Boost control with a PFC. The post I am referencing can be found here: https://www.rx7club.com/showthread.p...ost+controller

Unfortunately the link to an appropriate Valve is no longer correct. I was wondering if using the catalog on macvalves.com if Arghx or someone else could suggest which one to use: http://www.macvalves.com/products/3way.htm

Thanks!



I just checked that frightprops website and they are still selling 3 way solenoid valves, but they are a different model. the ports are arranged differently.

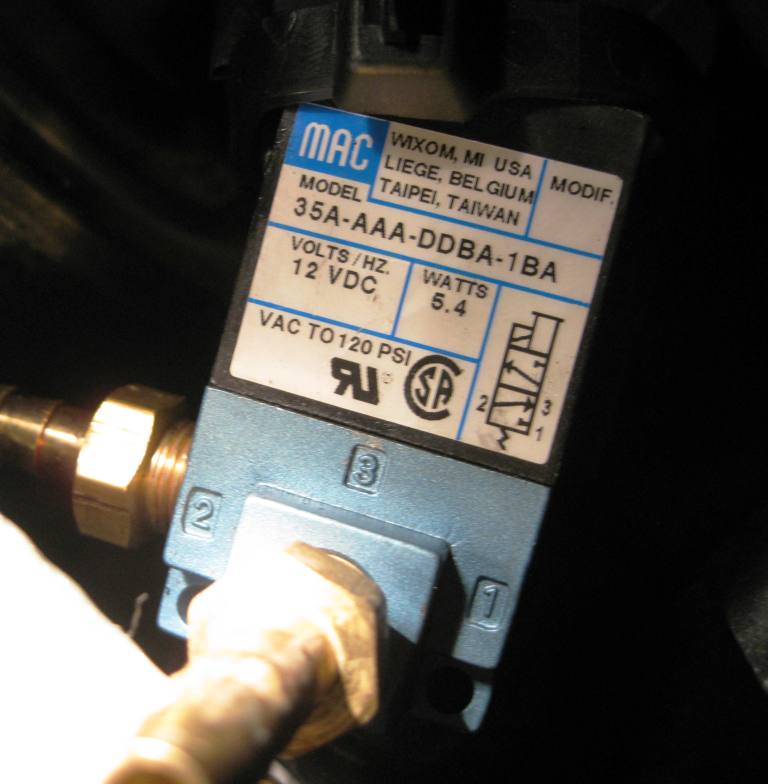

the part that everybody uses is MAC part # 35A-AAA-DDBA-1BA



You can see this guy is running it on his MR2 power FC, plus the couple of people on here who are running it on their Rx-7 model.

http://www.mr2.ie/mr2-forum/18-ecu-a...u-pfc-install-

It is also resold under different brand names like Haltech, AEM, and Grimmspeed. for plug-and-play installation the connecter you want is an AMP econosea II 2 way plug, available from ballenger motorsports



Here ya go: http://cgi.ebay.com/ebaymotors/Boost...mZ230543552188



Where exactly do you wire these in the power fc? Do you pin to one of the harness or what? Im confused as I need to wire up one of these solonoids up soon.
