skillzilla

iTrader: (1)

Started it up this weekend! Thought I had oil pressure issues but the stock gauge was just moving REALLY slow (https://www.rx7club.com/2nd-generation-specific-1986-1992-17/slow-oil-pressure-gauge-823617/). Once I turned it over it was fine, and I was smiling ear to ear

Hard part is done, now its just labor and getting parts delivered.

cptpain

iTrader: (1)

you ruined a perfectly good TII, shame on you (

a simple rebuild would've been much less costly than your SR swap.

Very different and not something you see everyday, but unique.

Im flabbergasted..... i dont know what else to say, i cant really rag on you too much, but then again, such a nice looking TII, what a dilemma

302_fd

Nice job, very well done. Its been awhile since Ive seen and sr20 in an fc. Last time was when the sr20 first became the hot motor swap for the ka. I remember it was black with custom front bumper, it was either on this board or rx7city. When my fd is done, Im going to get a s5 vert, and "ruin" it as well. Maybe a carbed toyo v8

Anyway A+ on the swap, glad to see it came together for you.

skillzilla

iTrader: (1)

1) How do you know how much Ive spent?

2) Thanks I guess

Thanks mang, its got a long way to go for sure but everything else is old hat, this was all new to me. First time working on a Mazda.

skillzilla

iTrader: (1)

Ya I pulled it down below the frame rail and it took the tight bend out, might be changing it up for the oil cooler lines too so we will see.

Got my intercooler and radiator ready to go in, just have to figure out brackets and ducting (both of which I will probably need help with welding is not my strong suit lol).

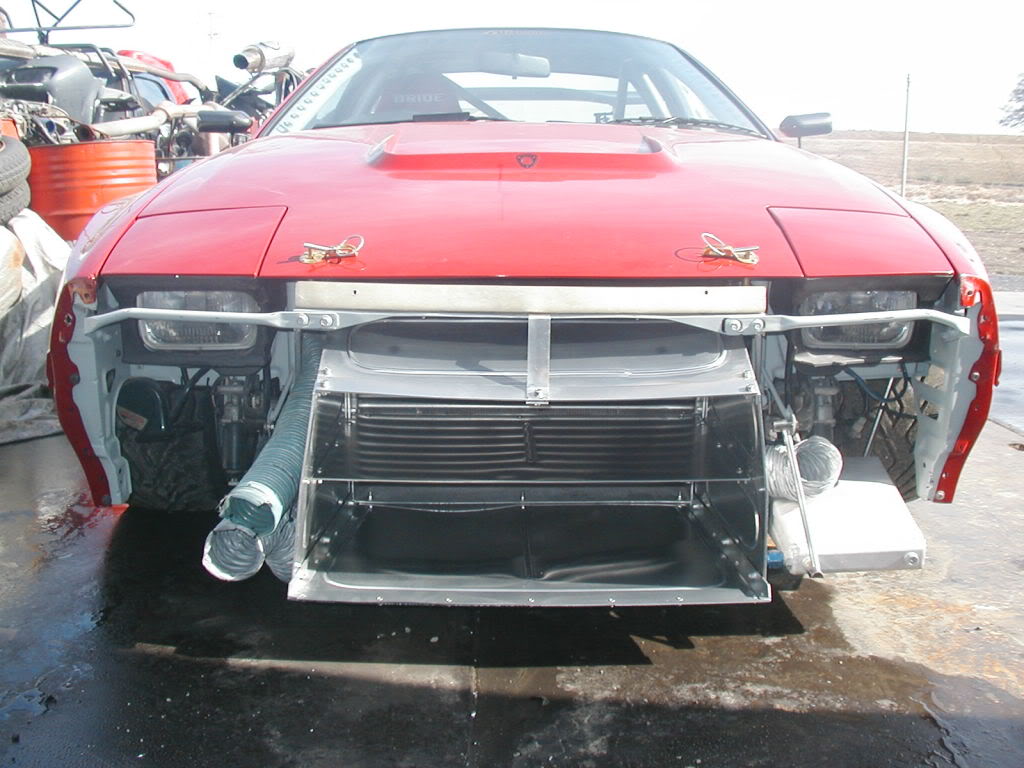

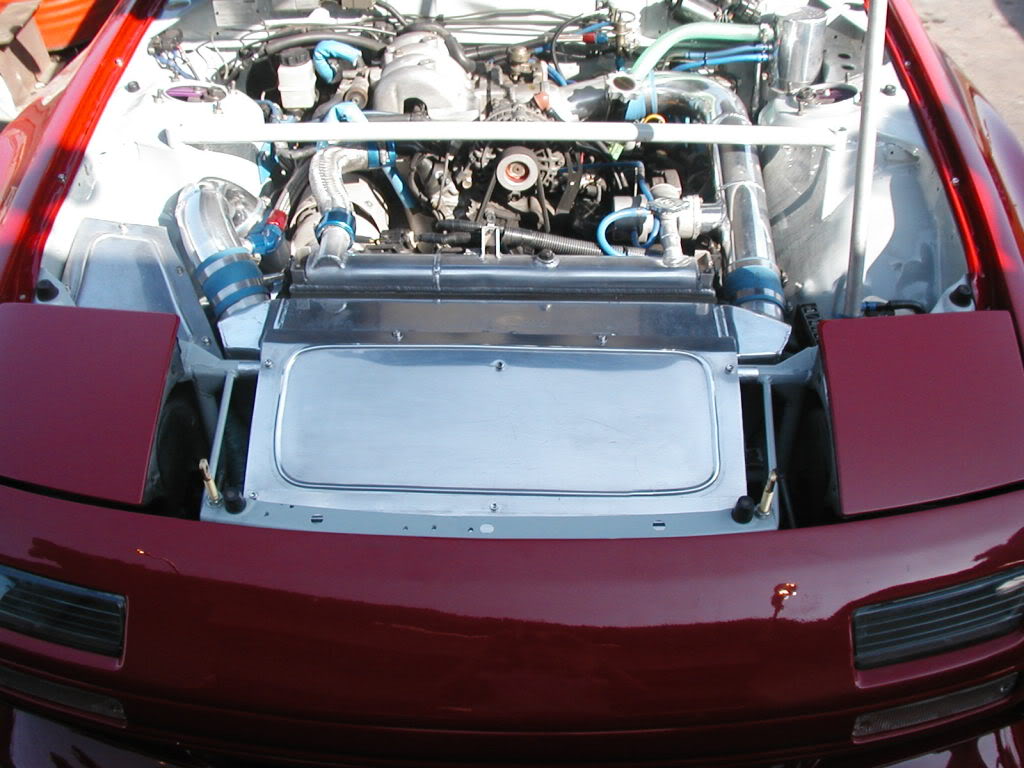

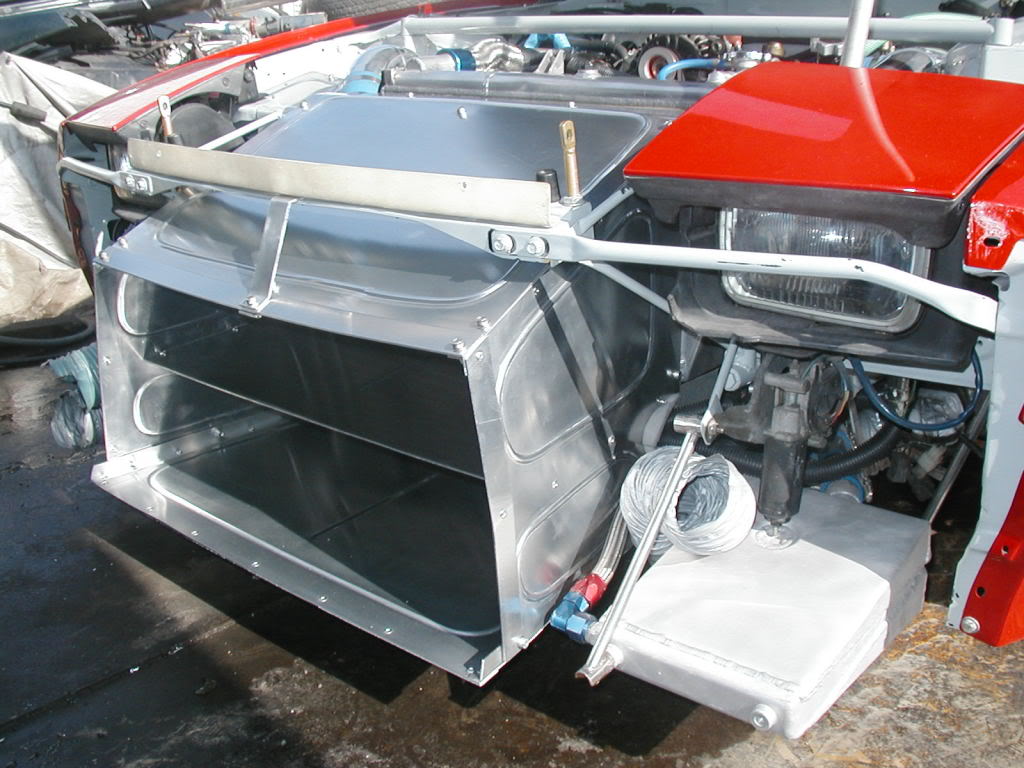

I saw this setup:

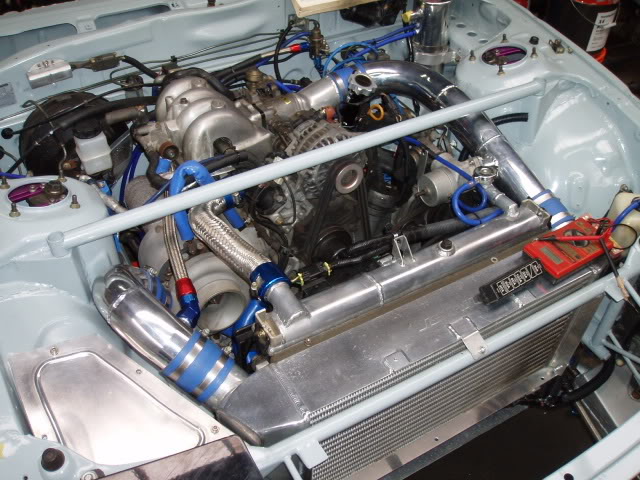

Then picked up this core and the piping used from Batlground:

skillzilla

iTrader: (1)

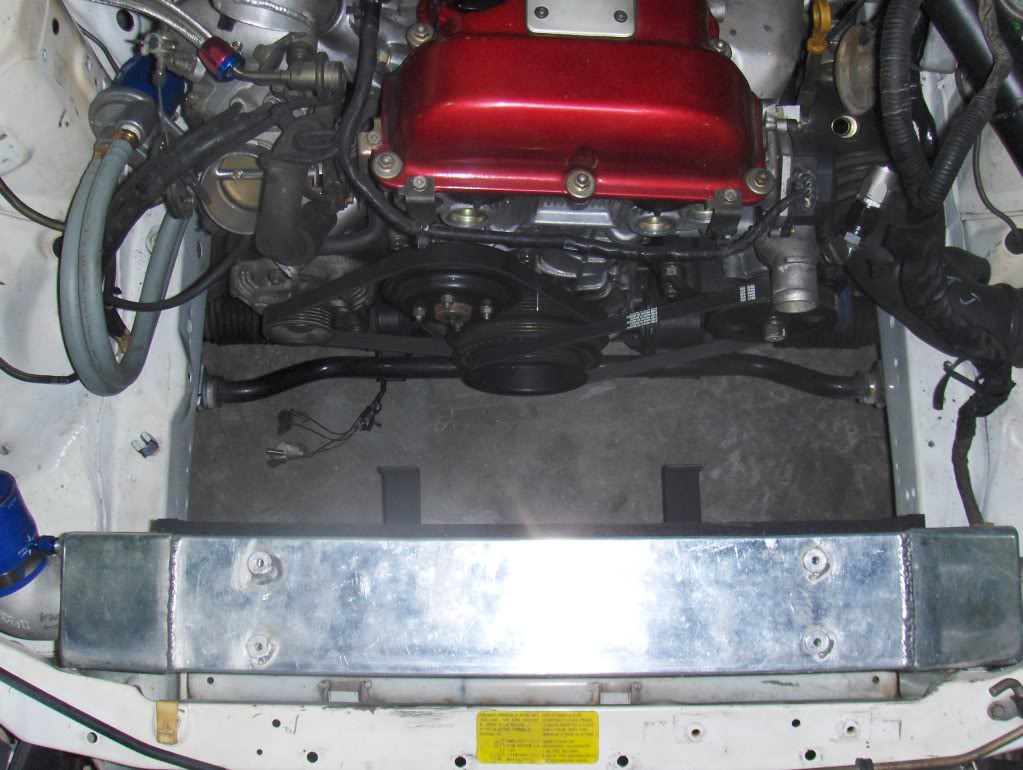

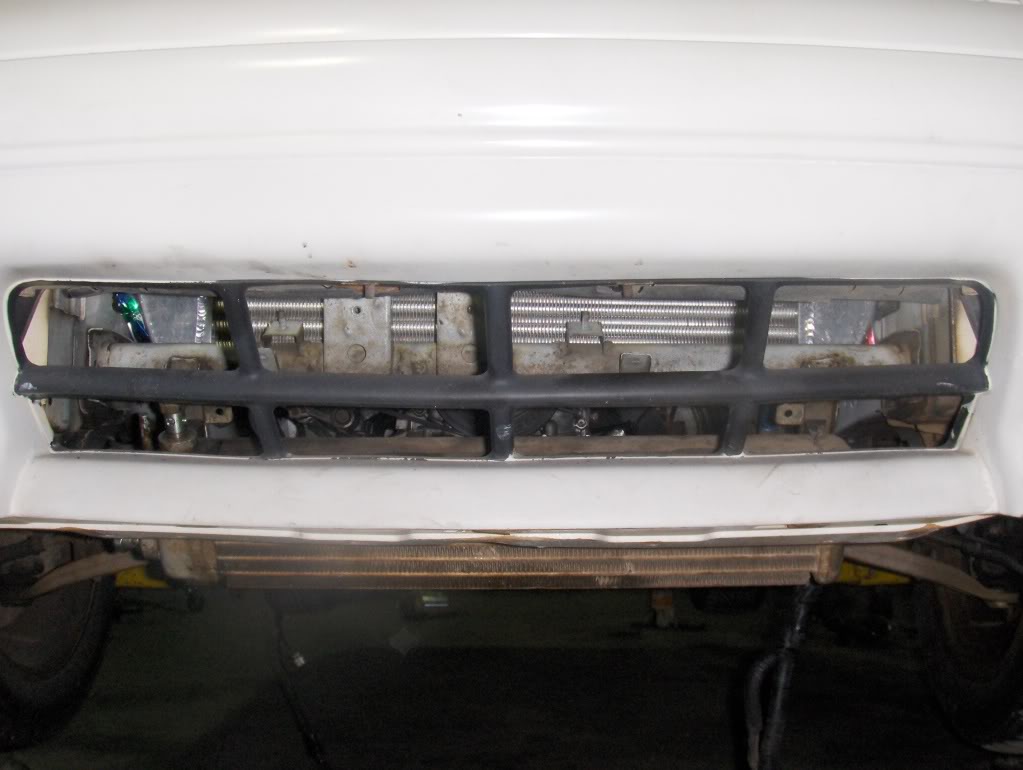

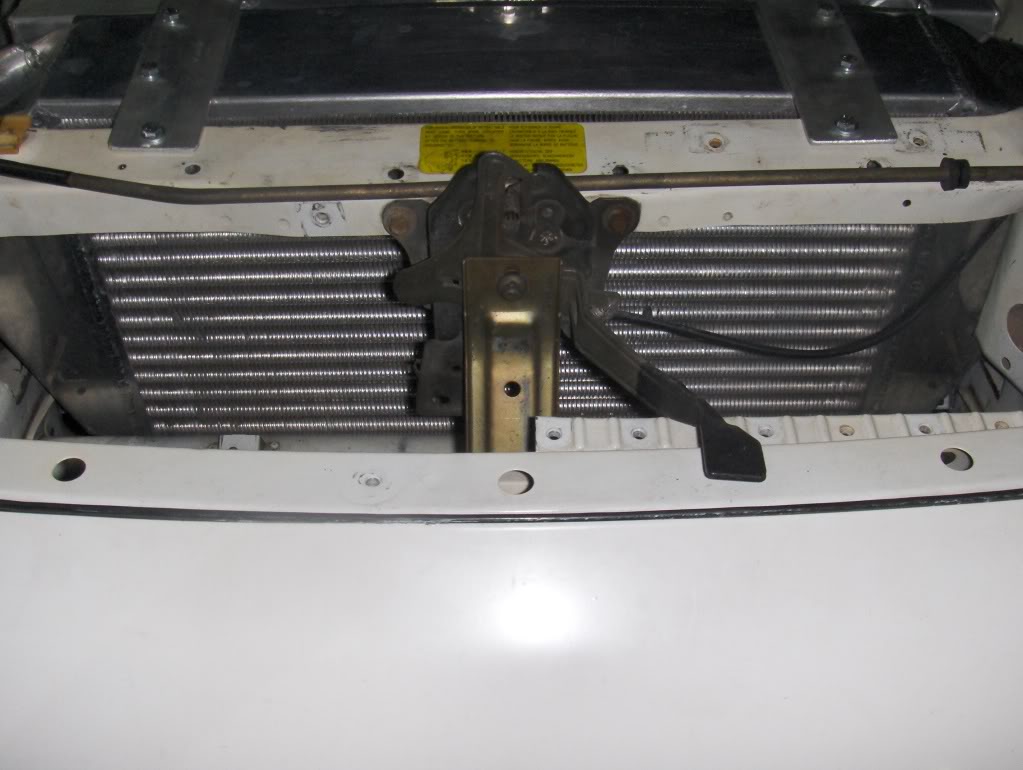

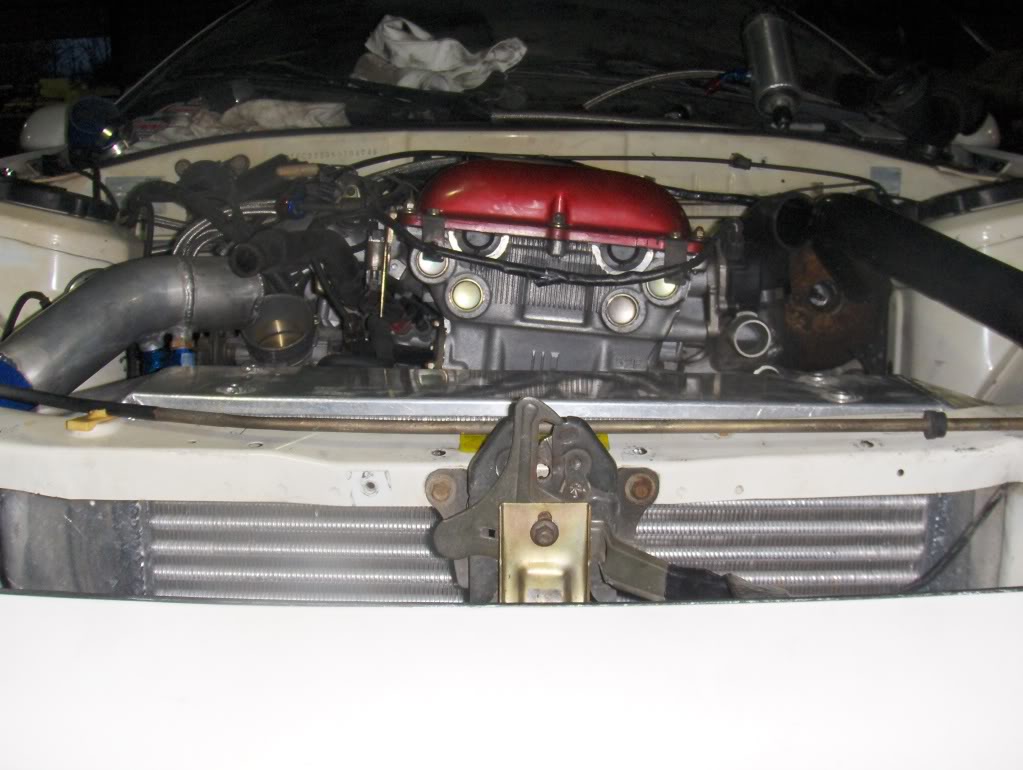

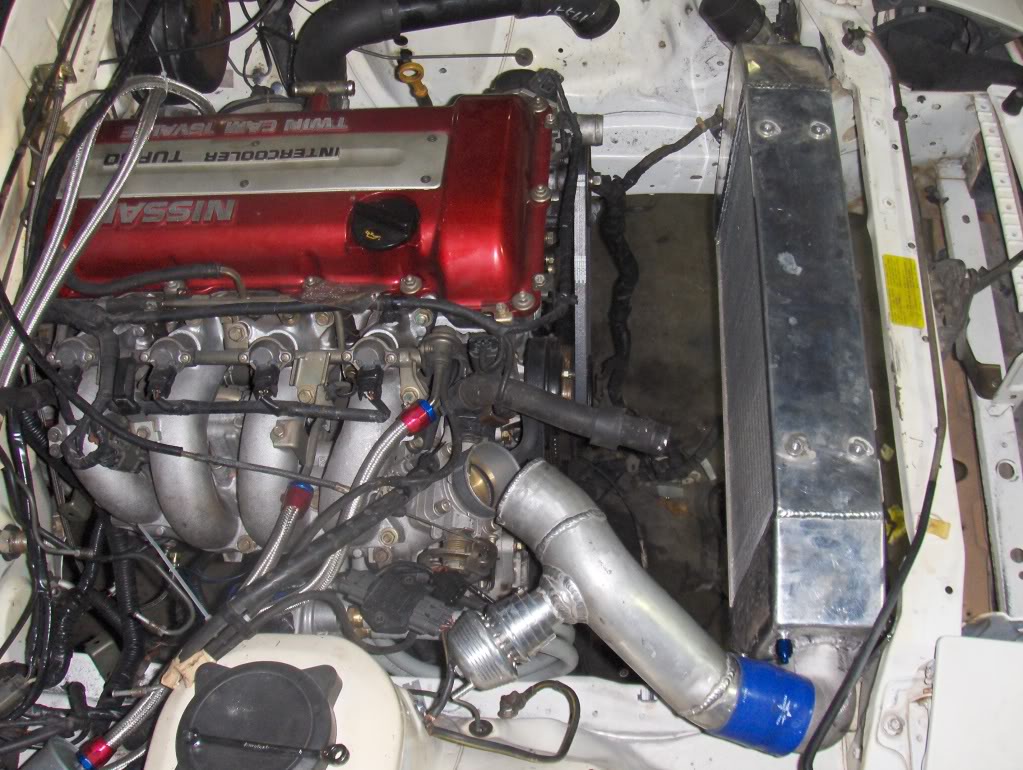

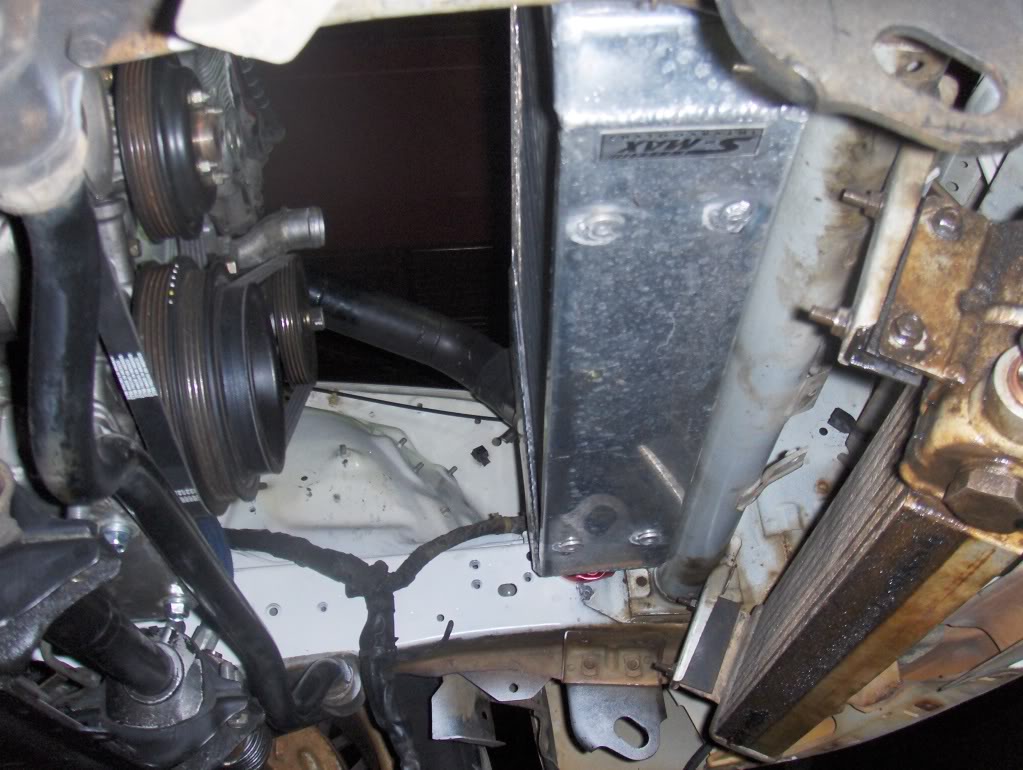

Here is the intercooler mocked up, still have t make and mount brackets to the oil cooler supports. Might flip the cooler around too to bring it up some, I flipped it around to get the lines on the right side but its not as low as it looks in the pics. Its dirty as all hell too, making me consider just buying another core that will fit in the wheel well:










A 45 coupler here and Ill be all set:

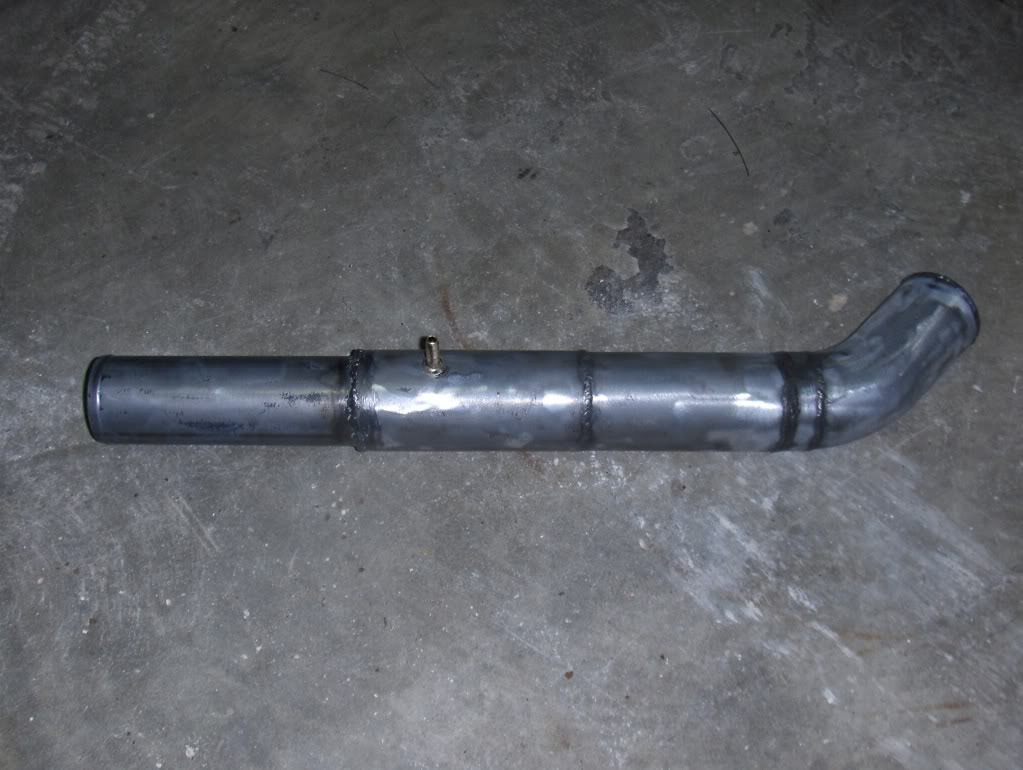

I cut the last bend off the hotpipe as it was set up for a T28, and cut a few inches off the stock hotpipe, then asked Decker really nicely if he could weld it for me. It was an offer he couldnt refuse.

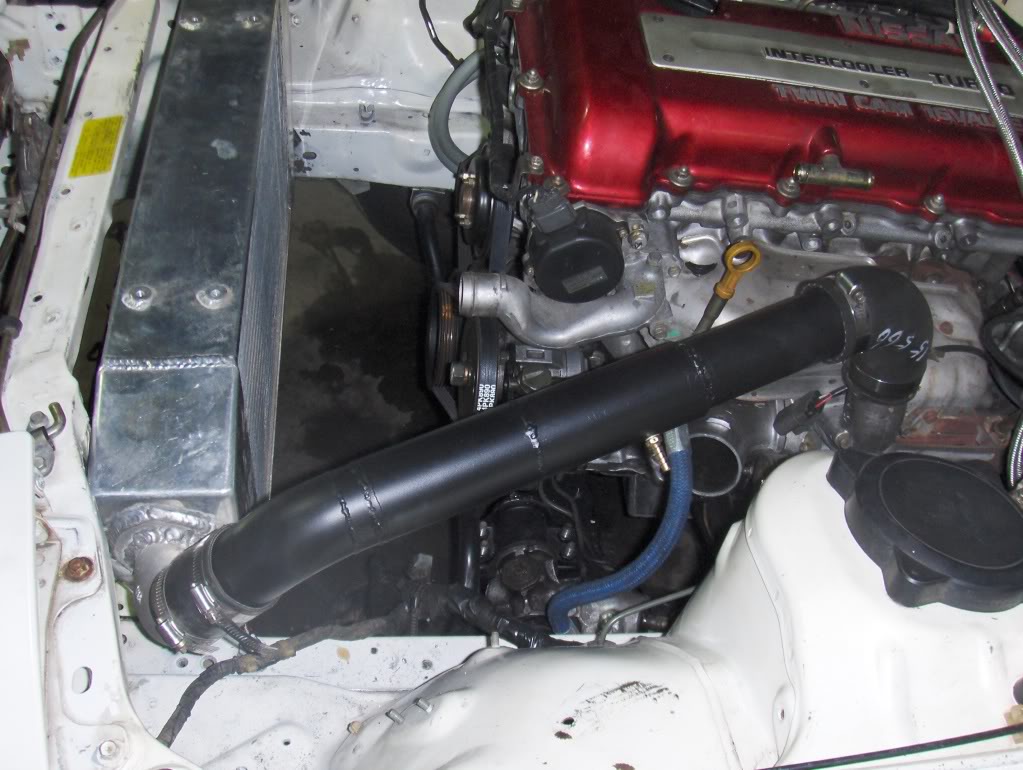

Done:

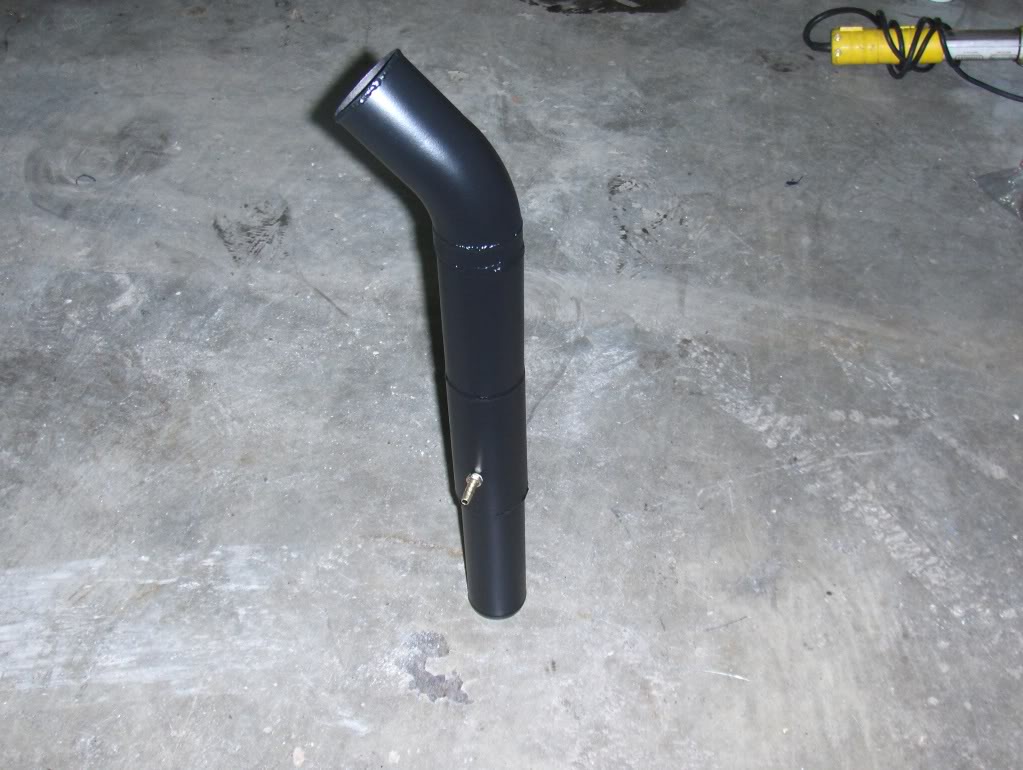

Painted:

skillzilla

iTrader: (1)

Ready to kick ***:

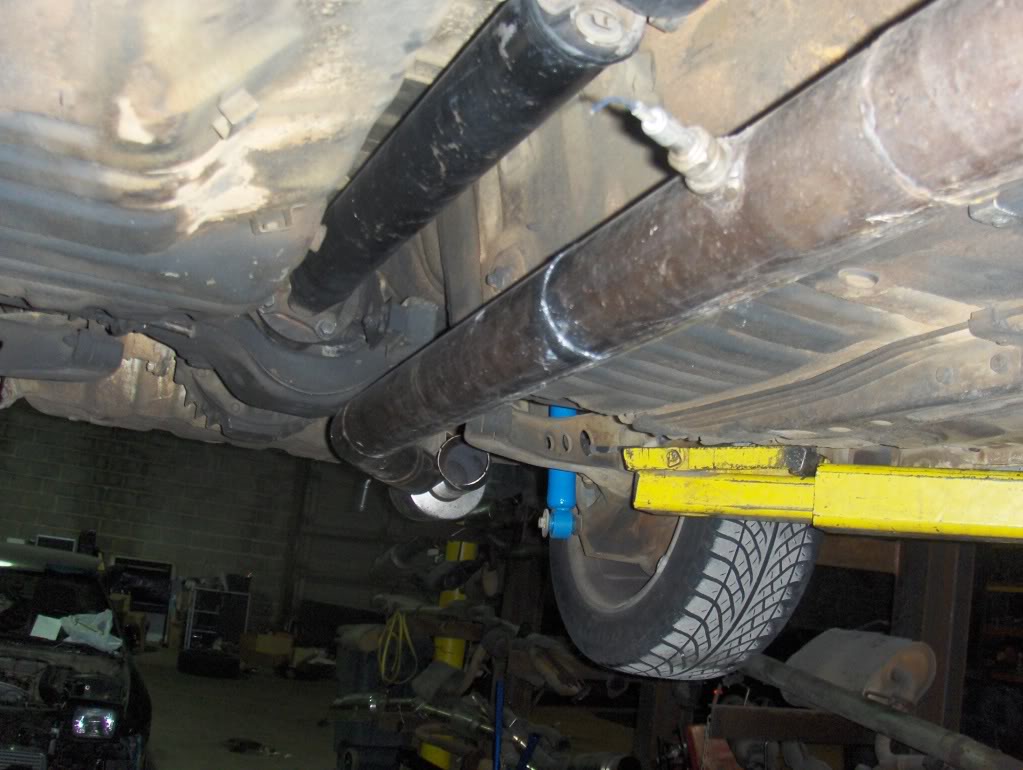

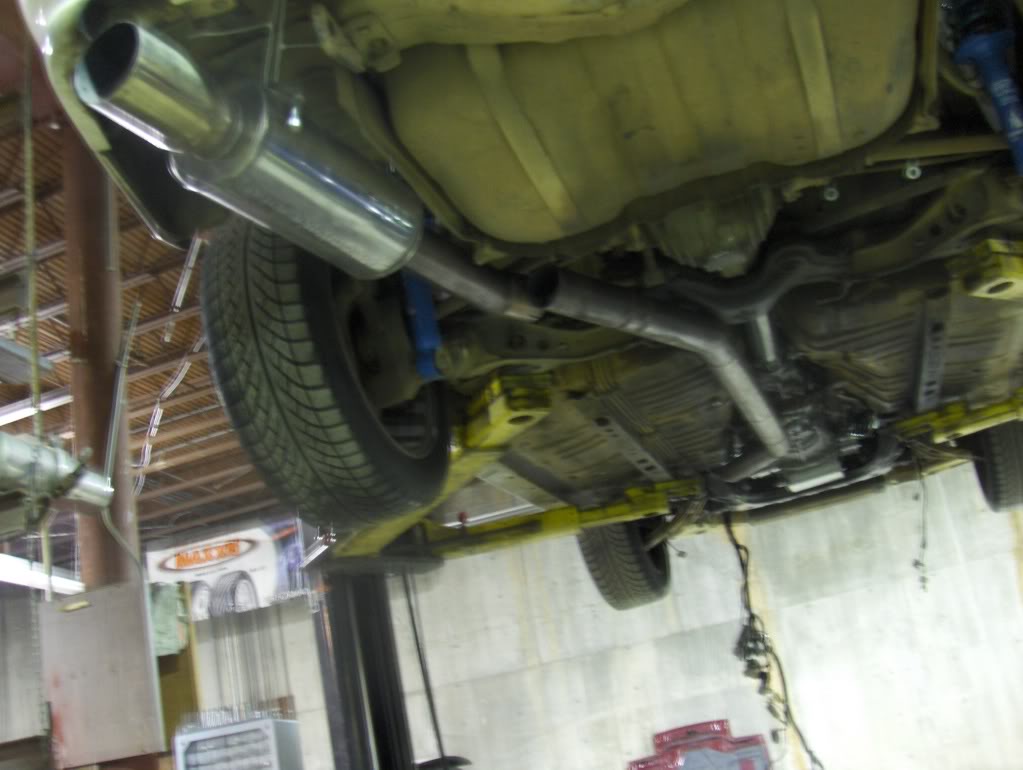

Also got the exhaust welded together (thanks again to Decker), and started figuring out the hangers and stuff:





Stock speedo cable will fit, thats whats up. No need to pull the cluster!!!




Gradiated Roll Call mod

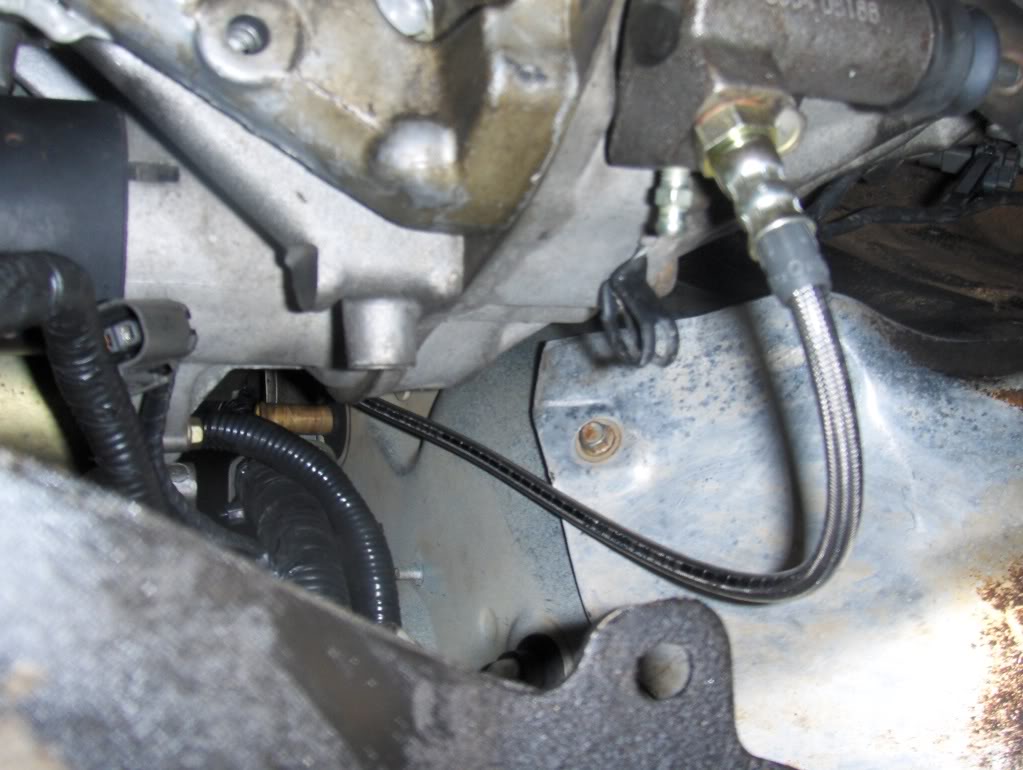

New braided clutch line:

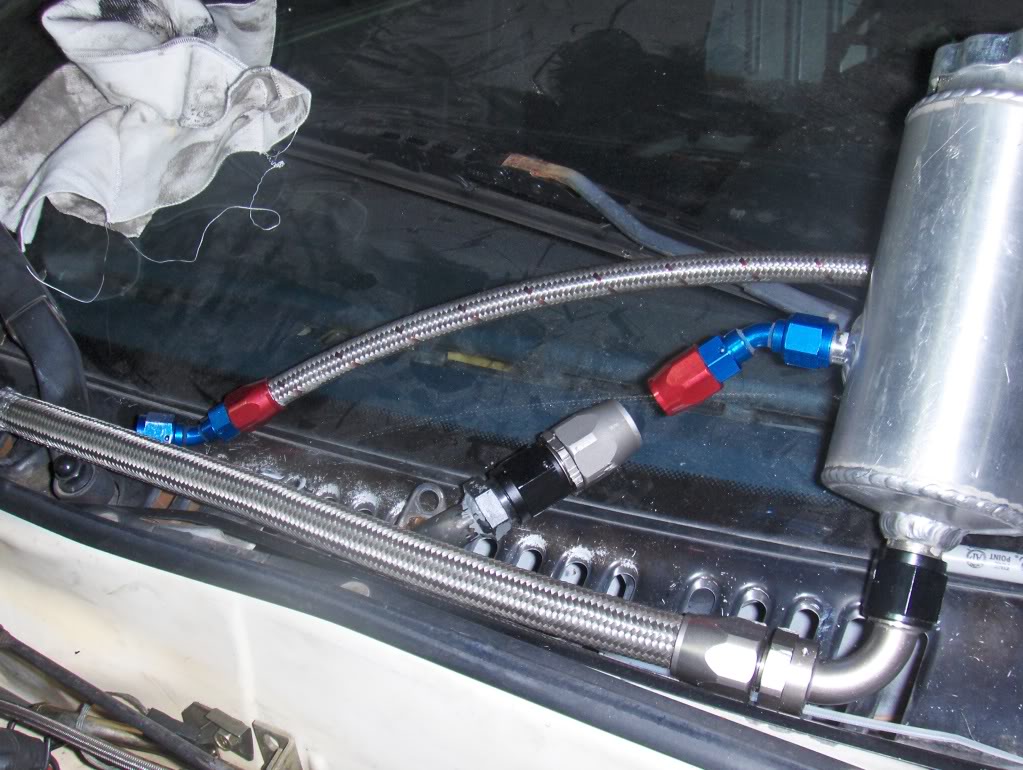

Got the rest of the fittings for the PS too, but I think Imma cut the reservoir down and weld it shorter:





Also got the new BMC and booster installed with the non-ABS lines, tightened up the battery relocation, cleaned up the lower harness a TON, and pulled in the slcack on the engine harness to get it out of the bay. Getting really close now, more pics and an update tomorrow.

Fattony

iTrader: (1)

What are you running for a radiator? you know a Koyo SR radiator fits perfectly if you mount it vertical where you have the intercooler. I have a LS1 RX7 and a SR 240 and played around with the sr koyo. just some food for thought if you have yet to decide on an radiator. also where do you plan on mounting a radiator? behind the intercooler? I ask because where are you gonna mount a fan?

Honestly you ve inspired me into swaping my sr into my rx7 shell that I have laying around. Im deffently gonna keep up with this post. Good Luck with everything it looks great

Tony

skillzilla

iTrader: (1)

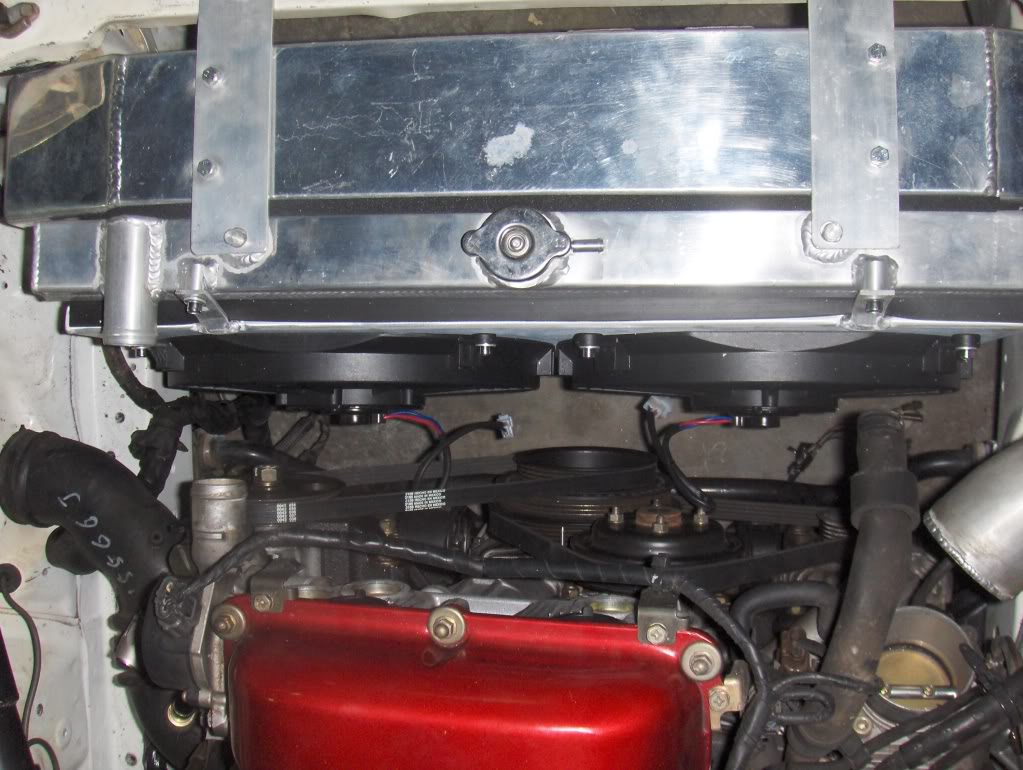

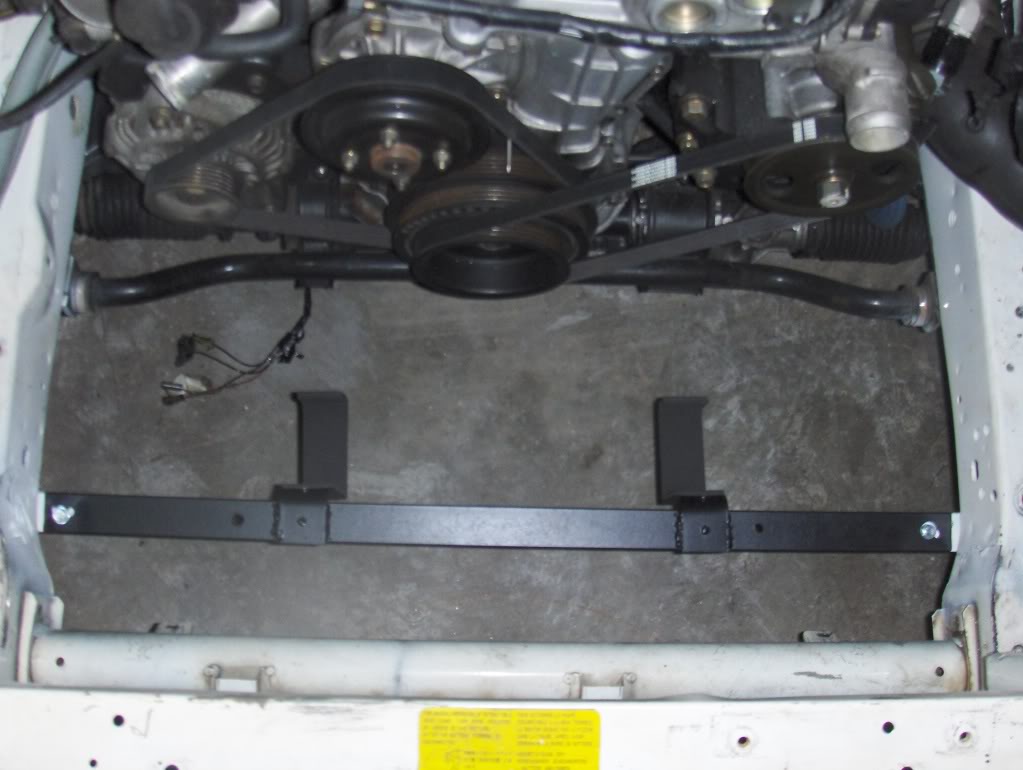

Thanks homie, and ya radiator is going right behind the intercooler with a bracket from rail to rail and some ties on the top. Should have that all done this week some time. Its crazy but ya, S13 SR radiators fit it perfectly, even have enough room for e-fans with the way it sits now. Let me know if you have any questions about the swap, I have all the details stored in my head and want to get stuff like wiring and **** down on paper eventually.

killahrx7

this is funny i have a gazillion friends with SRs and they're getting out of them and switching to 2jz and here you are doing a SR swap. hey you know what that's your liking and everyone is different. all the best.

skillzilla

iTrader: (1)

SR's in 240's Im assuming? 2J's are pretty flippin sweet but not really what i was going for here. Besides, who needs 500whp with just a 60-1 and an EBC?

killahrx7

well some of them did the 240 2jz swap others did the swap in AE86 and pickup trucks. and you're telling me you wouldn't want 500hp that easily? ok.

skillzilla

iTrader: (1)

hahaha of course I would, that wouldnt be too bad at all Ya SR's are pretty universal. Nice motor, nice aftermarket, 6 wires and it runs in anything. Good candidate for any swap.

skillzilla

iTrader: (1)

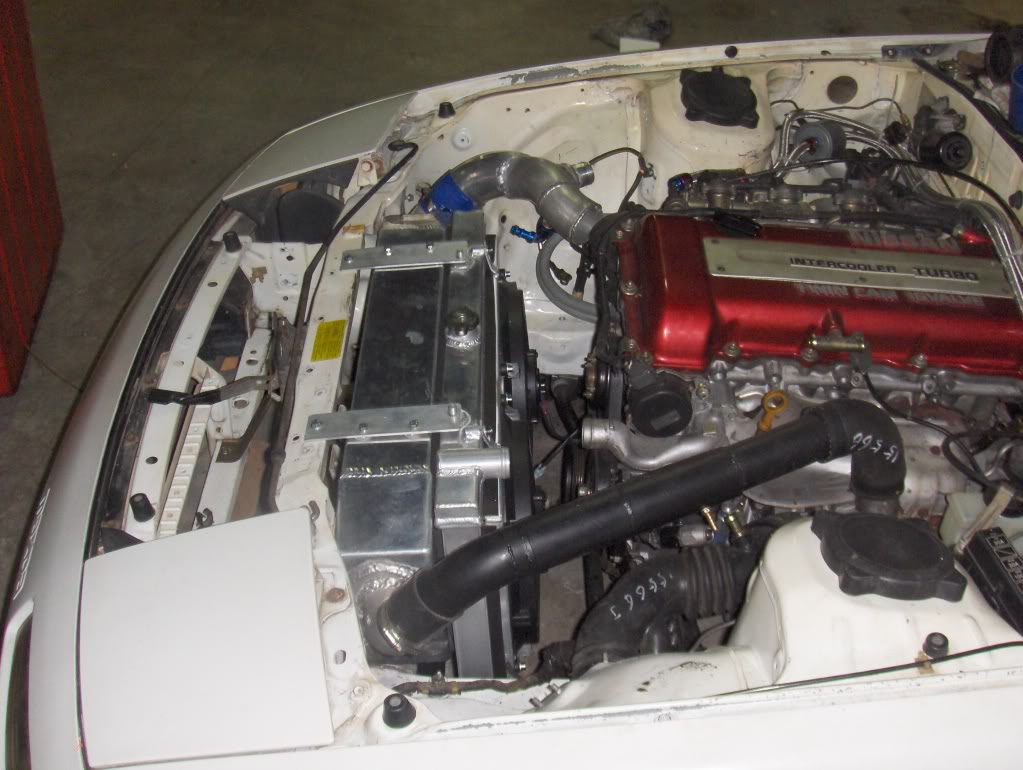

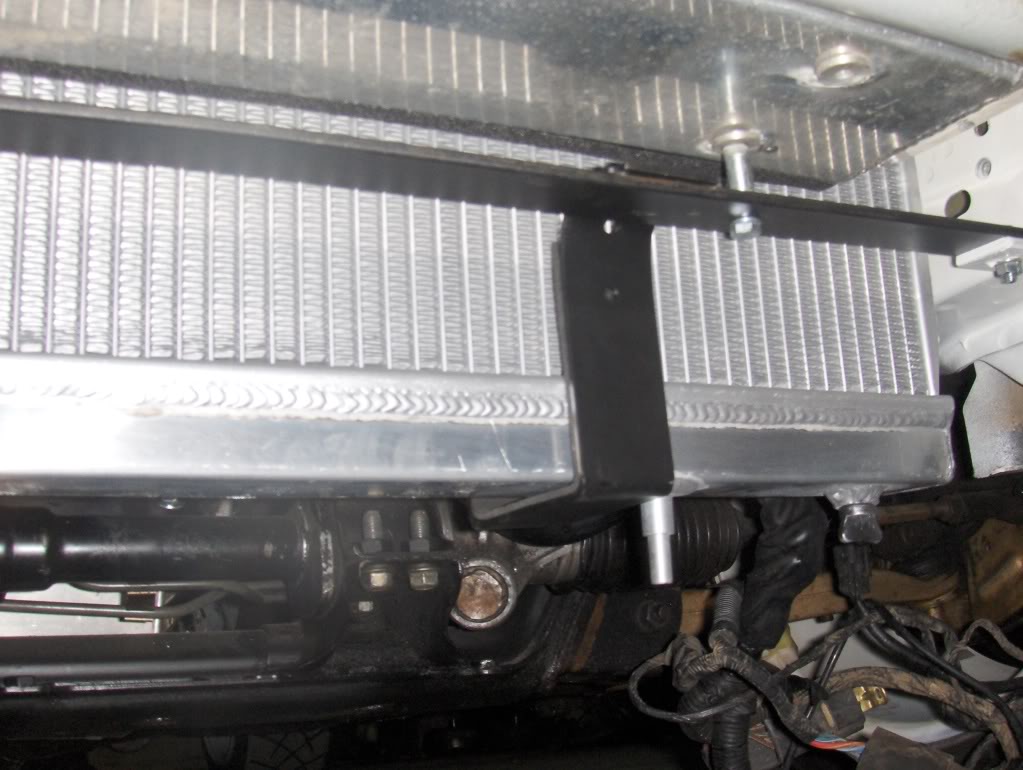

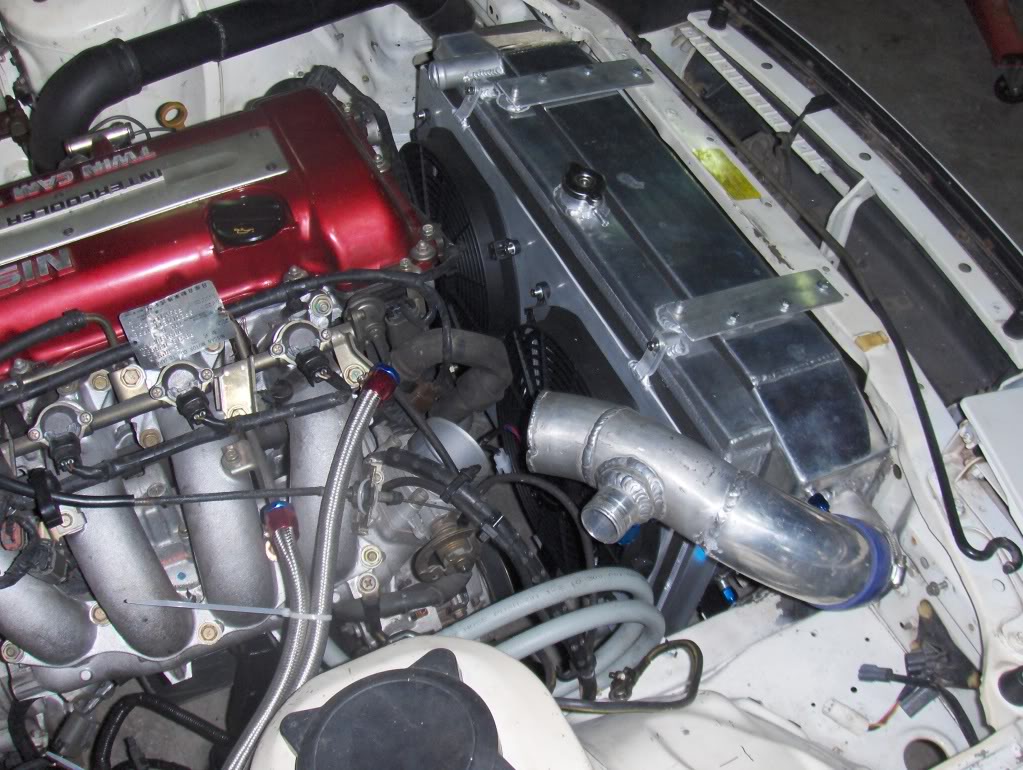

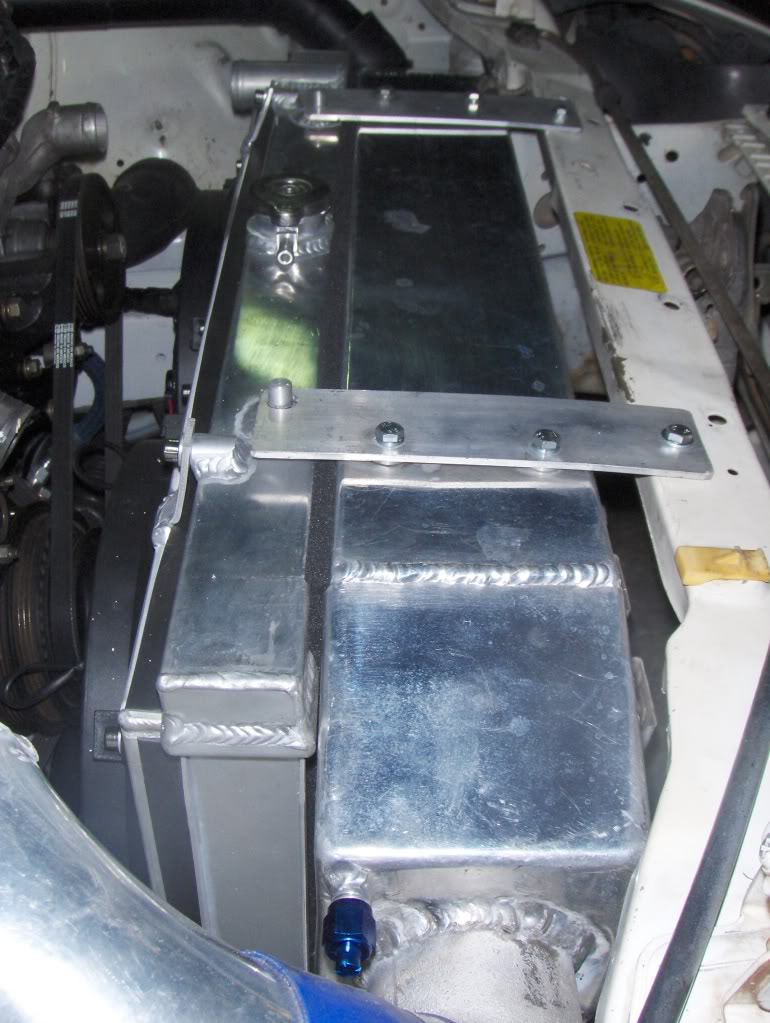

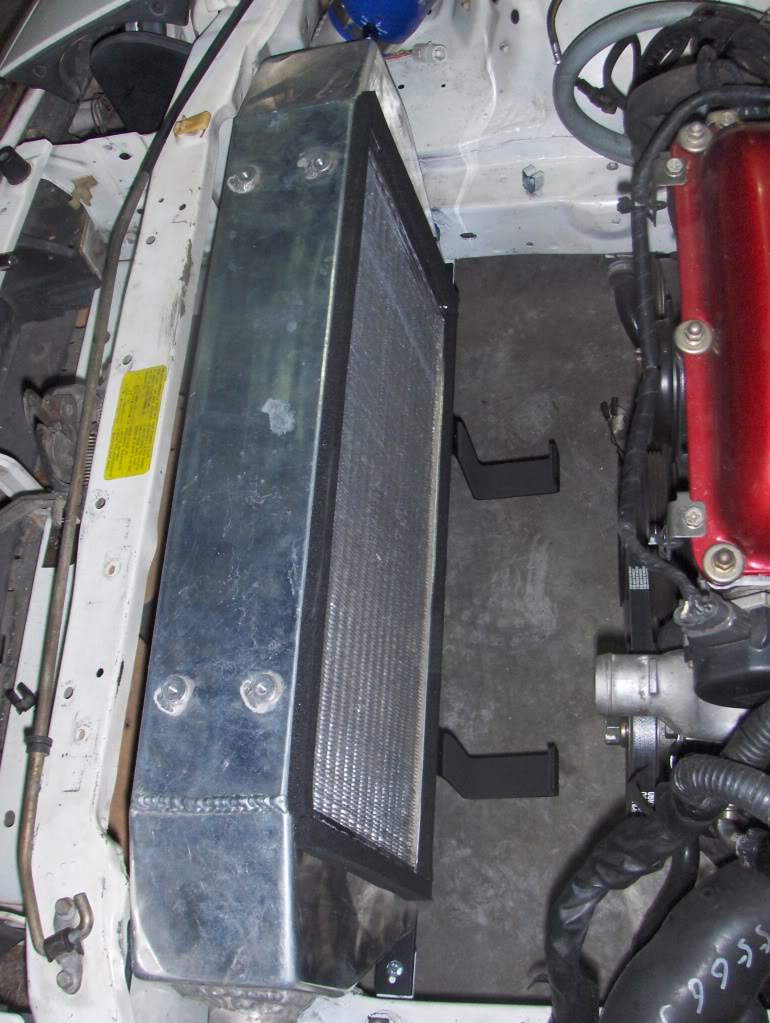

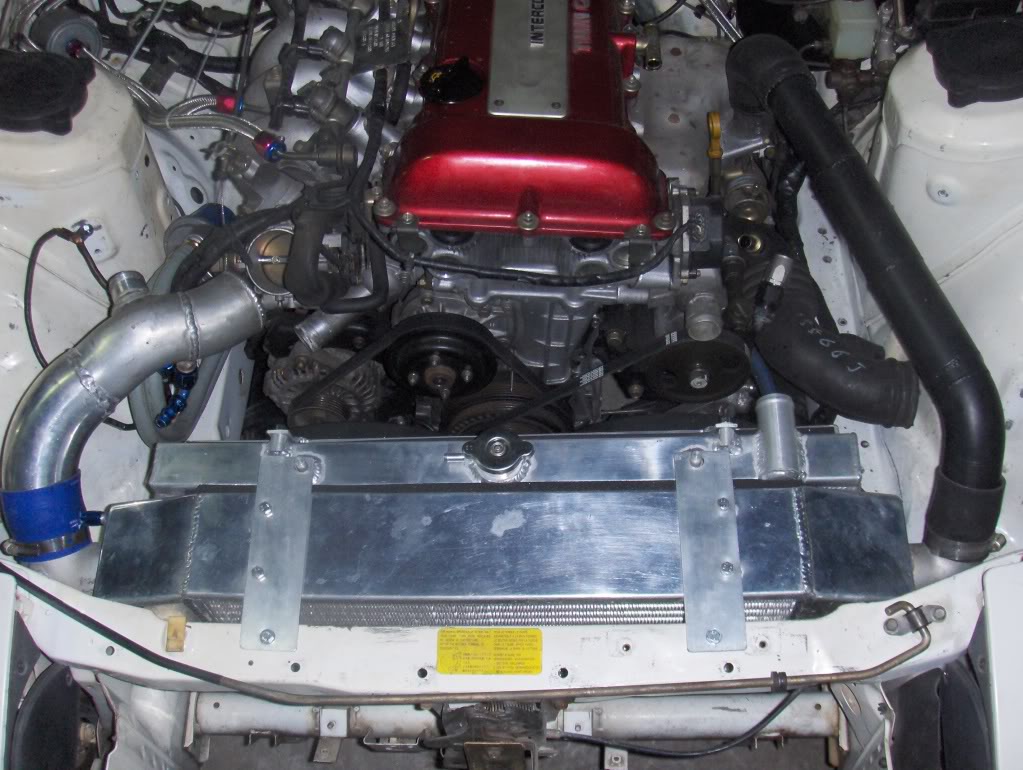

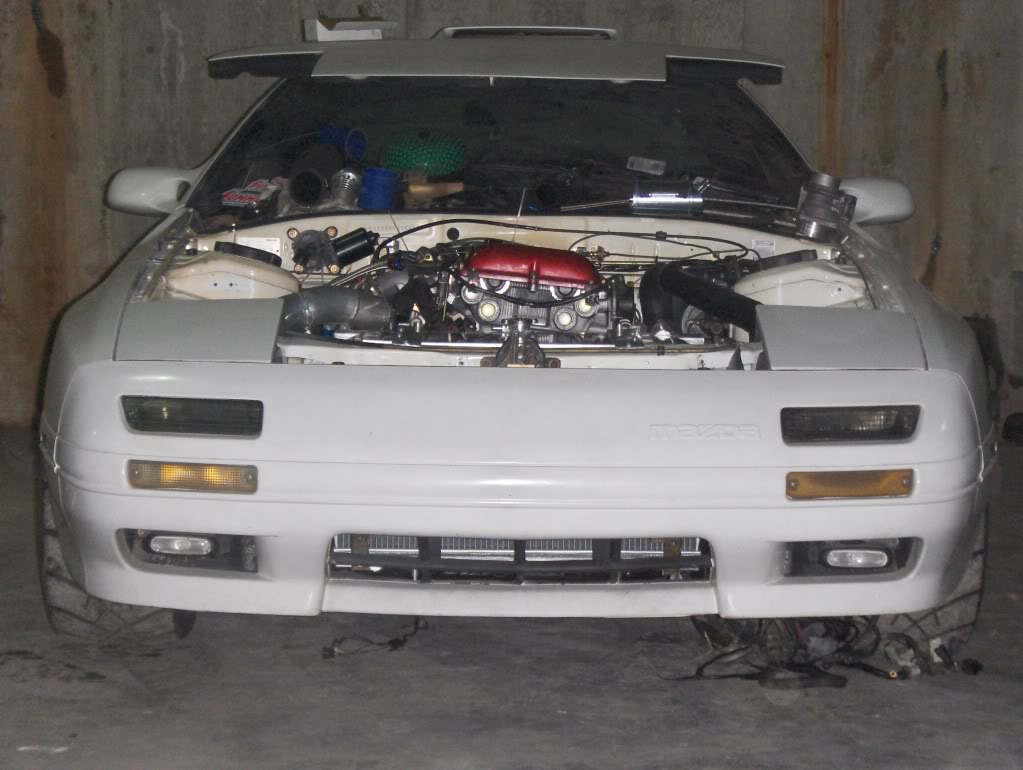

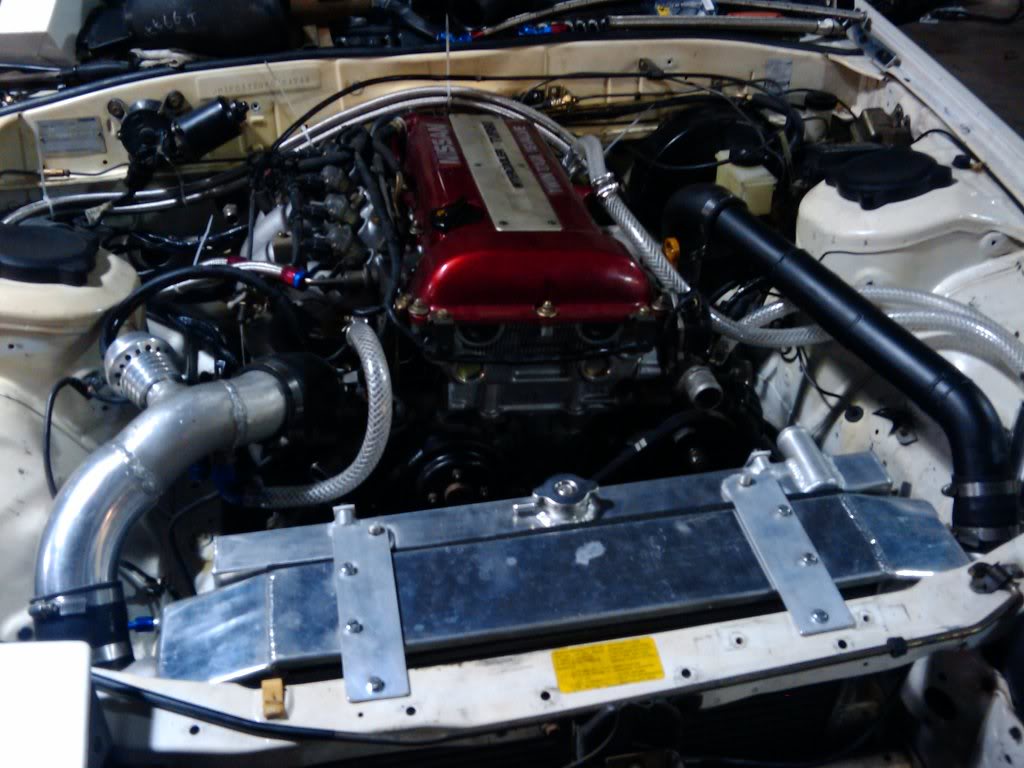

Got the radiator and intercooler buttoned up today, think I might have a hard time finding a top hose. Cold pipe is a work in progress.

skillzilla

iTrader: (1)

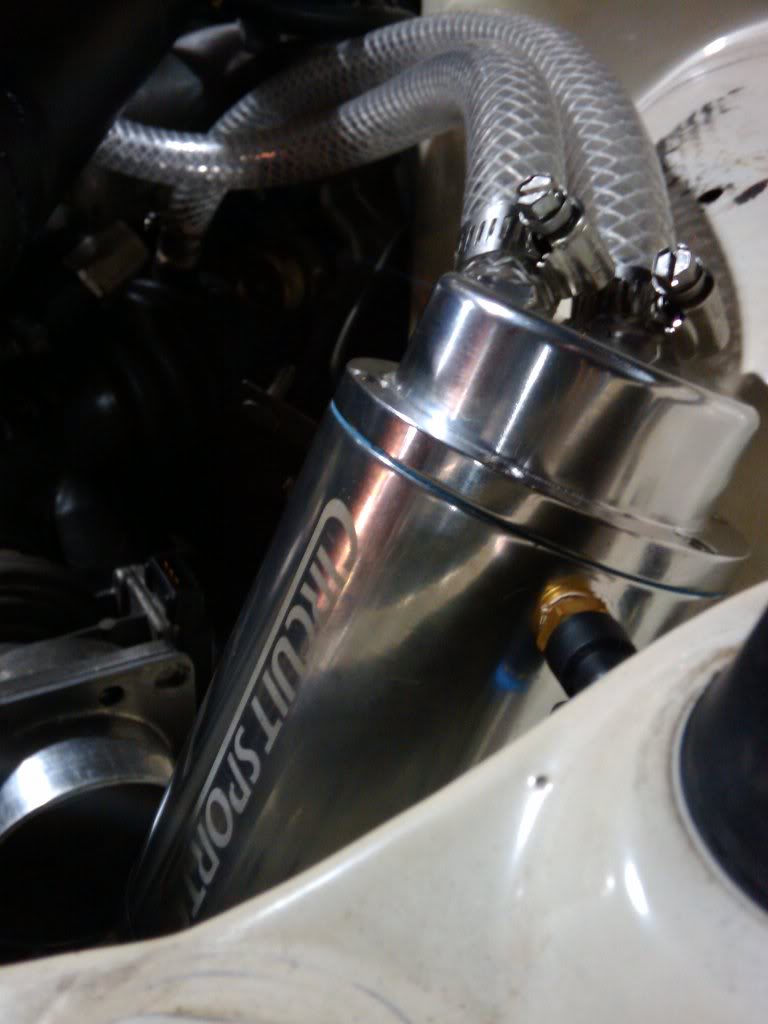

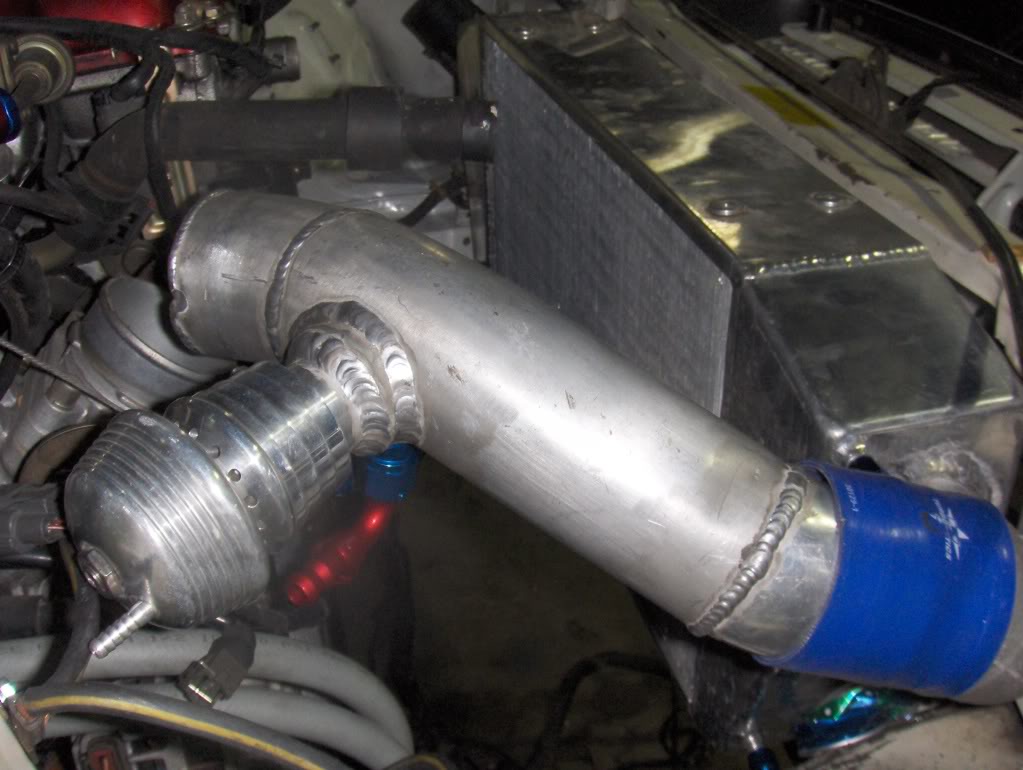

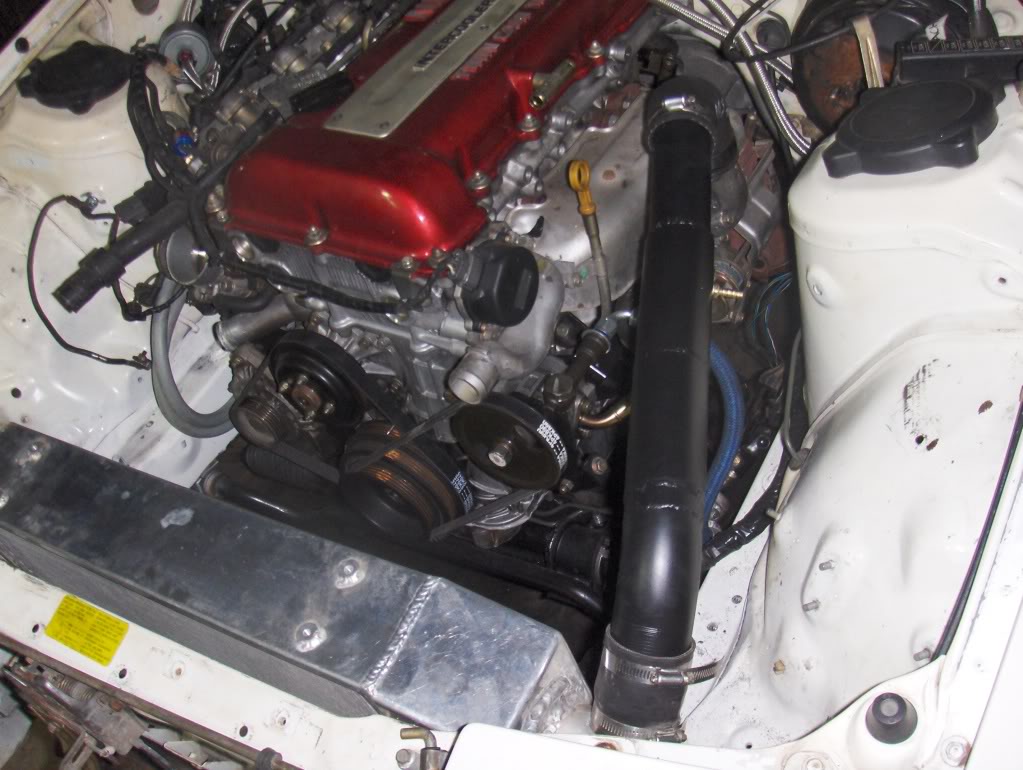

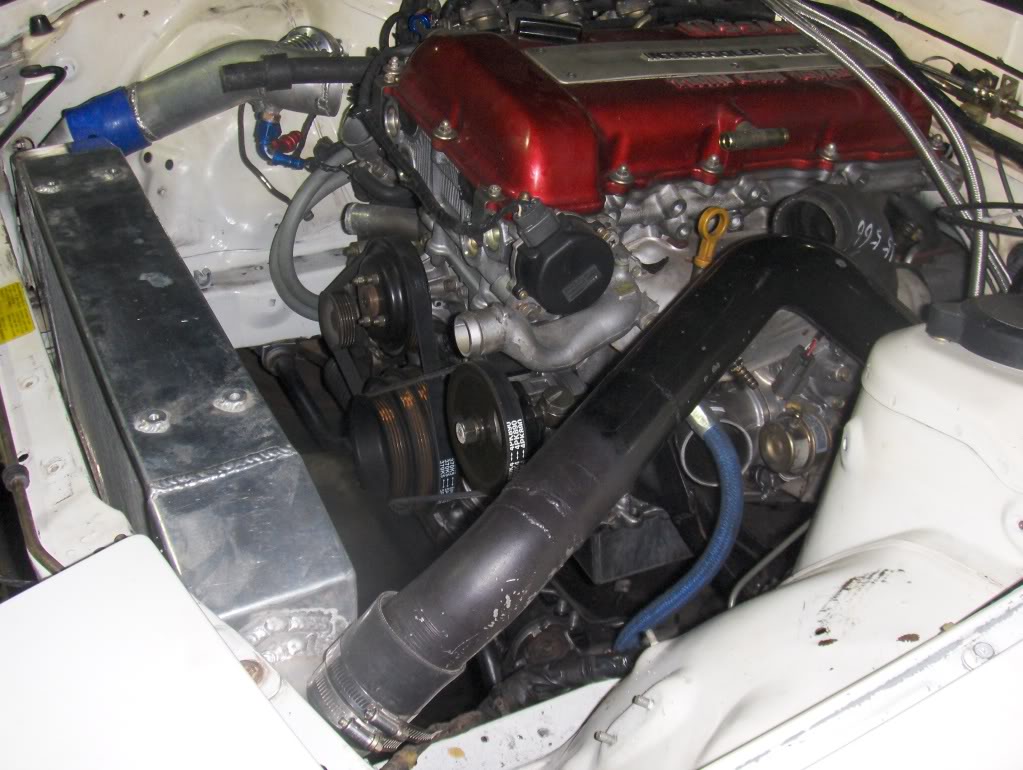

Cold pipe done, vacuum lines done, catch can done.

skillzilla

iTrader: (1)

I got my tach signal figured out, had to run it off the 180* signal from the CAS since Nissan decided to try and be special with the SR rpm setup. Once that was done I realized I didnt have any more wiring to do on the inside so I installed the ECU and kick panel and layed the carpet back down. It looks weird, hadnt seen floor on that side of the car for a few months

Also got the MAFS and O2 wires extended, loomed and tied away. Overall not a bad day at all, I got to rev above 2500 and test the BOV too.

HTORRES96

Holy **** u just answered a ton of my questions i was about to quit my swap in my 7 i was gonna cut the firewall and move it back just got a few qs

for the tach wat idid u do to make it work
also how u got the speedo to work i read something bout 929

also forgot ur da man

skillzilla

iTrader: (1)

This is how I did the tach, although you could do it a number of ways I guess.

Basically you need to provide the 180* CAS signal from the SR harness to the Y/L wire that is in the trailing coil connector on the front harness (NOT the check connector, although that would work too. I used the coil harness plug itself so that i could keep the check connector for diagnostics). The FC cluster gets the rpm signal from this wire, so supplying a tach signal to it works fine. You cant use the standard SR20 Y/R wire from the dash plug since it is positive voltage only and you need a pulse signal.

What I did was solder a wire in-line to pin 22 on the SR20 ECU and ran it to the FC ECU plug, connecting it to one of the other wires that went to the trailing coil pack (I cant remember which wire it was off-hand but it should be pretty easy to find in using the OEM wiring books. i think it was one of the trailing coil signal wires. I simply cut the wire at the FC ECU plug and connected the two, obviously Im not planning to run a 13B anymore so it didnt bother me ). Once I had that connected I tested continuity from the SR ECU plug to the trailing coil plug and it was good. Then, I cut the tach signal wire going to the cluster (Y/L) and connected it to the other wire coming from the FC ECU plug.

Essentially I used the FC wiring to get the singal over there, so that i wasnt running loose wires all over the place. it was just cleaner for me, although technically you could jump a wire from pin 22 on the SR ECU directly to the back of the cluster and it would work fine. The way i did it was a little cleaner and allowed me to use the check connector like OEM, which i like.

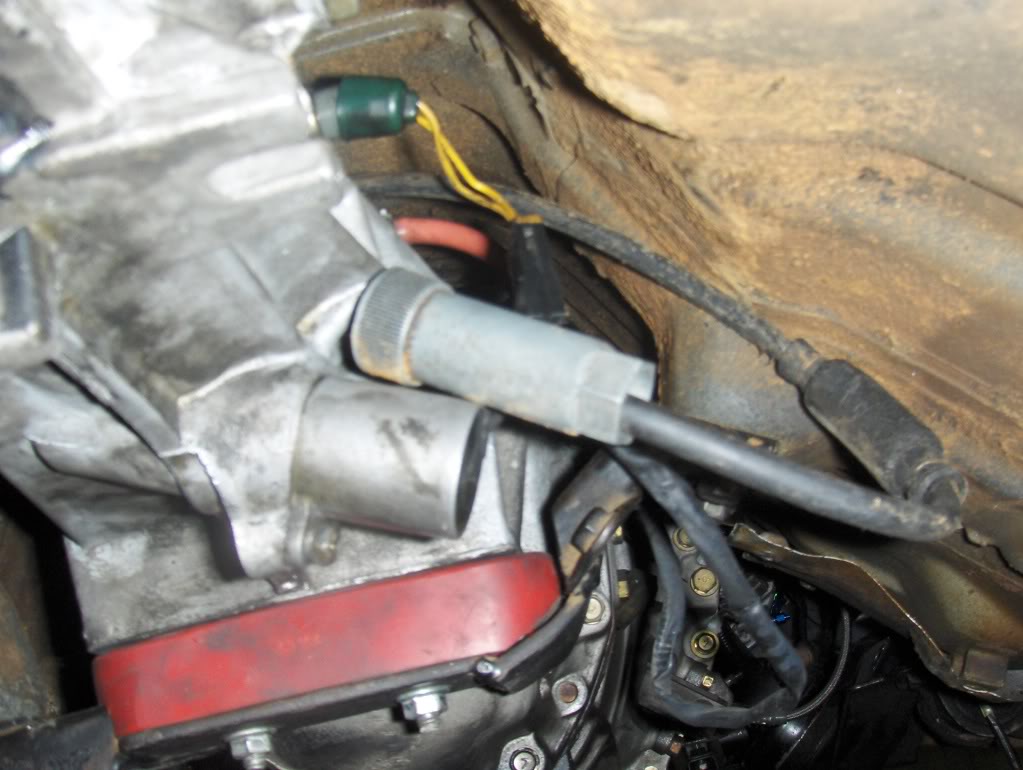

For the speedo, surprisingly enough the FC speed sensor goes right into the SR tranny, and my speedo cable reached fine to connect to the sensor. the only 'gitcha' was the mounting hole for the sensor needed to be opened up a bit, maybe 1-2mm max. I havent driven the car yet but i cant imagine it not working, its all mechanical.

HTORRES96

Thanks man

surubasi

JJ.

You're doing awesome man. I just got the LS out of the car today and I'm getting it all prepped. I'll have the mounts and radiator in along with everything I need to button it up very soon. I look forward to coming down again. As soon as the other garage space filler is fixed. soon soon.

Dave

** call me dude I need your number, I lost my phone on vaca.

BC-FD3S

iTrader: (2)

"pitwork" is Nissan OEM just incase you were wondering.

I ordered new belts for my RB20 and got Pitwork belts in a Nissan bag.

goreify

iTrader: (3)

damn there are some retards posting here, the stupidity is mind boggling.
awesome work, i hope the rest goes well for you, pretty stoked to see how this car turns out.

jcurtis

iTrader: (1)

I gotta say, I think this swap is cool! Looking good man!

skillzilla

iTrader: (1)

Thanks guys ^

Nice dude, I didnt even know you got that car already. Ya man well get up soon.

Miata_mx5

I would take the head off and check for internal damage. Most JDM SR20s are notorious for having heads overtightened, or scoring cam journals, etc. Would be a good time to do a proper metal head gasket too (as these engines need it).
