Tegheim - Home made 4 Rotor Wolvo project

Old School and Other Rotary Old School and Other Rotary Powered Vehicles including performance modifications and technical support

Tegheim - Home made 4 Rotor Wolvo project

Old 03-16-10, 05:15 PM
  #1
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Tegheim - Home made 4 Rotor Wolvo project

Hi, where unsure if I should post a project thread, but gusfd3s here pushed me

I'm trying to build a car the way I want.
The car is an Volvo 142 -73. They are rather common i Sweden, but all of them are piston-engineed.
It started with a simple 4-link-build. But now it all has got out of hands...

I will post as much pictures as possible, but there is alot old pictures so I also link my older swedish project-thread so you all can se my progress-pictures.

I let the pictures talk for them self at first. Visit my album at Photobucket, to much to upload!
All work is done by myself.
Regards Tegheim

http://s815.photobucket.com/albums/z...20Wolvo%20142/

Some teaser...



tegheim is offline
Old 03-17-10, 08:05 AM
  #2
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Random pictures...








tegheim is offline
Old 03-17-10, 09:51 AM
  #3
kiwi from downunder..
iTrader: (4)

blwfly's Avatar

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,418
Thanked 1 Time in 1 Post
wow totally amazing
blwfly is offline
Old 03-17-10, 12:17 PM
  #4
Senior Member
5 Year Member

MountainScreamer's Avatar

Join Date: Dec 2006
Location: Sylva, NC
Posts: 272
Thanks: 0
Thanked 0 Times in 0 Posts
Holy crap this thing is gonna be cool!! This is very impressive.

By the way, what transmission is that?
MountainScreamer is offline
Old 03-17-10, 01:09 PM
  #5
Full Member

datfast1's Avatar

Join Date: Jun 2006
Location: SoCalRotarito, California
Posts: 158
Thanks: 0
Thanked 0 Times in 0 Posts
That will be a sick project. Got some estimated time on the finish build, 1 to 2 years maybe?
datfast1 is offline
Old 03-17-10, 02:36 PM
  #6
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
The gearbox is BMW M3/328 E36 5gear with rx7 s4 boltpattern.
I have no idea how long time the project will take actually. Will soon start to engineer the 4-rotor-shaft.
Meanwile I will fix and measure the new front suspension and frame.

Glad you like it
tegheim is offline
Old 03-17-10, 05:30 PM
  #7
Senior Member
5 Year Member

MountainScreamer's Avatar

Join Date: Dec 2006
Location: Sylva, NC
Posts: 272
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for clarifying on the transmission. I've never seen a BMW one before so I was confused.
When you machine it, could you give specs on the eccentric shaft, like what material, will it be in a couple pieces? Who did the drawings for it?
I've always wanted to machine one but haven't been able to get any exact dimensions.
MountainScreamer is offline
Old 03-17-10, 10:28 PM
  #8
In a Bucket
iTrader: (8)

w.sen's Avatar

Join Date: Jun 2009
Location: ocala, florida
Posts: 468
Thanks: 0
Thanked 0 Times in 0 Posts
This is amazing keep up the good work!! Was there any mods to make the bmw tranny fit ?? Or did it bolt right up??
w.sen is offline
Old 03-17-10, 10:35 PM
  #9
RAWR
10 Year Member
iTrader: (3)

OneRotor's Avatar

Join Date: Apr 2004
Location: 90024
Posts: 3,861
Thanks: 0
Thanked 0 Times in 0 Posts
Epic build. Subscribed.
OneRotor is offline
Old 03-18-10, 02:08 AM
  #10
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by MountainScreamer View Post
Thanks for clarifying on the transmission. I've never seen a BMW one before so I was confused.
When you machine it, could you give specs on the eccentric shaft, like what material, will it be in a couple pieces? Who did the drawings for it?
I've always wanted to machine one but haven't been able to get any exact dimensions.
All drawing and machinework is made by myself. I have made the drawing in Inventor, and then I will machine it with MasterCam in a Femco CNC-Lathe, and a Matsuura Mill.
All dimension and so on will be releaved as soon as I know it works. I will not have any secrets, but don't want to make peaople build something that doesn't work.

Originally Posted by w.sen View Post
This is amazing keep up the good work!! Was there any mods to make the bmw tranny fit ?? Or did it bolt right up??
No, it doesn't fit bolt on, I cutted of the boltpattern from a S4-gearbox, about 70-80mm wide I think. Same with the BMW-tranny. Then when all egdes where in line, I fixtured into a backplate of an 13B and weldet it together. Sorry, didn't take any photos of that...

Originally Posted by whitey85mtu View Post
Epic build. Subscribed.
Thanks
tegheim is offline
Old 03-18-10, 07:41 AM
  #11
Senior Member

Join Date: Jul 2009
Location: England
Posts: 377
Thanks: 0
Thanked 0 Times in 0 Posts
Amazing stuff, all the best cars come from Norway and Sweden.

I hope to see this in action at Gatebil sometime when its finished!
StavFC is offline
Old 03-18-10, 12:23 PM
  #12
Senior Member
5 Year Member

MountainScreamer's Avatar

Join Date: Dec 2006
Location: Sylva, NC
Posts: 272
Thanks: 0
Thanked 0 Times in 0 Posts
Cool.
The setup I'm currently using is ProEngineer with OneCNC for the code on Haas CNC mills and lathes.

Do you have any specifications for the 4-link?
MountainScreamer is offline
Old 03-18-10, 02:34 PM
  #13
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by StavFC View Post
Amazing stuff, all the best cars come from Norway and Sweden.

I hope to see this in action at Gatebil sometime when its finished!
I hope I will get to Gatebil also... have been there 4 years but only with a cold beer in my hand

Originally Posted by MountainScreamer View Post
Cool.
The setup I'm currently using is ProEngineer with OneCNC for the code on Haas CNC mills and lathes.

Do you have any specifications for the 4-link?
I maybe have the drawing of the 4-link left at the CAD-computer, can check tomorrow.
tegheim is offline
Old 03-18-10, 05:11 PM
  #14
$ ain't everything, rite?

Bugeye RX's Avatar

Join Date: Jun 2009
Location: CT
Posts: 461
Thanks: 0
Thanked 0 Times in 0 Posts
This is serious frigg'n business here!!!!!!!! I'll be following this one for sure. Very cool.
Bugeye RX is offline
Old 03-18-10, 08:45 PM
  #15
Banned. I got OWNED!!!

Join Date: Aug 2009
Location: Chicago,IL
Posts: 297
Thanks: 0
Thanked 0 Times in 0 Posts
Question

Just curious, do you plan on fabricating the 4 rotor e-shaft your self or have some third party machinist do it for you??
Chuck Norris FB is offline
Old 03-18-10, 08:48 PM
  #16
Learned alot | Alot to go
10 Year Member
iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,233
Thanks: 0
Thanked 0 Times in 0 Posts
Got a pic of the shaft print with dimensions ?

Also, did you proof out the front end geometry in inventor swell?

Last edited by CrackHeadMel; 03-18-10 at 08:59 PM.
CrackHeadMel is offline
Old 03-19-10, 04:08 AM
  #17
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Bugeye RX View Post
This is serious frigg'n business here!!!!!!!! I'll be following this one for sure. Very cool.
Thanks

Originally Posted by Chuck Norris FB View Post
Just curious, do you plan on fabricating the 4 rotor e-shaft your self or have some third party machinist do it for you??
Yes, I'm doing all the work my self. Drawing, machining, designing and building The only thing on the E-shaft I will give away is hardening, and polishing.

Originally Posted by CrackHeadMel View Post
Got a pic of the shaft print with dimensions ?

Also, did you proof out the front end geometry in inventor swell?
I have the print with dimensions in front of me right now It's my own drawing on the picture I posted
How do you mean proof? :S (Dumb Swede)
tegheim is offline
Old 03-21-10, 02:42 PM
  #18
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts

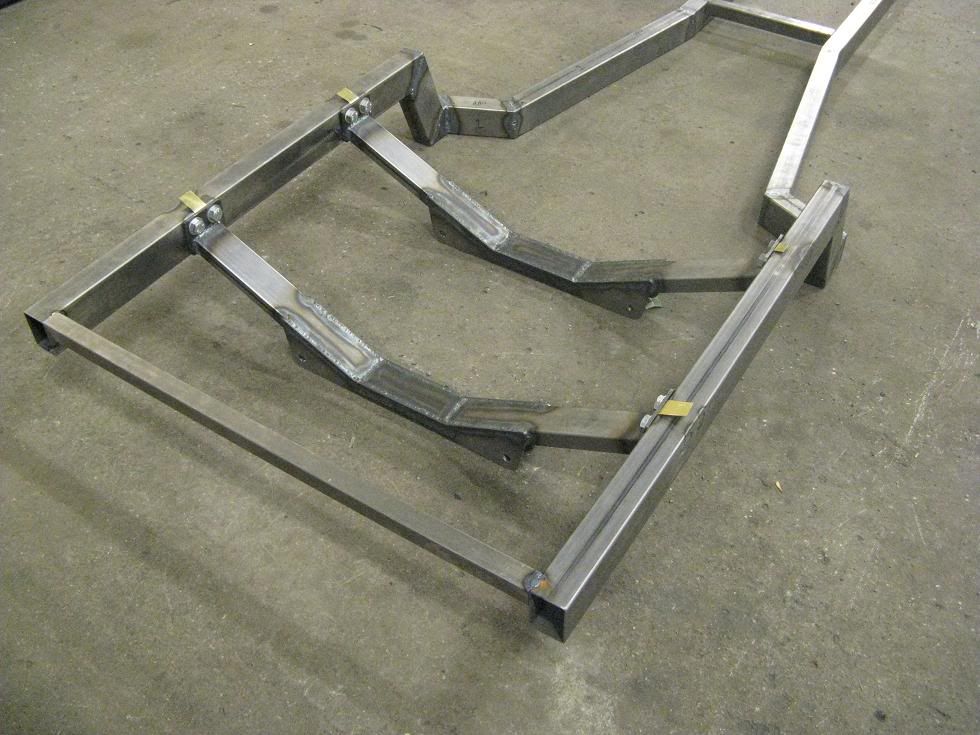

No big news really, have welded the frame totally now, and it will now be ready to be put'ed in the Wolvo.

Chaos?!


Finished



This week I will order the material to the e-shaft for the 4-rotor. Maybe I can start little next weekend to machine it

Regards
Tegheim @ Mooseville Performance
tegheim is offline
Old 03-21-10, 02:49 PM
  #19
Learned alot | Alot to go
10 Year Member
iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,233
Thanks: 0
Thanked 0 Times in 0 Posts
Are you going to grind the eshaft inhouse aswell? or are you brning it into size on a lathe?
CrackHeadMel is offline
Old 03-21-10, 03:37 PM
  #20
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by CrackHeadMel View Post
Are you going to grind the eshaft inhouse aswell? or are you brning it into size on a lathe?
What do you mean? My english you know
Don't know what "grind" mean... can you expalin i "english for dummies"
tegheim is offline
Old 03-21-10, 03:38 PM
  #21
Tango Down
5 Year Member
iTrader: (3)

NoPistons!'s Avatar

Join Date: Sep 2008
Location: SC/NC
Posts: 2,895
Thanks: 0
Thanked 0 Times in 0 Posts
Subscribed.

4 rotor gives me the ultimate bonar.
NoPistons! is offline
Old 03-21-10, 03:52 PM
  #22
kiwi from downunder..
iTrader: (4)

blwfly's Avatar

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,418
Thanked 1 Time in 1 Post
[QUOTE=tegheim;9882587]What do you mean? My english you know
Don't know what "grind" mean... can you expalin i "english for dummies" [/Q

grinding is poor way to machine something ..

Grinding (abrasive cutting), a method of crafting

if u get stuck on words i find Wikipedia the best.

http://en.wikipedia.org/wiki/Main_Page

nice frame are u a automotive engineer?
blwfly is offline
Old 03-21-10, 04:23 PM
  #23
Learned alot | Alot to go
10 Year Member
iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,233
Thanks: 0
Thanked 0 Times in 0 Posts
Similar to the method of putting lobs on a camshaft, however judging from your repsonse.. your not

G'luck with the build, cant wait to see more pics
CrackHeadMel is offline
Old 03-21-10, 04:54 PM
  #24
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by CrackHeadMel View Post
Similar to the method of putting lobs on a camshaft, however judging from your repsonse.. your not

G'luck with the build, cant wait to see more pics
Hmm, not sure we understand eachother still. Let's do this, I tell you how I will machine it, and then we see if it all gets clear

I will order a solid material with the diamterer 112mm and 1000mm long this week. The material is compared with SAE4340, but in sweden it's called SS2541.
Then I cut it down to 700mm for the main shaft and 2x 150mm pieces for the two outer lobs.

I will cut the middle part in the CNC-lathe, and then turn the two inner lobs in my manuel lathe.
So I will turn the excenters as well.
When I have about 1.0mm left on the diameter on the lobs I send it to harden, then I will grind(polish) it down to about +0.06mm.
Then I send it to nitrering (not sure about the word).
Then I will polish the last down to correct dimension.
The inner diameter of the lobs I will turn in my CNC-lathe aswell.

Also all milling of gears, holes and so on I will do myself.

Hopefuly my pics in future will tell you more
As always I try to do all machining, designing and welding myself.

I work in a workshop that manufacture water turbins. There I work with two CNC-mills, one small Matsuura with 700x400mm table, and one big Kiheung 4+2axles with 3000x1200x2000mm movement. I mill often 3D-blades like those in a propeller and so on... Much time in the CAD/CAM.

Regards
Tegheim
tegheim is offline
Old 03-21-10, 05:04 PM
  #25
Senior Member
10 Year Member
Thread Starter

tegheim's Avatar

Join Date: Nov 2003
Location: Sweden
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by blwfly View Post
nice frame are u a automotive engineer?
Thanks! No I'm not an automotive engineer, just a hobby-engineer
tegheim is offline

Thread Tools
Search this Thread
Quick Reply: Tegheim - Home made 4 Rotor Wolvo project


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
