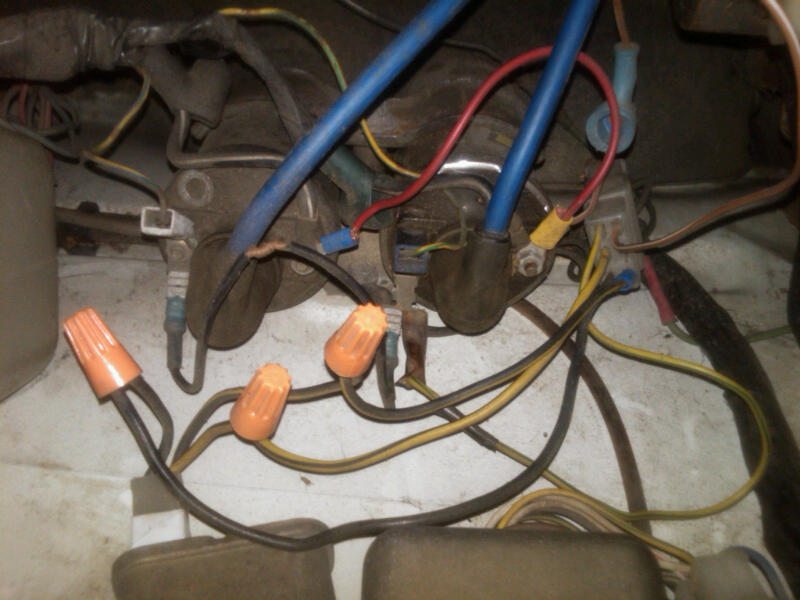

well i know you guys are going to flame me to use the search button but Ive search many of times already...here's a pic of what i wired up from recent searches i found. (not the best wiring i know)...help me out guys



i bet you havent use the search button lol



Check for voltage on the positive side of the coils when the ignition is in the "on" and "start" positions. If you have the original points dizzy then the voltage will be lower than 12V due to ballast resistors. If you have installed an electronic dizzy, wire it bypassing the ballast resistors for the full 12v.

-billy



Well I got spark. U won't believe this but with the help of wacky haha. I was going through old post n he mention to conect the black n yellow wire to the positives of the coils n that was it. I got spark. Now to tune the carb
