So am at the point in my project where I need to strip the engine so I can sand, primer and paint. Anyone have a method on how to put everything back where it go's. I've never had to do this before so it will the first time. Here a pic of my engine bay.



Grab a digital camera and take LOTS of pics. Up close so you can see what goes where. Some of the stuff will be obvious, the brake booster and master cylinder. Its the routing of the lines where you will have issues. The pics that you posted is even a good start for an overview of what goes where. Take your time and take pics as your taking stuff off. Should not be too hard. Just curious, RX2?



Yeah. It a RX2. Finally getting around to it. Most of the body work is done so am concentrating on the engine bay. That the same issue I was worried about all those routing lines so look like am going to take alot of picture. Thanks



Great advise blackdbl0si…

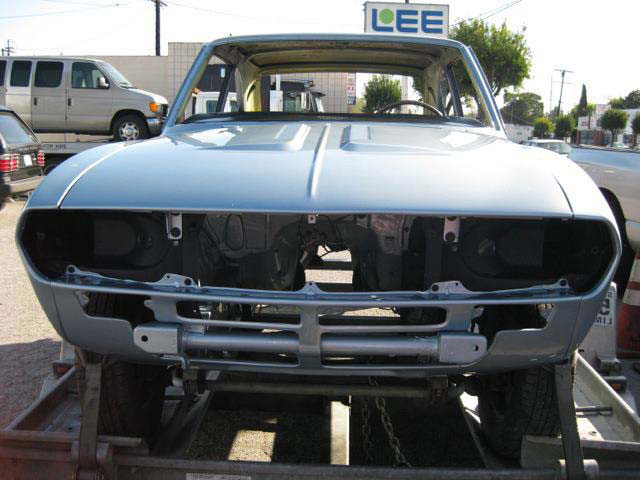

I would also add to get lots of plastic ziplock bags and label all the little bits, pieces, screws and bolts. There are way too many little pieces to remember where it all goes.

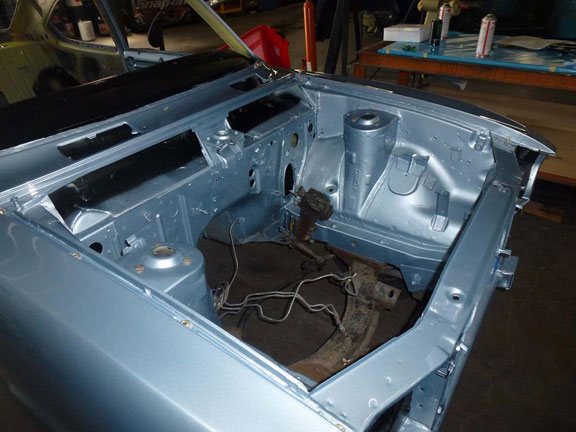

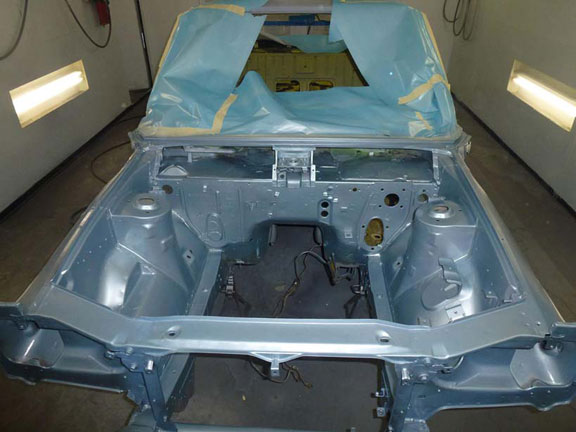

That's what I did.



Thanks. I was planning on doing that too. Ur car look great. Hopefully I can remember where everything go's.



Thanks… it can get overwhelming at times, just take your time.



That's what I'll be doing next on my rx4 project. Great adivse RX2 Mazda Fan!



Thanks Tim,

You scored on your RX4!
