rx7vargas

iTrader: (3)

Basically i have everything done except the wiring been looking but cant find any diagrams the engine side is done i just have to do the computer side need to know whats power, ground, where the coils connect every thing to get it running its a stock computer all the vaccums removed any links would be appreciated

rx7vargas

iTrader: (3)

So the past couple of days i found the things i was missing I have the computer and the CAS im going to attempt the wiring. Found out that like on a 12a that the modules are on the distributor the modules are in the computer for the turbo II that was pretty basic. Ill just attemp to find out what wire is what and take out the engine and put these bad boys on yea i know its going to be too much for a stock computer but im later installing a power fc with the adapter after i get it running




Question what does it mean when they have RE stamped on top

gerald m

You should find all you need here to help you along http://foxed.ca/foxed/index.php?page=rx7manual

rx7vargas

iTrader: (3)

i already have that im a retard and cant understand it lol

rx7vargas

iTrader: (3)

scratch that was looking at the wrong one found what i was looking for now for the next step running the wires to the coils from the ecu give it power cant wait to have this car running again

flight_of_pain

What LIM do you plan on using, I imagine with small PP like that you will be retaining the side ports.


Isaac

rx7vargas

iTrader: (3)

Im using an 88 tII manifold keeping the side ports, and modifying it. Semi Peripheral

rx7vargas

iTrader: (3)

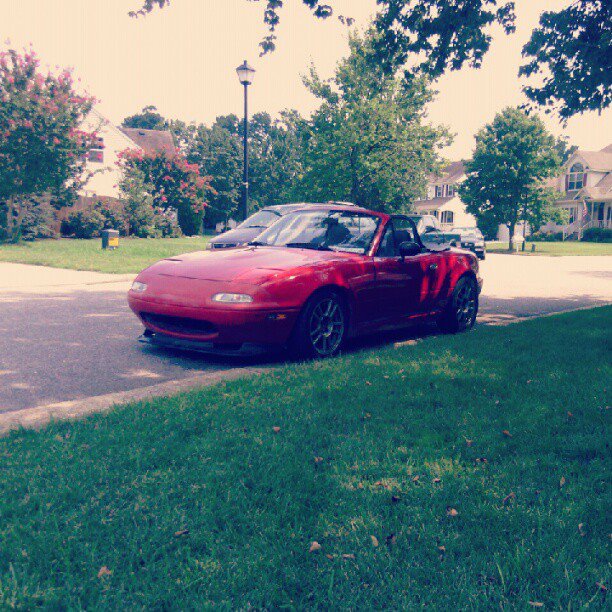

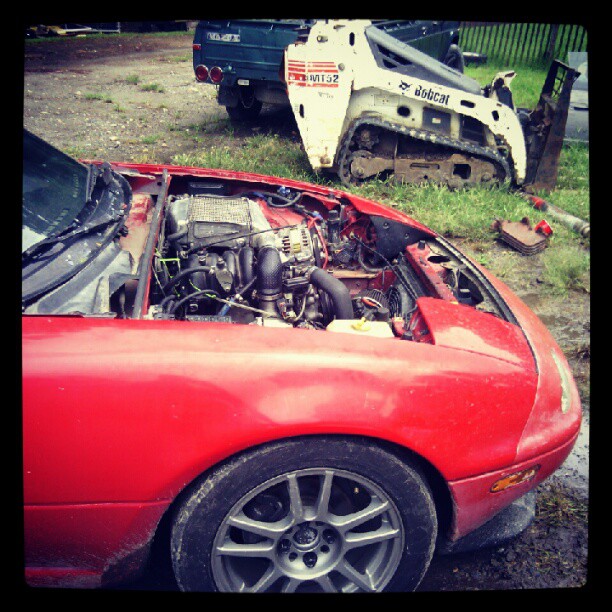

miata has been finished for a year now havent posted much but it has a turbo II engine race ported with a garrett hybrid 550 720 injectors

chino_rx3

iTrader: (3)

Nice

blwfly

iTrader: (4)

sweet ride bet its quick did you use the semi pp housings?.nice repu looks like its in decent shape.

rx7vargas

iTrader: (3)

no didnt use them, the miata is pretty fast and the repu is an EFI swap i did

wbabik

Saw a video of one of the swaps on the dragon. Looks like a fun fast setup!

RRTEC

iTrader: (13)

Please post pictures of your Motor mount setup...
