looking for AWD rx7
So little time and money
Joined: Feb 2003
Posts: 746
Likes: 1
From: NorCAL
Um... maybe they've been built, but not for public consumption at least.
You can however, convert one. It's somewhere in the first-gen forums. Do a search. IIRC it involves a 4wd B2xxx middle diff and the front transaxle off a 626 and a LOT OF MONEY.
How badly do you want it?
IMHO you should stick to Subies (Subaru) for awd
You can however, convert one. It's somewhere in the first-gen forums. Do a search. IIRC it involves a 4wd B2xxx middle diff and the front transaxle off a 626 and a LOT OF MONEY.
How badly do you want it?
IMHO you should stick to Subies (Subaru) for awd
Trending Topics
'Last Minute' Rallying
Joined: May 2002
Posts: 1,193
Likes: 0
From: Lincoln, England
Last edited by MikeLMR; May 22, 2003 at 02:39 PM.
'Last Minute' Rallying
Joined: May 2002
Posts: 1,193
Likes: 0
From: Lincoln, England

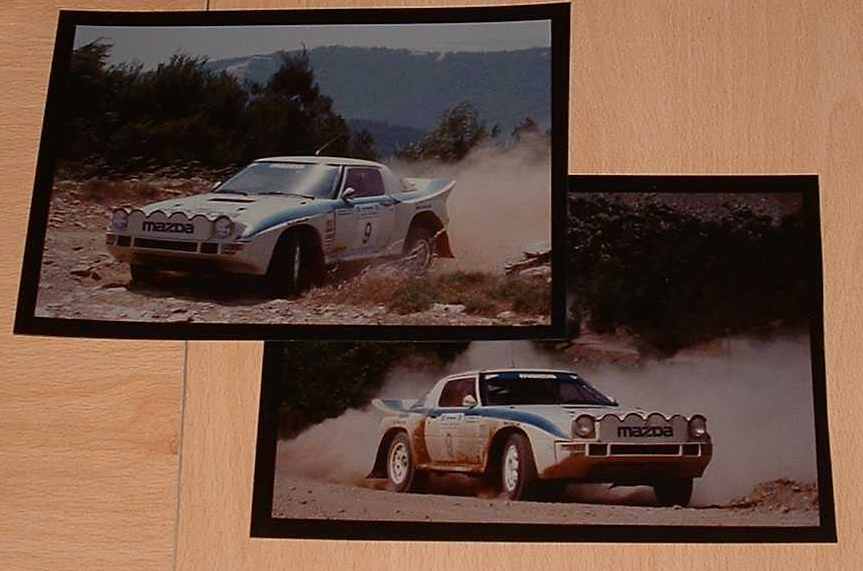

the group B 2wd car it was going to replace (before group B got banned )
Specs (taken from official Mazda press release)
Length - 4310mm
Width - 1661mm front 1657mm rear
Height - 1265mm
Wheelbase - 2420mm
Track - 1655mm front 1655-1675mm rear
Weight - 960Kg's
Engine
Type - Mazda 13B rotary with peripheral ports
Displacement - 654cc x 2 x 2
Maximim power - 300ps @ 8500rpm
Max Torque - 27Kg/m @ 7000rpm
Fuel Feed - Weber 51 IDA
Lubrication - Dry sump
Dry weight - 110Kg
Transmission - 5 speed manual
1st 2.564:1
2nd 1.851:1
3rd 1.417:1
4th 1.140:1
5th 1:1
Brakes
Lockheed Ventilated disc with single 4 pot caliper
Steering
Rack and pinion; ratio, 13:1
Suspension
Front - Mcpherson strut with Bilstein shock absorber
Rear - Coil Spring/damper unit with twin parallel links and watts linkage
Wheels
For gravel - 6 x 15in front; 7 x 15in or 8 x 15in rear
For asphalt - 9 x 15in front: 10 x 15 rear
Tyres
For asphalt - 235/45 x 15 front; 280/45 x 15 rear
for gravel - dependant upon surface conditions
Specs (taken from official Mazda press release)
Length - 4310mm
Width - 1661mm front 1657mm rear
Height - 1265mm
Wheelbase - 2420mm
Track - 1655mm front 1655-1675mm rear
Weight - 960Kg's
Engine
Type - Mazda 13B rotary with peripheral ports
Displacement - 654cc x 2 x 2
Maximim power - 300ps @ 8500rpm
Max Torque - 27Kg/m @ 7000rpm
Fuel Feed - Weber 51 IDA
Lubrication - Dry sump
Dry weight - 110Kg
Transmission - 5 speed manual
1st 2.564:1
2nd 1.851:1
3rd 1.417:1
4th 1.140:1
5th 1:1
Brakes
Lockheed Ventilated disc with single 4 pot caliper
Steering
Rack and pinion; ratio, 13:1
Suspension
Front - Mcpherson strut with Bilstein shock absorber
Rear - Coil Spring/damper unit with twin parallel links and watts linkage
Wheels
For gravel - 6 x 15in front; 7 x 15in or 8 x 15in rear
For asphalt - 9 x 15in front: 10 x 15 rear
Tyres
For asphalt - 235/45 x 15 front; 280/45 x 15 rear
for gravel - dependant upon surface conditions
Last edited by MikeLMR; May 22, 2003 at 02:47 PM.
Junior Member
Joined: Jan 2003
Posts: 9
Likes: 0
From: brisbane australia

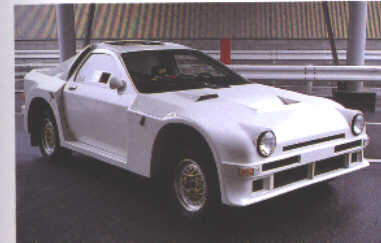

the mazda 4WD group B car was a triple rotor, came about as ford had developed the RS200. millen also built a gen 2 s4 4WD for pikes peak. millen gen 1 s2 utilised front wheel drive 626 components you could always hit them up for info if your polite. a pre rx7 4WD rotor would make for a very interesting vehicle if you have the funds.
