Jlrotary's rx2 sedan turbo build

Reply



Old 09-06-13, 12:05 AM
  #1
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
Jlrotary's rx2 sedan turbo build

I am building a rx2 sedan for forum member Jlrotary.we are going to be doing a complete build which consists of full new front and rear suspension,coil overs,custom brakes,bigger beefier rear end,complete new wiring harness for full car,engine is gonna be a Cosmo 13b street port,turbo II transmission.

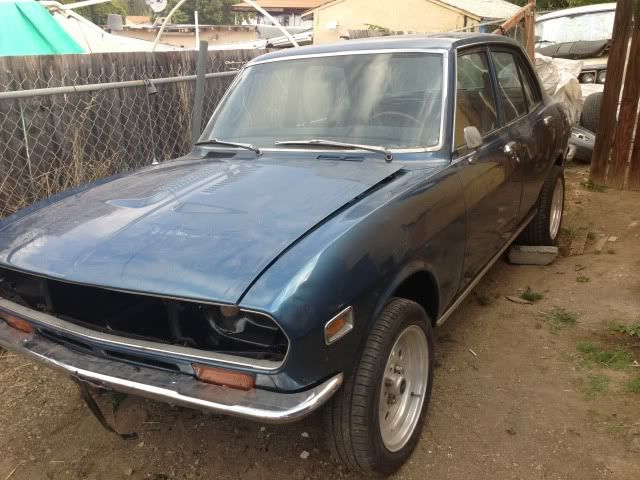

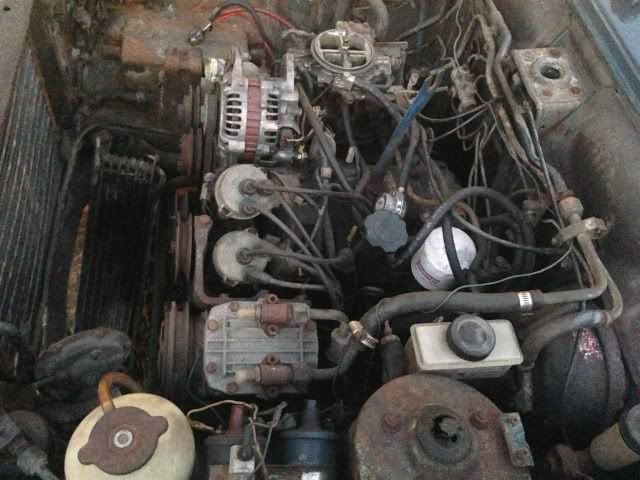

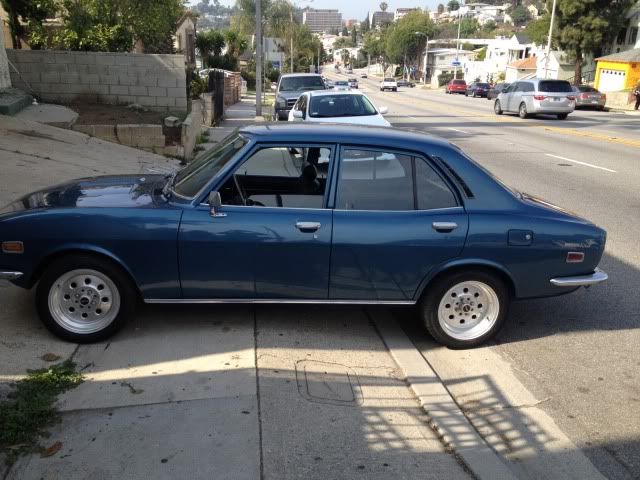

Here are a few pics of his car and old engine

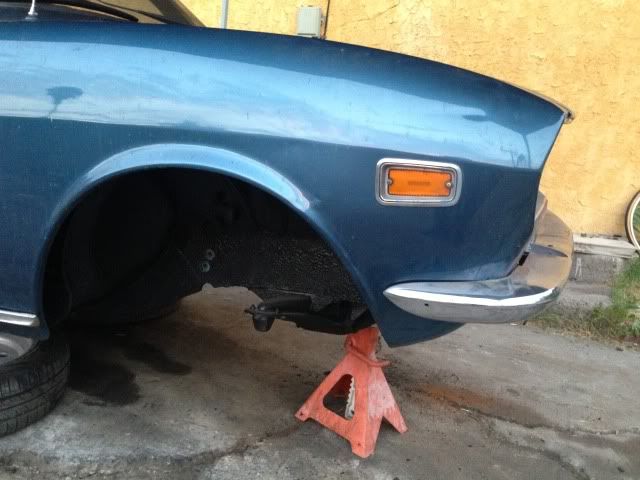

I have recently dropped all front suspension

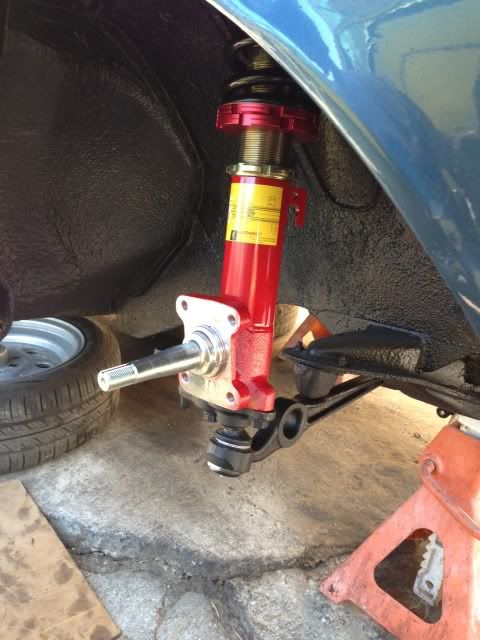

Cleaned up all the suspension parts and painted semi gloss black,took out and replaced bushings and ball joints,also installed coil overs.



Also installed complete brake set up on drivers side today(will post pics in the morning),waiting on sway bar bushings,and tie rods from getting redone so I can install it all up and start working on the brake master cylinder,booster,and brake hard lines.
turbo_dave is offline
Reply With Quote
Old 09-06-13, 11:55 AM
  #2
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts

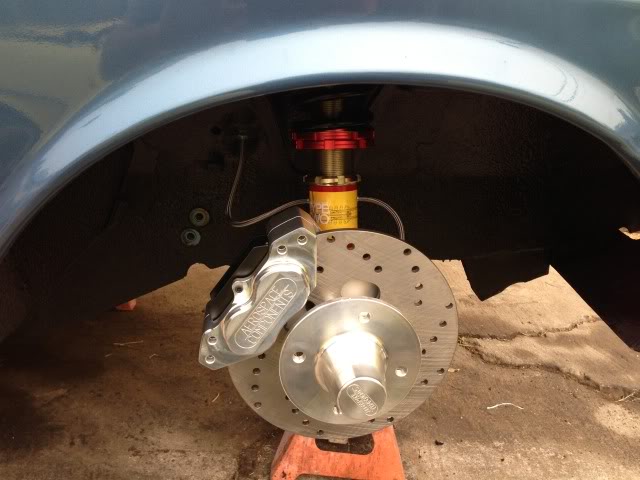

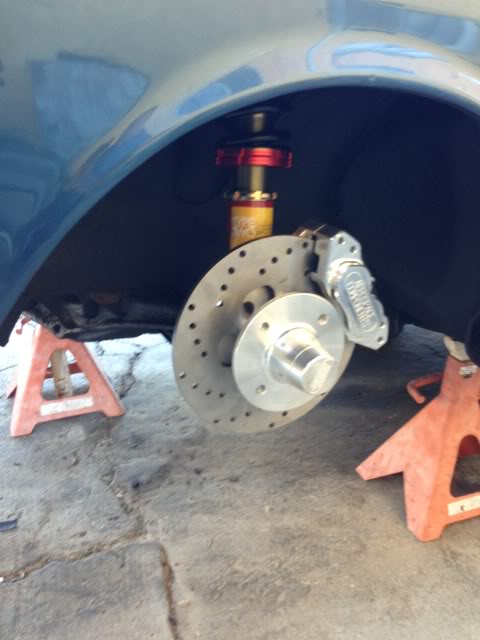

Front brakes
turbo_dave is offline
Reply With Quote
Old 09-06-13, 01:11 PM
  #3
Junior Member
5 Year Member

Join Date: Sep 2007
Location: TN
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Sweet project. I'd love to see one in person.
cinaibur is offline
Reply With Quote
Old 09-06-13, 04:09 PM
  #4
Senior Member
5 Year Member

RX2fan's Avatar

Join Date: Jan 2007
Location: Tampa, Fl
Posts: 471
Thanks: 0
Thanked 0 Times in 0 Posts
Man what a beautiful car, I know that's a stock color, but is it the original paint?
RX2fan is offline
Reply With Quote
Old 09-06-13, 05:02 PM
  #5
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
I believe original color is lighter blue.
turbo_dave is offline
Reply With Quote
Old 09-06-13, 06:40 PM
  #6
Senior Member
5 Year Member

RX2fan's Avatar

Join Date: Jan 2007
Location: Tampa, Fl
Posts: 471
Thanks: 0
Thanked 0 Times in 0 Posts
oh ok, it looks a lot like the color on this car

Japanese Nostalgic Car • View topic - Oldmaz Garage
RX2fan is offline
Reply With Quote
Old 09-07-13, 01:01 AM
  #7
Senior Member
5 Year Member
iTrader: (4)

OZZYINCALI's Avatar

Join Date: Jul 2008
Location: san jose, california
Posts: 450
Thanks: 0
Thanked 0 Times in 0 Posts
The outside looks really nice but that engine bay looks like something found on the titanic! Holy smokes.
OZZYINCALI is offline
Reply With Quote
Old 09-07-13, 09:17 AM
  #8
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
^Yeah that has been taken care of lol.i pulled motor out and he took it to body shop to get painted black before I pulled the suspension.
turbo_dave is offline
Reply With Quote
Old 09-10-13, 12:19 PM
  #9
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts

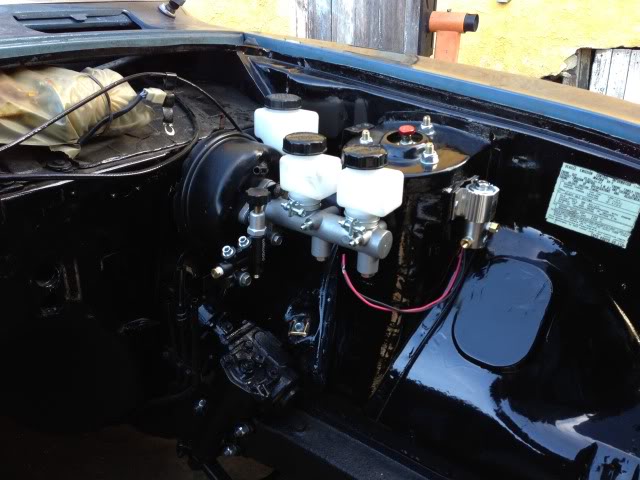

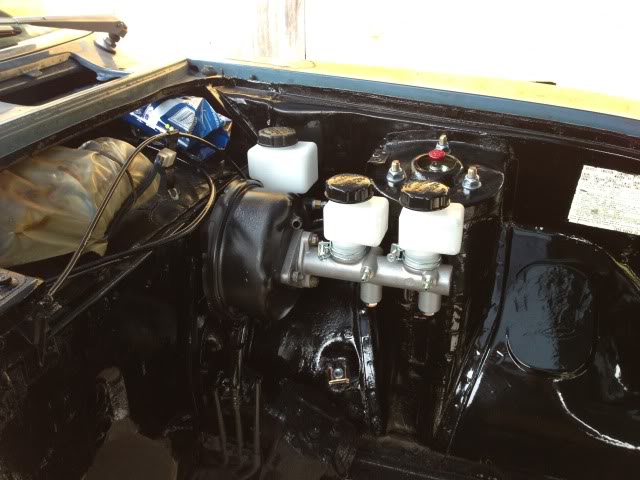

Yesterday I was able to mount up passenger side brake hardware,got some custom steel braided hoses done up,and mounted the brake and clutch master cylinders.



turbo_dave is offline
Reply With Quote
Old 09-10-13, 06:41 PM
  #10
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,903
Thanks: 0
Thanked 0 Times in 0 Posts
throwing good money over bad???? just kidding.. good job bro
Siraniko is offline
Reply With Quote
Old 09-10-13, 09:00 PM
  #11
Rotary Freak
iTrader: (15)

cfamilyfix's Avatar

Join Date: Aug 2010
Location: Brooklyn NY
Posts: 1,727
Thanks: 0
Thanked 0 Times in 0 Posts
I like the black in the engine bay
cfamilyfix is offline
Reply With Quote
Old 09-11-13, 08:27 AM
  #12
Eats, Sleeps, Dreams Rotary
iTrader: (19)

papsmagu's Avatar

Join Date: Sep 2004
Location: South Florida
Posts: 3,200
Thanks: 0
Thanked 0 Times in 0 Posts
dave builds the coolest Ol School Rides! keep up the good work!
papsmagu is offline
Reply With Quote
Old 09-11-13, 11:53 AM
  #13
Full Member
5 Year Member
iTrader: (3)

repumax's Avatar

Join Date: May 2005
Location: San Diego
Posts: 172
Thanks: 0
Thanked 0 Times in 0 Posts
You're the hardest working rotorhead on here Dave! One project after the other. Do you have any recent pics of the yellow 77' REPU you built?
repumax is offline
Reply With Quote
Old 09-11-13, 12:14 PM
  #14
Senior Member

Join Date: Oct 2007
Location: Stratford,Ct
Posts: 330
Thanked 0 Times in 0 Posts
Where did you get the master from and is it 1 1/8 bore size to work with the front brake kit
carlosrx3 is offline
Reply With Quote
Old 09-11-13, 02:19 PM
  #15
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
I got it from summitracing.com.it is the only one that has the bolt pattern that will fit the stock booster and also that has a reservoir that won't hit the shock tower on the rx2.when I say tight fit it literally comes 1mm from hitting the shock tower.bore size is what was recommended for the brake set up on this car.
turbo_dave is offline
Reply With Quote
Old 09-22-13, 11:06 AM
  #16
Trinisouthman
10 Year Member
iTrader: (1)

joyriderx7's Avatar

Join Date: Jul 2006
Location: Ontario, Canada
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
You're the man Dave we need guys like you in in Cnada....I would like to do a similar brake set up on my deuce where did you get the parts? is it a custom fit?
joyriderx7 is offline
Reply With Quote
Old 09-26-13, 02:36 PM
  #17
Junior Member

rosadoa1's Avatar

Join Date: Aug 2011
Location: Lakenheath, UK
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
TX

Wow, that RX-2 is a beauty man !
rosadoa1 is offline
Reply With Quote
Old 11-10-13, 12:49 AM
  #18
Full Member
iTrader: (1)

rx2t's Avatar

Join Date: Nov 2010
Location: Jacksonville. Fl
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
Dave, car looks great! I specially like that brake and clutch master set up did there. Would you have a part number for summit for it? I would like to copy your set up on my rx2 if you don't mind.

/r
Luis
rx2t is offline
Reply With Quote
Old 11-10-13, 01:16 AM
  #19
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
^I have a few people that have asked for part numbers on the brake and clutch cylinders.i will get those for you guys hopefully tomorrow and also so it can help others too.

And of course I don't mind at all
turbo_dave is offline
Reply With Quote
Old 11-10-13, 10:05 AM
  #20
rotorican85
10 Year Member
iTrader: (9)

rotorican85's Avatar

Join Date: Sep 2005
Location: en el culo de texas...
Posts: 900
Thanks: 0
Thanked 0 Times in 0 Posts
info on those coil overs!! will they fit a FB chassis with re-speed rack/pinion conversion??
rotorican85 is offline
Reply With Quote
Old 12-17-13, 01:47 PM
  #21
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
Dave... how about some part numbers on the brake and clutch cylinders.
RX2-Mazda-Fan is offline
Reply With Quote
Old 12-24-13, 12:56 PM
  #22
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
^i will post those up soon.
Little update...mounted the proportion valve and line lock,just need to do some hard lines on front and rear brake lines.

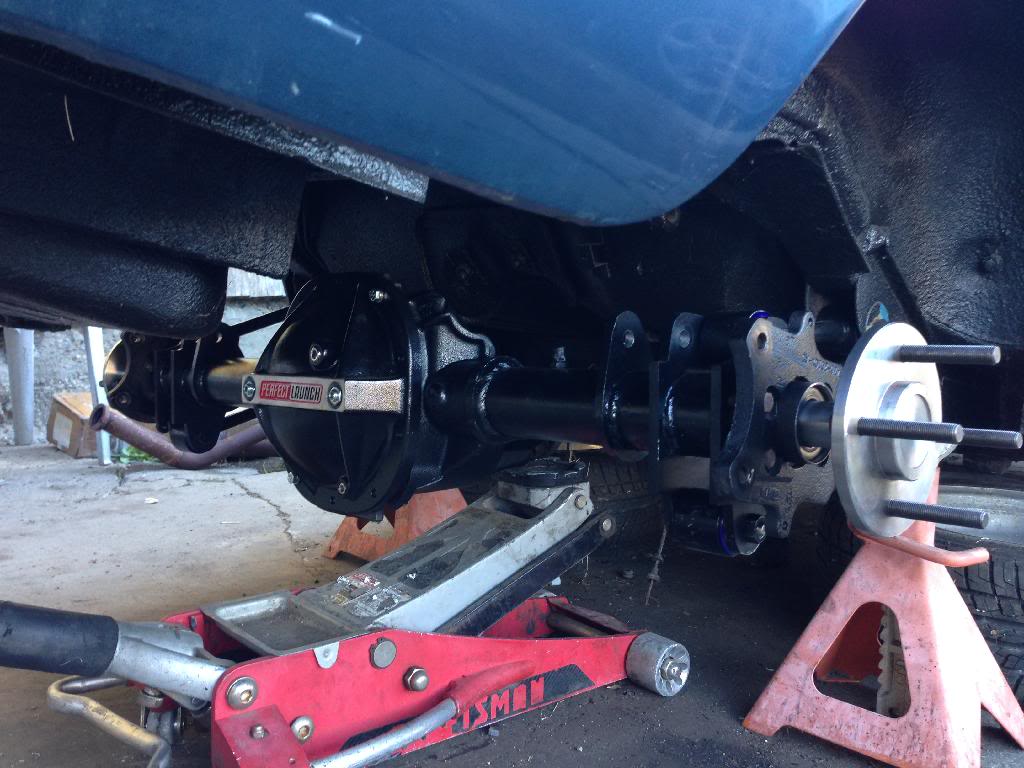

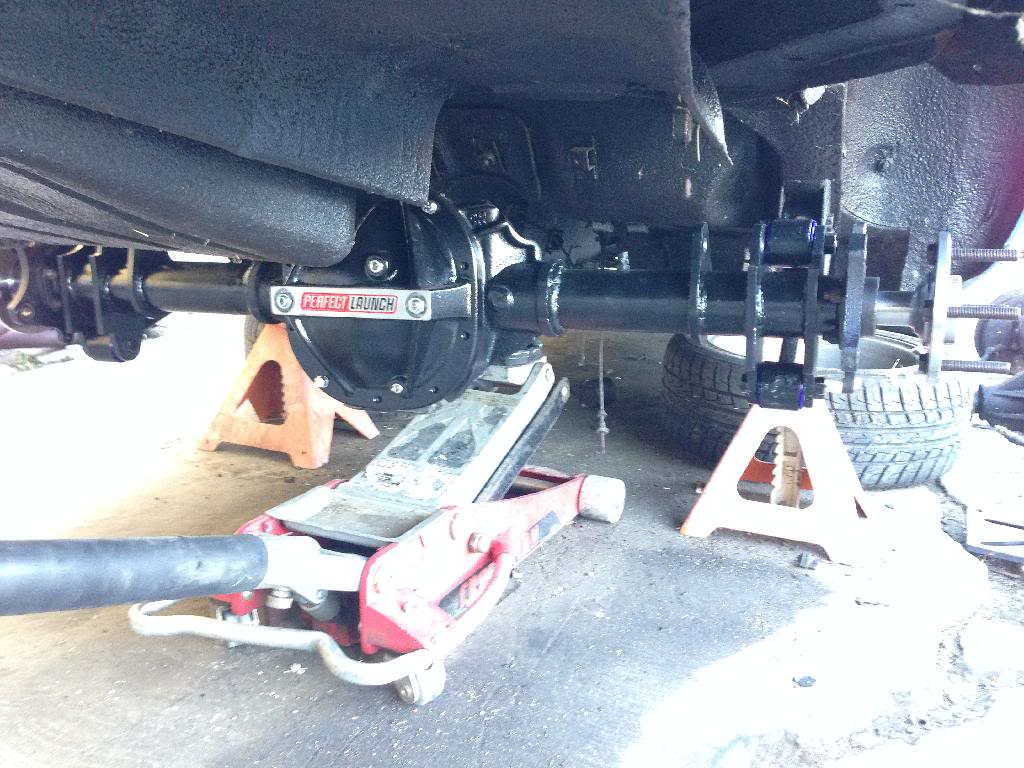

Rear end all done...new LSD 31 spline unit,4.10 gears and new axles.
Here's some pics







turbo_dave is offline
Reply With Quote
Old 12-24-13, 01:02 PM
  #23
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts

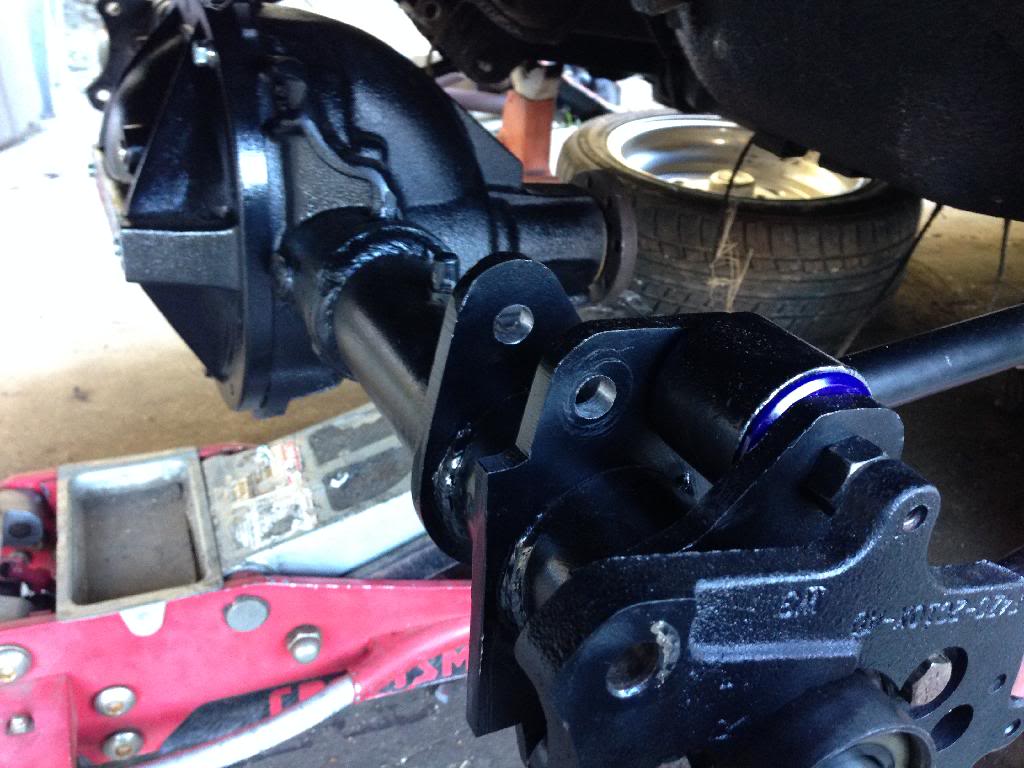

Ohh man what a pain in the *** it was to clean up the rear diff control arms!
Bushings were a bitch to take off also.took me a whole day and a 12 pack of coronas to do the job
Pressing in the new bushings was quick and easy.
turbo_dave is offline
Reply With Quote
Old 12-28-13, 10:03 PM
  #24
Full Member
iTrader: (1)

rx2t's Avatar

Join Date: Nov 2010
Location: Jacksonville. Fl
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
That baby is looking good. Dave I been in the summit website checking on the brake master and I see a few that look like the one you have. Do you recall if the part number for the one your using is WIL-260-8794? Did you need to modify the mounting holes for it? Well, I appreciate your help and Happy Holidays.
rx2t is offline
Reply With Quote
Old 12-28-13, 11:05 PM
  #25
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,090
Thanks: 0
Thanked 0 Times in 0 Posts
The mounting holes were off by maybe 1mm-2mm,nothing a dremel can fix.i been working a lot these last few days and havnt had time to check those part numbers.
Before I go to work tomorrow I will go in my garage and try and get those part numbers.
turbo_dave is offline
