turbo_dave

iTrader: (50)

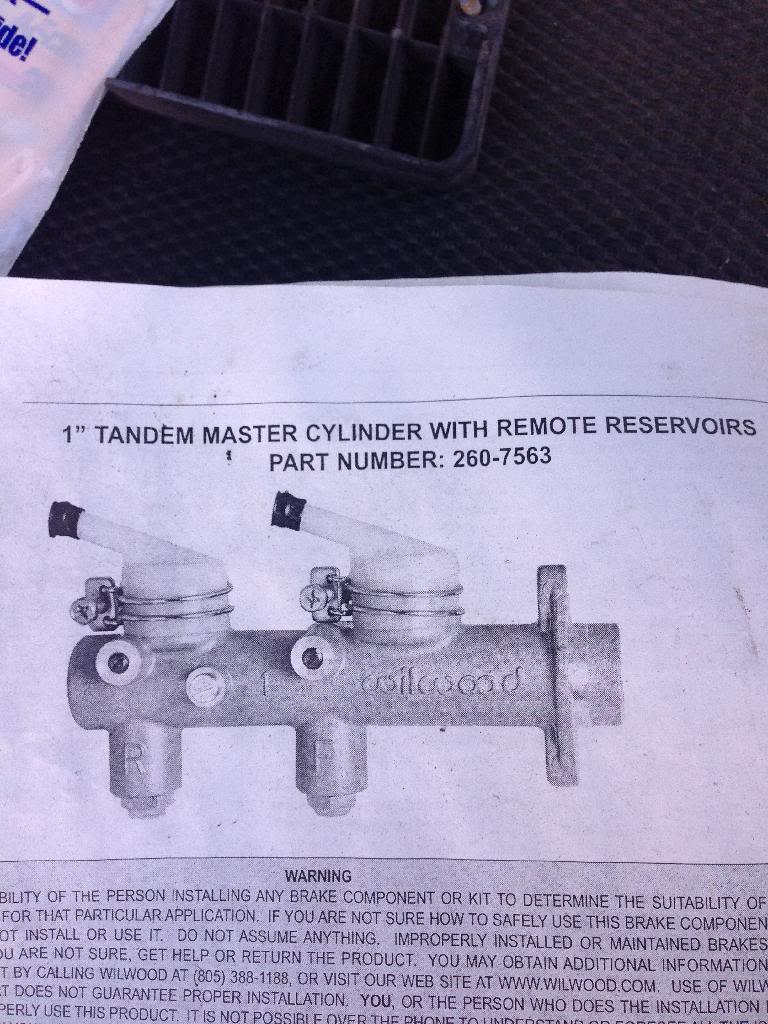

I found the info on master cylinder,I can't find the one for the clutch master.clutch master is a wilwood and I believe was under brake master cylinders with remote mount reservoir and I believe a 5/8" bore.

RX2-Mazda-Fan

iTrader: (1)

You're a champ Dave!!

Thanks for that! Happy Holidays

rx2t

iTrader: (1)

Thank you and Happy New Year!

mazda1200

iTrader: (1)

looking nice dave ..

mrmasda

What are you doing for the rear shocks. I have the old ground control adjustable shocks but have never liked them only ones that did not cost 2 grand and no one offers full coilovers anymore that I know of. Keep up the good work.

turbo_dave

iTrader: (50)

For rear we have the form function coilovers,same as front.

turbo_dave

iTrader: (50)

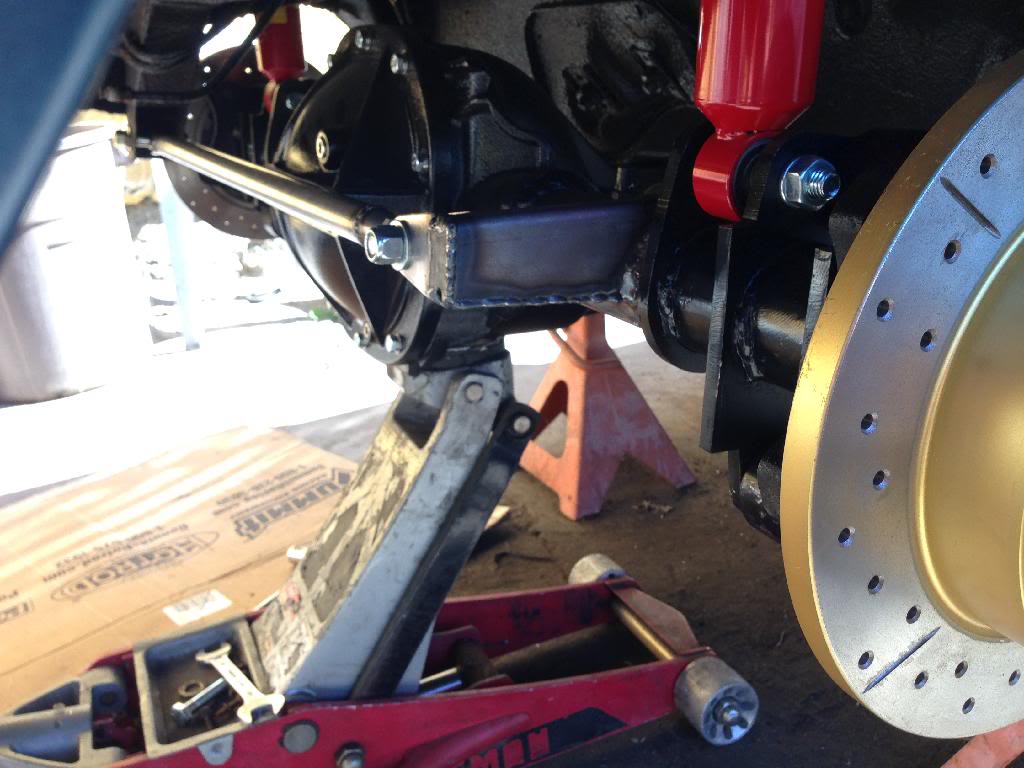

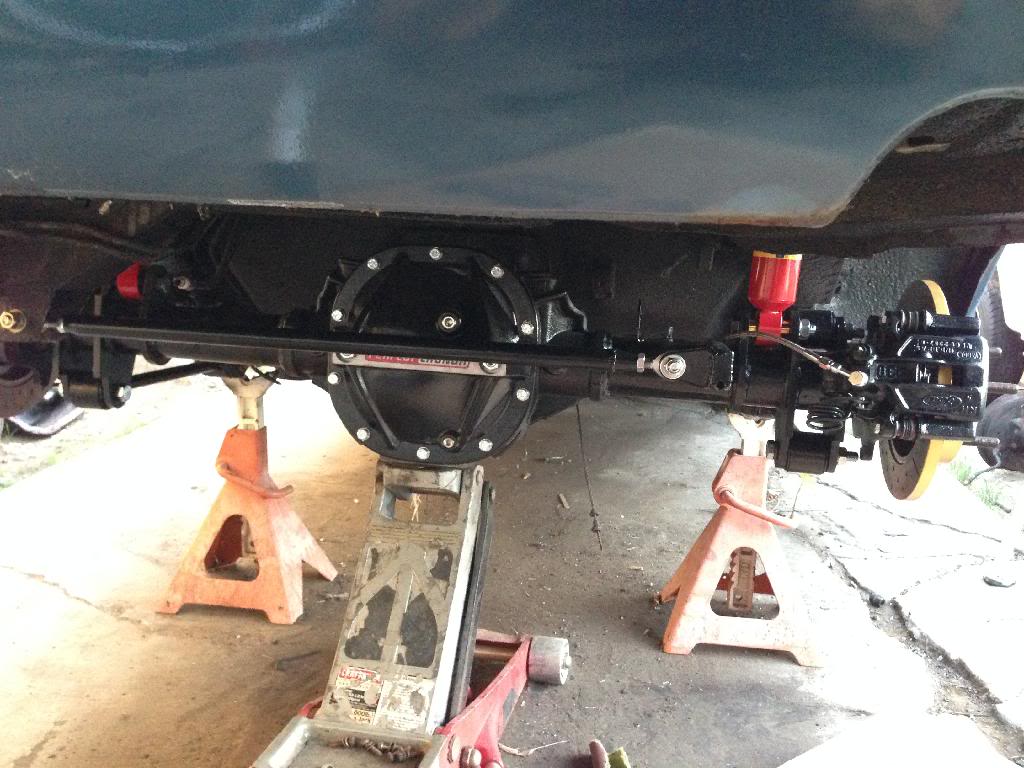

Had to fabricate a mount on the diff for the pan hard bar turned out nice,used the existing stock chassis mount on the other end.

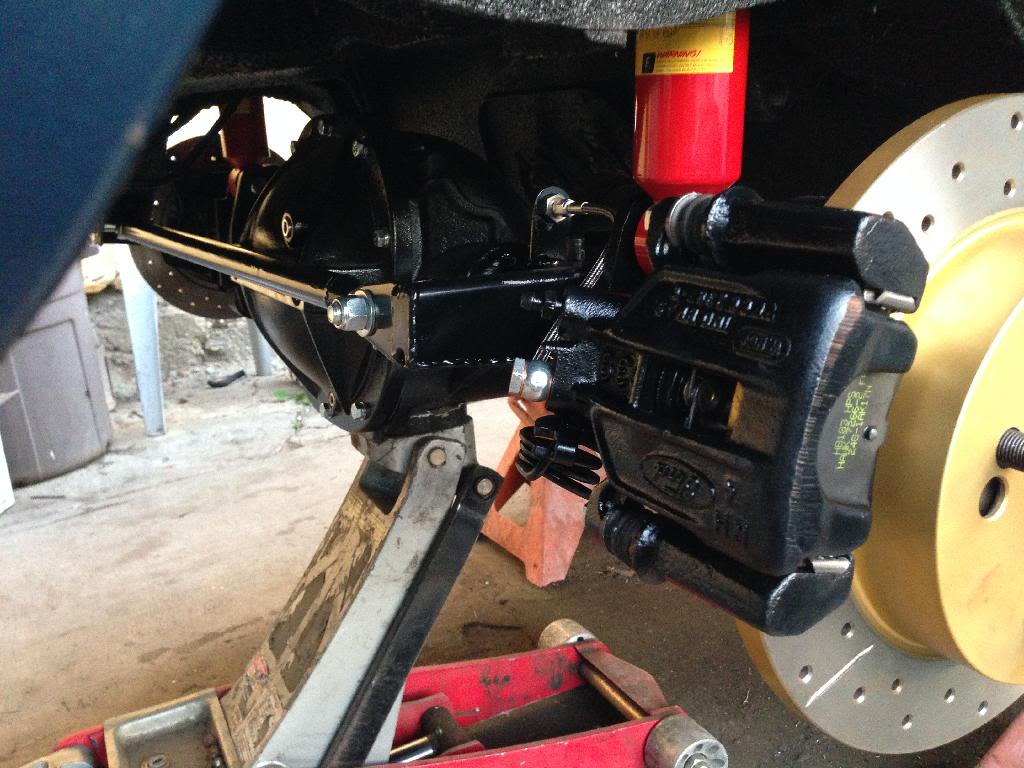

Was also able to mount up the brake calipers and start doing some brake lines










Hopefully I can have the brakes functional by next week so I can start on mounting in the engine and transmission.

OZZYINCALI

iTrader: (4)

Looking good mate. How's your brothers coupe going?

RX2-Mazda-Fan

iTrader: (1)

Dave.... you're the man! Rear end looks bad ***. Are you running a new brake hard line to the rear?

turbo_dave

iTrader: (50)

It's at the body shop getting some more work done to it

Yes.

turbo_dave

iTrader: (50)

Got a little update

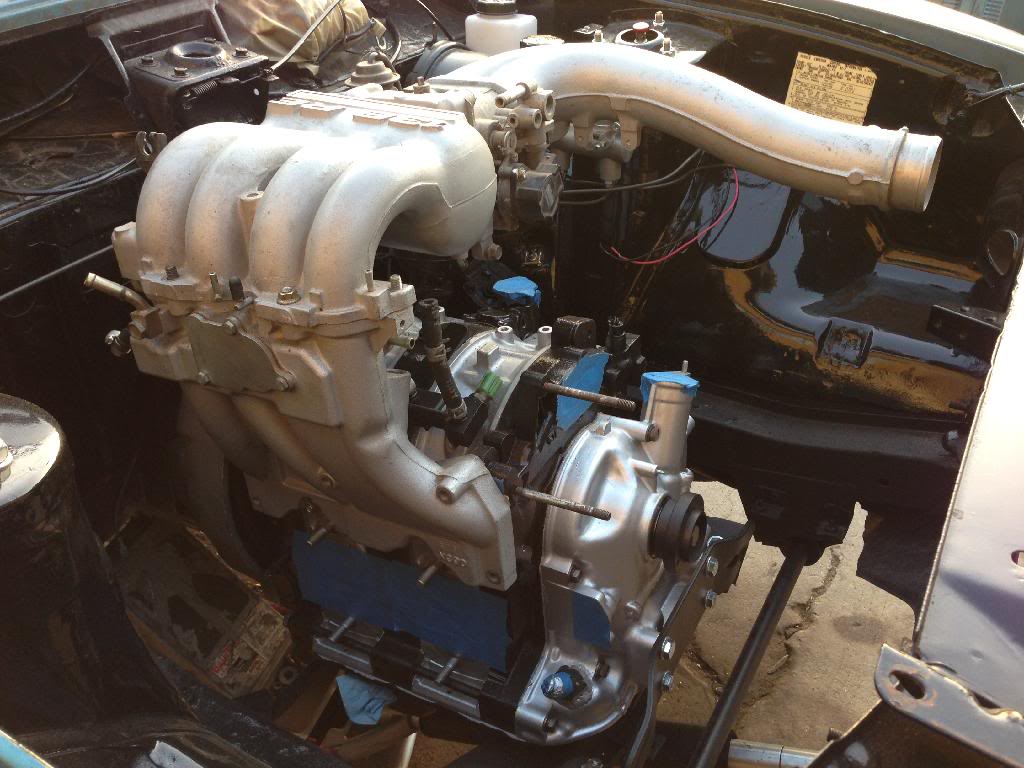

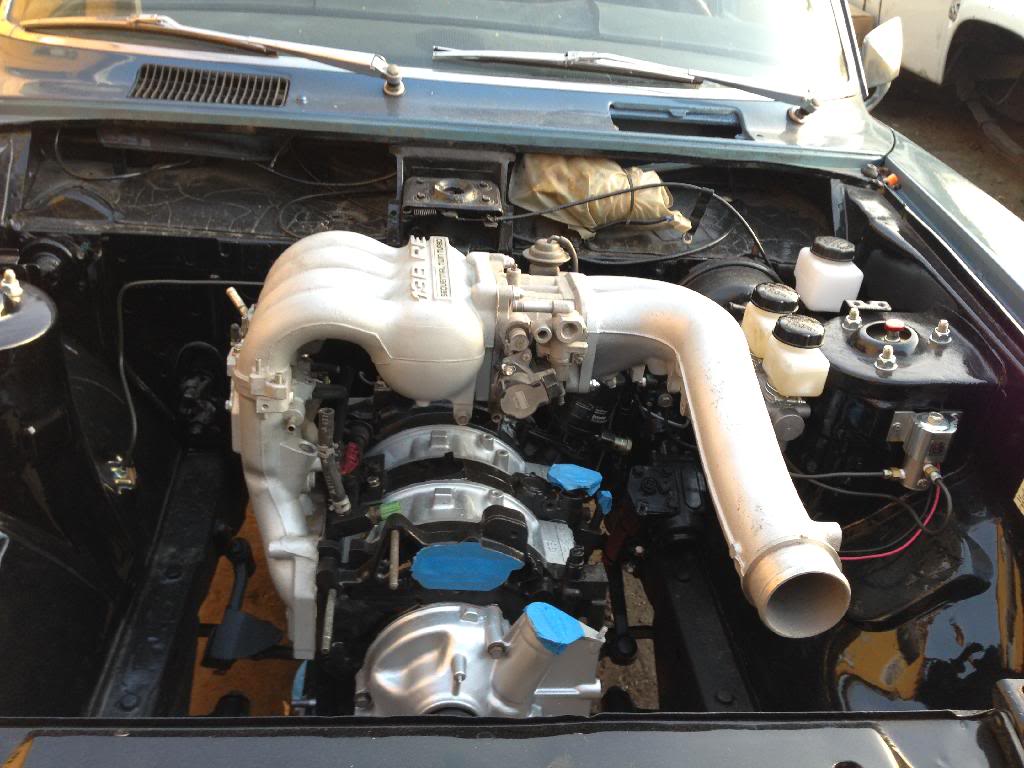

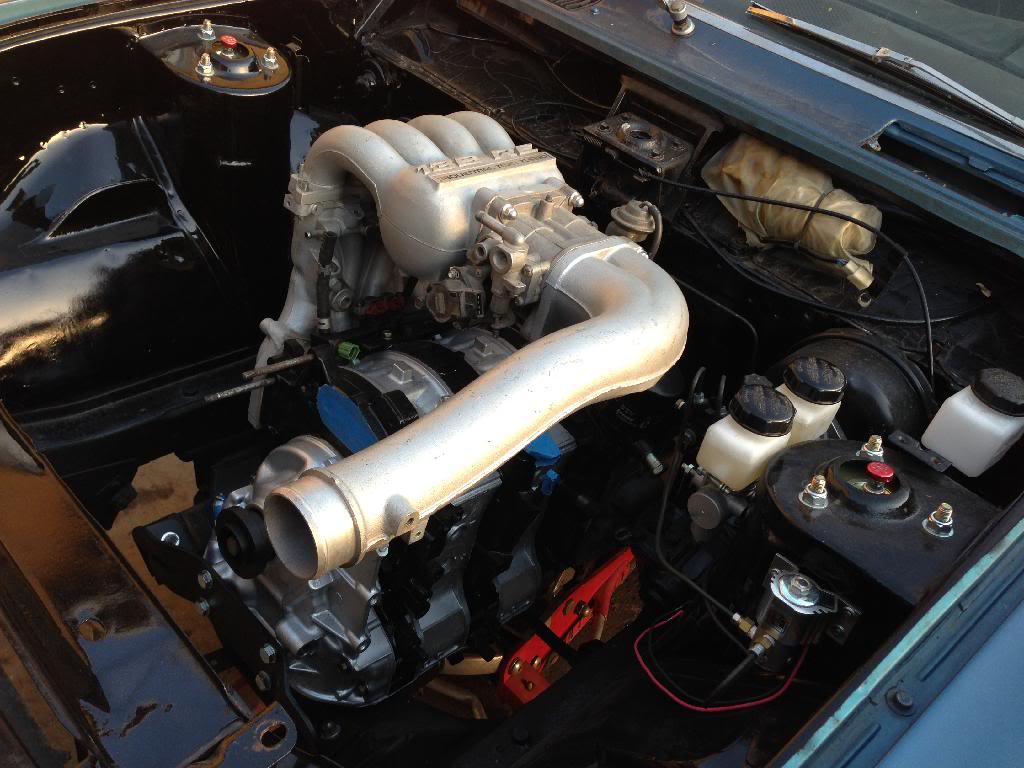

Installed engine,but still need to fabricate a transmission mount.







Hopefully Friday I will go pick up the radiator,oil cooler,and intercooler.

kchan1100

where did you buy the form and function coilovers from?

turbo_dave

iTrader: (50)

Direct from them in there pomona warehouse.
When I went they had two sets left,I took one but this was a few months back.i called them recently and they had sold the last set and told me they no longer make them anymore

papsmagu

iTrader: (19)

Soooo cool, RE powered RX-2, dave you sure put out some cool cars. keep up the good work. will it be NA or Turbo?

turbo_dave

iTrader: (50)

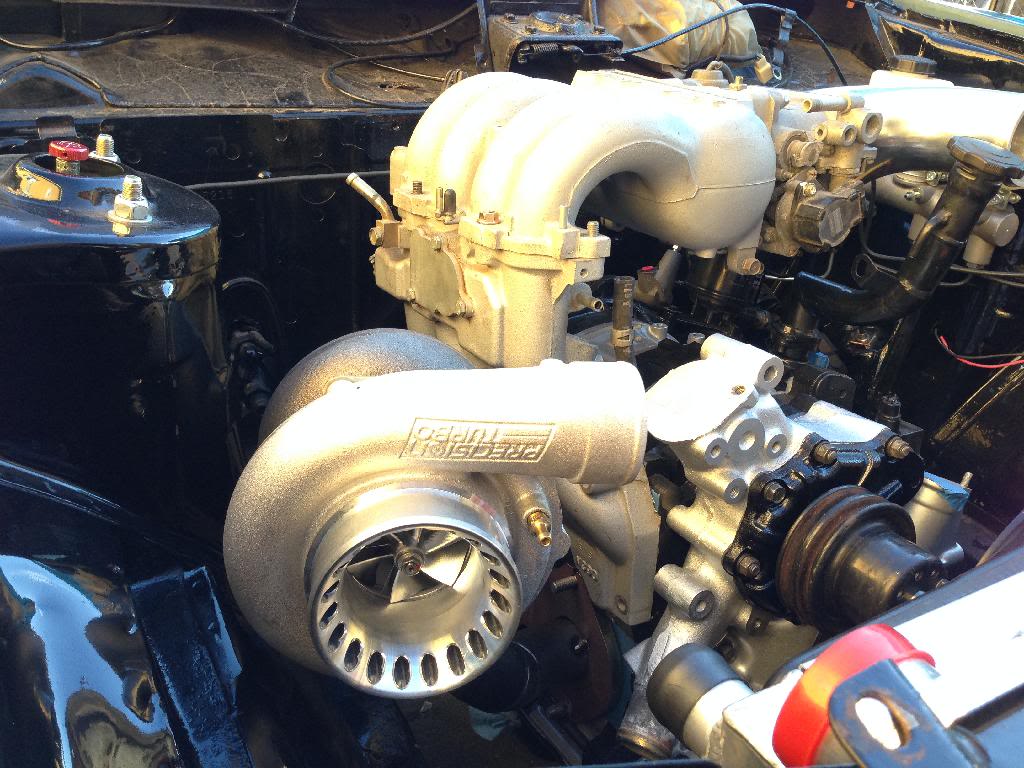

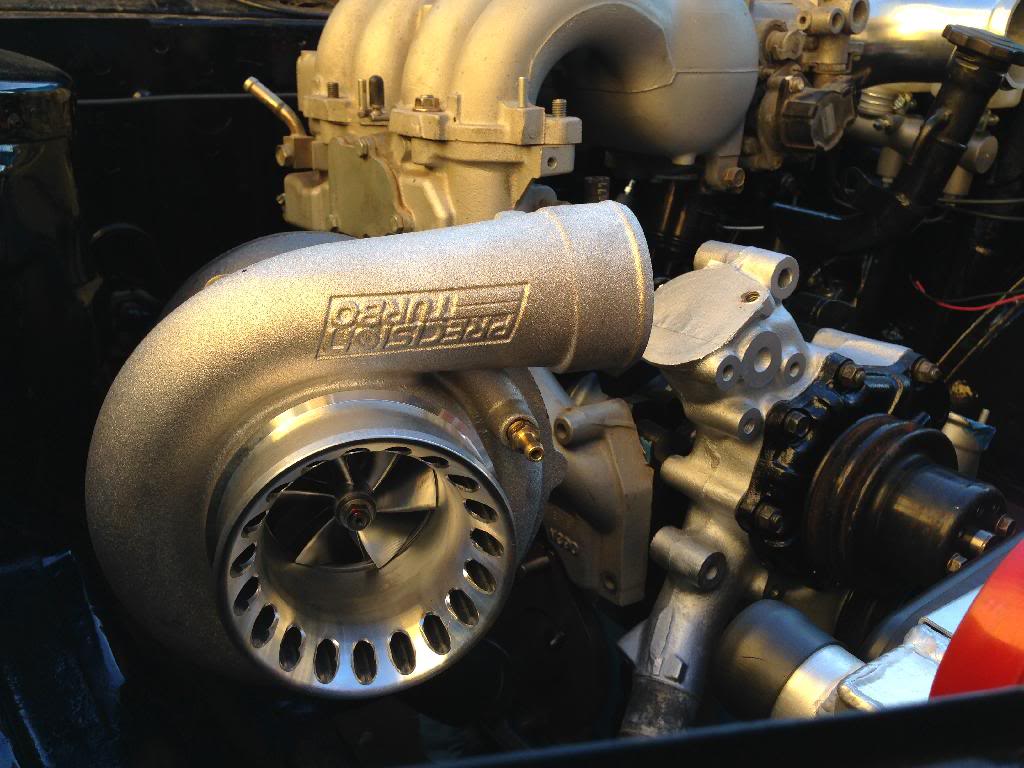

It will be boosted with the help of a precision 6766 ball bearing turbo
I need to get the intercooler,radiator,and fans mounted to see how much room I got to start fabbing up the turbo manifold.

turbo_dave

iTrader: (50)

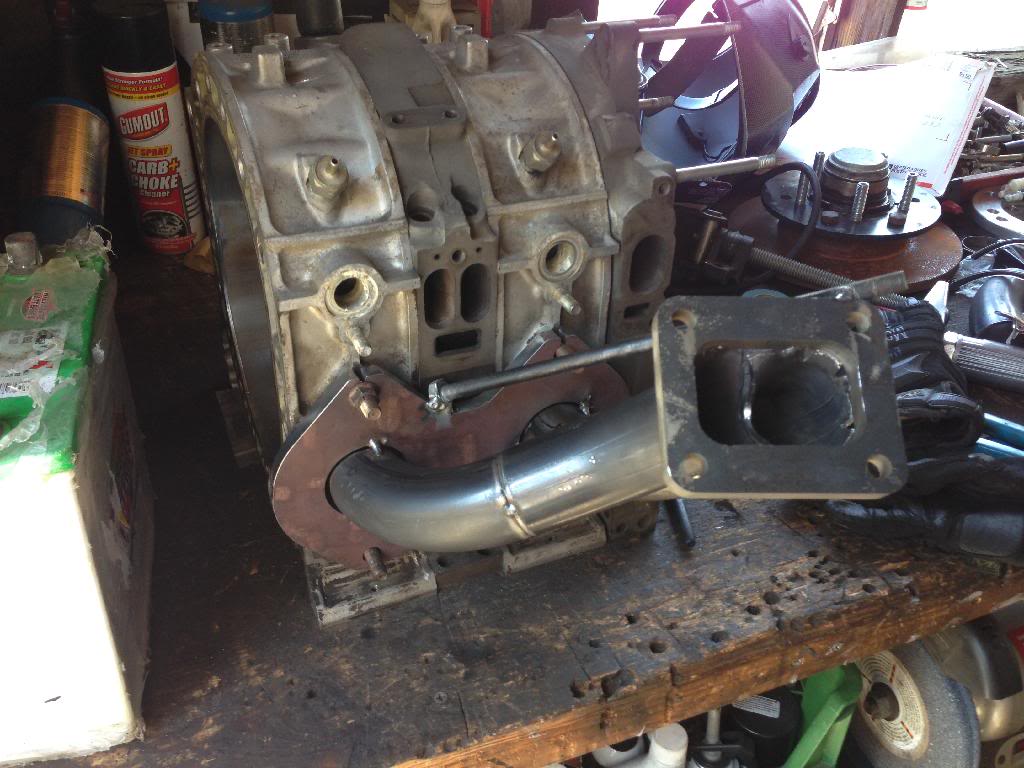

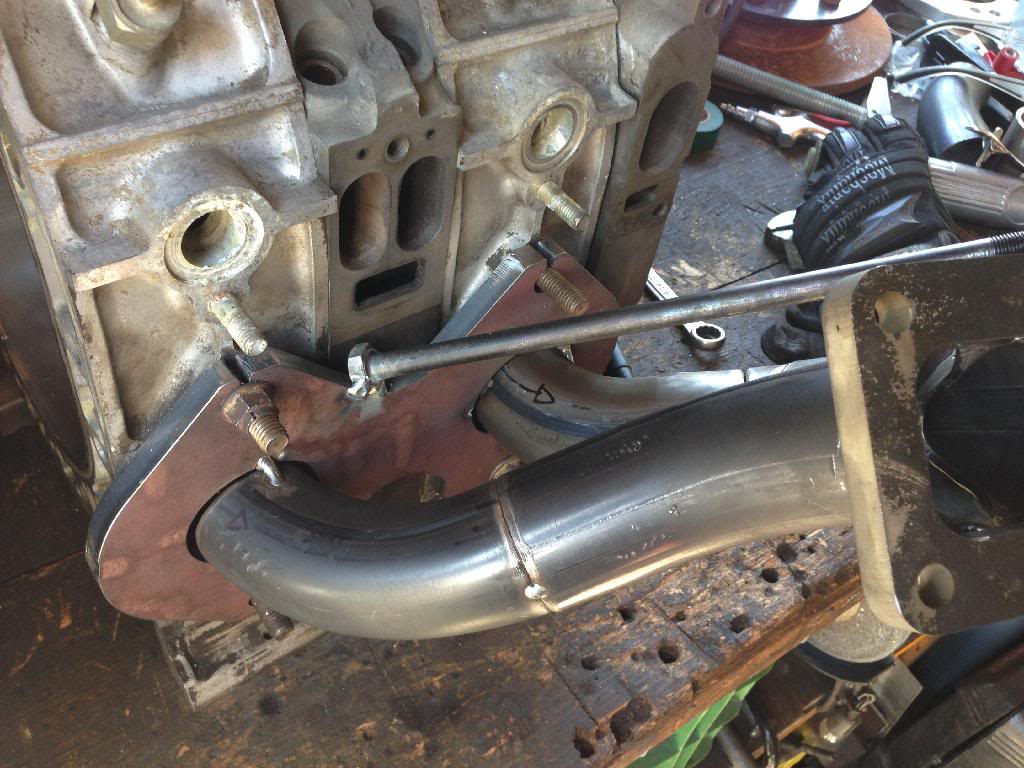

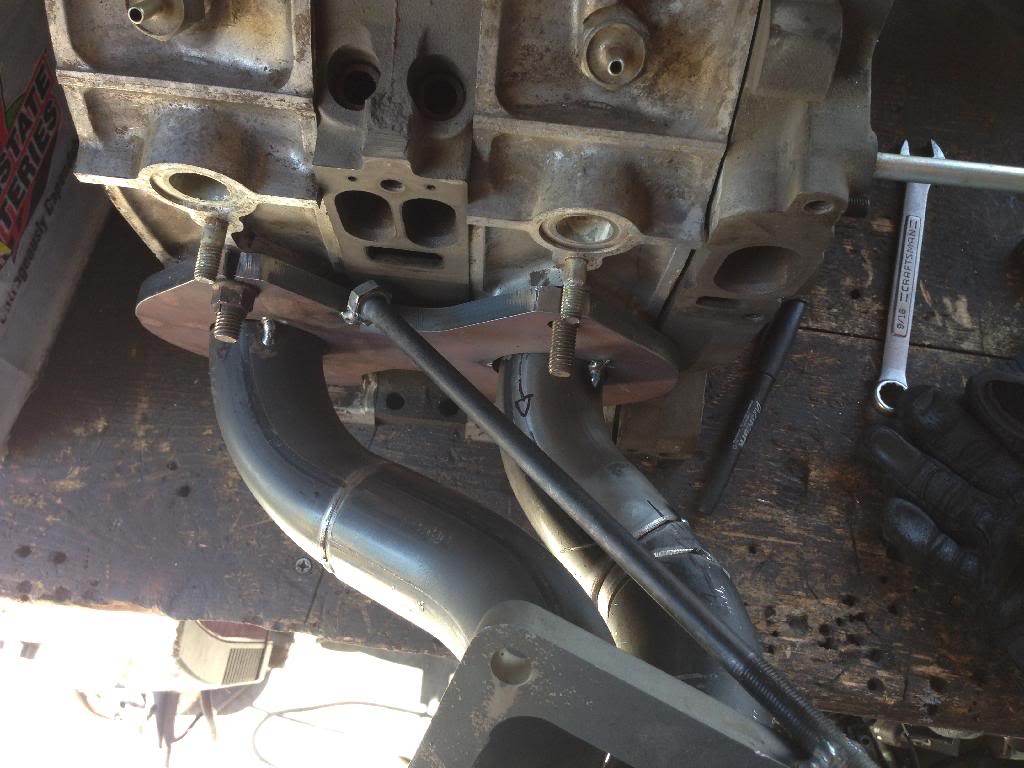

Started fabbing up the turbo header.

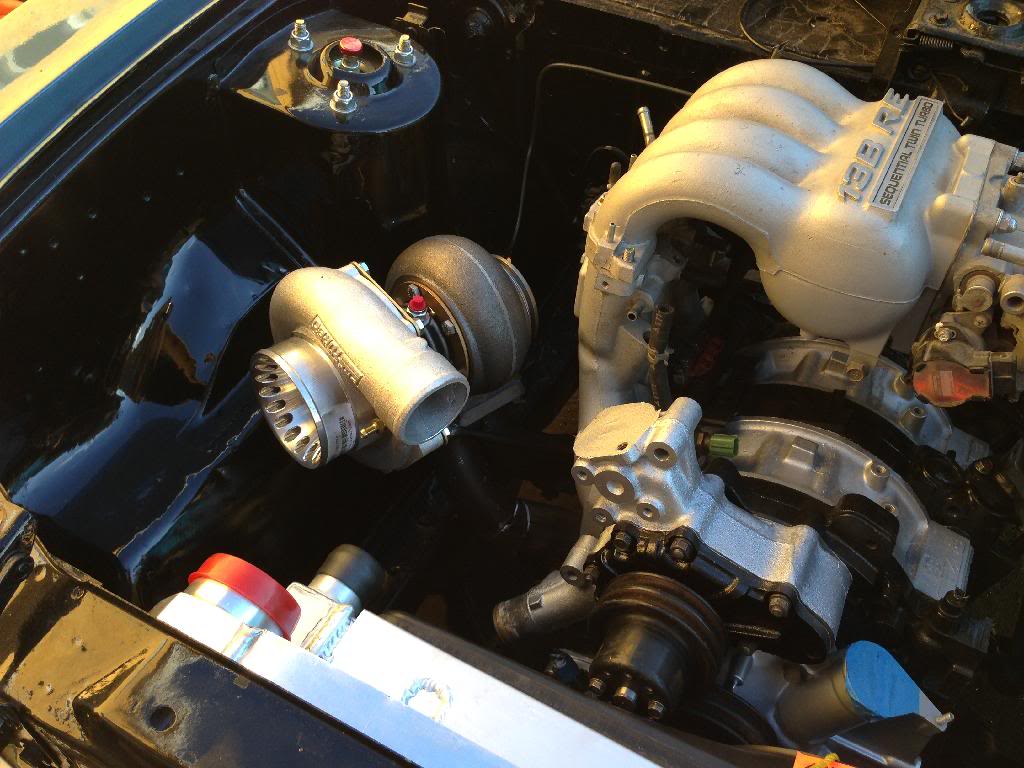

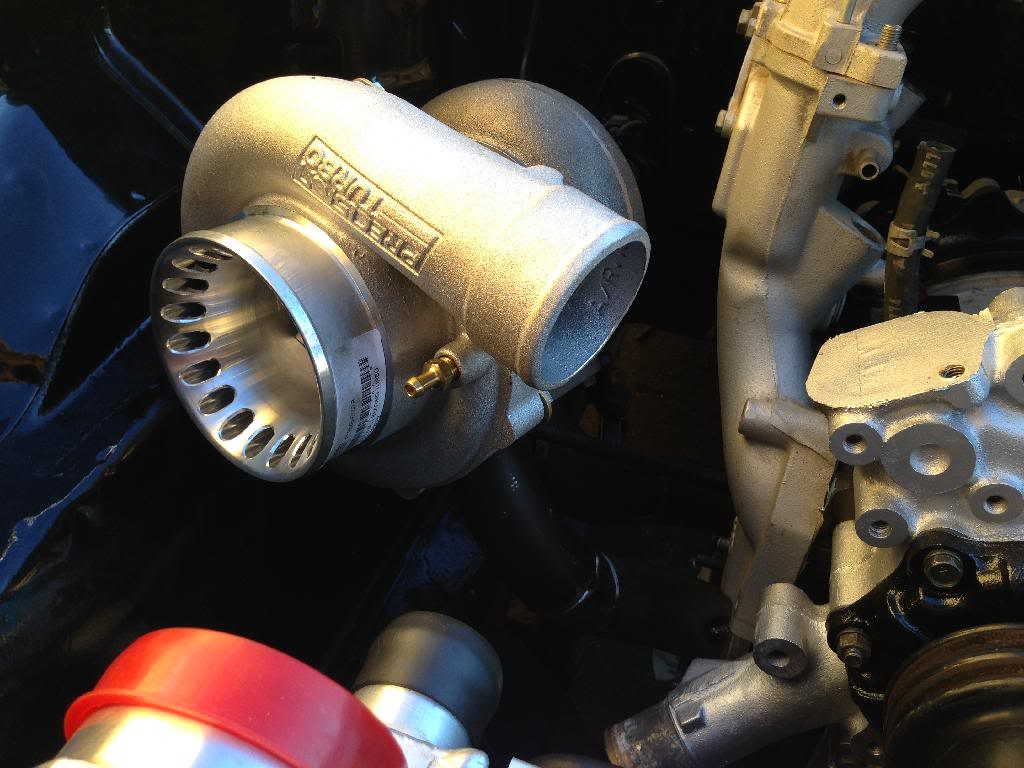

After tack welding it all together I put it on the car just to see how it came out...looks pretty good to me?











Waiting on the wastegate and other parts to get some more done to it.

colorado rx2

Where did you pick up the radiator, intercooler, oil cooler? Are all three bought as one unit?

rx2t

iTrader: (1)

It is coming out really nice, great job your doing there!

turbo_dave

iTrader: (50)

Radiator,intercooler,oil cooler are from rotary-works
Radiator fans are from summitracing,made for a volkswagon scirrocco radiator

Thanks for the compliment.
Going to do some more work to it in the next few days.

colorado rx2

[QUOTE=turbo_dave;11724930]Radiator,intercooler,oil cooler are from rotary-works
Radiator fans are from summitracing,made for a volkswagon scirrocco radiator

Thanks for the info, the work you do is tight. Keep it up!

turbo_dave

iTrader: (50)

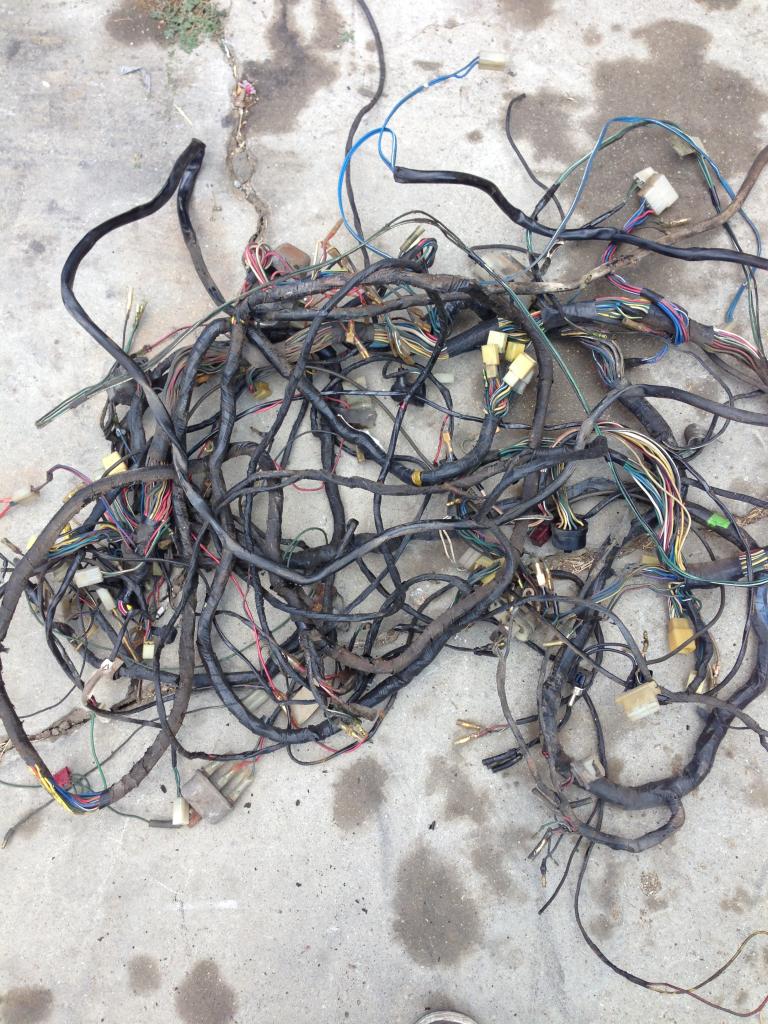

Out with old!

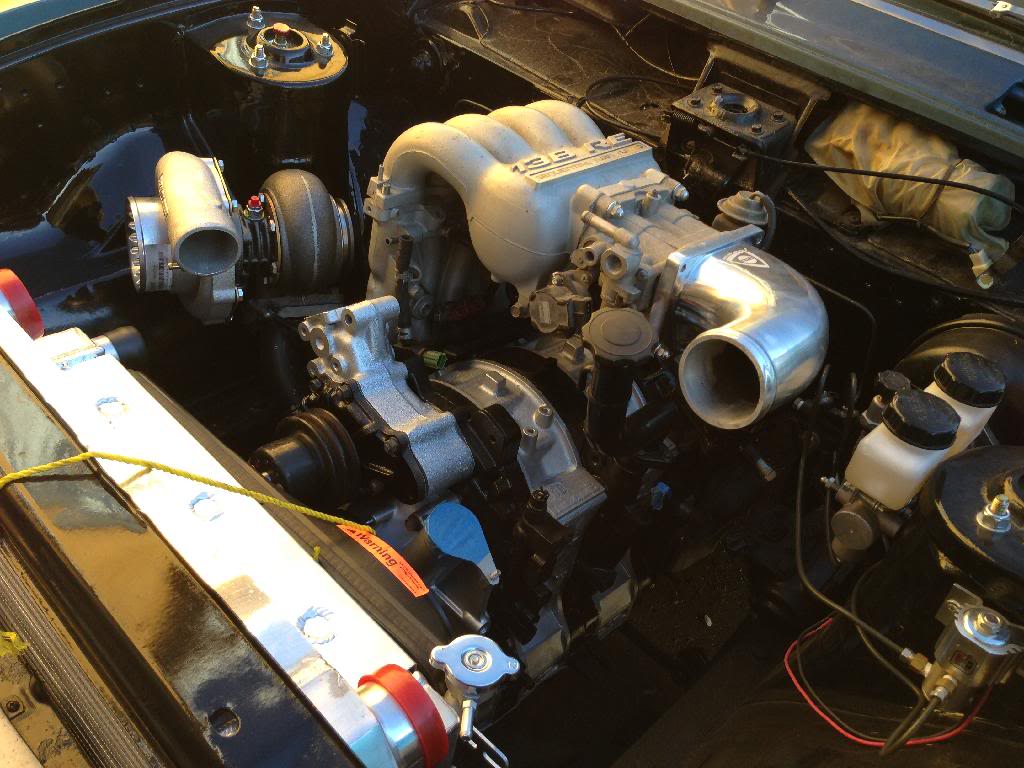

In with the new

turbo_dave

iTrader: (50)

Siraniko

iTrader: (13)

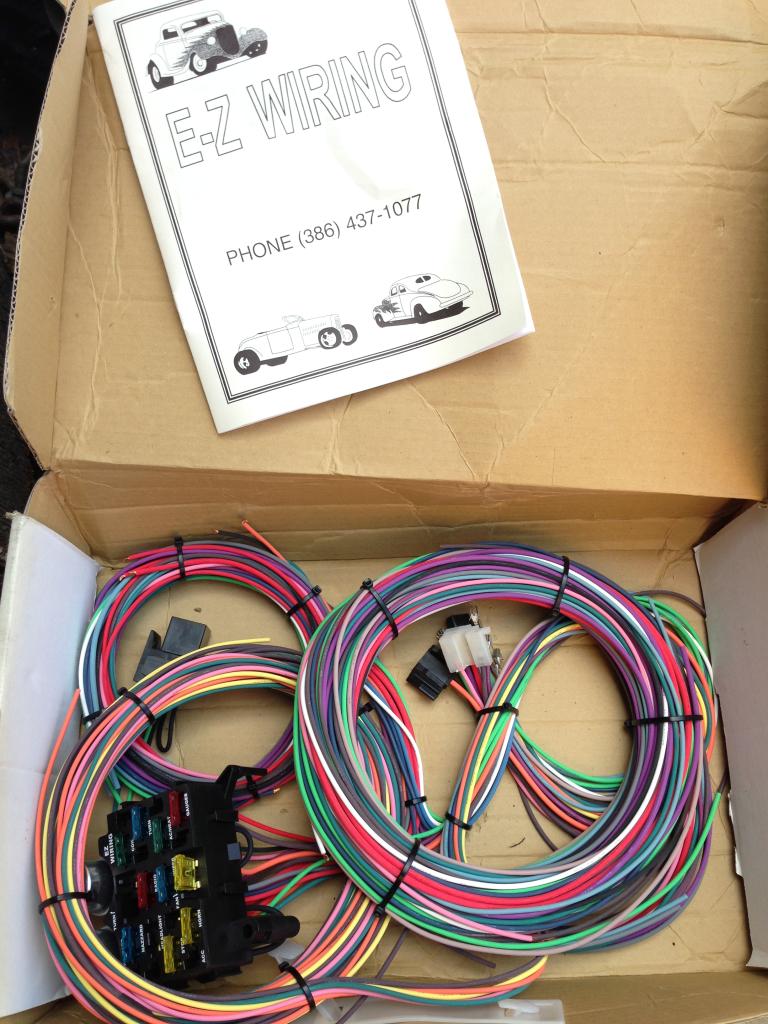

Funny thay i bought an ez wiring kit over 3 years ago and i cant even remember where i stashed it.

turbo_dave

iTrader: (50)

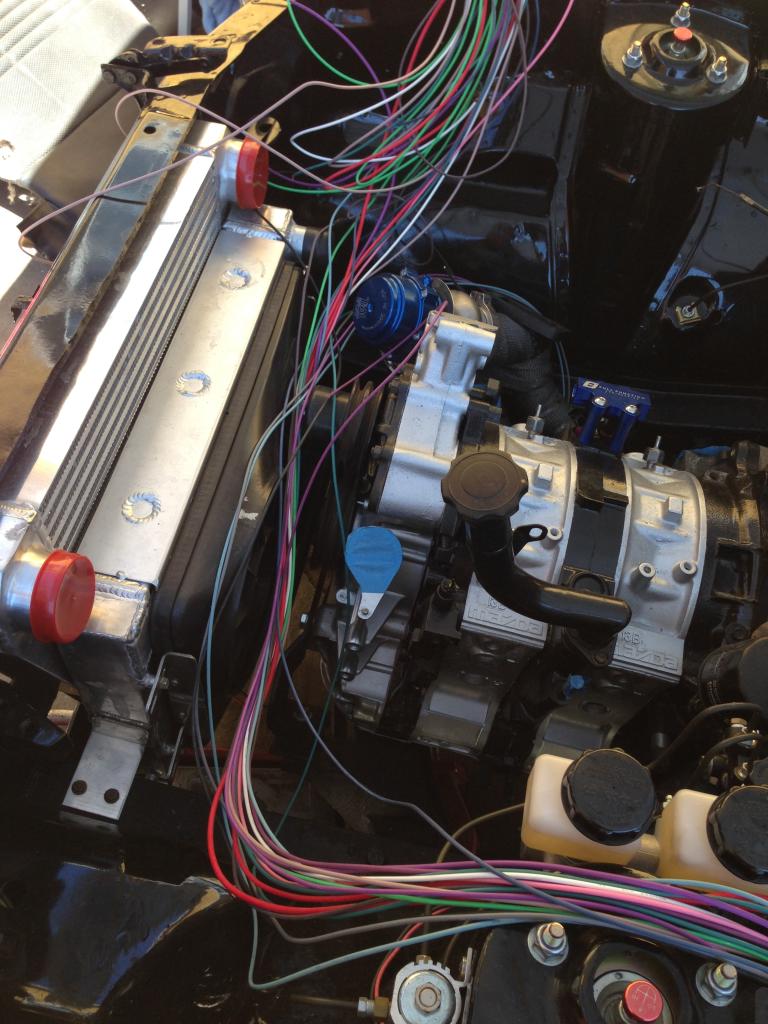

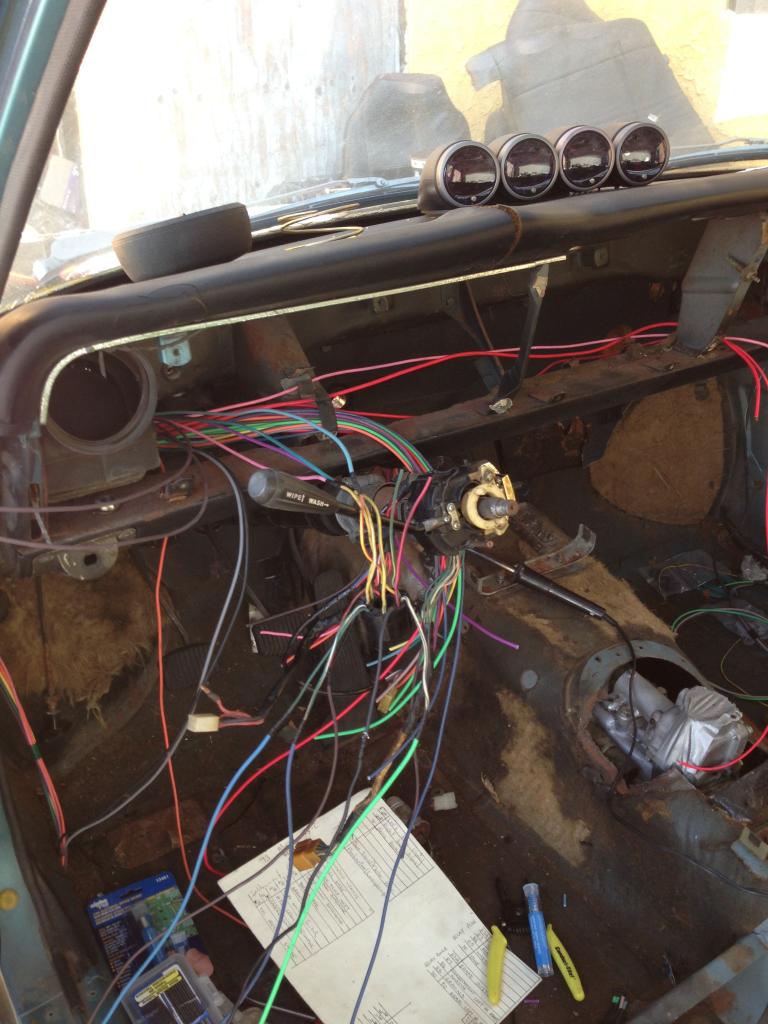

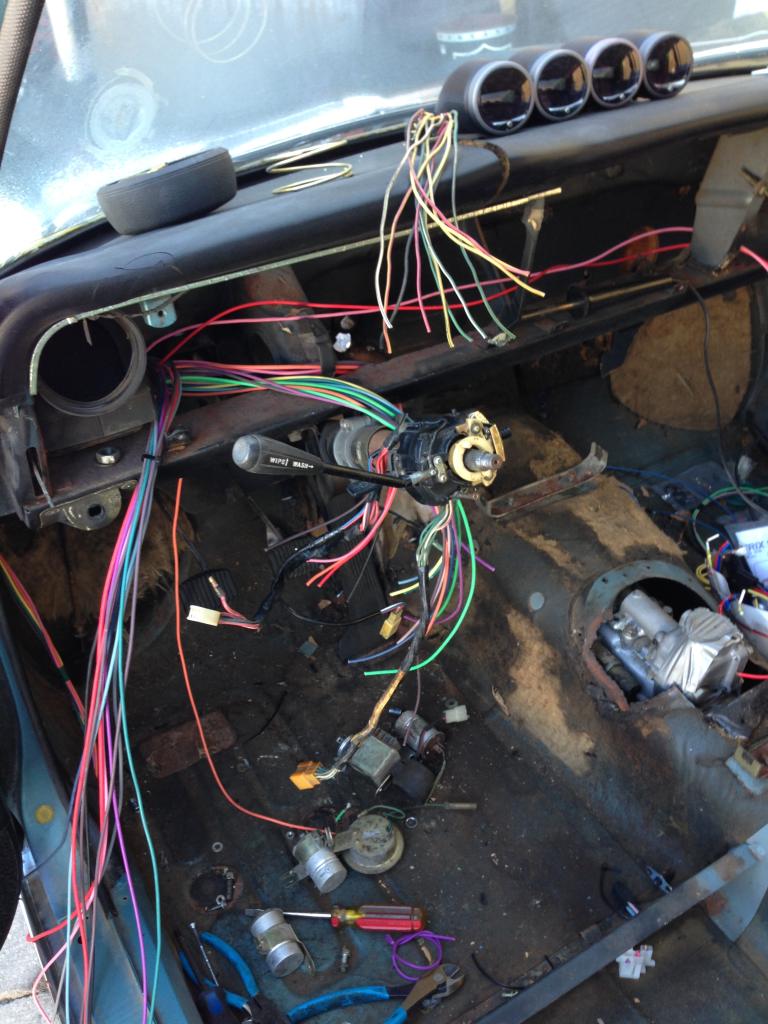

Rear tail light wiring is done,front headlight wiring is done,and now working on the dash wiring...

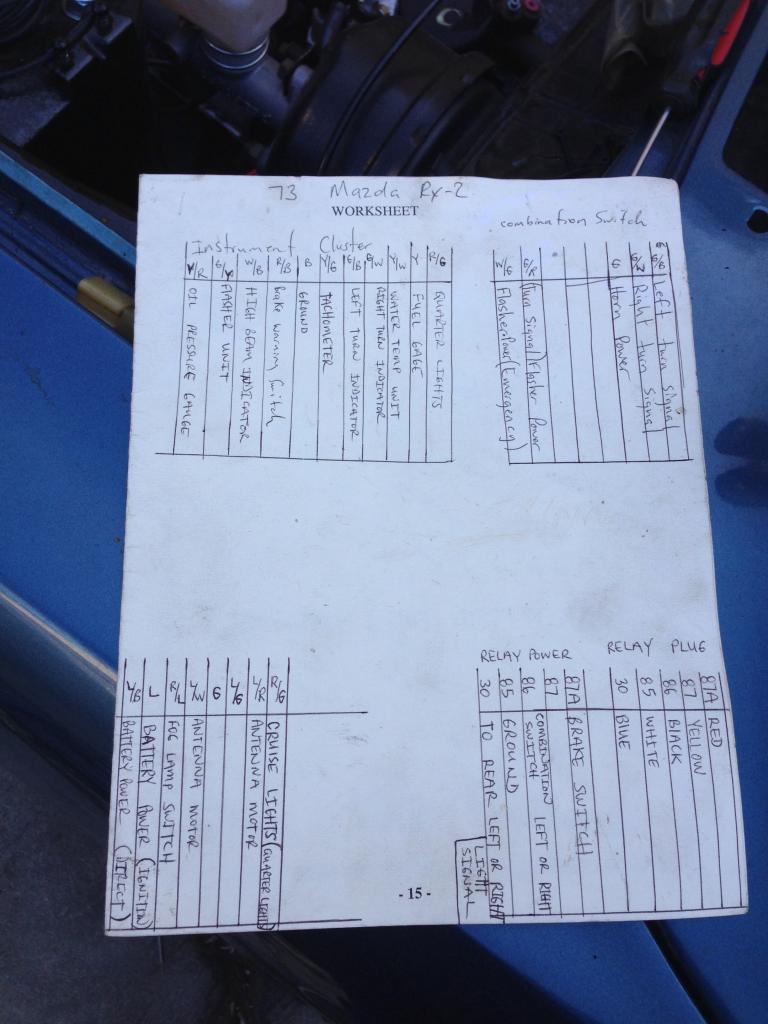

Some pics of notes I took

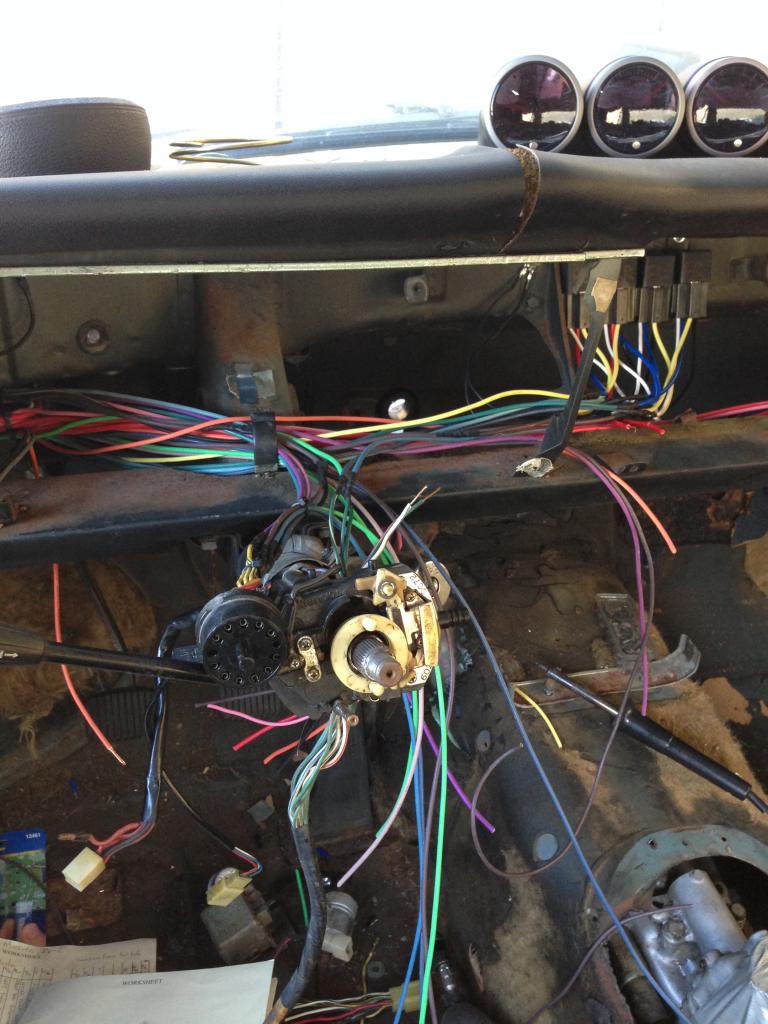

And half way done

rx2t

iTrader: (1)

Seems like allot of work but looking good.
