Help! Identifying 13B 4 or 6 port

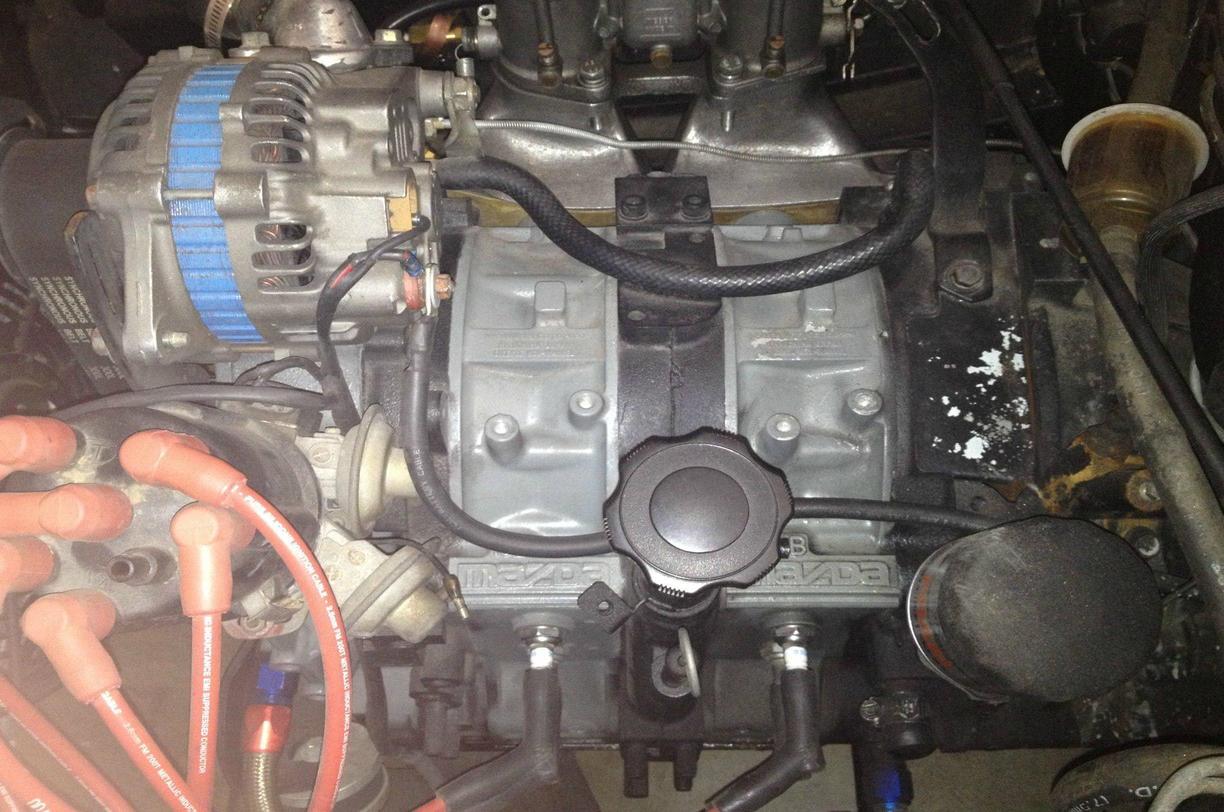

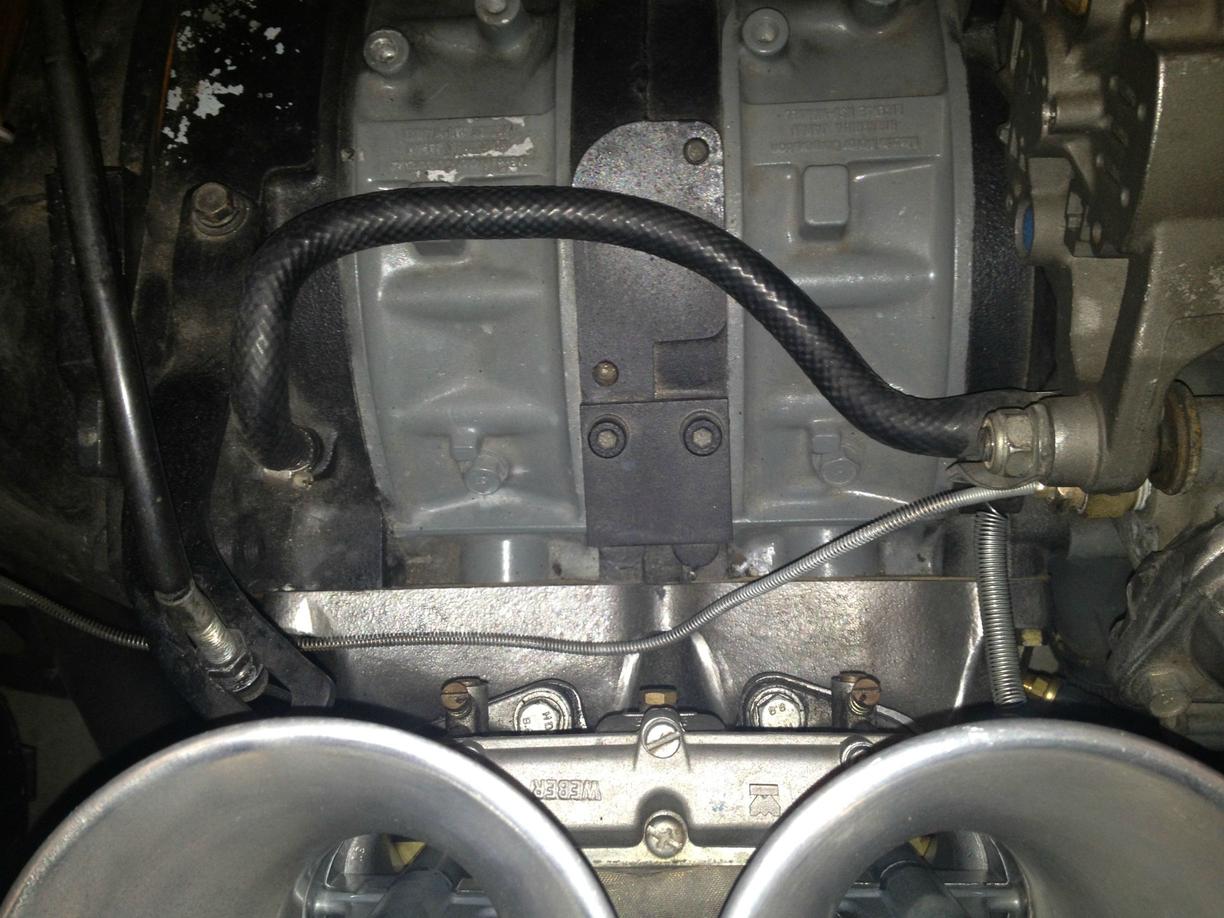

Is there a way to identify if a 13B is a 6 or 4 port without taking the manifold out. It's
in the RX2 I just purchased.Name: ojrLQJG.jpg Views: 110 Size: 147.0 KBName: 95NlvbD.jpg Views: 100 Size: 141.3 KB
trublu619 is offline
Reply Like
Old 03-02-13, 12:39 PM
  #2
I actually own Rotaries

iTrader: (40)

73rx313b's Avatar

Join Date: Mar 2006
Location: North Cackalacky
Posts: 2,023
Received 1,464 Likes on 1,024 Posts
Looks like it had FI so I would say its a 6 port unless its been re stacked... you need a picture from the side from the top of the header up...
73rx313b is offline
Reply Like
Old 03-02-13, 12:45 PM
  #3
Junior Member
Thread Starter

trublu619's Avatar

Join Date: Feb 2013
Location: San Diego, CA
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Never mind. Judging from the RB manifold, it's a 6 port.
trublu619 is offline
Reply Like
Old 03-04-13, 07:14 AM
  #4
Total Rotary Domination!

iTrader: (17)

Rotaryhaven's Avatar

Join Date: Apr 2002
Location: Hampton, Virginia
Posts: 1,916
Likes: 0
Received 1 Like on 1 Post
two bolts are in the housing closing the injection nozzles - at least 84 and up 13b and the middle plate has the injector holes plugged up- at least 84 and up.
Rotaryhaven is offline
Reply Like
Old 03-04-13, 09:11 AM
  #5
#turbodavebuilt

iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,115
Received 7 Likes on 6 Posts
Seems to me like s4 rear iron,s5 center iron,s4 rotor housings and can't really tell what series front iron.
turbo_dave is offline
Reply Like
Old 03-04-13, 09:46 AM
  #6
Junior Member
Thread Starter

trublu619's Avatar

Join Date: Feb 2013
Location: San Diego, CA
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Talking
Cool! Thanx!
trublu619 is offline
Reply Like
Old 03-04-13, 12:07 PM
  #7
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes on 1,842 Posts
Originally Posted by turbo_dave
Seems to me like s4 rear iron,s5 center iron,s4 rotor housings and can't really tell what series front iron.
yeah its not an S4 NA center, no EGR.

rotor housings are S4, no knock sensor holes.
j9fd3s is offline
Reply Like

Trending Topics

Old 03-04-13, 12:29 PM
  #8
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
'86-91 mix-match 6 port.
RotaryEvolution is offline
