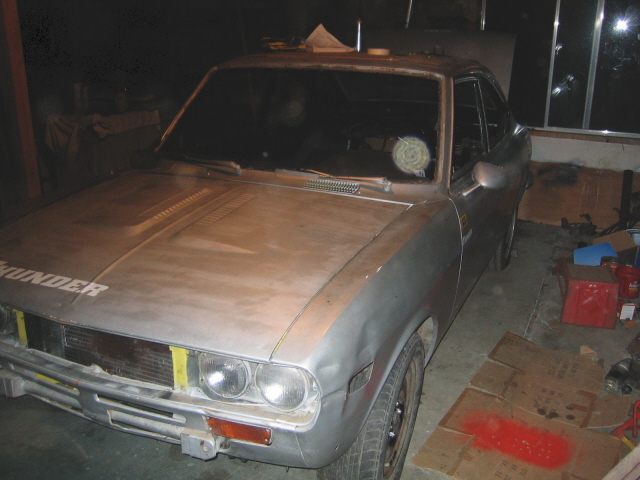

Finally some pictures of the duece 13btt
#1
Finally some pictures of the duece 13btt

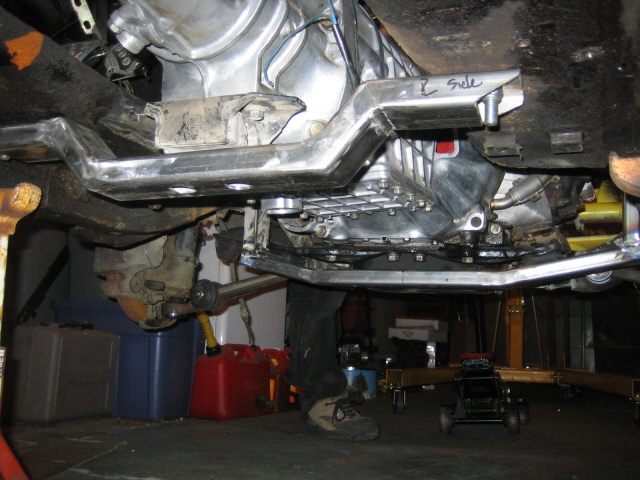

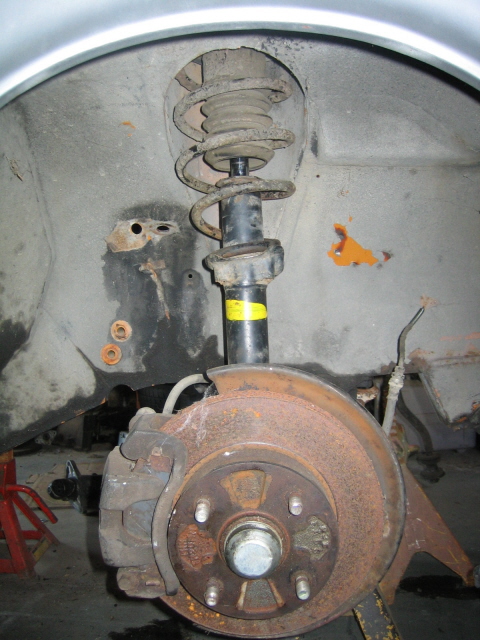

Its in its begining state but the motor is in now with the tranny, got the first gen. front suspension on and my dash in.
List of current mods:
95 13btt
6 puck clutch
t2 tranny shortened
rx-3 lower control arm w/ rx-7 ball joint milled and pressed in
stock gsl-se front shock set up
gsl-se LSD rear pumpkin
255 walboro
List of things to come shortly:
Roll Cage
GSL-SE rear disk
fuel cell w/ new lines
800/1600 FPR and new lines and fuel rail
all new stainless steel brake lines
one piece drive line
custom rack and pinion
urathane bushings
New radiator oil cooler set up
List of things to happen some time:
Body and paint
Garret GT-R series 38/40
custom exhaust manifold
other goodies I havent thought of yet. lol
List of current mods:
95 13btt
6 puck clutch
t2 tranny shortened
rx-3 lower control arm w/ rx-7 ball joint milled and pressed in
stock gsl-se front shock set up
gsl-se LSD rear pumpkin
255 walboro
List of things to come shortly:
Roll Cage
GSL-SE rear disk
fuel cell w/ new lines
800/1600 FPR and new lines and fuel rail
all new stainless steel brake lines
one piece drive line
custom rack and pinion
urathane bushings
New radiator oil cooler set up
List of things to happen some time:
Body and paint
Garret GT-R series 38/40
custom exhaust manifold
other goodies I havent thought of yet. lol
#4

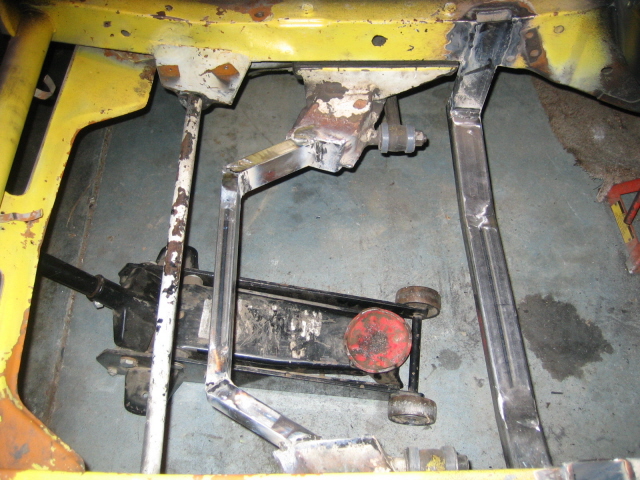

Its not on there yet but its going to get two more brackets biult from that motor mount bracket underneath the car into the frame. I didnt put them on yet because im waiting to see where my rack and pinion is going to mount back there so i can incorperate them in. In addition to that im going to add a torque bar on top of the motor to the suspension.
#5
Originally Posted by Crit

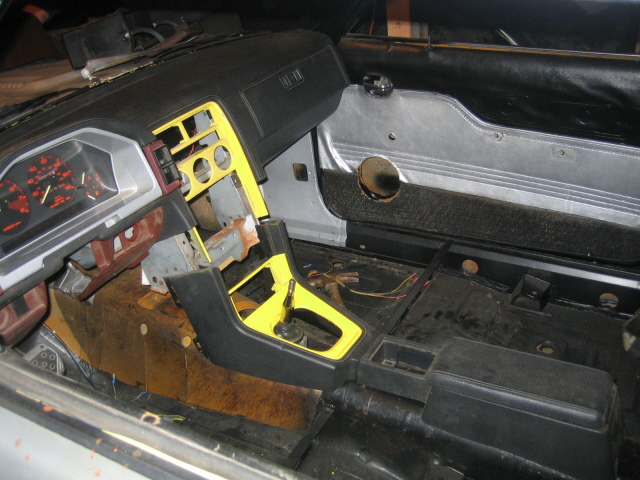

Holy crap. That S3 RX-7 dash looks great in there.
#7
Originally Posted by wackyracer
Bet you cant use the storage console.
At any rate, very nice. Now, I want you to go back to that junkcar and get the complete harnesss for me so I can upgrade my RX-3.
At any rate, very nice. Now, I want you to go back to that junkcar and get the complete harnesss for me so I can upgrade my RX-3.
I have two extra dashes one just the skin and the other has everything in it still I think I have two dash harnesses. What do you need?
Trending Topics
#9
RX for fun
iTrader: (13)
Originally Posted by twomucboost4u
I have two extra dashes one just the skin and the other has everything in it still I think I have two dash harnesses. What do you need?
Thanks bro but I was just kidding. I havent decided if I would use the FB or just buy a new set ezwiring or itsasnapwireandcable (thanks Owen ).
#10
The General RE
Mounting you lower control arms in single shear seems like a bad idea to me. I guess all that maters is if you are OK with it. You have put so much fab work into your mounts so far why not add provisions for FC control arms and throw away that stock stuff. You would get better bearings and brakes with the trade.
