91 Eunos Cosmo

Reply



Old 02-27-17, 03:56 PM
  #1
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
NV 91 Eunos Cosmo

Hey, everyone

Ive been away from the rotary community for a while now and glad to be back. Just bought a 91 Cosmo from Jamel, he had it posted on here. Some good pics are on here https://www.japaneseclassics.com/veh...nos-cosmo-20b/.

Im going to be starting to modifing it soon, dont have any crazy plans for it. It had 19" lowenhart rims on it but I changed them to 17" Enkei RPF1's, and discovered the Autoexe spring.

I took off the rain gaurds and broke the DS A pillar, will post pics later, so if anyone has one I'd appreciate it.

Thanks and enjoy I will be update as I get parts and put them on.

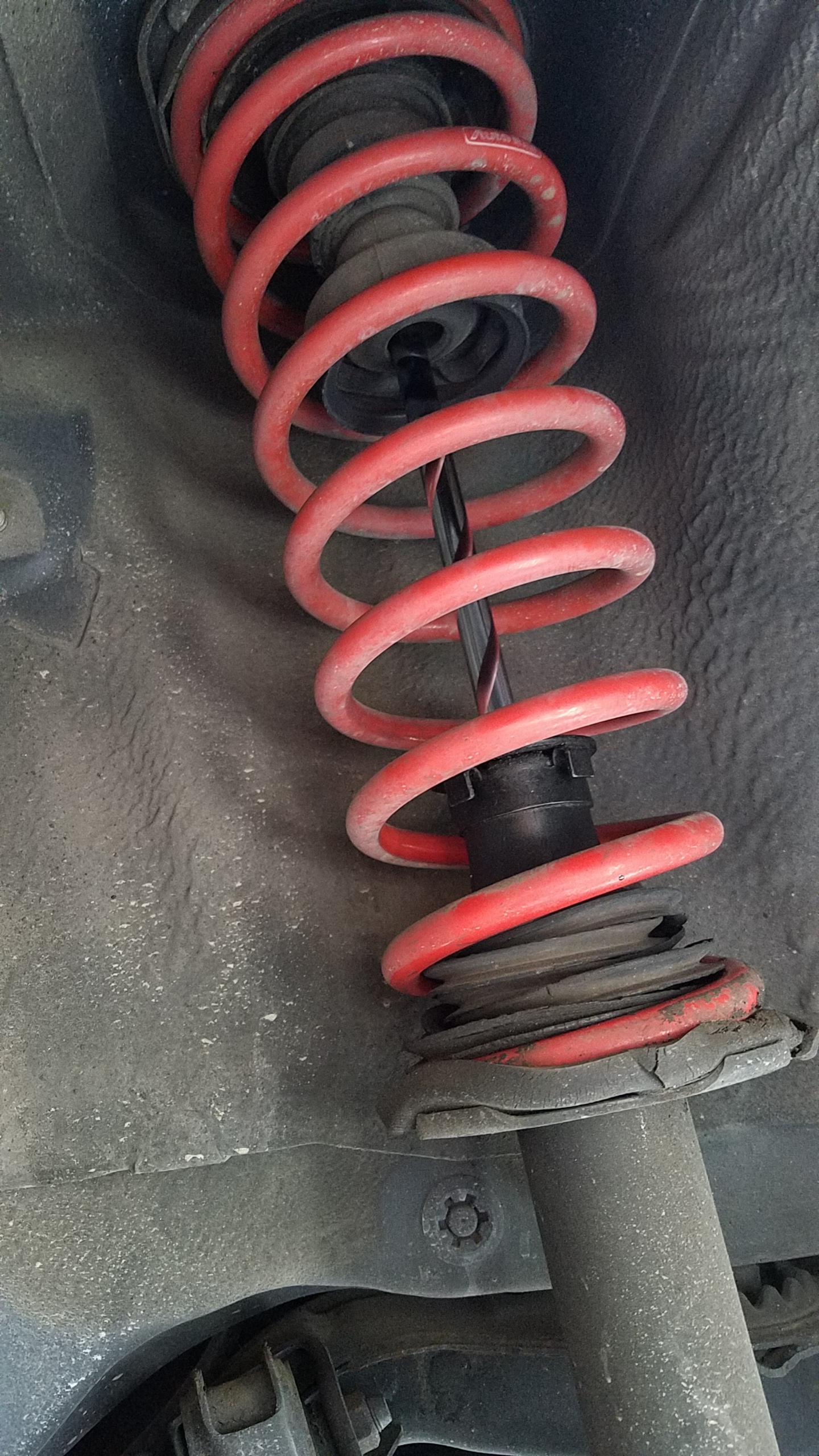

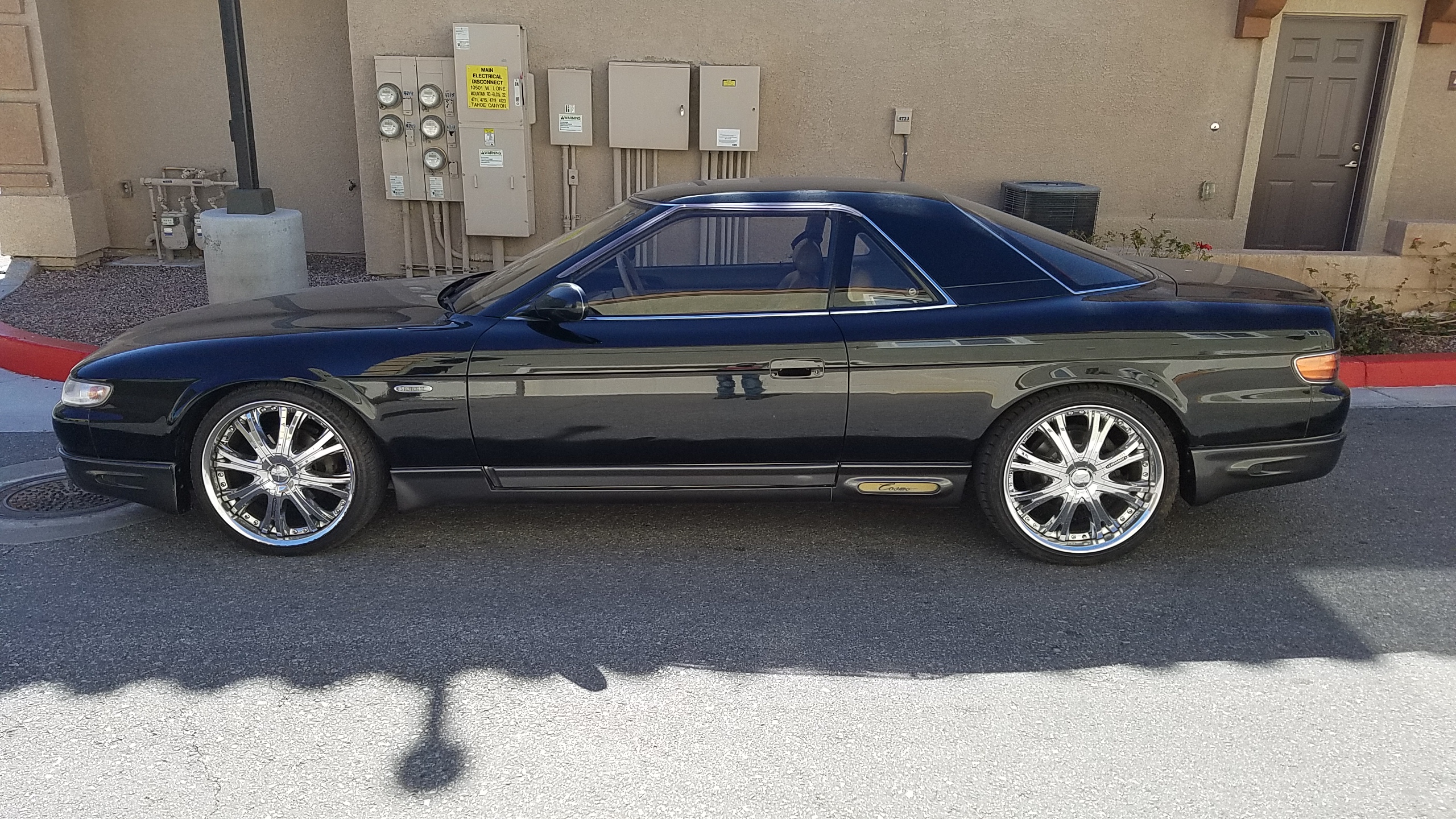

Attached Thumbnails 91 Eunos Cosmo-20170222_113327.jpg   91 Eunos Cosmo-20170215_103024.jpg   91 Eunos Cosmo-20170222_130643.jpg   91 Eunos Cosmo-20170222_134200.jpg
bwahl5184 is offline
Reply With Quote
Old 02-27-17, 04:58 PM
  #2
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
Nice job getting rid of those 19's!
LoneStarS30Z is offline
Reply With Quote
Old 02-27-17, 05:16 PM
  #3
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks.

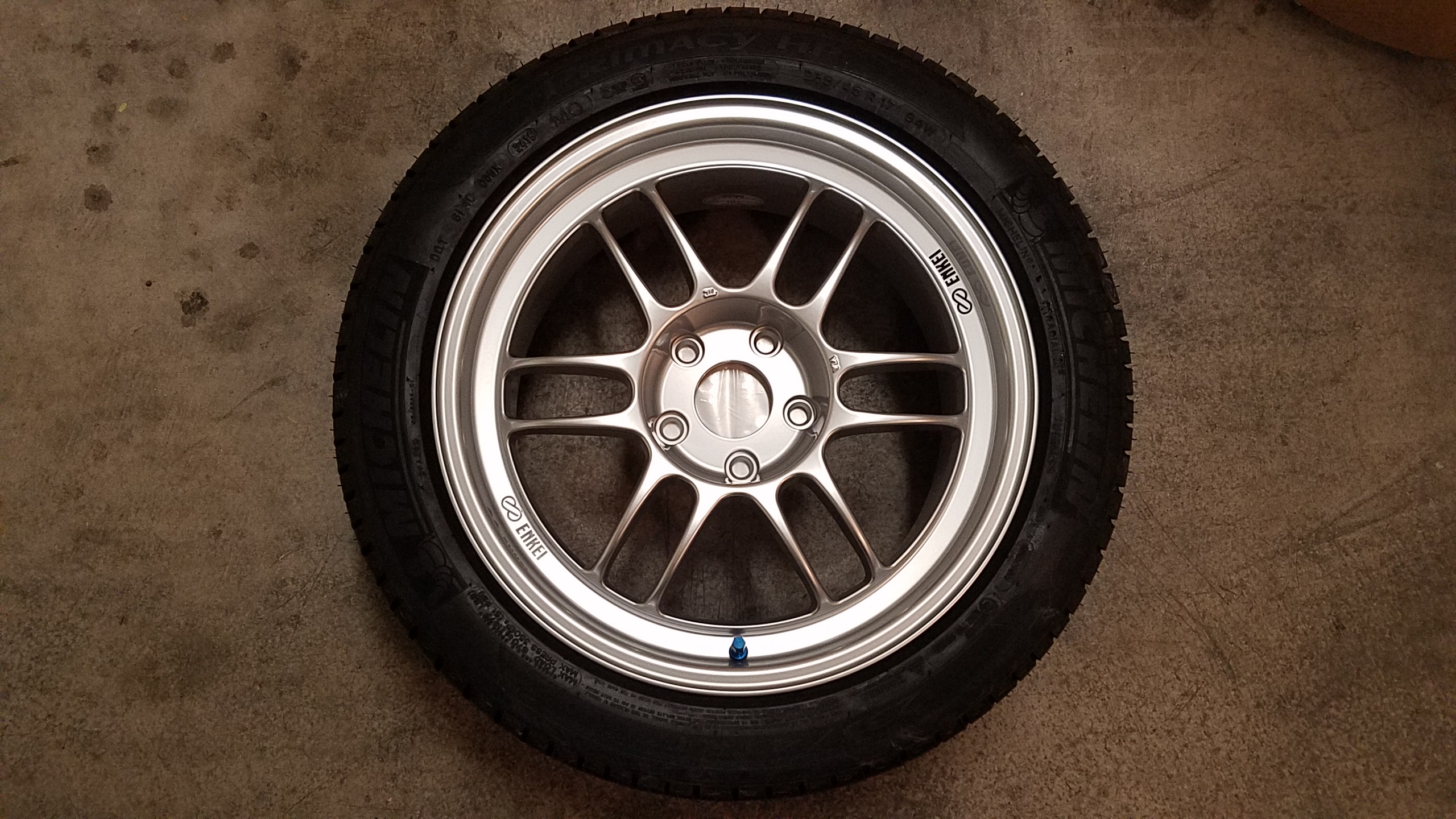

Saw them on an Fd and really liken them. Got the 17x8's, no plans on racing the car so no need to go bigger or offset. Ive read your post on your cosmo, good job, took a lot of insperation from it on my plans for mine. Would love to have access to all the stuff you did from being in Japan.
bwahl5184 is offline
Reply With Quote
Old 02-27-17, 05:31 PM
  #4
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks, I'm actually back in America now. I can still find some things, but just isn't cheap anymore.
LoneStarS30Z is offline
Reply With Quote
Old 02-27-17, 05:44 PM
  #5
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
I like the Autoexe intake and chasis braces you have. Found the intake online for $780+ shipping but not luck so far on the braces. Will FD or FC coilovers work on this car also looking to up grade the brakes. Any recommendations? Thanks
bwahl5184 is offline
Reply With Quote
Old 02-27-17, 06:11 PM
  #6
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
The intake can still be bought new from Yahoo Auctions Japan, definitely isn't cheap but it's the only quality option (I wouldn't consider an open filter a good idea).

The braces are no longer made, I sent mine off to Australia to be reproduced for a very limited run. If you're on Facebook, join Cosmo Owners Group and ask if anyone is willing to sell their set.

As far as I know FC/FD coilovers won't work, although I don't know anyone that has tried before.

For brake upgrades, K-Sport makes a BBK as well as another company called XYZ, and I'm using a Z32/R32 caliper with a bored out JZA80 brake disk and custom brackets from this website:

マツダ ユーノスコスモ  フロントビッグローターkit  リアビッグローターki t
LoneStarS30Z is offline
Reply With Quote
Old 02-28-17, 08:33 AM
  #7
amp
old yella
iTrader: (48)

amp's Avatar

Join Date: Jan 2002
Location: NYC | PA
Posts: 3,181
Thanked 1 Time in 1 Post
dam... just pmd jamel yesterday too..
was ready to purchase her... good luck with her bwah...
amp is offline
Reply With Quote
Old 02-28-17, 04:38 PM
  #8
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts

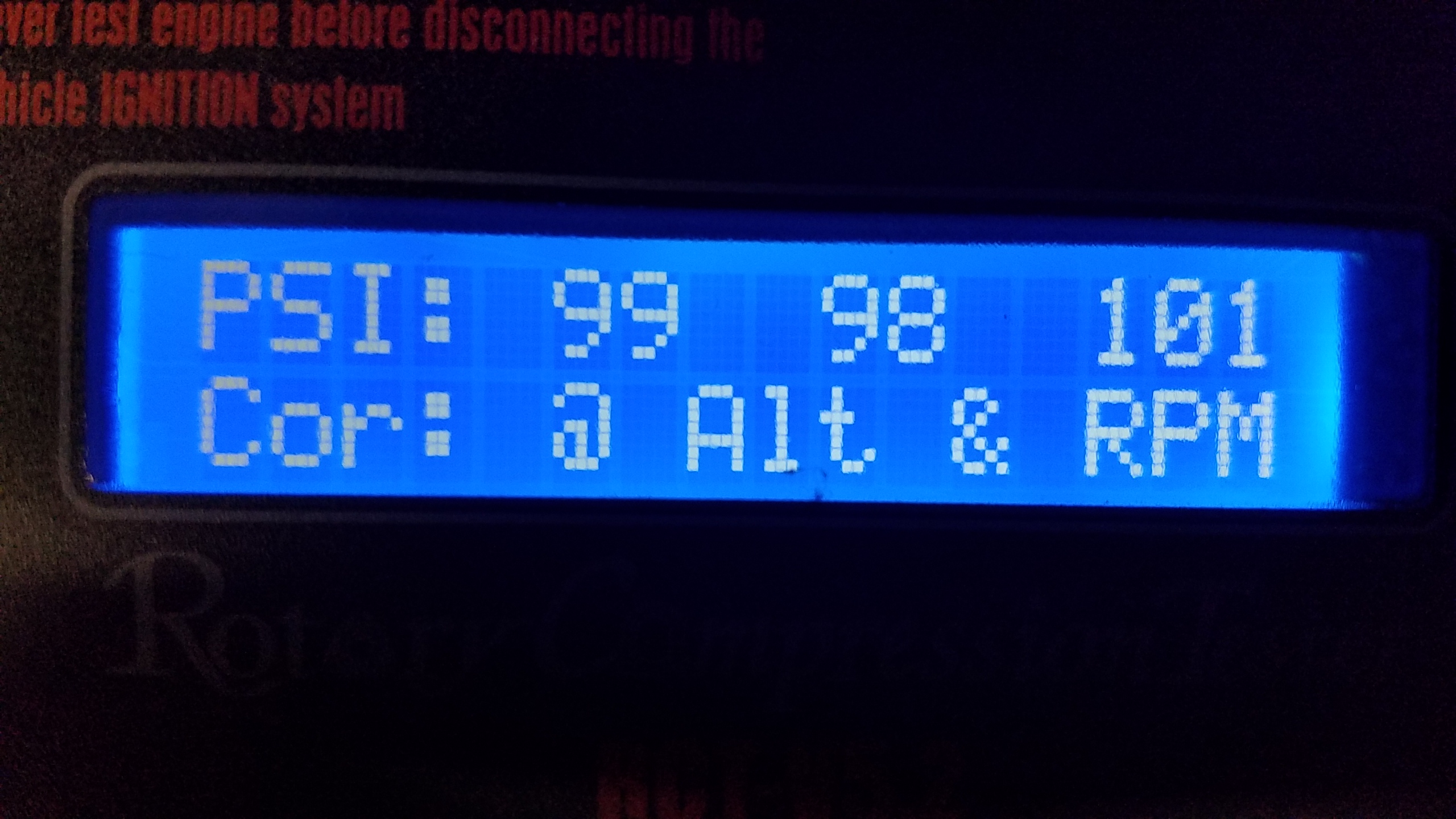

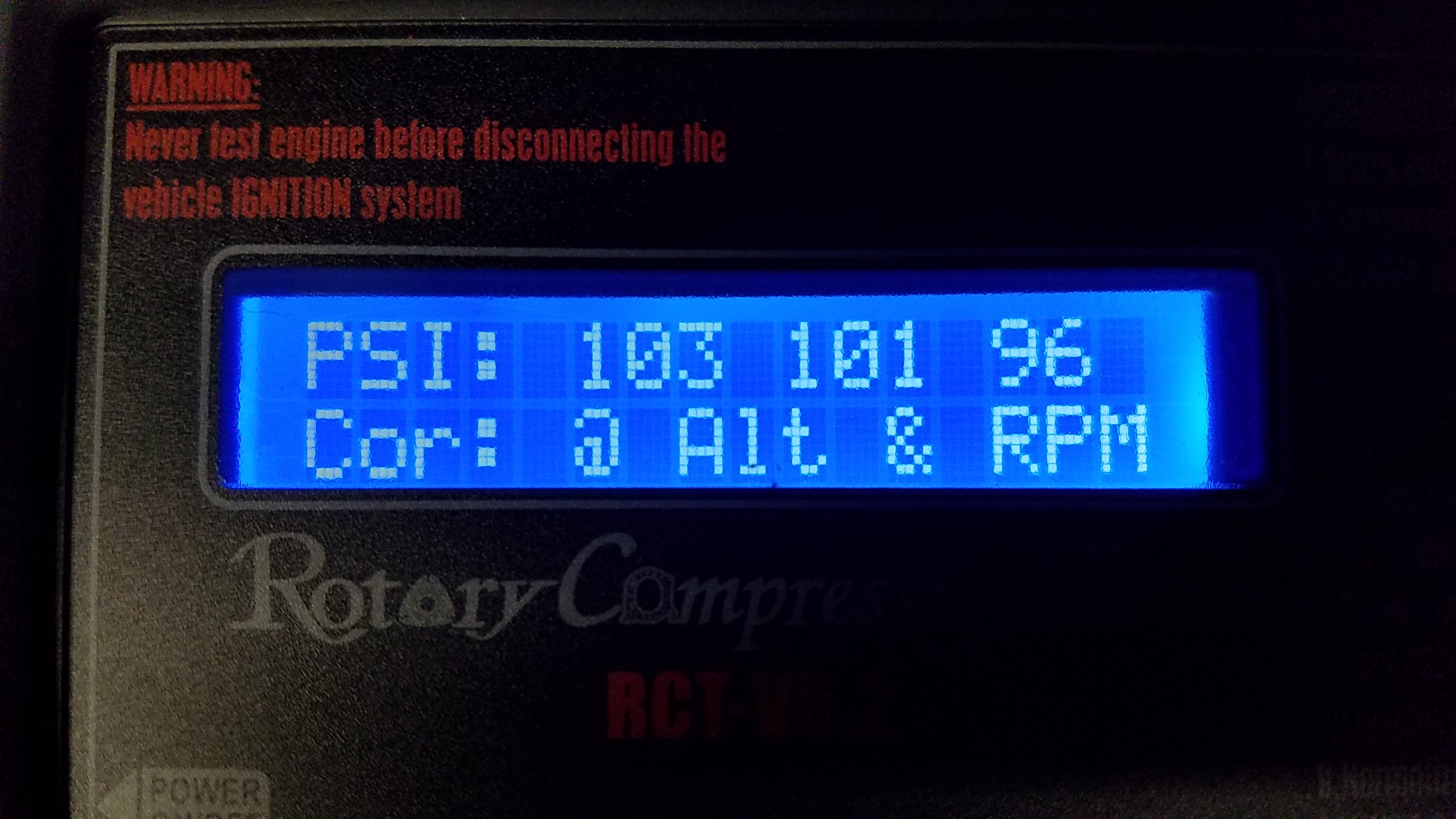

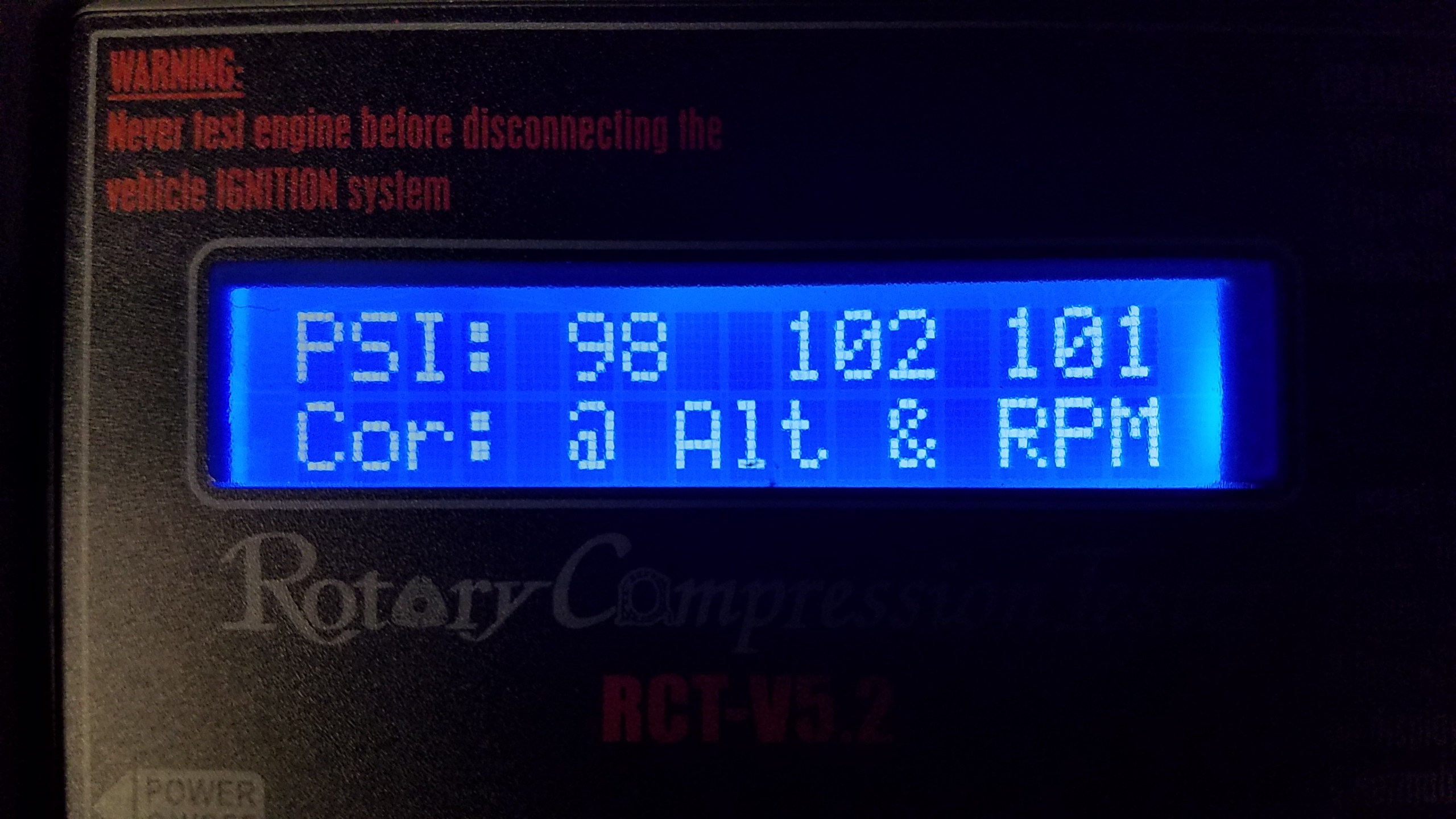

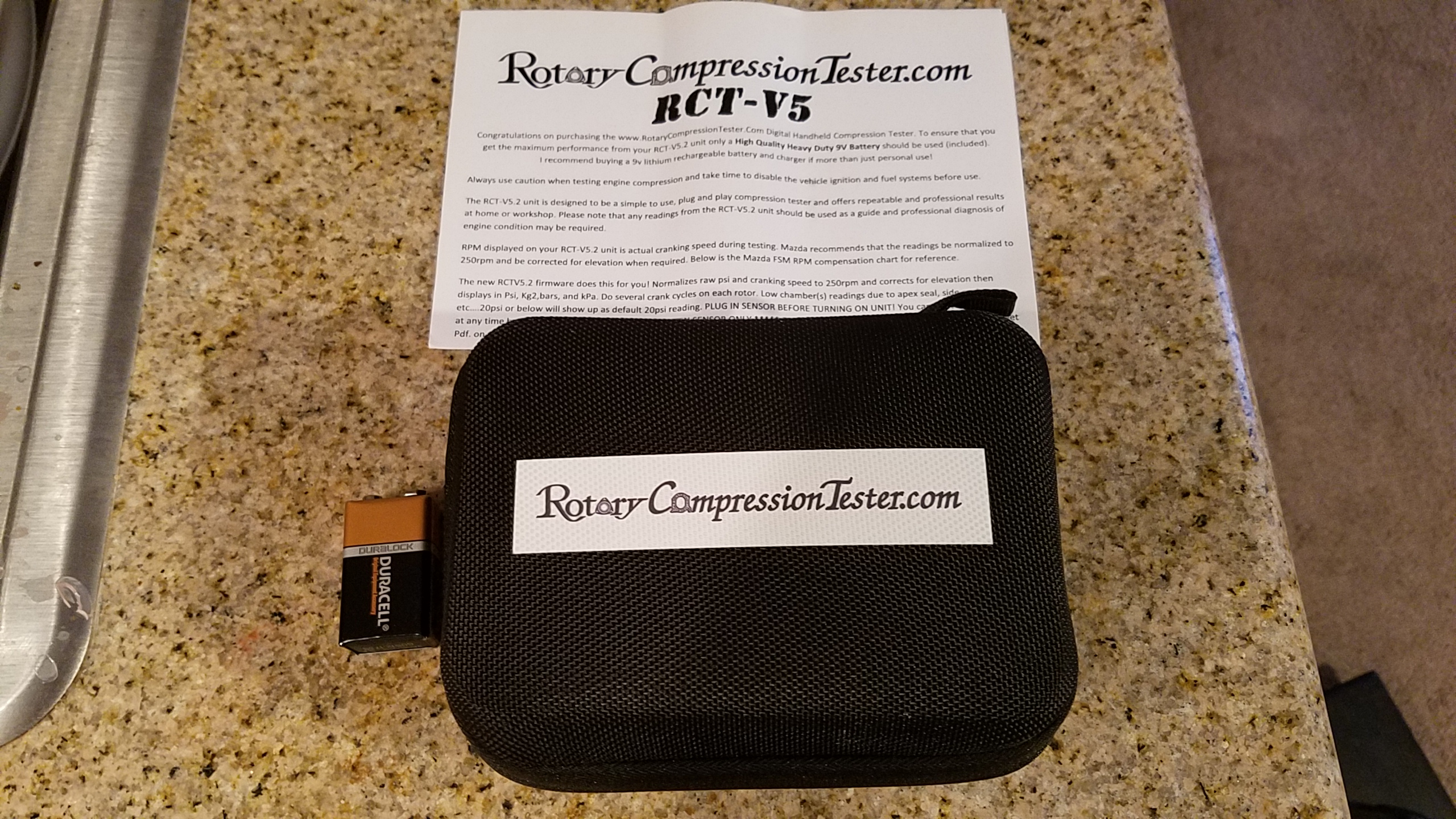

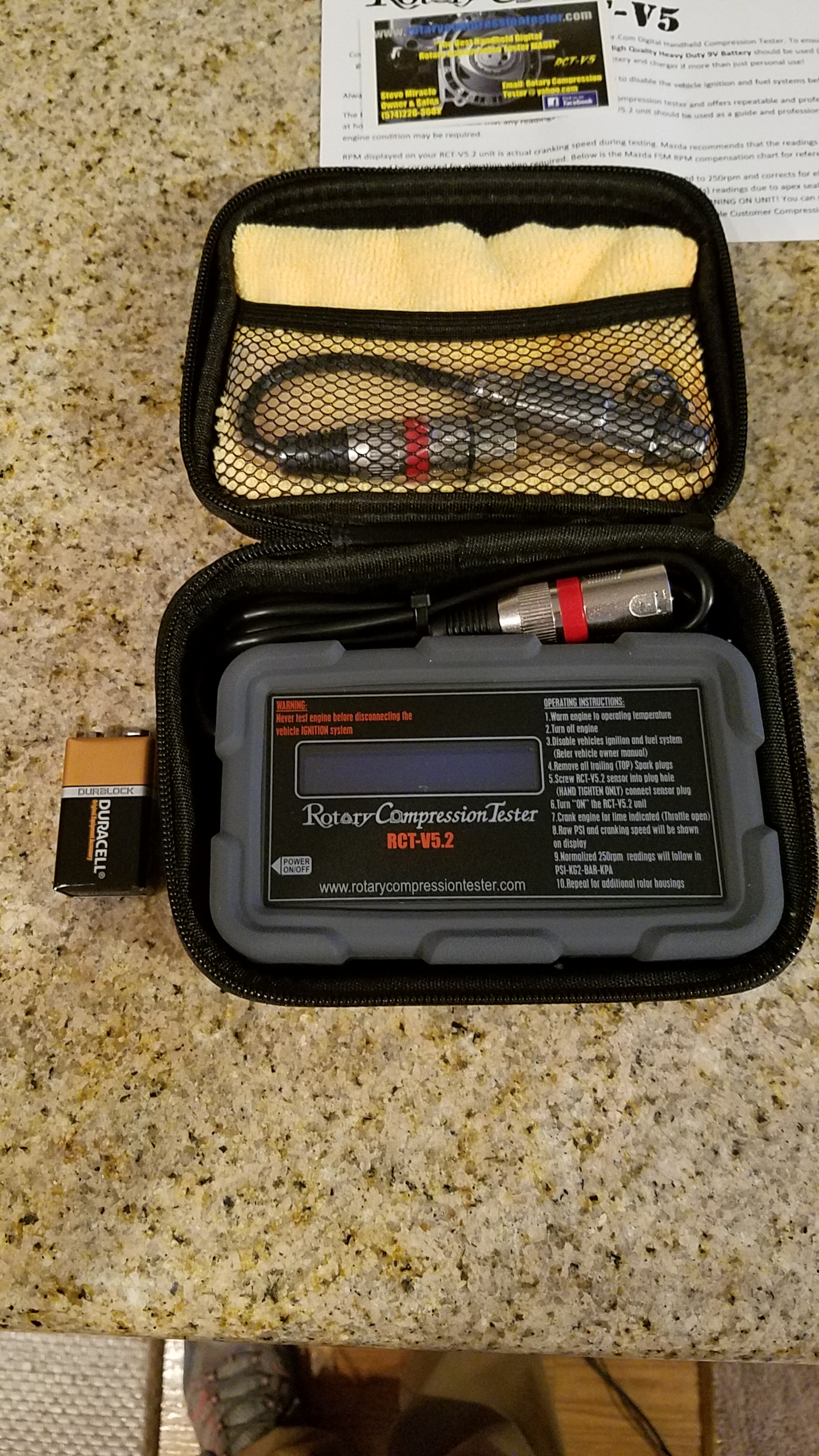

Got my Rotary Compression Tester yesterday, it's more of a luxury item than a necessity. Will help me keep an eye on the health of the engine. Nice looking packaging and semi rigid cloth case. Was looking around the car and saw this hole in the center console. Any ideas of what it could be?
Attached Thumbnails 91 Eunos Cosmo-20170227_171811.jpg   91 Eunos Cosmo-20170227_171837.jpg   91 Eunos Cosmo-20170227_210835.jpg   91 Eunos Cosmo-20170227_211628.jpg   91 Eunos Cosmo-20170227_211929.jpg

91 Eunos Cosmo-20170227_201636.jpg
bwahl5184 is offline
Reply With Quote
Old 02-28-17, 07:42 PM
  #9
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts

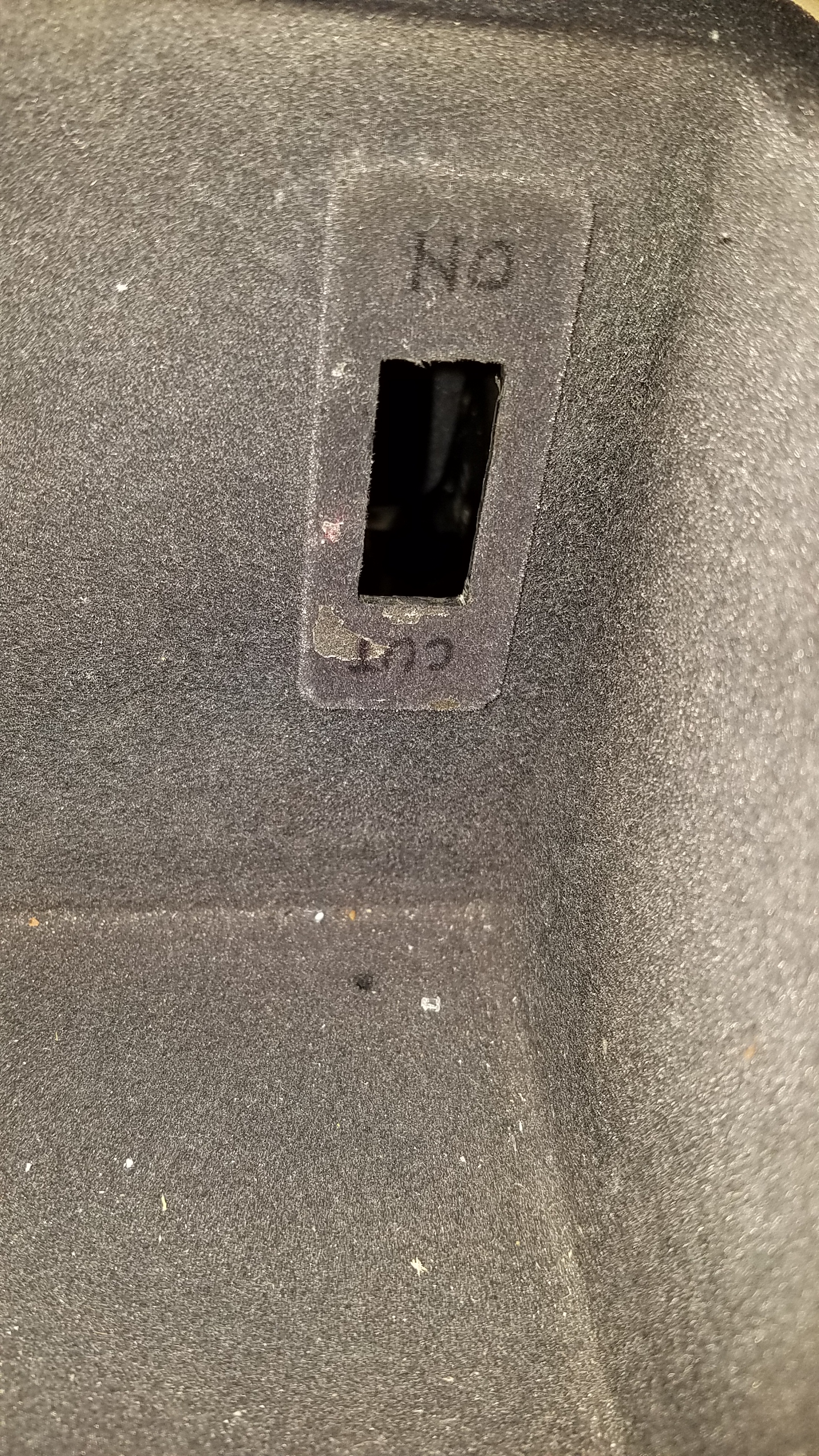

There's a RGB plug in that goes there (like the old TV hook ups for your Playstation 1), I'm not sure what it actually connected to it though, so it wasp pretty useless.
LoneStarS30Z is offline
Reply With Quote
Old 02-28-17, 11:57 PM
  #10
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
oh ok, thats weird. I opened it up but must have been removed because there was nothing there.
bwahl5184 is offline
Reply With Quote
Old 03-06-17, 12:15 AM
  #11
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
couple of updates.

received the premix and started using it. I never used premix on any of my RX-7's but I figured I'd give it a go. Want to keep the engine happy and healthy as long as I can. Nice package from Rotary Bum.

bwahl5184 is offline
Reply With Quote
Old 03-06-17, 12:24 AM
  #12
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
I also received my Carbing cooling cover and finally got around to putting it on. I like the way it looks, dont have that big hole anymore.





bwahl5184 is offline
Reply With Quote
Old 03-06-17, 12:34 AM
  #13
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
Lastly for the recent updates. Bought a bunch of goodies from Broke_A_Baller, great guy and seller, made my a really good deal of all these parts. Cant wait to start putting everything together.

Adaptronic e1280s ECU w/ long loom
6x Injector Dynamic 1000cc injectors w/ clips
Primary and secondary Full Function Engineering 20B fuel rails
6x AEM smart coils w/ clips
Innovate lc2 wideband kit
Aeromotive 340 fuel pump (not pictured)












bwahl5184 is offline
Reply With Quote
Old 03-06-17, 05:45 AM
  #14
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
Man nice! I'll be keeping an eye on the standalone install. I really wish someone made a PnP harness for us.
LoneStarS30Z is offline
Reply With Quote
Old 03-06-17, 11:03 PM
  #15
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
Its Official I have a NV registered JC Cosmo. I registered it as a classic vehicle so I don't have to worry about smog test, but can only drive it 5000 miles a year.

Yeah, it would be nice if they made a PnP for the cosmo, but at least my harness will be new and have room on the ecu for additional inputs.

Last edited by bwahl5184; 03-07-17 at 01:40 AM.
bwahl5184 is offline
Reply With Quote
Old 03-08-17, 10:41 PM
  #16
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Originally Posted by LoneStarS30Z View Post
Man nice! I'll be keeping an eye on the standalone install. I really wish someone made a PnP harness for us.
We have a forum member's cosmo in our shop that we are working on an Adaptronic Modular PNP solution for cosmo owners.
Turblown is offline
Reply With Quote
Old 03-09-17, 03:14 AM
  #17
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Turblown View Post
We have a forum member's cosmo in our shop that we are working on an Adaptronic Modular PNP solution for cosmo owners.
I know, or should I say, a big number of worldwide Cosmo owners know. We've been keeping an eye on it, but not a lot of info seems to have come out since you guys first announced building a harness.
LoneStarS30Z is offline
Reply With Quote
Old 04-19-17, 11:49 AM
  #18
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
Recent projects

A couple of small projects I had on the car.

First was replacing the hood struts, you can check that out here. https://www.rx7club.com/old-school-o...truts-1113449/

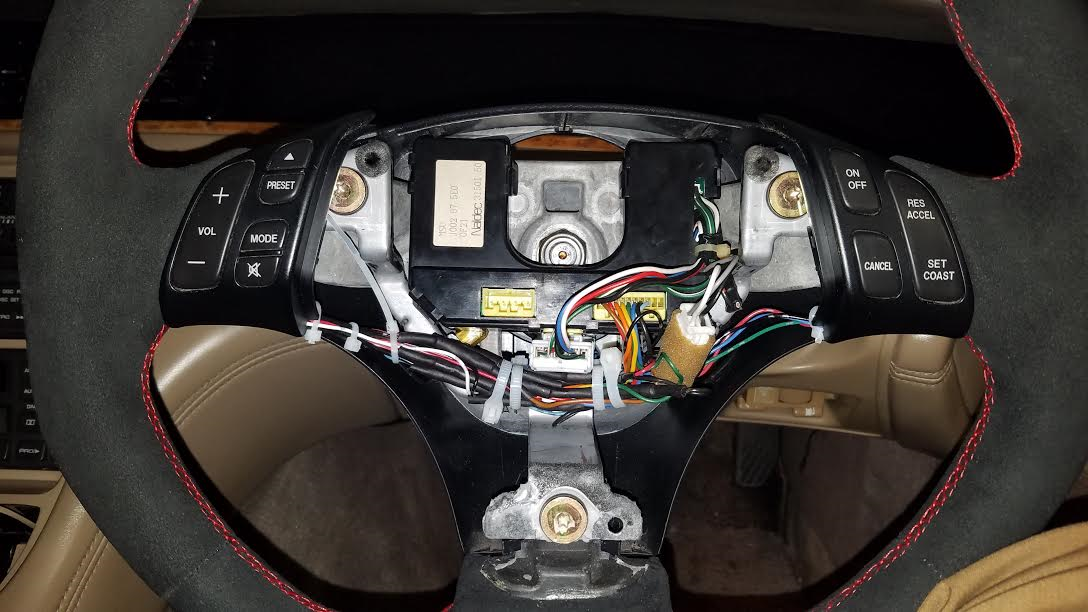

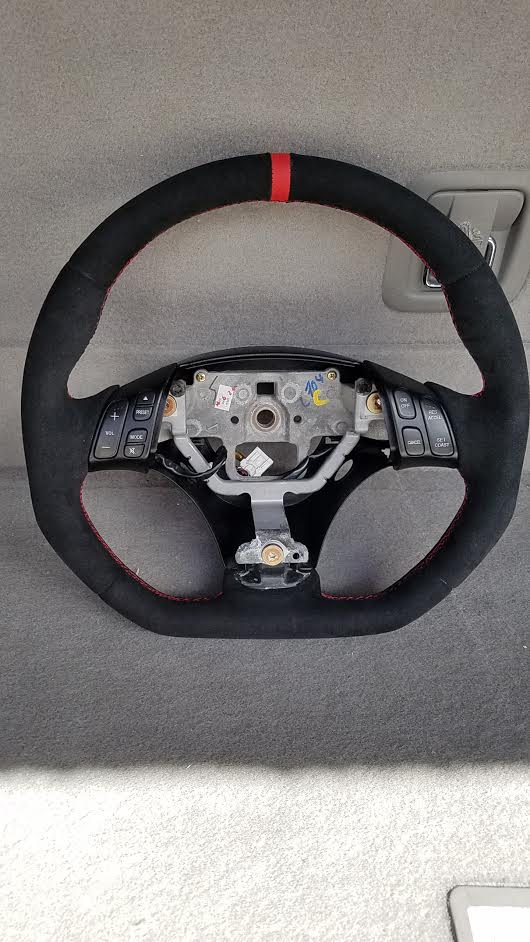

Second was I had a custom steering wheel made. I wanted to keep the stock functionality of the audio controls and all. But also update the look of it. Its from a Mazda 6 and fits the spline perfectly. First had to find power and ground to get the lights working, easy enough. The stock buttons had just a single ground for the buttons so just connected that with the new one. For the other buttons I had to wire in each button to the board. There were small holes with contact points that I used to solder the wires on. I thought that the resisters would be enough for it to work, but didn't. So I had to break them off the board to open the circuit. I used some silicon RTV to protect the solder points, wires and the open circuit where the resisters were. Every thing works great, vol+/-, preset up/down, mode=radio, and mute=AM/FM. The horn was simple enough just had to find what wire made it work then connected it to the new steering wheel using its wire/connector. For the control box, it had holes in the back side of it that almost perfectly lined up with the back cover. I just had to remove some material and adjust one hole to the right.

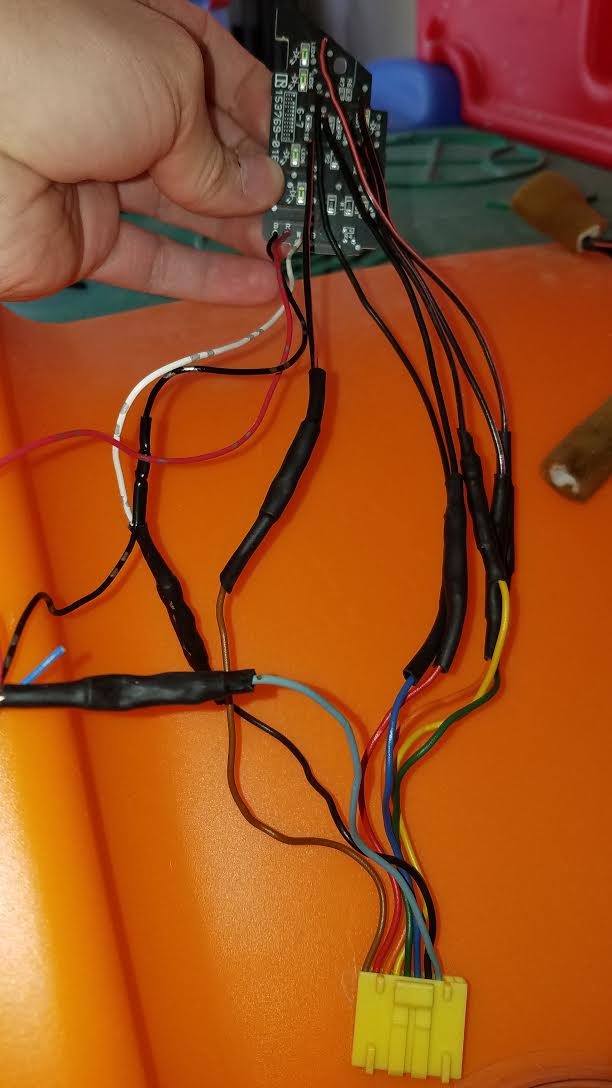

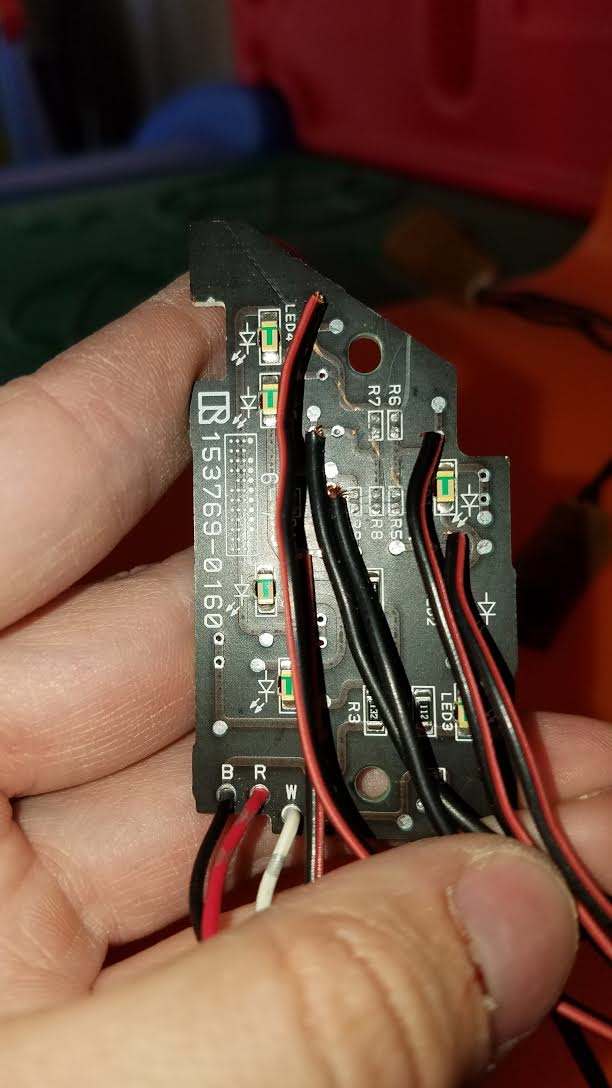

As for the CC I wasn't sure if it would work, so I just connected to wires together and tested it. For the most part it works, on/off=cancel, cancel=set/coast, res/accel and set/coast both = accel.

I also Had some custom center caps made for the car. They turned out really well. Will have to fid the pic I took installed or take a new one.

I know it cost more going custom on the steering wheel and caps, but its the best way to get things just the way you want. Plus its the little things that make a big difference.

Here is where I got the steering wheel and caps. Both are completely customizable.

Steering Wheel MAZDA 3 and 6 . SPORT STYLE FLAT BOTTOM !EXTRA PADDING | eBay

ENKEI RPF1 / TOYOTA GT 86/ SUBARU BRZ Wheel Center caps 18 OPTIONS | eBay

If you want anymore info or pics on the steering wheel install just ask.
Attached Thumbnails 91 Eunos Cosmo-steering-wheel.png   91 Eunos Cosmo-connectors.png   91 Eunos Cosmo-solider-points.png   91 Eunos Cosmo-wires.png   91 Eunos Cosmo-install.png

91 Eunos Cosmo-close-up.png   91 Eunos Cosmo-lights.png   91 Eunos Cosmo-art.png   91 Eunos Cosmo-caps.png
bwahl5184 is offline
Reply With Quote
Old 04-19-17, 04:28 PM
  #19
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
You should post your steering wheel progress on the Cosmo Owners Group on Facebook too. I know other guys have always wanted to do the same since the stock wheel is friggin huge.
LoneStarS30Z is offline
Reply With Quote
Old 04-19-17, 05:03 PM
  #20
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
steering wheel

Just did thanks for the suggestion.

Yeah, its not much smaller but the flat bottom defiantly helps with the leg room and just looks awesome.
bwahl5184 is offline
Reply With Quote
Old 04-19-17, 10:38 PM
  #21
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Originally Posted by LoneStarS30Z View Post
I know, or should I say, a big number of worldwide Cosmo owners know. We've been keeping an eye on it, but not a lot of info seems to have come out since you guys first announced building a harness.
We decided it would be easiest to have a mass produced harness with a few modifications, rather than making a smaller run of 20B cosmo only harnesses.

We got with Rywire and had them update their FD single turbo harness to accomdate all the extras for the Adaptronic modular FD PNP ecu. This also includes a sub ignition harness for direct fire upgrades. We have a prototype unit enroute to us if I just read his email correctly.

So we are going to use the FD PNP ECU, reconfigure the software for a 20B, and add the extra wires for the last rotor's fuel & ignition. We were able to get the cosmo wiring diagram translated into English while we waited.

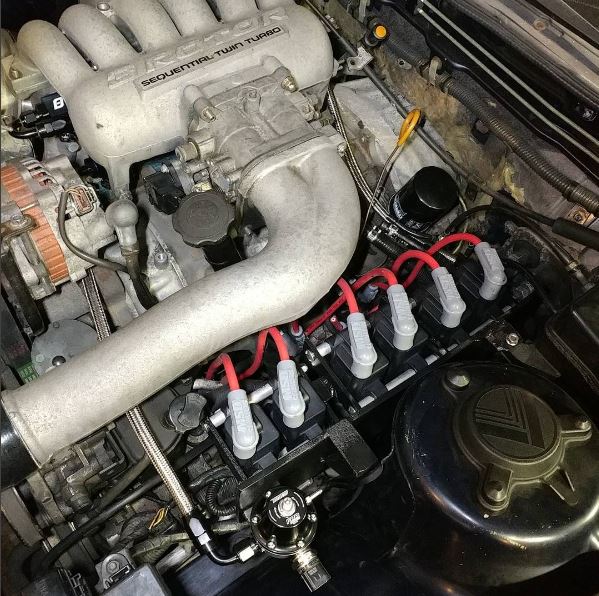

We've got the fuel system & new ignition system( 6 IGN1A coils) finished on the cosmo, including a new bolt in radiator. Going to fab up the turbo system and exhaust next week.
Attached Thumbnails 91 Eunos Cosmo-20b-ign1a.jpg
Turblown is offline
Reply With Quote
Old 04-20-17, 12:17 AM
  #22
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
pnp ecu

That sounds great, thanks for the update. Looks good. I and a lot of cosmo owners would love a translated wire diagram. Are you considering selling them? That's the biggest thing keeping me from building my harness for the 1280 I have.
bwahl5184 is offline
Reply With Quote
Old 04-20-17, 03:17 AM
  #23
20B/5 Speed/JC!
iTrader: (2)

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Thanks: 0
Thanked 0 Times in 0 Posts
That is badass, a PnP setup would be a godsend.
LoneStarS30Z is offline
Reply With Quote
Old 04-20-17, 10:59 AM
  #24
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
Some fantastic work! Cool find on that wheel!

Turblown: You guys can sure post more pics in the build thread. Dont be shy.

https://www.rx7club.com/old-school-o...1103989/page2/
RockLobster is offline
Reply With Quote
Old 04-21-17, 12:14 AM
  #25
Junior Member
Thread Starter

bwahl5184's Avatar

Join Date: Feb 2006
Location: Las Vegas, NV
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
center caps

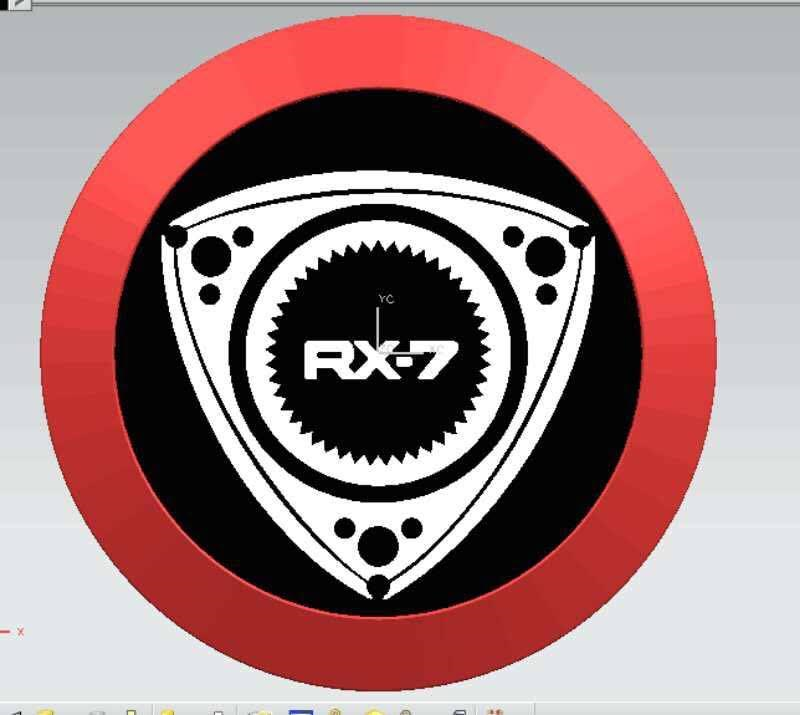

Here are the caps installed on the wheel. To have them made I took this pic and told them what color I wanted and for it to say 20B instead of RX7.




Last edited by bwahl5184; 04-21-17 at 12:21 AM.
