76 RX4 Twin Turbo

Reply




Old 05-18-05, 09:30 AM
  #1
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
76 RX4 Twin Turbo

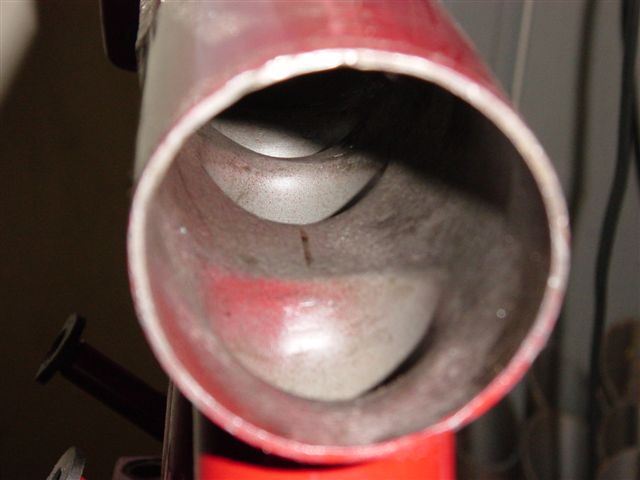

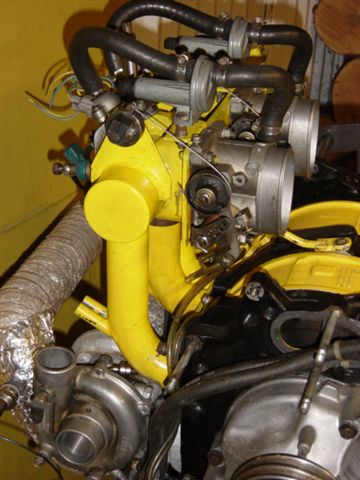

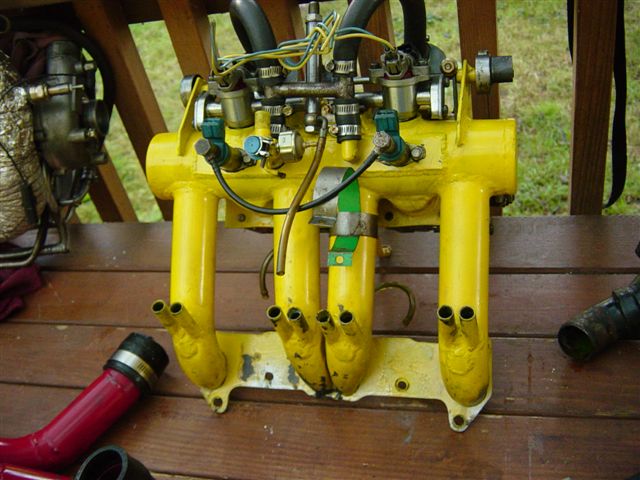

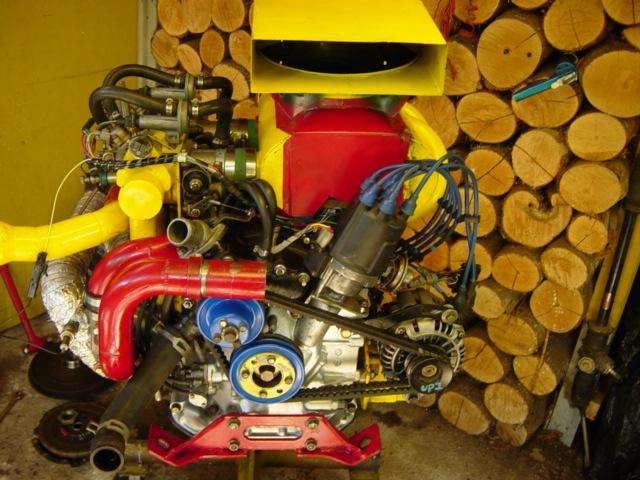

This is my 4 and bought it in 78 with 32k on it. brought all my kids home in it.
That's Cindy my youngest, I started this in the NW section but then as time went on I realized the the section realy needed it seemed to be a little slow.
Well any how I going to try to post evey day a feww pics, got lots of them.
Attached Thumbnails 76 RX4 Twin Turbo-dr.-g.jpg   76 RX4 Twin Turbo-pic-1.jpg   76 RX4 Twin Turbo-pic-2.jpg   76 RX4 Twin Turbo-pic-3.jpg   76 RX4 Twin Turbo-pic-5.jpg

gambone is offline
Reply With Quote
Old 05-18-05, 09:34 AM
  #2
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,904
Thanks: 0
Thanked 1 Time in 1 Post
nice. u must be retired already or getting close to it.
Siraniko is offline
Reply With Quote
Old 05-18-05, 10:12 AM
  #3
Rotary Enthusiast
iTrader: (1)

13btnos's Avatar

Join Date: Oct 2004
Location: VISTA
Posts: 784
Thanks: 0
Thanked 1 Time in 1 Post
GAMBONE could you get a close up shot of your sidemount alternator setup and give a quick explanation on how you moved it to the side. That is something that I would like to do on car.
13btnos is offline
Reply With Quote
Old 05-18-05, 06:42 PM
  #4
No distributor? No thanks
iTrader: (6)

Crit's Avatar

Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,412
Thanks: 0
Thanked 0 Times in 0 Posts
Is the front nosework on the car original? Was it originally a US-spec car?
Crit is offline
Reply With Quote
Old 05-18-05, 08:54 PM
  #5
Fear The RE
10 Year Member
iTrader: (10)

Matt22's Avatar

Join Date: Dec 2001
Location: Oregon, USA
Posts: 2,727
Thanks: 0
Thanked 0 Times in 0 Posts
hey buddy,
can you pleaes explain to me what i am looking at, IE what extensive mods you have done. THanks for me and everyone else who didnt think about asking.

my teacher always told me the only stupid question is one not asked, then i asked if i could leave the room and she said NO>

And bTW Crit waht does your plate mean? LMPYCAM lumpy Cam, ie rotors?
Matt22 is offline
Reply With Quote
Old 05-18-05, 09:15 PM
  #6
I'm awesome!
5 Year Member

IaMtHeRuThLeSs1's Avatar

Join Date: Apr 2004
Location: Greenville, SC & Atlanta, GA & Clovis, NM
Posts: 1,311
Thanks: 0
Thanked 0 Times in 0 Posts
theres no such thing as stupid questions...only stupid people who ask them

jk man

I'm curious as well.
IaMtHeRuThLeSs1 is offline
Reply With Quote
Old 05-19-05, 09:30 AM
  #7
My Deuce Coupe
5 Year Member

Join Date: Aug 2004
Location: Bay Shore
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
Gambone I never Knew! Wow! That's a Hot Set-Up! You do that work Yourself? Love to see more Pics!

You should know by now Gambone THIS is the Hottest Forum Board for Ole Skool Rotaries Period!
Hullie is offline
Reply With Quote
Old 05-19-05, 09:45 AM
  #8
No distributor? No thanks
iTrader: (6)

Crit's Avatar

Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,412
Thanks: 0
Thanked 0 Times in 0 Posts
Matt - My RX-2 runs a bridgeport, and I've had a number of people ask what kind of cam I have in it from the way it idles. I've thought about changing it, but yes, it's supposed to be lumpy cam.

Gambone - What did you use for throttle bodies, are they off a motorcycle?
Crit is offline
Reply With Quote
Old 05-19-05, 09:48 AM
  #9
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
More Candy

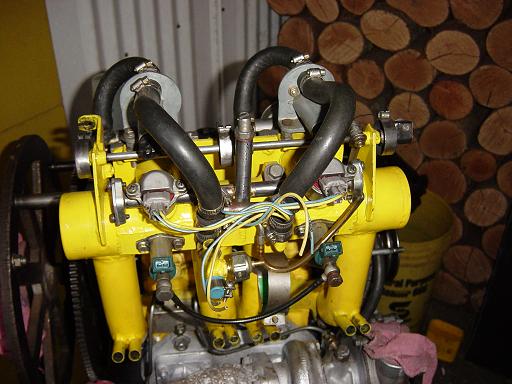

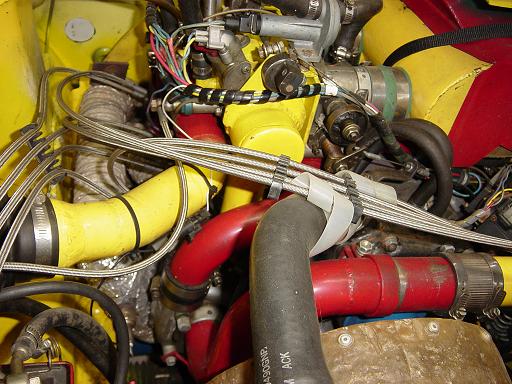

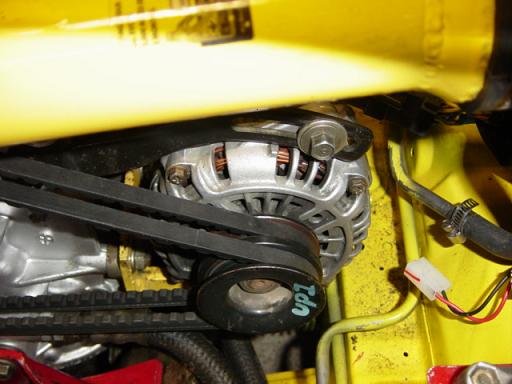

Founds the alt mounting pics, pic 20 is the one in the cercel and it mounts to where the AC would have gone, pic 21 shows the top adjusting arm which came from pick a part, need to get a better pic of how it's hooks up to the motor, the trick is, it usese a mounting bolt from a seat belt harness for the swing action. The rest of the pics I will be showing for some time yet are of the intake and yep I built all of it
Attached Thumbnails 76 RX4 Twin Turbo-test-21.jpg   76 RX4 Twin Turbo-6.jpg   76 RX4 Twin Turbo-7.jpg   76 RX4 Twin Turbo-8.jpg
Attached Images
File Type: bmp
test 20.bmp (89.6 KB, 97 views)
gambone is offline
Reply With Quote
Old 05-19-05, 09:58 AM
  #10
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts

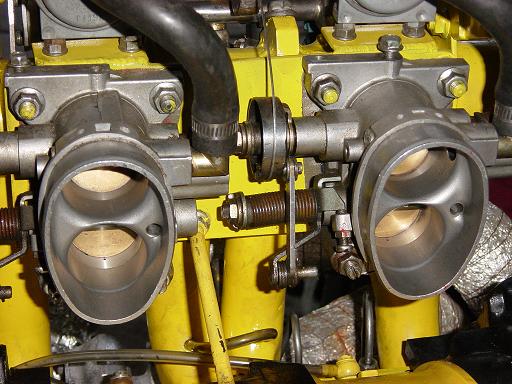

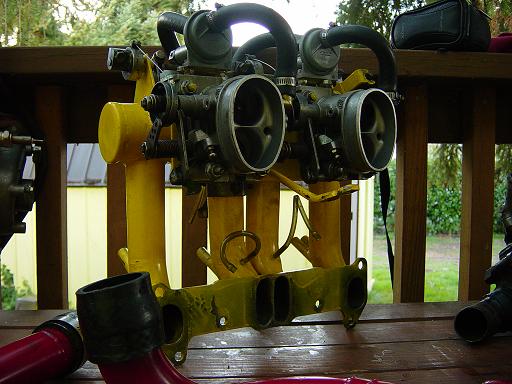

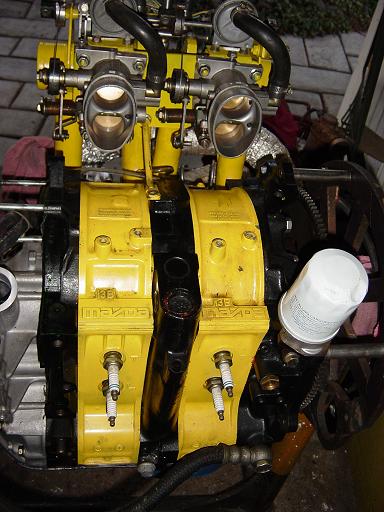

Crit, I use to work at a Mazda/Isuzu dealer ship and the throttle bodys are from Isuzu Troopers 2.6, they where warrenty clames, they where sticking
gambone is offline
Reply With Quote
Old 05-20-05, 09:46 AM
  #11
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts

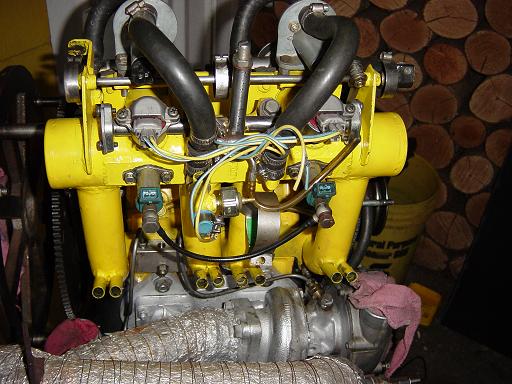

more pics

Crit, the nose work, all it is is a tube bumper, the OEM wiegthed a ton and I needed a tow point to get it to the drages, so built into this frount bumper is a hing point for a tow bare.

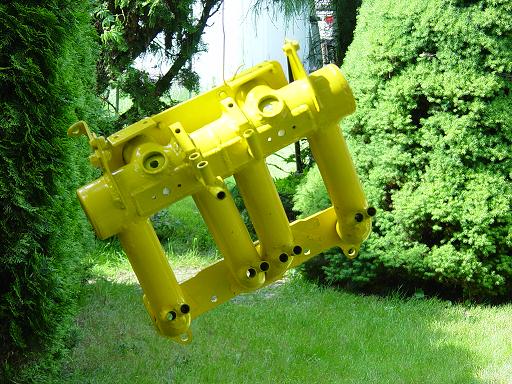

Attached Thumbnails 76 RX4 Twin Turbo-9.jpg   76 RX4 Twin Turbo-11.jpg   76 RX4 Twin Turbo-12.jpg   76 RX4 Twin Turbo-13.jpg   76 RX4 Twin Turbo-14.jpg

gambone is offline
Reply With Quote
Old 05-23-05, 02:28 PM
  #12
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts

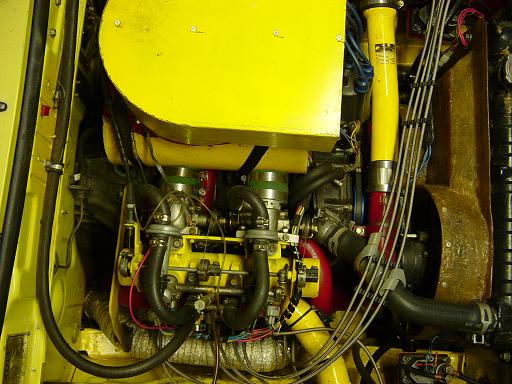

More Pics

Gots to keep this going, you all are going to be getting bord

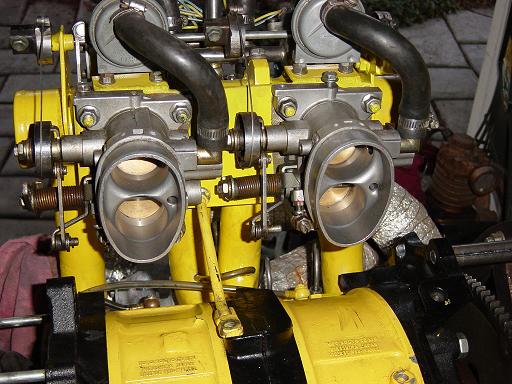

Attached Thumbnails 76 RX4 Twin Turbo-23.jpg   76 RX4 Twin Turbo-22.jpg   76 RX4 Twin Turbo-19.jpg   76 RX4 Twin Turbo-18.jpg   76 RX4 Twin Turbo-18.jpg

gambone is offline
Reply With Quote
Old 05-24-05, 09:50 AM
  #13
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
What's going on

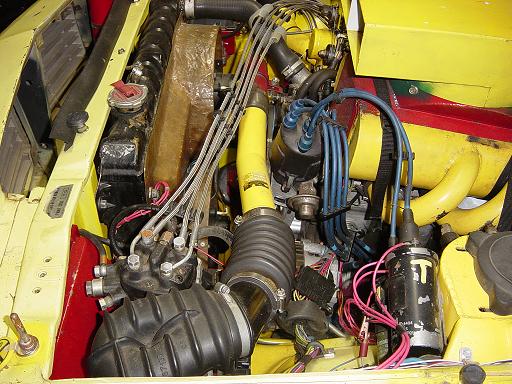

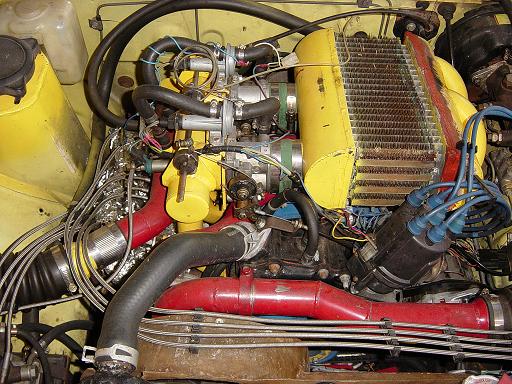

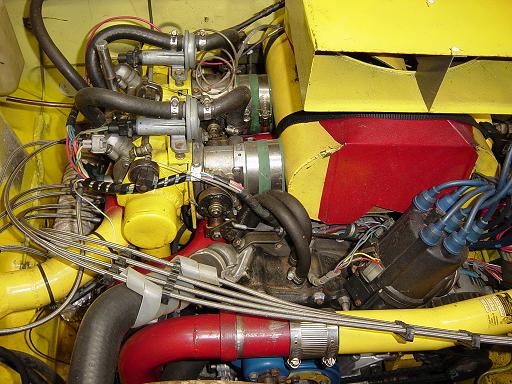

Well Matt22, this is what you are looking out in a million word or less, My Rx4 and what I did to it on less then a dollar a day for the last 15 years. These pics are of the intake system which I hand built for use with a K fuel system off of a rabbit, well that's two of them and still I need more fuel. So some where in of the pics you will see two ele nozzle which came from a Subaru. Pic # 17 shows how or what the tubes are for, they hold the nozzles

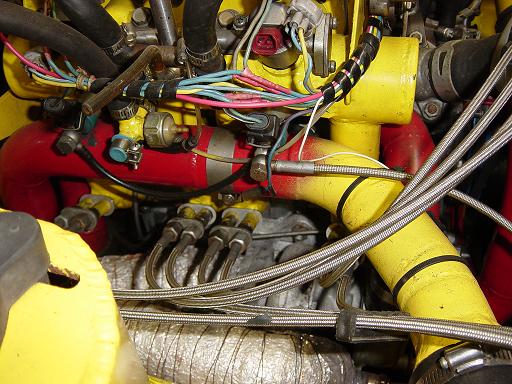

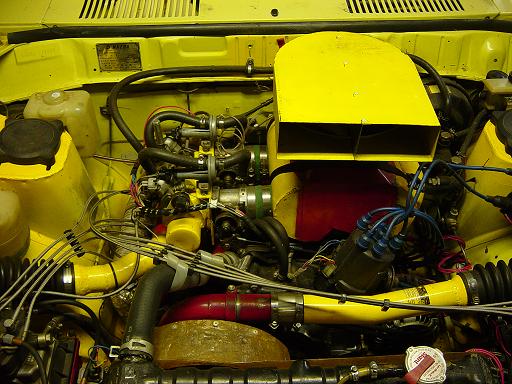

Attached Thumbnails 76 RX4 Twin Turbo-17.jpg   76 RX4 Twin Turbo-15.jpg   76 RX4 Twin Turbo-16.jpg   76 RX4 Twin Turbo-20.jpg   76 RX4 Twin Turbo-21.jpg

gambone is offline
Reply With Quote
Old 05-24-05, 03:18 PM
  #14
Fear The RE
10 Year Member
iTrader: (10)

Matt22's Avatar

Join Date: Dec 2001
Location: Oregon, USA
Posts: 2,727
Thanks: 0
Thanked 0 Times in 0 Posts
has anyone ever told you that you are nuts. but super inventive. it jsut amazes me tha amount of work you have put into your car. GREWAT JOB> what was it runnin gin the quarter mile? Matt22
Matt22 is offline
Reply With Quote
Old 05-25-05, 09:45 AM
  #15
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
Supension

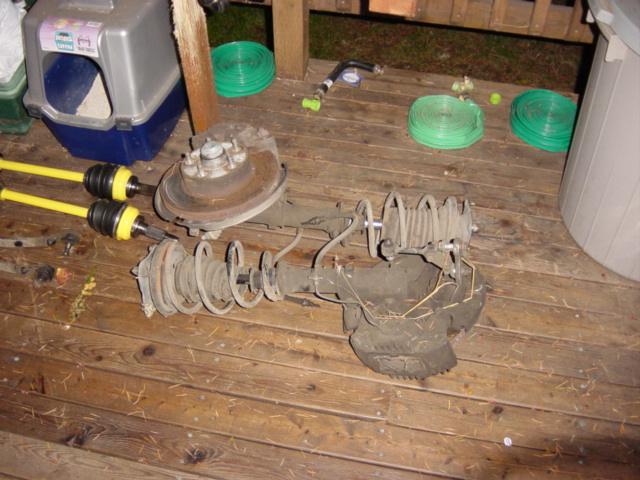

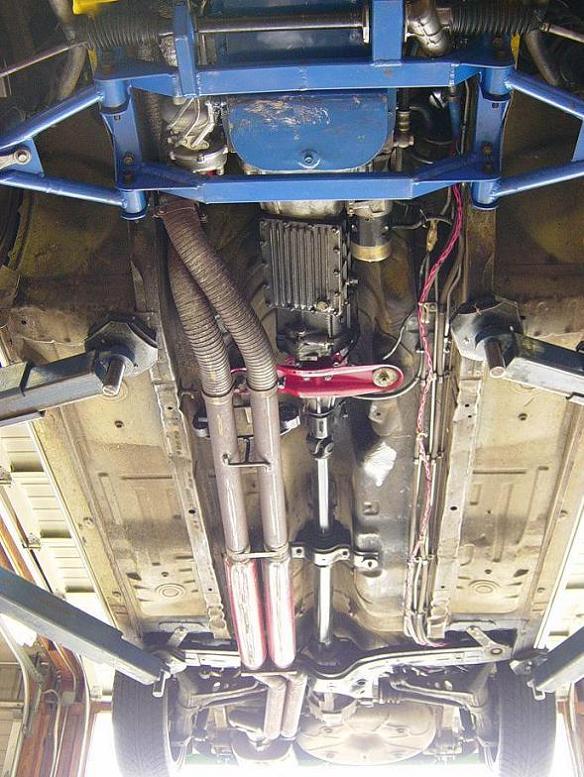

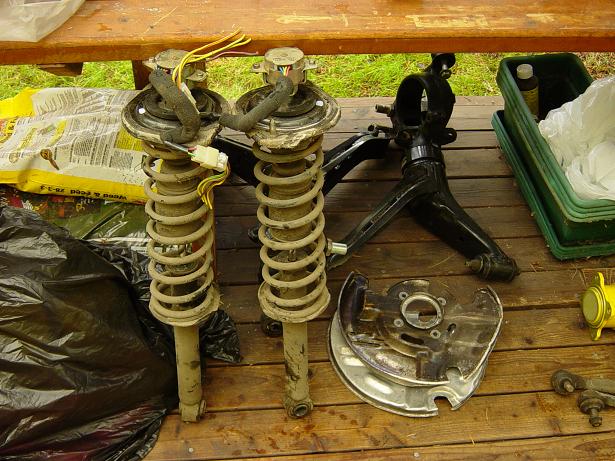

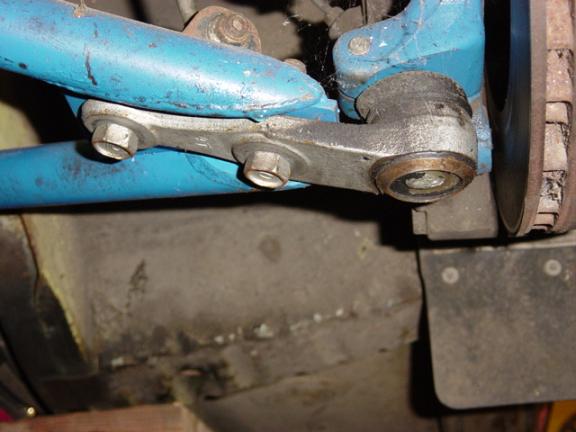

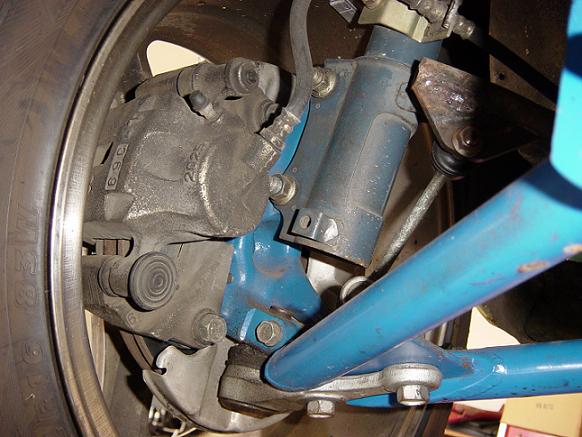

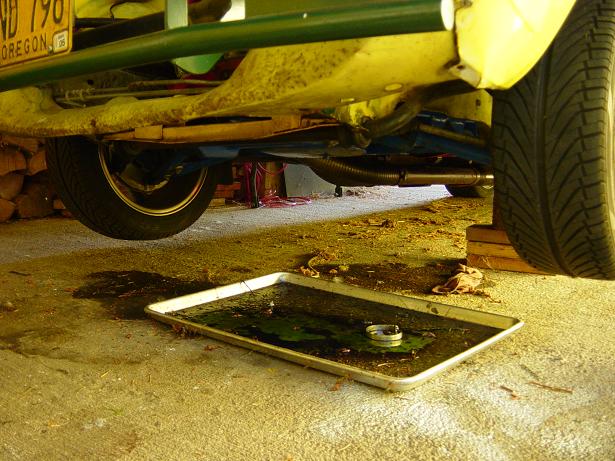

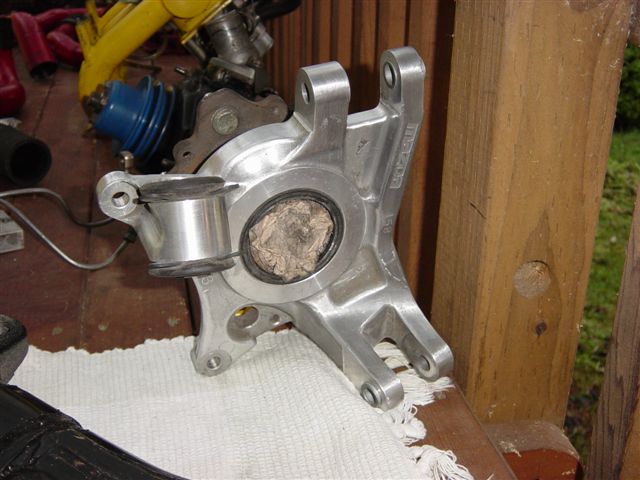

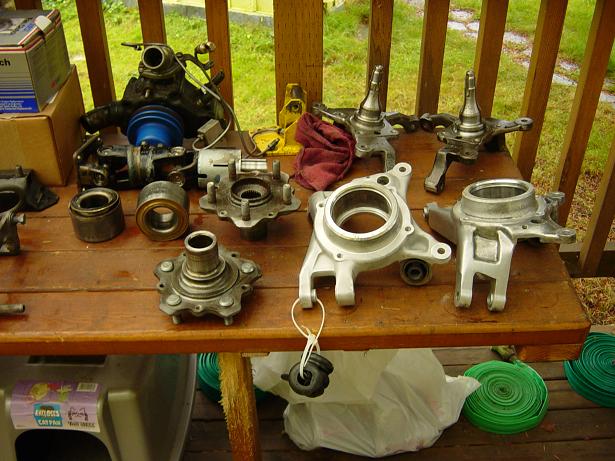

Well now I think it's time to move onto other pics. like the suspension and here we go. The frist pic is of the car being blocked up in front on one side and you will be able to see that the other front wheel is off the ground. And why is that?, well that's becoues of the realy stroung sway bar in the rear. And if you think that is swell just know that the front sway bar comes off of a S10. Yes Matt I'm nuts
Attached Thumbnails 76 RX4 Twin Turbo-1a.jpg   76 RX4 Twin Turbo-1b.jpg   76 RX4 Twin Turbo-2.jpg   76 RX4 Twin Turbo-3.jpg   76 RX4 Twin Turbo-4.jpg

gambone is offline
Reply With Quote
Old 05-25-05, 12:25 PM
  #16
JETFUEL
iTrader: (1)

BUMBLEBEE7's Avatar

Join Date: Nov 2003
Location: MA,NY,CT,TX, HAITI & CHILE
Posts: 358
Thanks: 0
Thanked 0 Times in 0 Posts
in the Racing Beat book they built one of those engine for industrial use I dont remember the page number.
BUMBLEBEE7 is offline
Reply With Quote
Old 05-25-05, 02:25 PM
  #17
Senior Member

Magnus Berglund's Avatar

Join Date: Jan 2002
Location: Jönköping, Sweden
Posts: 733
Thanks: 0
Thanked 0 Times in 0 Posts
I used a K-jetronic from a Volvo V6 on my 13B turbosetup.
It works really nice apart from the amount of fuel it can deliver.
I had two extra injectors and a preassurecensor, that worked really nice!

I will put the system back in the 7 wothout turbo quite soon.

BTW, where did you get the fuellines to the injectors?
Are these VW?

// magnus
Magnus Berglund is offline
Reply With Quote
Old 05-25-05, 02:53 PM
  #18
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
Mr. Magnus Berglund, I did a inter net searh, don't remember the company name, mit still have the recept, the ends are the OEM fittings cut off from the old lines and hold in place with a outter copper tube which is then slighty crimped. get better pics of this soon along with more detailed pic of the rest of the fuel system. Thank You for your quiston
gambone is offline
Reply With Quote
Old 05-26-05, 04:11 AM
  #19
Adolf Hitler Verfechter
10 Year Member

karism's Avatar

Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Thanks: 0
Thanked 0 Times in 0 Posts
Mr Gambone: If i understand correctly.The scoop on the bonnet (hood) directs air to the intercooler?

Wowee,you my good man,are not affraid to do work to your car!

I remeber finding pics of your intake manifold on the internet.(Thanks!)It helped allot with brainstorming to build my own manifold for a 4 barrel a few years ago.

I like the kjet setup!I love them,simple to keep on working,and yet very effective.

Thanks for sharing!

karis
karism is offline
Reply With Quote
Old 05-26-05, 08:21 AM
  #20
I F****D a mermaiiiid
10 Year Member

Join Date: Dec 2001
Location: Jacksonville, FL
Posts: 208
Thanks: 0
Thanked 0 Times in 0 Posts
i have some questions about the suspension design that you have pictured.

the front looks to be of quality construction but it looks like bump steer might be a problem. the rack looks to be set pretty far back. did you make use of a double a-arm front suspension or is it a macpherson design? did you factor in the scrub radius for the front end as well? and finally, how has it performed? i'm starting a similar type of project on a GSL-SE and am looking for a good conversation on suspension design and construction.

Ray
GTRay is offline
Reply With Quote
Old 05-26-05, 09:02 AM
  #21
Senior Member
10 Year Member
iTrader: (4)

RX744CSP's Avatar

Join Date: Apr 2004
Location: Charleston, SC
Posts: 340
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by gambone
Crit, I use to work at a Mazda/Isuzu dealer ship and the throttle bodys are from Isuzu Troopers 2.6, they where warrenty clames, they where sticking
I knew I recognized those throttle bodies. You do great work!
RX744CSP is offline
Reply With Quote
Old 05-26-05, 09:48 AM
  #22
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
Q and A time

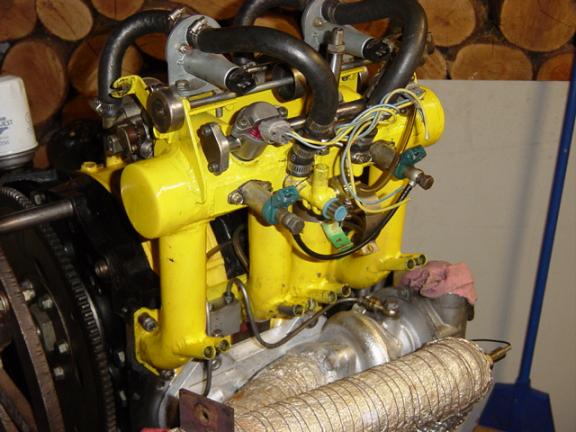

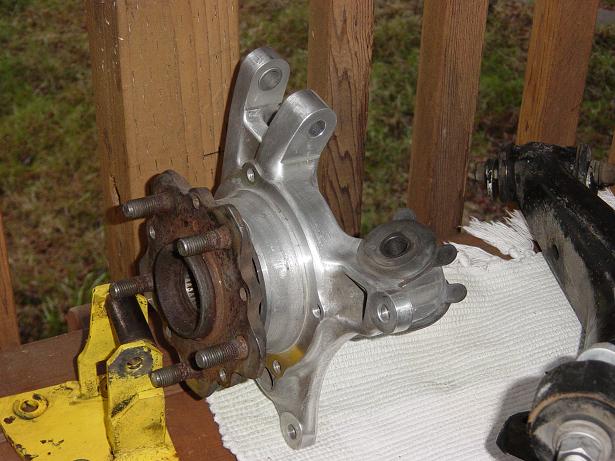

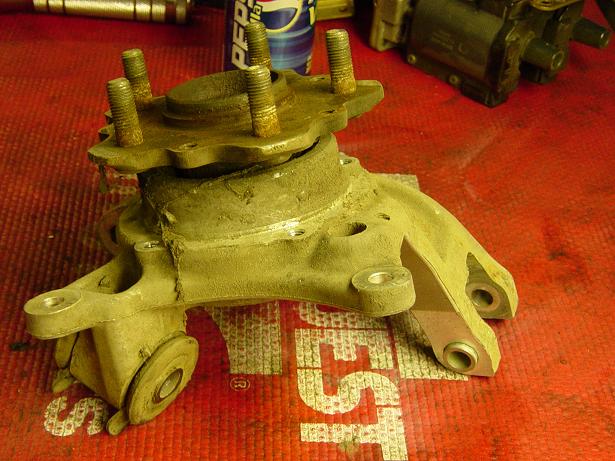

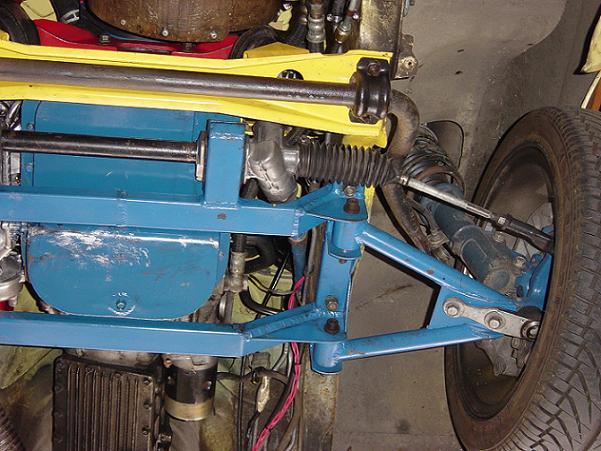

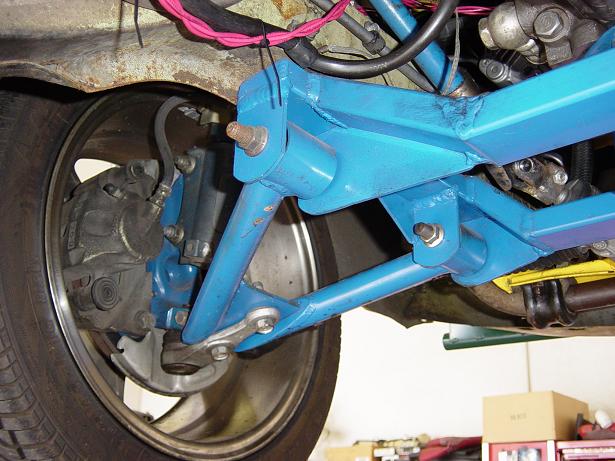

Mr.GTRa7, the front end and how it is set up, becouse the 7 sub frame and A arms just wouldn't fit, (no problem in the rear) had to designe the set up my self. The most importen thing is to follow the rules of geomtry for a front end and as for handling I'm finding no problem but much improvement over the 4 stock set up. Yes it is single lower a arms with the 7 shock assy and rack. We all know how poor a 4's brakes are, well there's somthing there now that realy works.I also have taken it on a clossed coure raod track, GOOD

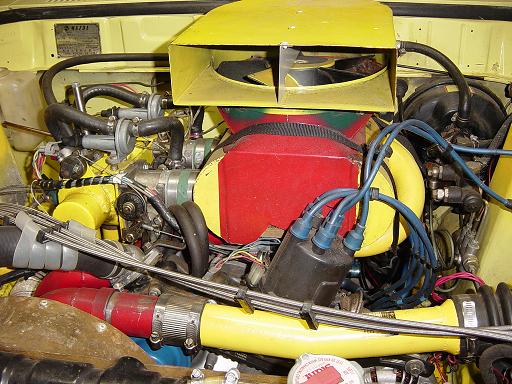

Mr. Karism yes that is a air scoop for the intercooler with a fan built in that runs off of a vac switch from a Isuzu desal, works real good coming of the line

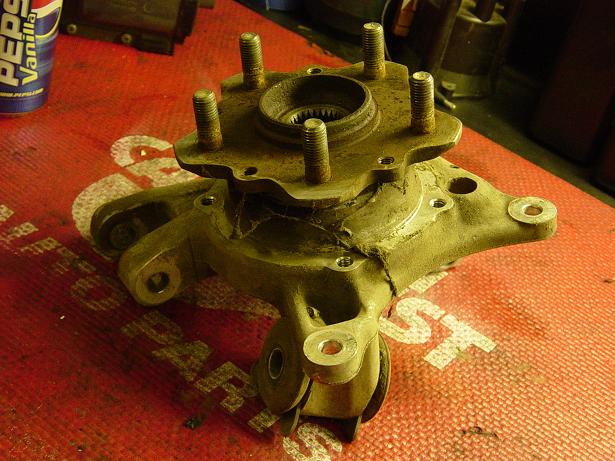

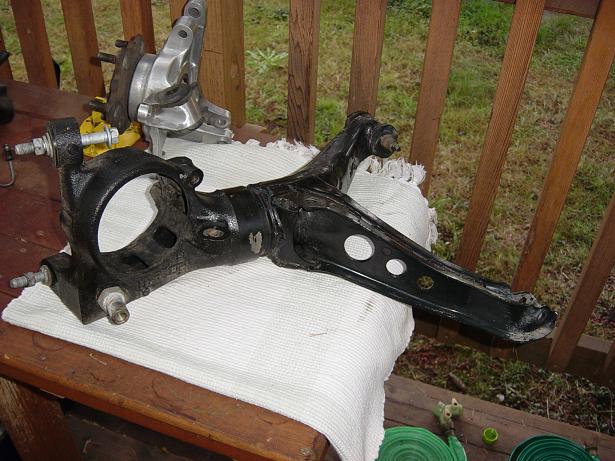

Attached Thumbnails 76 RX4 Twin Turbo-5.jpg   76 RX4 Twin Turbo-6.jpg   76 RX4 Twin Turbo-7.jpg   76 RX4 Twin Turbo-8.jpg   76 RX4 Twin Turbo-9.jpg

gambone is offline
Reply With Quote
Old 05-27-05, 12:30 AM
  #23
Senior Member

Magnus Berglund's Avatar

Join Date: Jan 2002
Location: Jönköping, Sweden
Posts: 733
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by gambone
Mr. Magnus Berglund, I did a inter net searh, don't remember the company name, mit still have the recept, the ends are the OEM fittings cut off from the old lines and hold in place with a outter copper tube which is then slighty crimped. get better pics of this soon along with more detailed pic of the rest of the fuel system. Thank You for your quiston

I'll probably do a similar thing on mine... nice to see we have the same idéa....


http://www.dataphone.se/~berglund/wa...ar030308-1.jpg
http://www.dataphone.se/~berglund/wa...ar030308-4.jpg
Magnus Berglund is offline
Reply With Quote
Old 05-27-05, 09:15 AM
  #24
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
More Candy

Hi

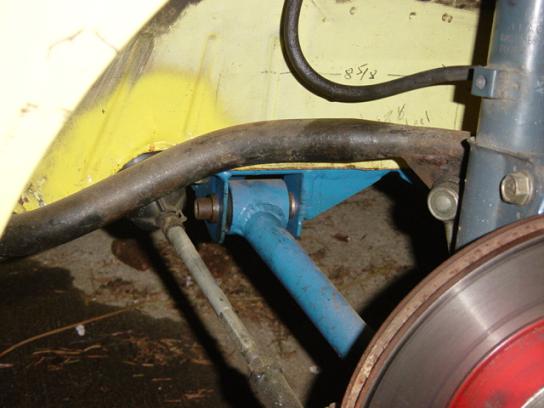

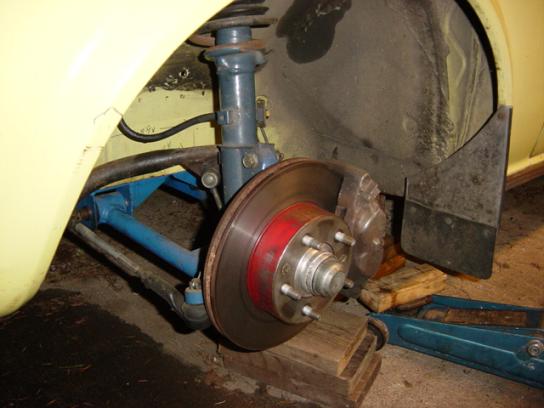

Attached Thumbnails 76 RX4 Twin Turbo-10.jpg   76 RX4 Twin Turbo-f1.jpg   76 RX4 Twin Turbo-f2.jpg   76 RX4 Twin Turbo-f3.jpg   76 RX4 Twin Turbo-f4.jpg

gambone is offline
Reply With Quote
Old 05-31-05, 09:29 AM
  #25
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jun 2003
Location: jefferson Or
Posts: 1,125
Thanks: 0
Thanked 0 Times in 0 Posts
More

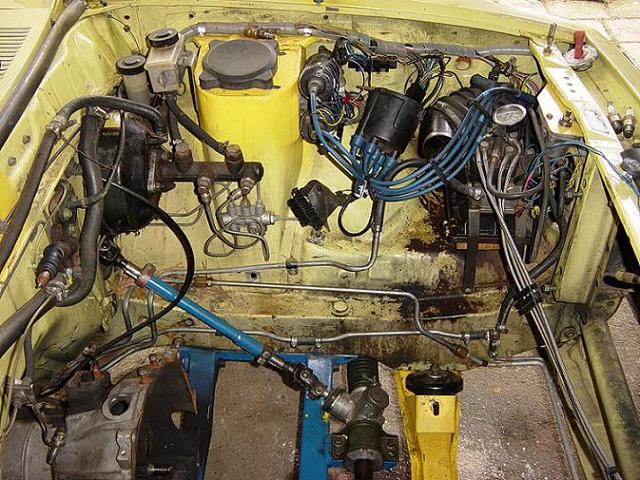

A pic a day keeps the doctor away

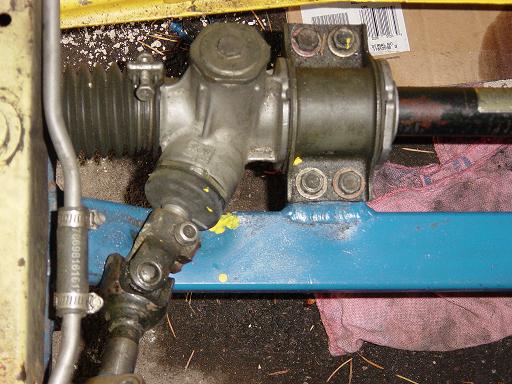

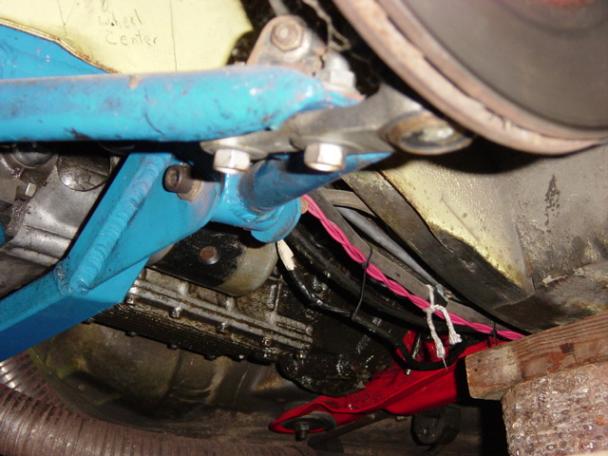

Attached Thumbnails 76 RX4 Twin Turbo-f5.jpg   76 RX4 Twin Turbo-f6.jpg   76 RX4 Twin Turbo-f7.jpg   76 RX4 Twin Turbo-f8.jpg   76 RX4 Twin Turbo-f9.jpg

gambone is offline
Reply With Quote
