Is this a 6-port 12a center steel?
#1
old parts
Thread Starter
Join Date: Jun 2005
Location: spokane
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
Is this a 6-port 12a center steel?

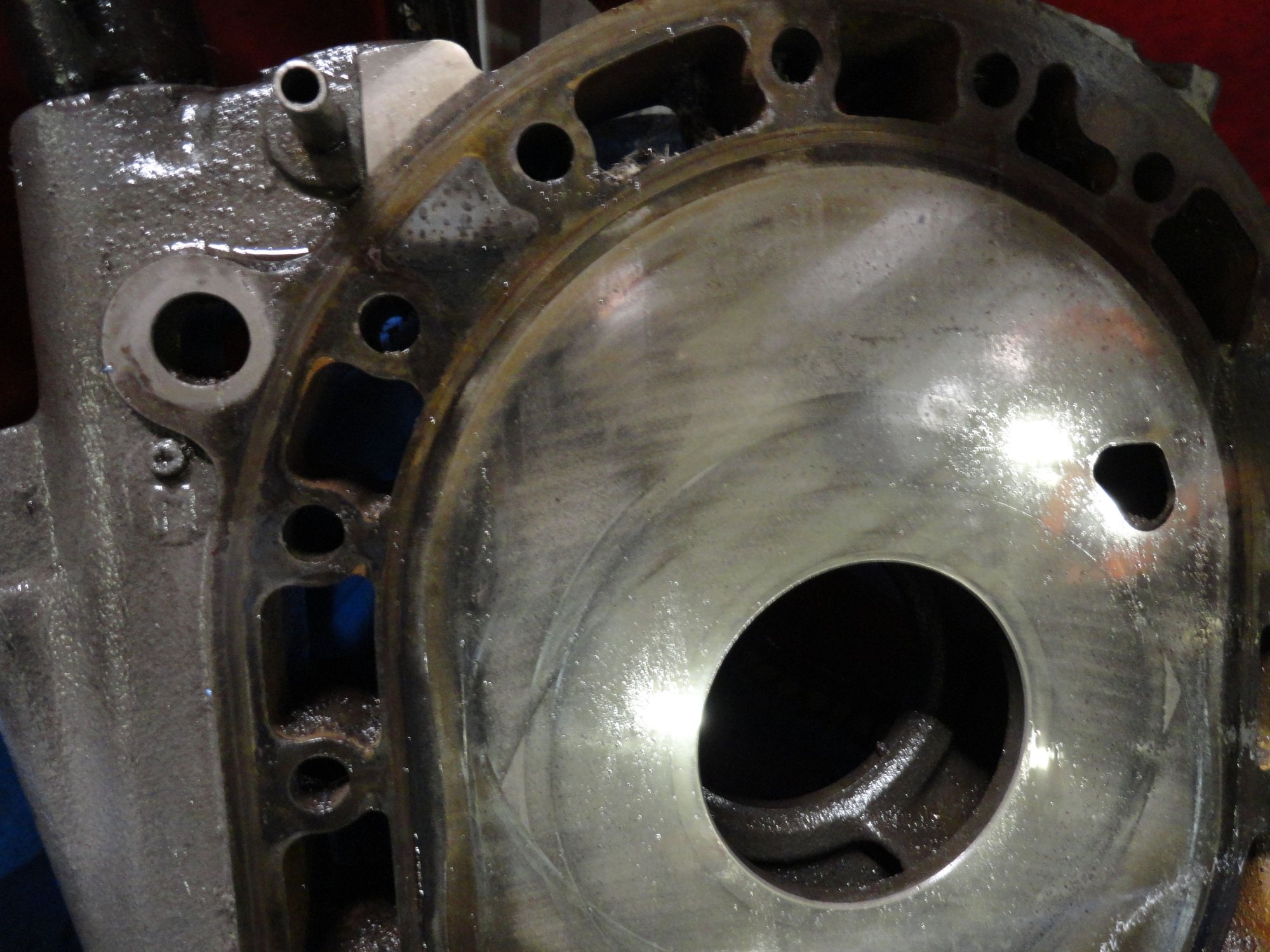

this is the plate in question. tiny ports . What do you think this came out of? No coolant seal grooves.
injector defusers
appear to be injector holes
this is from a 1985 se 13b for comparison
1985 se no injector ports
#2
Lapping = Fapping
iTrader: (13)
Edit: Ok, this forum is not letting me say RE-SI in all caps so I'm trying it again.
Ok it worked.
What you have there is an RE-SI intermediate plate. Your other plate in NO spec but this NO-spec iron has the same size ports as a GSL-SE and S4 NA and S5 NA.
Thanks for showing us the comparison and using a thrust bearing as a visual aid.
Ok it worked.
What you have there is an RE-SI intermediate plate. Your other plate in NO spec but this NO-spec iron has the same size ports as a GSL-SE and S4 NA and S5 NA.
Thanks for showing us the comparison and using a thrust bearing as a visual aid.
Last edited by Jeff20B; 05-14-20 at 02:22 PM.
#4
Lapping = Fapping
iTrader: (13)
I know it's tiny. I've had all three in real life. GSL-SE, RE-SI and 6 port 12A.
RE-SI is Rotary Engine Super Injection and came stock in the Luce. It came out like a year before we got the GSL-SE.
It seems Mazda was pretty timid about their 6 port stuff until they got to the FC. The first generation of this new fangled 6 port stuff was the 6 port 12A and those ports were narrow as Hank Hill's.. well you know. Then the RE-SI came out which was the first fuel injected 6 port, and its ports weren't narrow, but just very very short, like Billy Joel Concert (just kidding). Then the GSL-SE had larger NO-spec sized primaries and is a good upgrade for an RE-SI engine. The S4 NA kept the same NO sized primary port size but increased the height of the both sets of ports on the end plates, both downward and upward. Downward on the low RPM ports like all FCs and FDs got on their end plates, and upward on the aux ports giving a slightly later closing timing. The FC did other things to increase power over the GSL-SE too. The GSL-SE was said to have had 135HP while the S4 NA had 146HP. The S5 redid the intake manifold, added a dynamic chamber and some other things and increased HP up to... j9fd3s will fill in the blank.
RE-SI is Rotary Engine Super Injection and came stock in the Luce. It came out like a year before we got the GSL-SE.
It seems Mazda was pretty timid about their 6 port stuff until they got to the FC. The first generation of this new fangled 6 port stuff was the 6 port 12A and those ports were narrow as Hank Hill's.. well you know. Then the RE-SI came out which was the first fuel injected 6 port, and its ports weren't narrow, but just very very short, like Billy Joel Concert (just kidding). Then the GSL-SE had larger NO-spec sized primaries and is a good upgrade for an RE-SI engine. The S4 NA kept the same NO sized primary port size but increased the height of the both sets of ports on the end plates, both downward and upward. Downward on the low RPM ports like all FCs and FDs got on their end plates, and upward on the aux ports giving a slightly later closing timing. The FC did other things to increase power over the GSL-SE too. The GSL-SE was said to have had 135HP while the S4 NA had 146HP. The S5 redid the intake manifold, added a dynamic chamber and some other things and increased HP up to... j9fd3s will fill in the blank.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,825
Received 2,591 Likes
on
1,840 Posts
they touched just about everything but for power its all basic stuff, bigger ports, bigger throttle, bigger exhaust..
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,825
Received 2,591 Likes
on
1,840 Posts
so there are four different center irons for a pre 86 engine with fuel injection,
the USA GSL-SE, N304-10-400,
the Japan Spec 12A Turbo Cosmo, N236-10-400
the 12A Turbo for the Rx7, N253-10-400
and the 13B-SI engine from the Cosmo, N307-10-400
if you look on the oil filler part there is a letter cast in, and that will tell you which one it is. i show the N253 as a K, and i want to say that the N304 is a B?
the USA GSL-SE, N304-10-400,
the Japan Spec 12A Turbo Cosmo, N236-10-400
the 12A Turbo for the Rx7, N253-10-400
and the 13B-SI engine from the Cosmo, N307-10-400
if you look on the oil filler part there is a letter cast in, and that will tell you which one it is. i show the N253 as a K, and i want to say that the N304 is a B?
Trending Topics
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,825
Received 2,591 Likes
on
1,840 Posts
my guess is that it is the RE-Si engine.
we know the GSL-SE letter (well we could if i went and looked), and the port is different, so then;
the RE-Si engine, we know has teeny ports like that, so this is possible.
the other choice is a 12A-T housing, there were two, one is a K, probably the Rx7, the other is unconfirmed
we know the GSL-SE letter (well we could if i went and looked), and the port is different, so then;
the RE-Si engine, we know has teeny ports like that, so this is possible.
the other choice is a 12A-T housing, there were two, one is a K, probably the Rx7, the other is unconfirmed
