BBQ & Dyno Day November 8th
11-10-08, 12:13 AM
#51
Were's my chopsticks?
iTrader: (1)
Join Date: Sep 2008
Location: olympia, WA
Posts: 748
Likes: 0
Received 0 Likes
on
0 Posts
Your 5th and 6 ports are not actuating. It's basically a sleeve in your engine that lets more air get into your engine at higher RPM, thus keeping the velocity up at lower RPMs ( better for torque ) but more air (meaning more power) at higher rpms. Your power dropped like a 46 lb American Eskimo thrown off of a burger king roof.
11-10-08, 12:30 AM
#52
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Here they are.
11 psi. (The first pull that went to 5.5k rpm was a test to see if it was controlling boost ok or not.)
9.4 psi.
I still have MASSIVE boost control problems, but it never spikes up, it just dives down, so I could still kinda get a good reading up top once it gets controlled. I have fiddled with the haltech controller for over 60 hours now, and it's still completely random. Anyways, my boost would go to 9.4 (or the 11) then drop down to 8, then build back up to the normal slowly. All will be solved soon. The up down up down up down boost on that one run was pretty interesting. lol. I told someone at the dyno that that was when my 4th piston was coming on for extra power. It just wasn't working with such the high boost.
11 psi. (The first pull that went to 5.5k rpm was a test to see if it was controlling boost ok or not.)
9.4 psi.
I still have MASSIVE boost control problems, but it never spikes up, it just dives down, so I could still kinda get a good reading up top once it gets controlled. I have fiddled with the haltech controller for over 60 hours now, and it's still completely random. Anyways, my boost would go to 9.4 (or the 11) then drop down to 8, then build back up to the normal slowly. All will be solved soon. The up down up down up down boost on that one run was pretty interesting. lol. I told someone at the dyno that that was when my 4th piston was coming on for extra power. It just wasn't working with such the high boost.
Last edited by TweakGames; 11-10-08 at 12:42 AM.
11-10-08, 12:56 AM
#53
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Well first you need to figure out why they are not actuating. I think you had your air pump ( I dont remember though). Your 5th and 6th ports work off backpressure caused by your exhaust. If you have a too open or free flowing exhaust if wont have enough pressure to move the actuators. Your actuators could also be broken, and or your sleeves could be stuck. I will find you a picture real quick.
Actually, here you go, this will be your first search to fix a problem and gain tons of power.
https://www.rx7club.com/search.php?searchid=6274904
Have fun! This is one of many many many 10,000 searches.
Actually, here you go, this will be your first search to fix a problem and gain tons of power.
https://www.rx7club.com/search.php?searchid=6274904
Have fun! This is one of many many many 10,000 searches.
Last edited by TweakGames; 11-10-08 at 12:59 AM.
11-10-08, 01:27 AM
#54
Senior Member
Join Date: Aug 2008
Location: Washington
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
Oh my God, Tweak, 315.. You guessed RIGHT ON. You were hoping for like 300 and you were guessing 315
Damn man, your car pulls amazingly hard. Definitely gives me a lot more hope for a turbo rotary than Daren's car ever did. Keep up that good work man, you're my idol.
Also, thanks again for the most fun I've had on a laptop, ever.
Damn man, your car pulls amazingly hard. Definitely gives me a lot more hope for a turbo rotary than Daren's car ever did. Keep up that good work man, you're my idol.
Also, thanks again for the most fun I've had on a laptop, ever.
11-10-08, 01:57 AM
#55
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Oh my God, Tweak, 315.. You guessed RIGHT ON. You were hoping for like 300 and you were guessing 315
Damn man, your car pulls amazingly hard. Definitely gives me a lot more hope for a turbo rotary than Daren's car ever did. Keep up that good work man, you're my idol.
Also, thanks again for the most fun I've had on a laptop, ever.
Damn man, your car pulls amazingly hard. Definitely gives me a lot more hope for a turbo rotary than Daren's car ever did. Keep up that good work man, you're my idol.
Also, thanks again for the most fun I've had on a laptop, ever.
Also for comparing my car to daren's, lol, it's two different beasts. I <3 my car right now. ( I am rx7 bi-polar though) I can't really ask for anything more. As for being someone's idol ..... scary ... never had that told to me.... I recommend you aim a little higher!
I am nothing special, keep up your research, work hard, be smart and logical, and you can have an amazingly fun car too!And yes, having a laptop able to change settings in the computer on the fly is pretty dang cool. It also gives you the power to royally screw yourself. :P You only saw the boost control, there are tons more toys to play with. I will have to give you some more demonstrations later.
~Tweak
Last edited by TweakGames; 11-10-08 at 02:04 AM.
11-10-08, 09:22 AM
#57
Banned. I got OWNED!!!
Thread Starter
iTrader: (2)
Join Date: Mar 2006
Location: Seattle
Posts: 575
Likes: 0
Received 0 Likes
on
0 Posts
i got a ride.
can't wait to do my cosmo swap with a TO4S.
however it will be pfc tuned.. haha we'll see who makes more!
are the 1600 secondaries really necessary or is that just so you can up the boost when you feel like it? i low how you run super lean before they kick on though. lol
can't wait to do my cosmo swap with a TO4S.
however it will be pfc tuned.. haha we'll see who makes more!
are the 1600 secondaries really necessary or is that just so you can up the boost when you feel like it? i low how you run super lean before they kick on though. lol
Last edited by Tatakai; 11-10-08 at 09:25 AM.
11-10-08, 01:43 PM
#58
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
With my t04s, my secondaries kick on at .7 psi, not RPM based, so there is never a super lean spot. I'm sure you know super lean spot 13b = AAA ride home. I'm sure the pfc either has a setting so that the injectors will come on at a certain boost point and OR you are able to change the staging point at which the injectors will be coming on at.
are the 1600 secondaries really necessary or is that just so you can up the boost when you feel like it?
however it will be pfc tuned.. haha we'll see who makes more!
11-10-08, 04:47 PM
#59
To me, it looked like and sounded like his actuators were opening... For a stock FC wqith no mods except Flowmaster muflers those numbers are exactly what's to be expected. I've seen S4 n/a with all the bolt ons and SAFC only do 140whp.
Last edited by Hyper4mance2k; 11-10-08 at 04:57 PM.
11-10-08, 08:00 PM
#60
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Anyways it's and easy check to see if your actuators are working or not. Just put some grease or something on the actuator rods, and do a couple pulls. If the grease has been pushed one way, then they are working.
11-12-08, 06:00 PM
#68
Senior Member
Join Date: Aug 2008
Location: Washington
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
Ah, no.

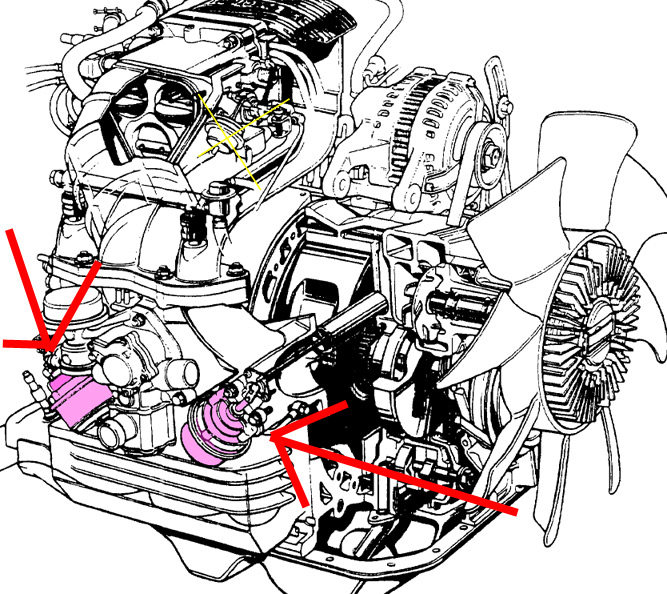

There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
11-12-08, 06:04 PM
#69
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Ah, no.
There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
11-12-08, 06:06 PM
#70
Were's my chopsticks?
iTrader: (1)
Join Date: Sep 2008
Location: olympia, WA
Posts: 748
Likes: 0
Received 0 Likes
on
0 Posts
Ah, no.
There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
There's two of them, they're circular, about 4-6 inches apart. On the passenger *side* of the engine, in the middle. Not the passenger side of the front, but the passenger side of the engine. Above your exhaust manifold.
EDIT: I see Tweak beat me to it. That's it alright.
EDIT:
Just tryed to do a few pulls and they are not acuating... soo I dotn know how i could fix this some helpful hints would be nice
Last edited by Nytrate; 11-12-08 at 06:09 PM.
11-12-08, 06:10 PM
#71
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
Turn your car on, and put your fingers on one of the actuators. Take the other hand and rev the car up hard by pulling on the throttle cable. If the actuator doesn't move even a little bit, you most likely have a problem. Also putting oil on the actuator rod and going for a drive like I said above is a better way. If your 5th and 6th arnt moving, there there could be a lot of reasons. No back pressure, your air pump is being stupid, your posts could be stuck, you might having a broken / missing vac line going to the actuators, you could have broken actuators blah blah blah. Get a turbo. lol jk.
(p.s. turbo cars don't (normally) run the 5th and 6th ports. There are people that are wierd and do it to prove a point, but that is pretty much useless. )
lol jk. (p.s. turbo cars don't (normally) run the 5th and 6th ports. There are people that are wierd and do it to prove a point, but that is pretty much useless. )
11-12-08, 06:11 PM
#72
Senior Member
Join Date: Aug 2008
Location: Washington
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
OK i found them. I dont think they are working i tryed pushing them in and out but they are really stiff and hard to move. How could I Tell if this is caused my my exhause I got Dual Flowmasters.
EDIT:
Just tryed to do a few pulls and they are not acuating... soo I dotn know how i could fix this some helpful hints would be nice
EDIT:
Just tryed to do a few pulls and they are not acuating... soo I dotn know how i could fix this some helpful hints would be nice
11-12-08, 06:13 PM
#73
Were's my chopsticks?
iTrader: (1)
Join Date: Sep 2008
Location: olympia, WA
Posts: 748
Likes: 0
Received 0 Likes
on
0 Posts
Turn your car on, and put your fingers on one of the actuators. Take the other hand and rev the car up hard by pulling on the throttle cable. If the actuator doesn't move even a little bit, you most likely have a problem. Also putting oil on the actuator rod and going for a drive like I said above is a better way. If your 5th and 6th arnt moving, there there could be a lot of reasons. No back pressure, your air pump is being stupid, your posts could be stuck, you might having a broken / missing vac line going to the actuators, you could have broken actuators blah blah blah. Get a turbo. lol jk.
(p.s. turbo cars don't (normally) run the 5th and 6th ports. There are people that are wierd and do it to prove a point, but that is pretty much useless. )
lol jk. (p.s. turbo cars don't (normally) run the 5th and 6th ports. There are people that are wierd and do it to prove a point, but that is pretty much useless. )
