Walbro TI automotive

Need help guys. Recently had work done to my fd and was experiencing blown fuel pump relays. I was extremely worried after noticing the relays heating up tremendously. I pulled the pumps and found what looks to be counterfeit TI automotive fuel pumps model F90000267 450lph. According to walbro the authentic pumps look nothing like mine. I will attach pictures below. I need help guys so please give me your opinions



This is the authentic pump off walbro/TI automotive websites.
dnaps is offline
Old 06-04-19, 03:43 AM
  #2
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,380
Received 177 Likes on 154 Posts
Well, from reading here there are a lot of Chinese fakes out there in all kinds of things, including fuel pumps. Other than that, what do you need help with? If it were me, I'd confirm what my fuel needs were for the car and get that junk replaced ASAP with something from a trusted shop, like any of the authorized vendors of this forum.
Sgtblue is offline
Old 06-04-19, 06:56 AM
  #3
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
The sad part is that pumps were put in by a rotary shop here in chicago about a month ago. Now everything is under warranty thus far. But when i presented the idea that pumps were fake to the shop owner he swore he buys from a reputable distributor. Highly doubt that at this point. So i figured i cut the b.s and swap out pumps myself. Now this is were i need help. I understand the very own power wires going to the pumps should not heat up but they are. So much that their causing fuses to blow. I traced everything back to make sure wires werent crossed and so far so good. Only other thing i could think of is grounds
dnaps is offline
Old 06-04-19, 07:08 AM
  #4
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,380
Received 177 Likes on 154 Posts
I think I can guess which shop is responsible.

If you remove the plastic interior panel at the rear of the hatch and look directly below the latch mechanism you should see a grounding block secured by a single 10mm bolt. IIRC that is the ground for the pump.

Not super close but within reasonable distance to you is BANZAI RACING in Pierceton Indiana...if you need pro help sorting it out.
http://www.banzai-racing.com/

Last edited by Sgtblue; 06-04-19 at 07:11 AM.
Sgtblue is offline
Old 06-04-19, 09:23 AM
  #5
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
I would say they are probably wired wrong and probably Chinese. Even the partial pics above look like a hack job install. I have no idea what the purpose of the low pressure emissions hose is.

Here is a real 450LPH I install, they all have QR codes.


Last edited by Banzai-Racing; 06-04-19 at 09:28 AM.
Banzai-Racing is offline
Old 06-04-19, 10:52 PM
  #6
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
@Banzai-racing im working on changing the pumps now. All sorts of screwed up wiring this shop has done to my car. Just to show heres a full pic.
dnaps is offline
Old 06-05-19, 04:33 AM
  #7
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
That looks like it was about to catch fire inside the tank. They also used non- submersible hose that would have just disintegrated in the fuel. Good luck, that is a complete hack job.
Banzai-Racing is offline
Old 06-05-19, 06:17 AM
  #8
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
Here is the setup I run in my 20B, 2 x Hellcat 525lph with a 450lph lift pump. All intank, with a slot for another 525lph pump. Fuel Hanger Surge Tank

I would just toss that whole dangerous mess and start again.








Banzai-Racing is offline
Old 06-05-19, 06:37 AM
  #9
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,380
Received 177 Likes on 154 Posts
If or when you’re willing to share details on who did that....given the hazard:
https://www.rx7club.com/bad-fugly-businesses-231/
Sgtblue is offline
Old 06-05-19, 06:49 AM
  #10
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
Pretty sure I know who did that.
Banzai-Racing is offline
Old 06-05-19, 06:51 AM
  #11
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,380
Received 177 Likes on 154 Posts
Yeah, me too. But not my place.,
Sgtblue is offline
Old 06-05-19, 07:06 AM
  #12
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Yea ill definitely look into the radium setup. I agree with you guys and im lucky my car didnt go up in flames. I been trying to shine light on whos responsible but for some reason it says i can only post on new member sections. This is only the beginning of what i have to show.
dnaps is offline
Old 06-05-19, 07:09 AM
  #13
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
I think you just need to make 10 posts to have access to the complete forum. Make a few more replies here and everything should open up
Banzai-Racing is offline
Old 06-05-19, 08:00 AM
  #14
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts

dnaps is offline
Old 06-05-19, 09:39 AM
  #15
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts

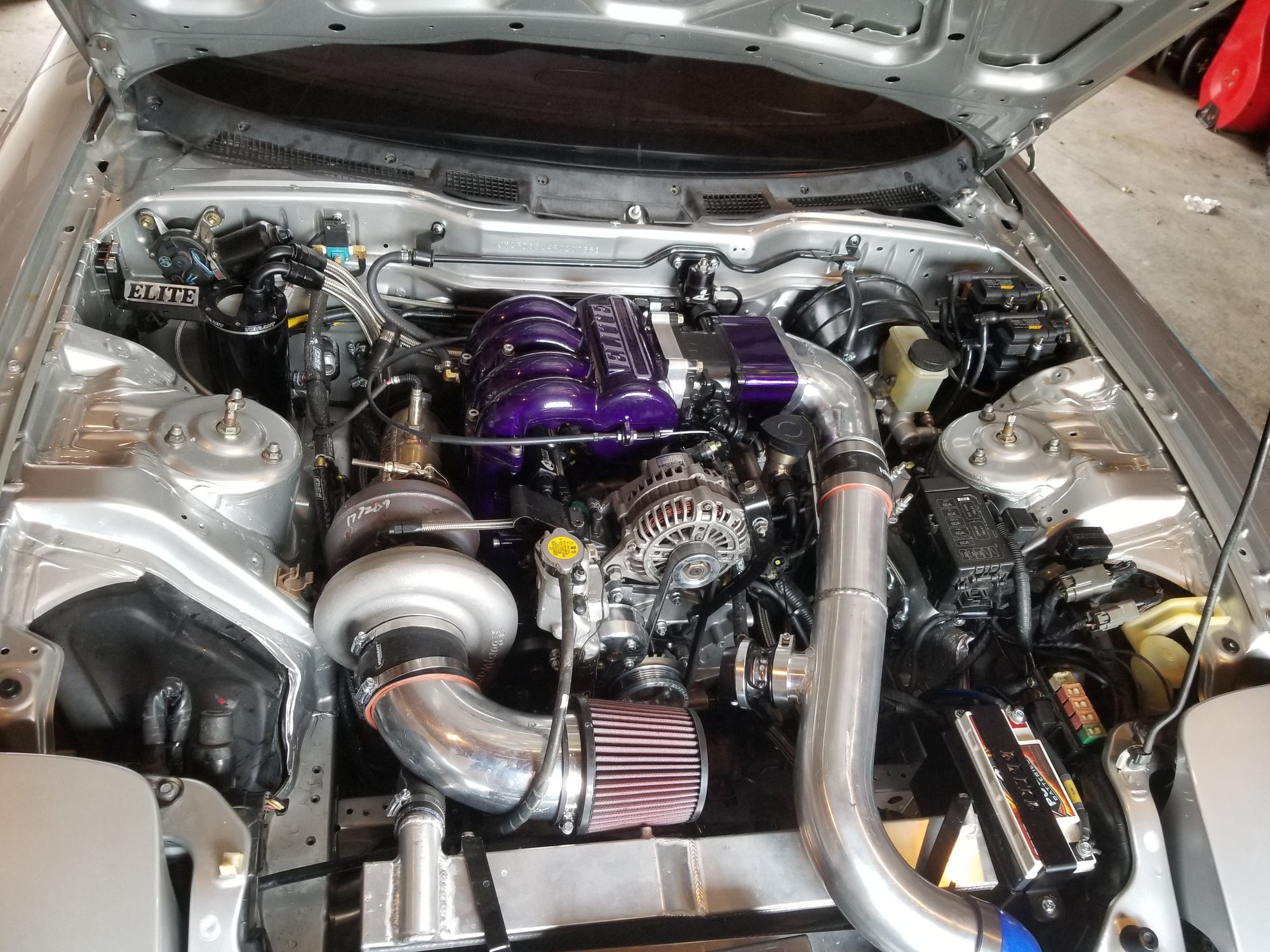

I already knew who did the crap work. Just letting you know that you are about to have a catastrophic failure of the coolant system, vacuum caps are NOT for use on anything fluid, they are not reinforced. I am sure I can find a dozen more problems if I felt like looking. Look passed the shiny crap.
Banzai-Racing is offline
Old 06-05-19, 09:54 AM
  #16
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,380
Received 177 Likes on 154 Posts
What’s the supposed advantage to that intake vs. a 13bRE intake anyway?
Sgtblue is offline
Old 06-05-19, 10:21 AM
  #17
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
I have never seen any dyno results. There have been a few people saying they would post OEM REW vs this thing, however I have yet to see anything. This tends to suggest that there is no improvement in performance, otherwise people would be jumping at the chance to say they got XX more power with a bolt on.
Banzai-Racing is offline
Old 06-05-19, 10:41 AM
  #18
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
Are planning on running E85?
Banzai-Racing is offline
Old 06-05-19, 10:42 AM
  #19
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Yup ive been ROBBED to say the least!!!! Oh yea i know my freaking overflow has boiled over on the way home from the shop. Seeing that Mr. Coleman built my motor he was screaming foul play when i presented the issue. Im not what you call an expert on rotary engines but i know some and man ill tell you his work is an absolute nightnare. I think its time to expose this fraud! I personally dont think theres any advantages to this intake.
dnaps is offline
Old 06-05-19, 10:44 AM
  #20
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Yes i planned on running e85 as i already have a elite 2500 ecu in my car.
dnaps is offline
Old 06-05-19, 11:02 AM
  #21
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
Originally Posted by dnaps View Post
Yes i planned on running e85 as i already have a elite 2500 ecu in my car.
You do know that every hose and fitting needs to be E85 compliant? That emissions hose that was used in the fuel tank is not even fuel injection compliant, it is also not submersible.

The universal install kits that Walbro supplies for the 450/525 pumps comes with a very specific high pressure E85 submersible flex hose.


Banzai-Racing is offline
Old 06-05-19, 12:07 PM
  #22
Junior Member
Thread Starter

Join Date: Jul 2015
Location: chicago
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Yup did my homework on that, thank you! I just spoke to TI automotive and they in deed agreed that my current pumps are FAKES! They have no barcodes/encrypted code on them. I will purchase authentic 450s and the kit to go with them. Such a disappointment that i have to correct someones elses work that i paid big money for. Thanks alot gentlemen i really do appreciate the help
dnaps is offline
Old 06-05-19, 01:28 PM
  #23
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
We sell the authentic pumps. Walbro Pumps
Banzai-Racing is offline
Old 06-06-19, 11:36 AM
  #24
It Just Feels Right
iTrader: (10)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 1,641
Received 58 Likes on 56 Posts
If it's a reputable shop (which doesn't sound like it is), their work should be warranted. If you paid for Walbros and you didn't get what you paid for, you should take that up with the shop. Hopefully they were duped and did not knowingly rip you off. Regardless, you did not get what you paid for. If they refuse to make it right, then that builds the case that it's not a reputable shop. Avenues of recourse include outing them on this forum (give them the opportunity to make it right.first), BBB, and small claims court.. If you don't hold them accountable by replacing them yourself, you give them free licence to continue this behavior.
TomU is offline
Old 06-26-19, 07:46 PM
  #25
Senior Member
iTrader: (26)

Join Date: Aug 2004
Location: Chicago
Posts: 707
Likes: 0
Received 14 Likes on 13 Posts
Originally Posted by dnaps View Post
@Banzai-racing im working on changing the pumps now. All sorts of screwed up wiring this shop has done to my car. Just to show heres a full pic.
Those wires also look like they are just passed through, fuel will wick up out of the tank with it that way! Please get it fixed right so we don't see another FD up in flames. FYI I'm local in Chicago if you ever need a hand or have a question on these cars!


Very nice drop in setups:

CJ Motorsports
https://cj-motorsports.com/products/...in-pump-fd-rx7

Radium Auto
Fuel Hanger Surge Tank, Mazda RX7 FD
