Reinstalling ACV on FD3S
Hey guys. I am putting my engine back together and forgot to label where each of the solenoid goes into the ACV from the engine harness.
I have the ACV unbolted and the three solenoids still plugged in to the engine harness. Any help would be much appreciated.
Thanks!
I have the ACV unbolted and the three solenoids still plugged in to the engine harness. Any help would be much appreciated.
Thanks!
#3
Silver7
Thread Starter
iTrader: (1)
Join Date: May 2015
Location: Florham Park, New Jersey
Posts: 36
Received 0 Likes
on
0 Posts
I am a new member and have limited access on where to post technical help. Can you help with what thread this should be under that I am able to post to?
Have been racking my brain trying to find the schematics on how to hook the ACV back up properly. Any help/guidance would be appreciated.
Have been racking my brain trying to find the schematics on how to hook the ACV back up properly. Any help/guidance would be appreciated.
#4
Moderator
iTrader: (2)
yes i know that. the new member section has a new member technical section in which u do have access to.
check the foxed.ca website, Foxed.ca - Mazda RX-7 Manuals, where u can download copies of wiring diagrams, fsm, etc.
check the foxed.ca website, Foxed.ca - Mazda RX-7 Manuals, where u can download copies of wiring diagrams, fsm, etc.
Trending Topics
#9
Silver7
Thread Starter
iTrader: (1)
Join Date: May 2015
Location: Florham Park, New Jersey
Posts: 36
Received 0 Likes
on
0 Posts

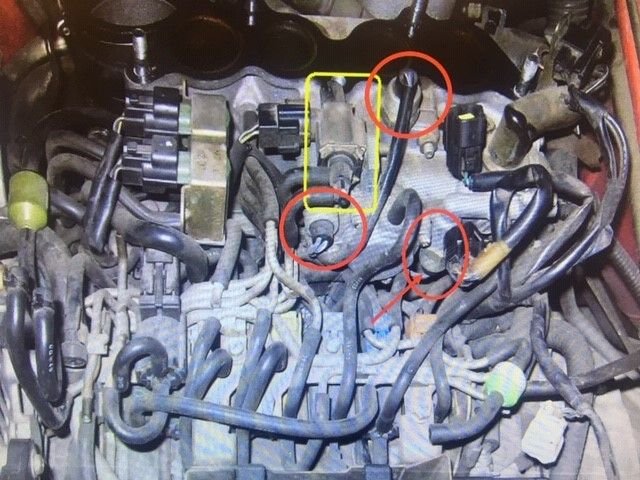

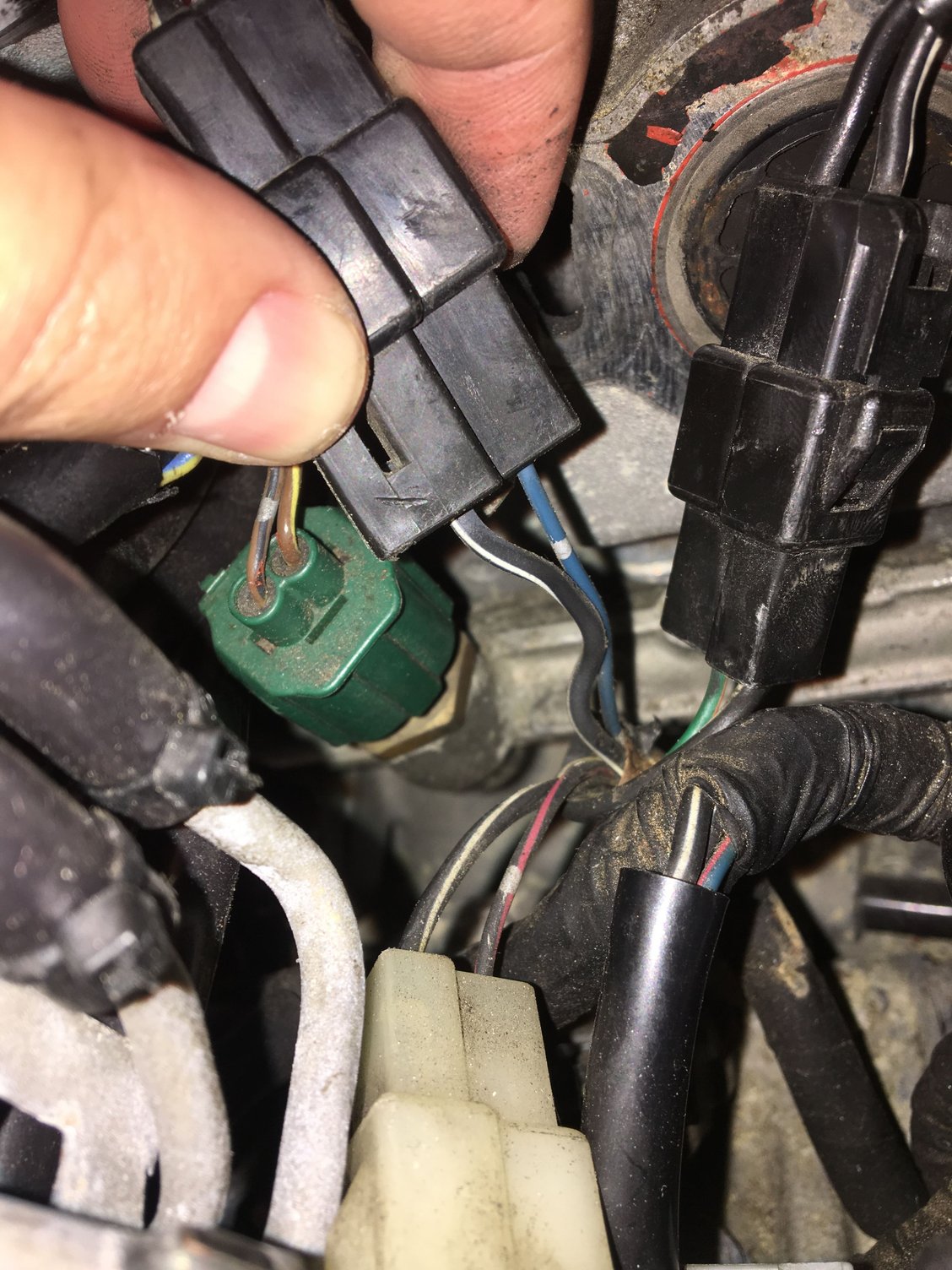

First one has a blue with white dots, along with a black with white stripe.
Second one has is black with a red stripe and white dots, along with a black with white stripe.
Third one has a green with orange stripe, along with a black with white stripe.
See attached pics
Second one has is black with a red stripe and white dots, along with a black with white stripe.
Third one has a green with orange stripe, along with a black with white stripe.
See attached pics
Last edited by silver636rx7tt; 09-03-19 at 12:21 PM.
#11
Silver7
Thread Starter
iTrader: (1)
Join Date: May 2015
Location: Florham Park, New Jersey
Posts: 36
Received 0 Likes
on
0 Posts
sgtblue - it is a great picture showing the entire wire harness! Have to print that out and keep in my folder!
It still does not help with figuring out where each sensor gets hooked up to the ACV. I know each of the three plugs are a little different ( two black and one white) but the sensors themselves are all the same, I don't want to accidentally install them in the wrong place on the ACV. Appreciate the help!!
It still does not help with figuring out where each sensor gets hooked up to the ACV. I know each of the three plugs are a little different ( two black and one white) but the sensors themselves are all the same, I don't want to accidentally install them in the wrong place on the ACV. Appreciate the help!!
#12
Silver7
Thread Starter
iTrader: (1)
Join Date: May 2015
Location: Florham Park, New Jersey
Posts: 36
Received 0 Likes
on
0 Posts

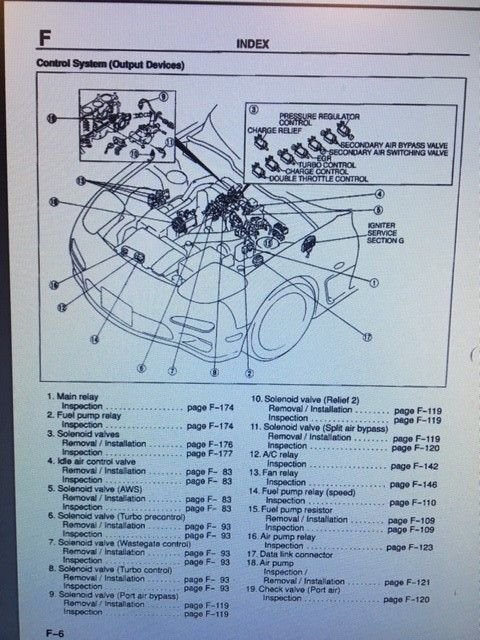

Found this in the 94 factory service manual I came across this. Upper left pic, sensors 9, 10, 11
9 - Port air bypass
10 - Relief 2
11 - Split air bypass
Still on the wild goose hunt, but seem to be getting closer.
Also,I read up on this past forum --> https://www.rx7club.com/3rd-generati...outing-870012/ Post #4, that someone by the name of "HAILERS" is pretty knowledgeable with ACVs. How can I find out if he is still active through this club? Thanks!
9 - Port air bypass
10 - Relief 2
11 - Split air bypass
Still on the wild goose hunt, but seem to be getting closer.
Also,I read up on this past forum --> https://www.rx7club.com/3rd-generati...outing-870012/ Post #4, that someone by the name of "HAILERS" is pretty knowledgeable with ACVs. How can I find out if he is still active through this club? Thanks!
Last edited by silver636rx7tt; 09-03-19 at 11:19 PM.
