Name This Tube! (5th and 6th Port Related)

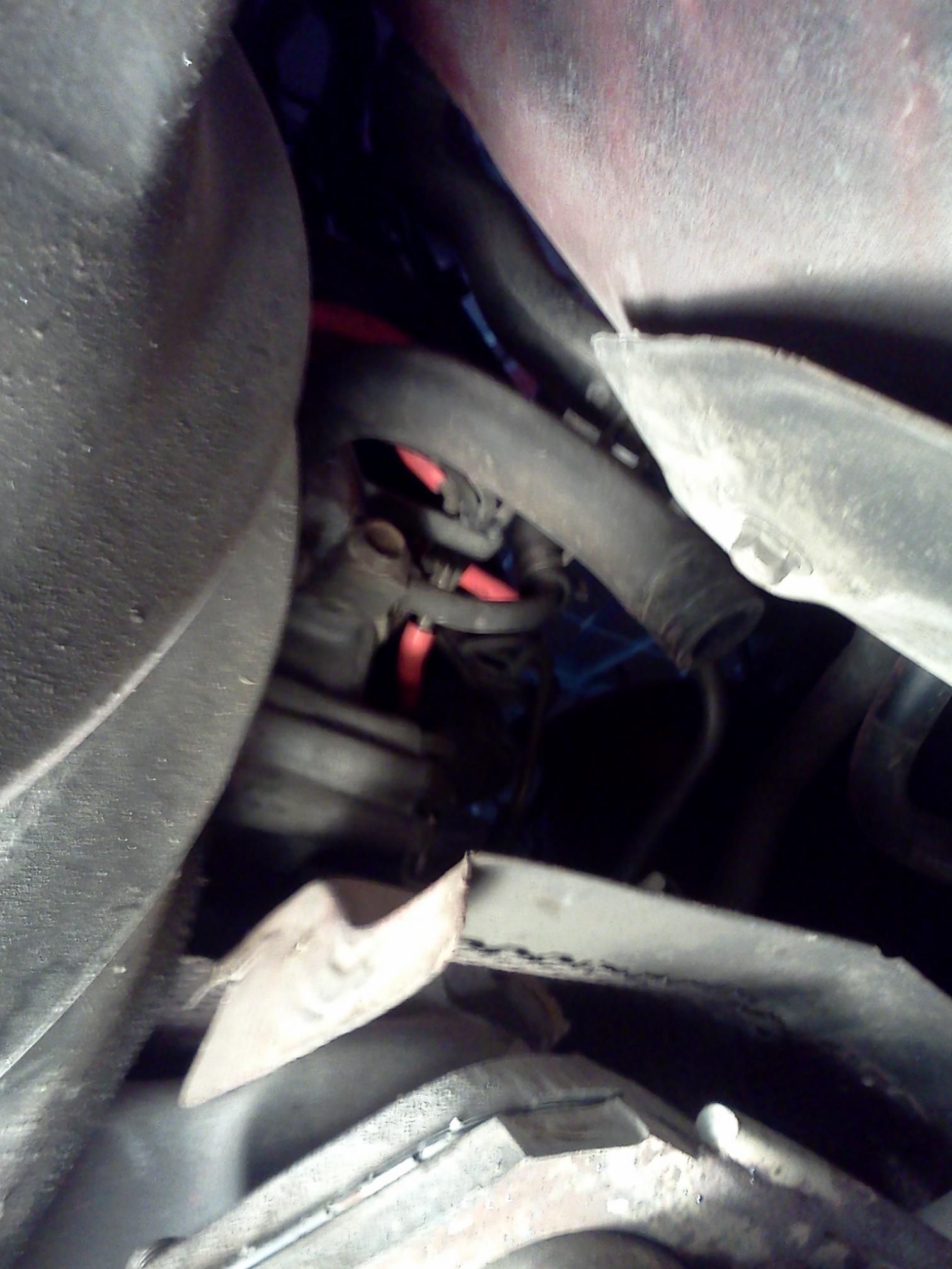

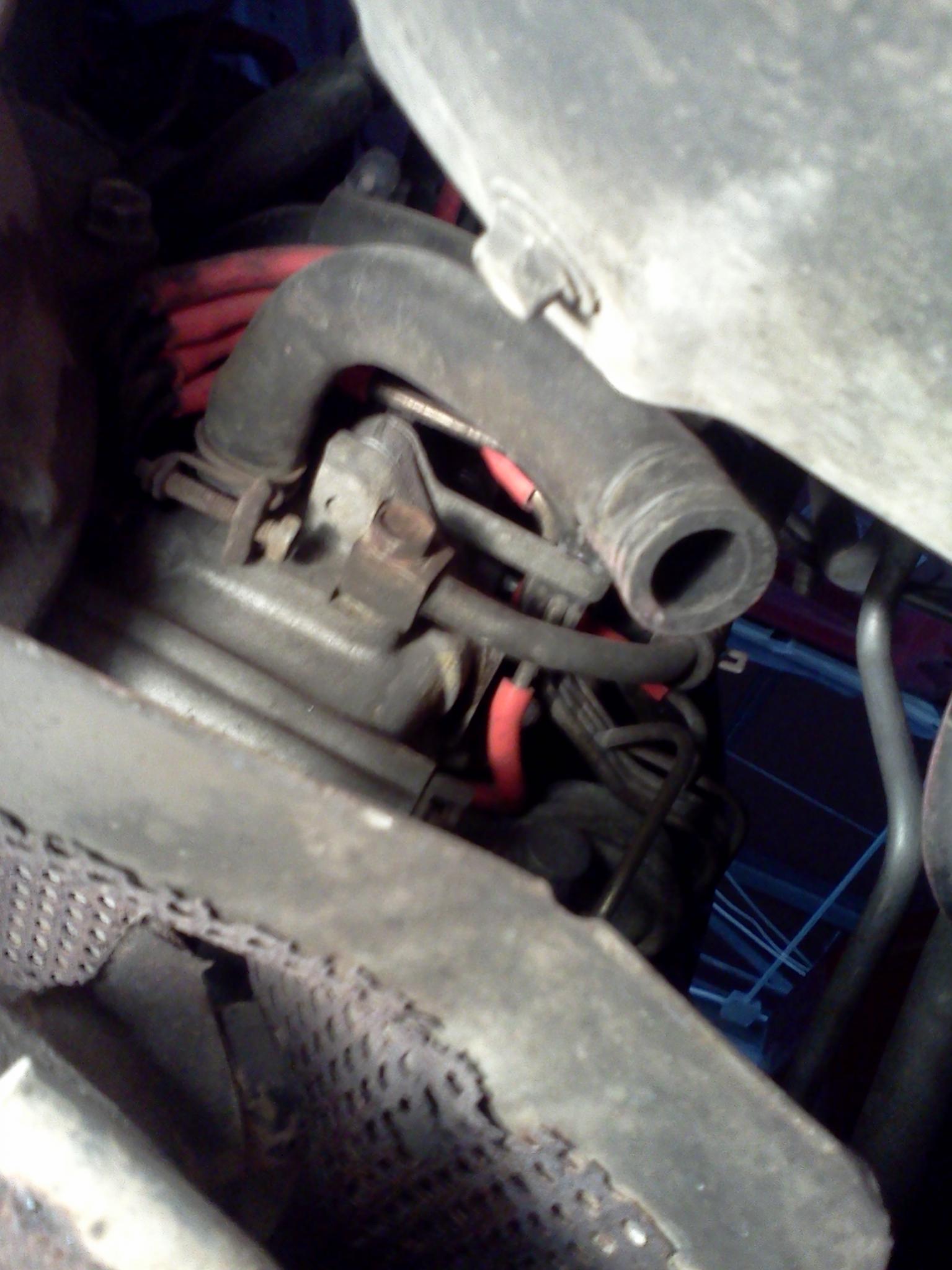

I have a 89 na gxl with the stock exhaust manifold and straight pipes in place of 1st and 2nd cats (only have one left). I had the car up on a lift fixing a crack in the welding and spotted this suspicious looking tube leading to nowhere. (attached pictures) What Is IT???
I have heard before that the ports are actuated by the exhaust in some 2nd gen's but not sure about mine. I have noticed a lack of power on the highway in fifth and I'm not sure if this is related to the ports or this tube for that matter.
I did try to move the actuators and both moved fine.
I have heard before that the ports are actuated by the exhaust in some 2nd gen's but not sure about mine. I have noticed a lack of power on the highway in fifth and I'm not sure if this is related to the ports or this tube for that matter.
I did try to move the actuators and both moved fine.
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
That hose went to the Catalytic via a split air tube.(steel pipe that ran from cat to engine).
It is all I know,I am an s4 guy,so I can't help you if it is s5..sorry.
Someone will help ya though.
It is all I know,I am an s4 guy,so I can't help you if it is s5..sorry.
Someone will help ya though.
#3
Top Down, Boost Up
iTrader: (7)
Yes, the split air pipe from the main cat would connect there. If it's been straight piped, the hose doesn't need to connect to anything.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
#4
Full Member
Thread Starter
iTrader: (3)
Join Date: Jul 2012
Location: Kansas
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
Yes, the split air pipe from the main cat would connect there. If it's been straight piped, the hose doesn't need to connect to anything.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
#5
Junior Member
Join Date: Mar 2013
Location: Minnesota USA
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Yes, the split air pipe from the main cat would connect there. If it's been straight piped, the hose doesn't need to connect to anything.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
S4s use exhaust backpressure to move the aux. port actuators. S5s use the air pump. If your air pump is missing, you're down ~40hp from stock. S5s have both the aux. port actuators and VDI actuator running off pump pressure.
