A little technical question.

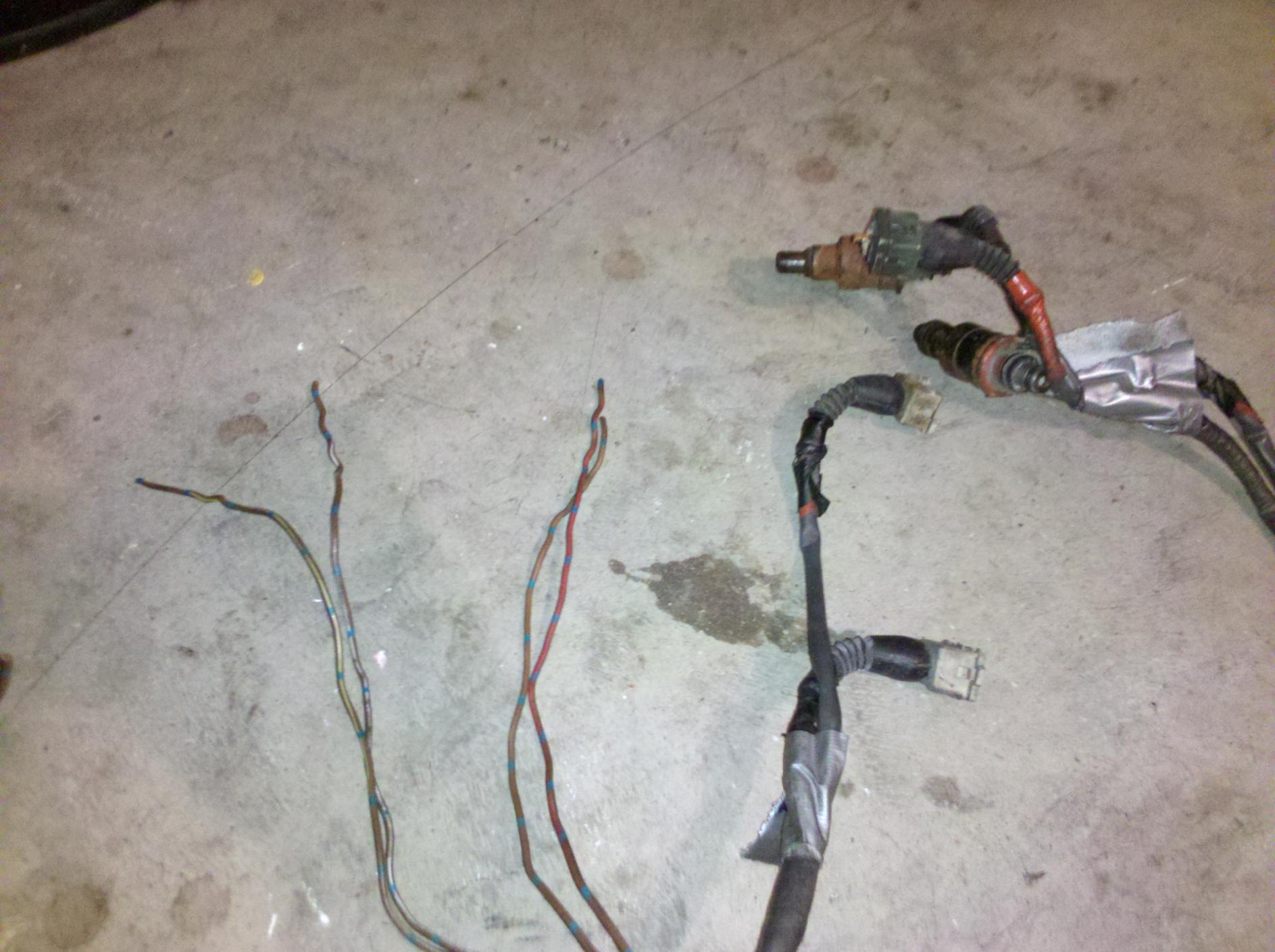

I cut a few to many wires while cleaning my harness.
https://www.rx7club.com/attachment.p...1&d=1342243409

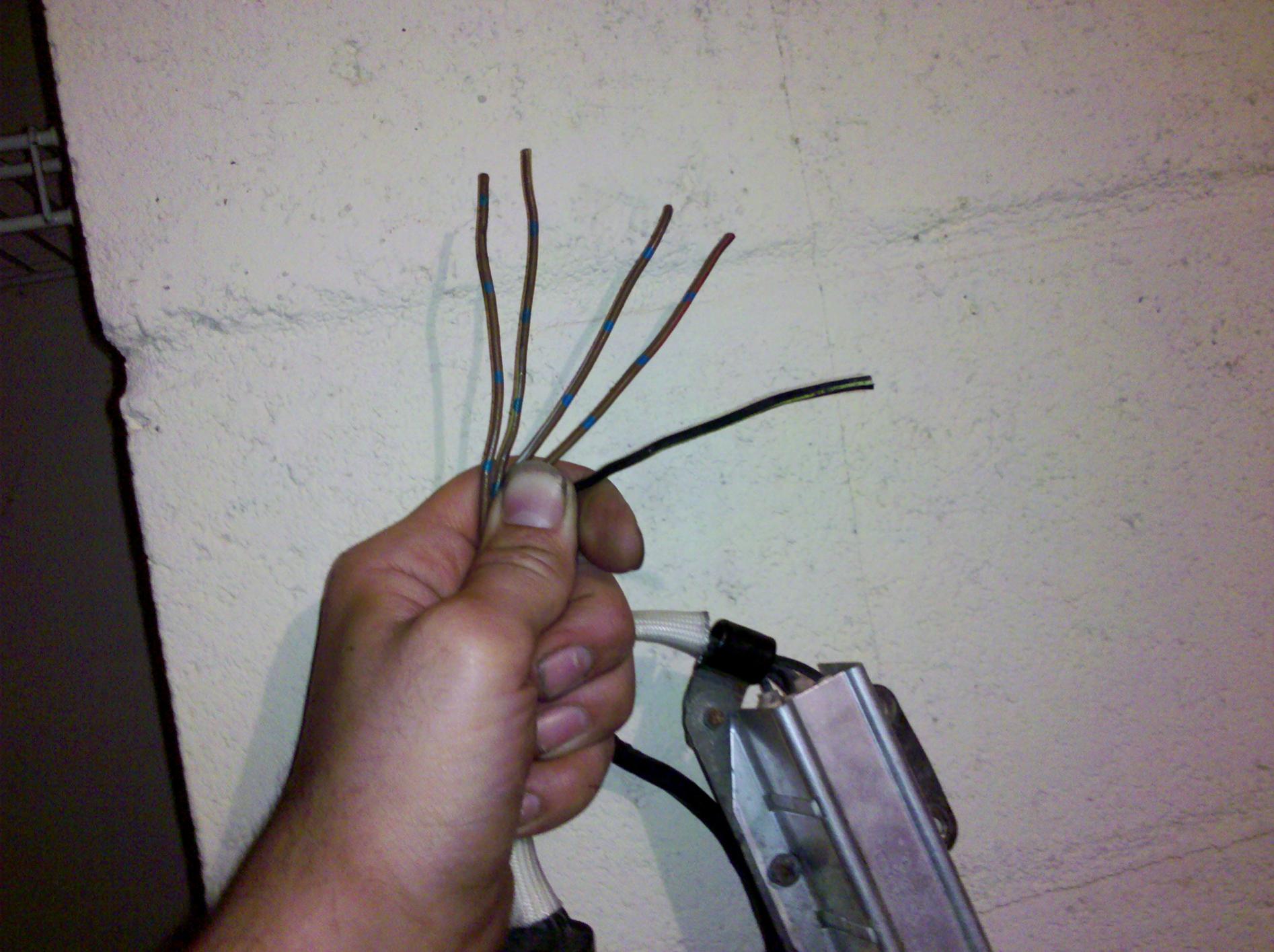

I still have the solenoid resistor as shown here part Ba21...
https://www.rx7club.com/attachment.p...1&d=1342243465
Now the questions are the the wire on the far right...It is a ground wire and can I just ground it to the car itself?
Or if not how would I wire it back into the main harness?
I have about a foot of every wire thats been cut on the connectors left to be able to have enough to help out if this happened. I am covered a bit on that ha and I kept EVERYTHING I took out just in case!
I have a workshop manual but unless I am over looking it I am just not seeing the ground...so any help would be awesome!
https://www.rx7club.com/attachment.p...1&d=1342243409
I still have the solenoid resistor as shown here part Ba21...
https://www.rx7club.com/attachment.p...1&d=1342243465
Now the questions are the the wire on the far right...It is a ground wire and can I just ground it to the car itself?
Or if not how would I wire it back into the main harness?
I have about a foot of every wire thats been cut on the connectors left to be able to have enough to help out if this happened. I am covered a bit on that ha and I kept EVERYTHING I took out just in case!
I have a workshop manual but unless I am over looking it I am just not seeing the ground...so any help would be awesome!
#2
Getting ready to drift!
Thread Starter
Join Date: Feb 2007
Location: Dry Ridge Ky
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
I am just going to mark it up to being a ground wire and put it to the car.
I have not heard anything to the contrary so I am just going to go with that.
I have not heard anything to the contrary so I am just going to go with that.
#3
Moderator
iTrader: (1)
That far right wire you speak of is it Black/Yellow? Thats the voltage wire for the Resistor Pack. If so then you definitely would not ground it.
Bottom post https://www.rx7club.com/2nd-generati...oblems-970442/
Bottom post https://www.rx7club.com/2nd-generati...oblems-970442/
