Intercooler questions
#1
Full Member
Thread Starter
Intercooler questions
i was looking to get a Borgwarner EFR plus lots of other upgrades looking at around 450 hp and was wondering if the stock 89 TII intercooler could hold that much power around 14 PSI?
If not how much is a new FMIC + piping and everything?
Thanks
If not how much is a new FMIC + piping and everything?
Thanks
#3
Senior Member
that much psi and air has to get cooled.
What's the car the engine going in? An FC?
This FMIC will work:
http://cgi.ebay.com/ebaymotors/Mazda...Q5fAccessories
The hot side tubing is 2.25".

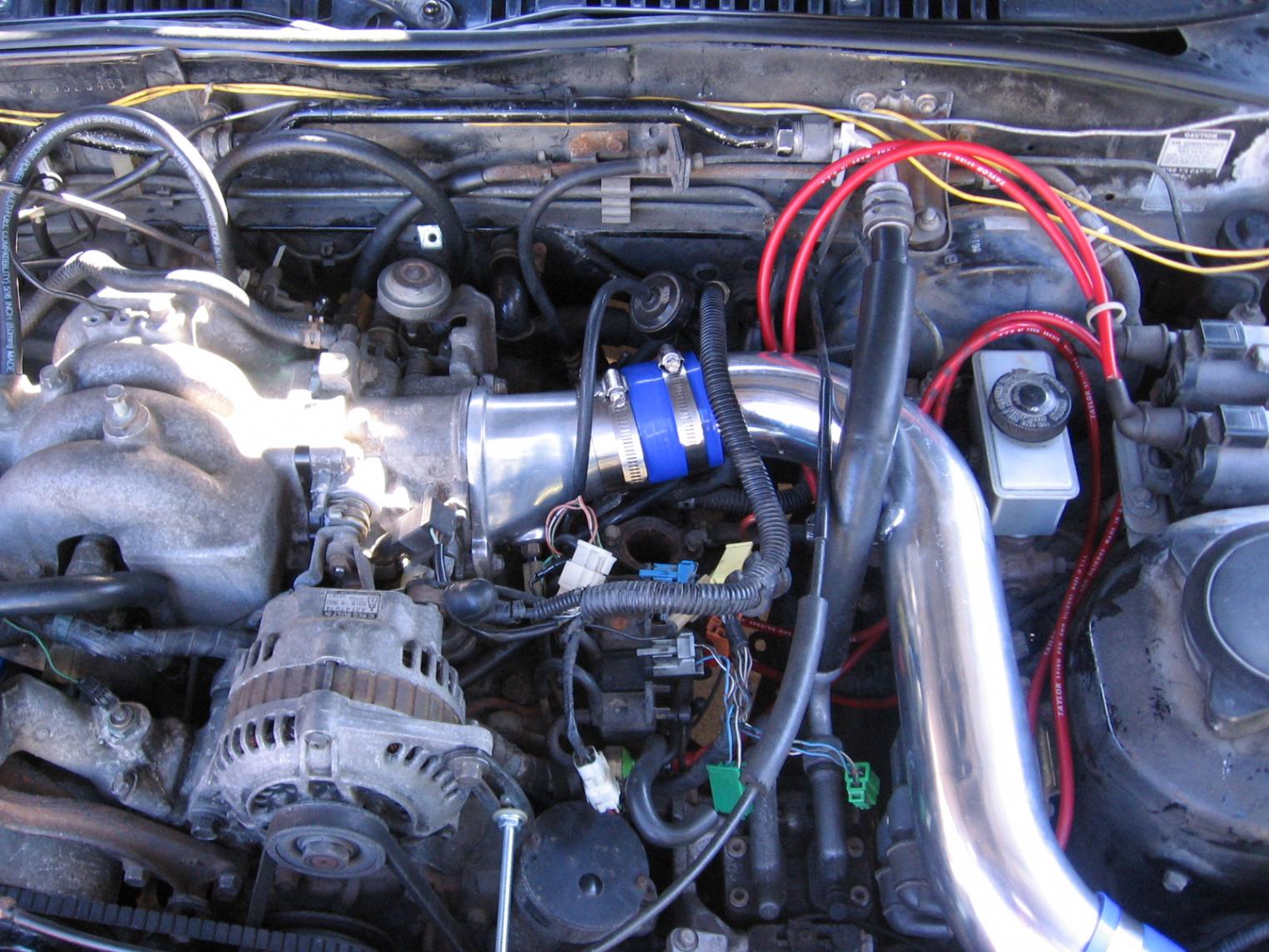

Installed pictures below.
In my case, had to do some minor mods. The holes on the elbow didn't line up w/ the studs in the Throttle Body. Also had to shorten the turb section connecting to the elbow to make the bend between the A/C line and power brake fluid reservoir.
Note you will no longer have the bumper structure.
What's the car the engine going in? An FC?
This FMIC will work:
http://cgi.ebay.com/ebaymotors/Mazda...Q5fAccessories
The hot side tubing is 2.25".
Installed pictures below.
In my case, had to do some minor mods. The holes on the elbow didn't line up w/ the studs in the Throttle Body. Also had to shorten the turb section connecting to the elbow to make the bend between the A/C line and power brake fluid reservoir.
Note you will no longer have the bumper structure.
Last edited by Clubuser; 07-22-11 at 04:21 PM.
#5
Senior Member
call me crazy, but with that much power comes need for upgraded brakes due to overheating and brake fade, your gonna need better suspension (you need to keep the tires on the ground) etc...
#7
Full Member
iTrader: (1)
Join Date: Jun 2011
Location: South Jersey
Posts: 104
Likes: 0
Received 0 Likes
on
0 Posts
that much psi and air has to get cooled.
What's the car the engine going in? An FC?
This FMIC will work:
http://cgi.ebay.com/ebaymotors/Mazda...Q5fAccessories
The hot side tubing is 2.25".
Installed pictures below.
In my case, had to do some minor mods. The holes on the elbow didn't line up w/ the studs in the Throttle Body. Also had to shorten the turb section connecting to the elbow to make the bend between the A/C line and power brake fluid reservoir.
Note you will no longer have the bumper structure.
What's the car the engine going in? An FC?
This FMIC will work:
http://cgi.ebay.com/ebaymotors/Mazda...Q5fAccessories
The hot side tubing is 2.25".
Installed pictures below.
In my case, had to do some minor mods. The holes on the elbow didn't line up w/ the studs in the Throttle Body. Also had to shorten the turb section connecting to the elbow to make the bend between the A/C line and power brake fluid reservoir.
Note you will no longer have the bumper structure.
Trending Topics
#8
Senior Member
i was on ebay looking for a FMIC also but was going to go with the GODSPEED for 399 shipped. i was wondering why you went with this system instead of the godspeed? im sure it wasnt just to save $ but if your DIY kit makes more sense than i may get that instead of the GS myself
Last edited by Clubuser; 07-24-11 at 11:34 PM.
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
If you are shopping eBay intercoolers, be sure to have the seller send pictures of the INSIDE of the end tanks so you can confirm there is internal finning in the core. Some eBay intercoolers don't have internal finning, just straight tubes, which are far less efficient.
#10
Senior Member
If you are shopping eBay intercoolers, be sure to have the seller send pictures of the INSIDE of the end tanks so you can confirm there is internal finning in the core. Some eBay intercoolers don't have internal finning, just straight tubes, which are far less efficient.
I picked mine up from here:
http://losangeles.craigslist.org/sgv...512517712.html
They had advertised on RX7CLUB.COM. At the time it was advertised as X02.
