Installing Aftermarket Seat
#1
Brap Brap
Thread Starter
Installing Aftermarket Seat

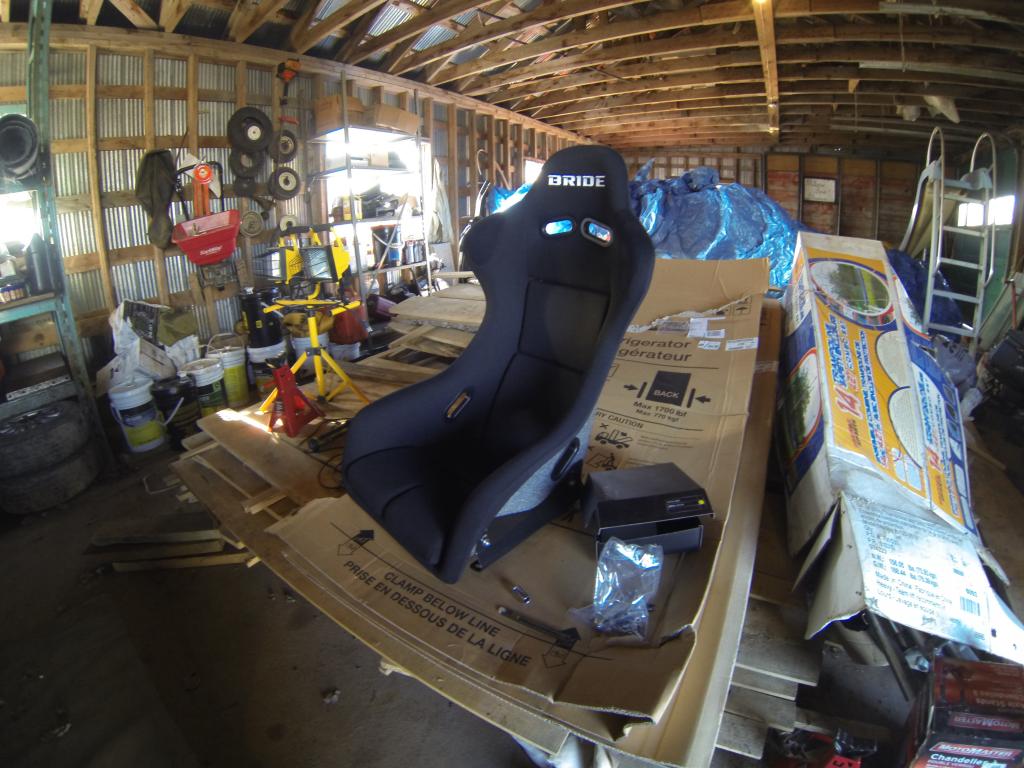

Alright guys so here is how I installed my Bride Zeta III seat in my FD. There was some custom work that I had to do because of the fact I need the seat as low as possible for me to fit in properly. (6ft tall)

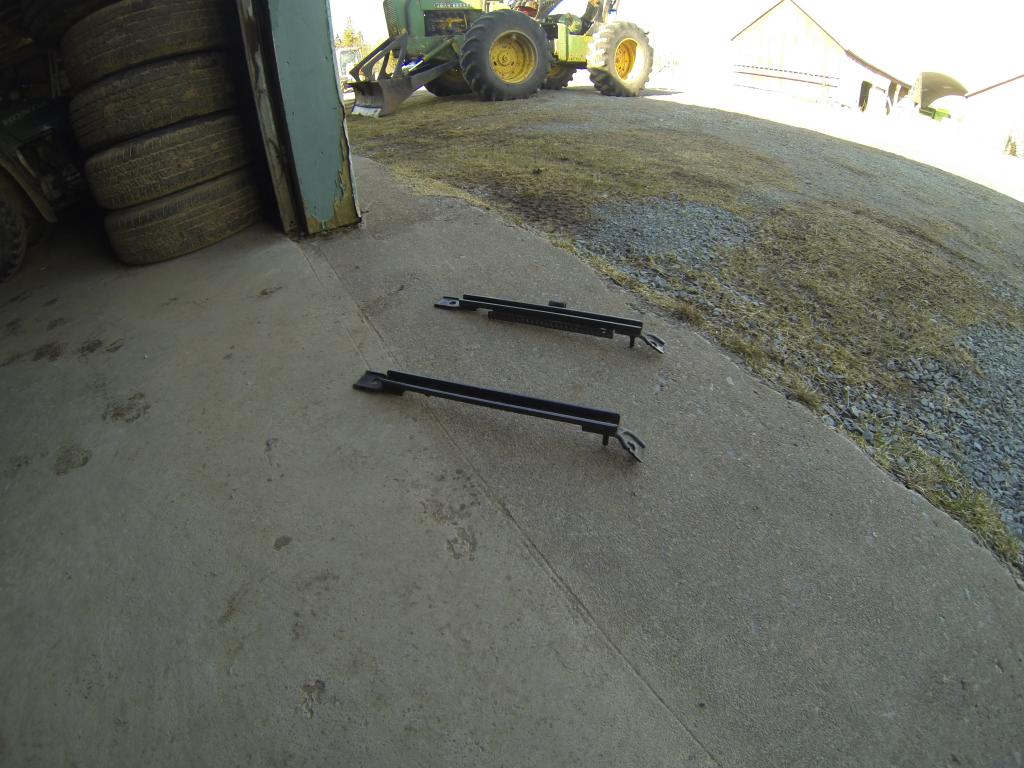

I took the factory seat rails and took them down to just the plain rail without the slider on them. This way it save a lot of time with matching up the holes and stuff.

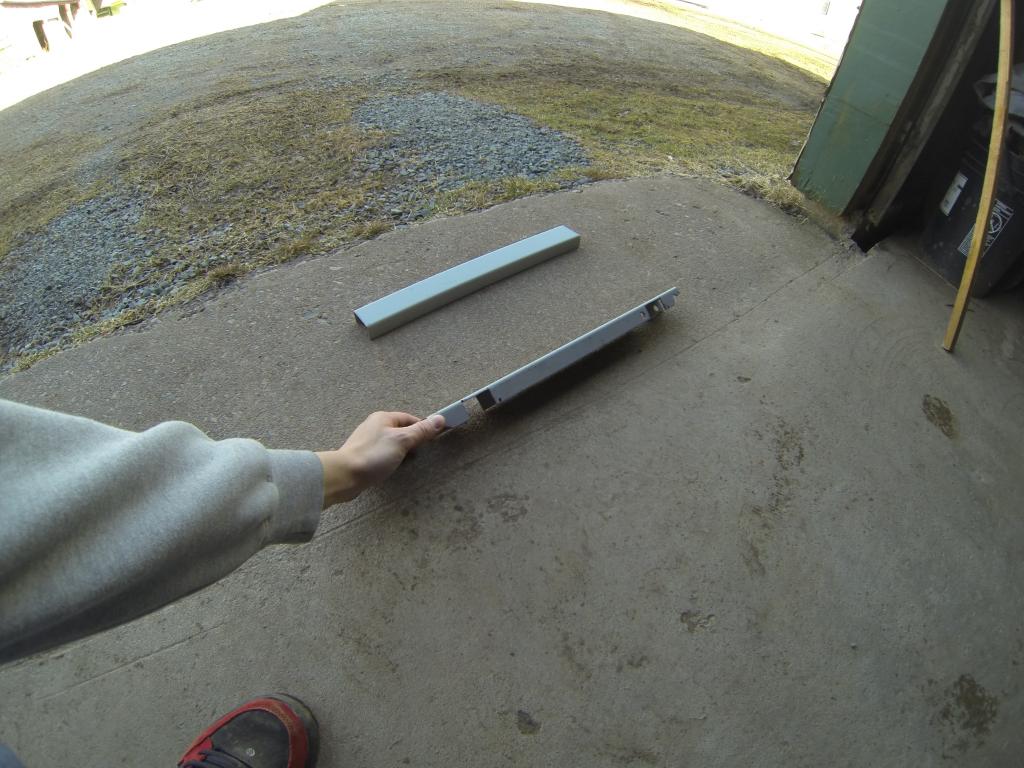

Then for the cross pieces I took two pieces of steel and welded them onto the rails and for extra safetyness I bolted the front down to the rails.

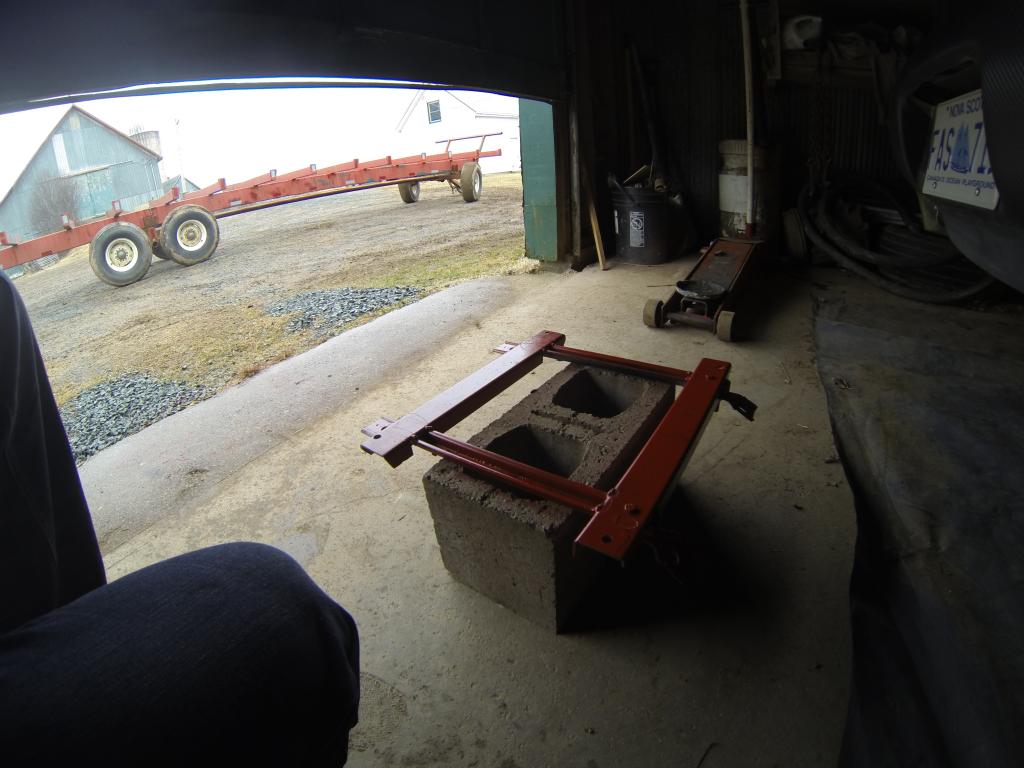

Finished product.
I've had it in the car and everything lines up and fits nice, kinda tight, but I expected that. If you guys have any thoughts on this please let me know.
I took the factory seat rails and took them down to just the plain rail without the slider on them. This way it save a lot of time with matching up the holes and stuff.
Then for the cross pieces I took two pieces of steel and welded them onto the rails and for extra safetyness I bolted the front down to the rails.
Finished product.
I've had it in the car and everything lines up and fits nice, kinda tight, but I expected that. If you guys have any thoughts on this please let me know.
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Holy Crappola!..coincidence?..maybe..lol!
I just got in..from outside..
Putting Seats in my FC!..
no welder though,just alot of messin with bolts and spacers..
I got the Driver's in,and got the passenger together but it got dark!
Ain't THIS fun???
I just got in..from outside..
Putting Seats in my FC!..
no welder though,just alot of messin with bolts and spacers..
I got the Driver's in,and got the passenger together but it got dark!
Ain't THIS fun???
#3
Brap Brap
Thread Starter
I had my father help me with getting it fitted correctly. helps when you got another guy. Total time spent was prob about 4 hours maybe.
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
4 hours?
what are you on..METH?..
I took some Geritol before doing this..I am on Day FOUR!..(hahhaha!)..
Then again I took seats out of the TII ,took seats out of the N/A..made brackets to put the TII Aftermarket seats in the N/A,Put the driver's side in..
did the same again for passenger and "just" got the seat in when I could not see any longer.
I still have to put the same Type Seat back in the TII,which I already have.
Black seats in the N/A and Blue in the TII.
what are you on..METH?..
I took some Geritol before doing this..I am on Day FOUR!..(hahhaha!)..
Then again I took seats out of the TII ,took seats out of the N/A..made brackets to put the TII Aftermarket seats in the N/A,Put the driver's side in..
did the same again for passenger and "just" got the seat in when I could not see any longer.
I still have to put the same Type Seat back in the TII,which I already have.
Black seats in the N/A and Blue in the TII.
Last edited by misterstyx69; 04-09-13 at 08:19 PM.
#5
Can Post Only in New Member Section
Join Date: May 2013
Location: people's republic of oregon
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Luke,
Nice fabrication!
How does the seat fit? Do you have any rubbing on the door/etc? Also, did you use the zeta iii type L or the plain zeta iii?
I'm planing on doing the same build, but I've heard that the zeta iii's have rubbing issues. My suspicion is that the people who said that didn't fabricate their own mounts, but I'd rather not figure out by trial and error.
Can you post some pics of how tight it is in the car?
Thanks - Jack
Nice fabrication!
How does the seat fit? Do you have any rubbing on the door/etc? Also, did you use the zeta iii type L or the plain zeta iii?
I'm planing on doing the same build, but I've heard that the zeta iii's have rubbing issues. My suspicion is that the people who said that didn't fabricate their own mounts, but I'd rather not figure out by trial and error.
Can you post some pics of how tight it is in the car?
Thanks - Jack
Trending Topics
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
you can make yourself 5'6" in no time,but your carpets may get Stained..Stubby!!!
I used some Bride brackets and they needed modification too on some APC "look a like" seats.they rub due to height.
But,I did install another "exact set"( but different color) in the N/A using the factory brackets.They do not hit.
The trouble with those seats is that they are Off by about an 3/4 inch on the bolt pattern from stock..very close though.
I drilled one stock bracket and placeed it on the seat,then used flat steel and elongated the holes to bring the Seat bolt pattern Back into place..( I hope you can understand that without pics..!).It allowed that side to be moved while I set the seat in place.I attached the other bracket to the flat steel and moved the bracket into place then tightened down that side..Perfecto-mundo!
I thought I was a "freakin' Genius" doing it that way!..lol
It did save 200 bucks...so I went out and Got Drunk and spend 300!..(Just kidding..I got a hooker,I don't drink!)
#9
Can Post Only in New Member Section
Join Date: May 2013
Location: people's republic of oregon
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
I've seen the seat fitment thread, but I want to hear it straight from someone who's actually installed the seat in question.
Also some people in the seat thread complained about rubbing on the door panels with the zeta iii. I've been doing my fair share of lurking.
Also some people in the seat thread complained about rubbing on the door panels with the zeta iii. I've been doing my fair share of lurking.
#10
Senior Member
iTrader: (7)
..ah just have a "minor grinder accident" JJ..lol!
you can make yourself 5'6" in no time,but your carpets may get Stained..Stubby!!!
I used some Bride brackets and they needed modification too on some APC "look a like" seats.they rub due to height.
But,I did install another "exact set"( but different color) in the N/A using the factory brackets.They do not hit.
The trouble with those seats is that they are Off by about an 3/4 inch on the bolt pattern from stock..very close though.
I drilled one stock bracket and placeed it on the seat,then used flat steel and elongated the holes to bring the Seat bolt pattern Back into place..( I hope you can understand that without pics..!).It allowed that side to be moved while I set the seat in place.I attached the other bracket to the flat steel and moved the bracket into place then tightened down that side..Perfecto-mundo!
I thought I was a "freakin' Genius" doing it that way!..lol
It did save 200 bucks...so I went out and Got Drunk and spend 300!..(Just kidding..I got a hooker,I don't drink!)
you can make yourself 5'6" in no time,but your carpets may get Stained..Stubby!!!
I used some Bride brackets and they needed modification too on some APC "look a like" seats.they rub due to height.
But,I did install another "exact set"( but different color) in the N/A using the factory brackets.They do not hit.
The trouble with those seats is that they are Off by about an 3/4 inch on the bolt pattern from stock..very close though.
I drilled one stock bracket and placeed it on the seat,then used flat steel and elongated the holes to bring the Seat bolt pattern Back into place..( I hope you can understand that without pics..!).It allowed that side to be moved while I set the seat in place.I attached the other bracket to the flat steel and moved the bracket into place then tightened down that side..Perfecto-mundo!
I thought I was a "freakin' Genius" doing it that way!..lol
It did save 200 bucks...so I went out and Got Drunk and spend 300!..(Just kidding..I got a hooker,I don't drink!)
#11
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
The only other thing I can think of in your case is to see if you can get rid of the "hump" that the brackets attach to and then weld your sliders to the floor.That may give you an inch or so extra downwards.
If you look at the way that the driver's sliders are placed,you see that "hump" where the bolt holes are..that reinforced stuff?..
Notice that the slider is On TOP of it?..that much space.
the adjuster may hit(cable like thing on the handle that pulls the locks to adjust the rails) ..just thinking about that..
anyhow check it and see what you think.
If you look at the way that the driver's sliders are placed,you see that "hump" where the bolt holes are..that reinforced stuff?..
Notice that the slider is On TOP of it?..that much space.
the adjuster may hit(cable like thing on the handle that pulls the locks to adjust the rails) ..just thinking about that..
anyhow check it and see what you think.
#12
Can Post Only in New Member Section
Join Date: May 2013
Location: people's republic of oregon
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
I'm in the tall boat as well. At the moment I have to do some pretty awkward things to fit in at all.
Why does everyone want rails? They add a lot of height. I'm going to go non-adjustable. Every last millimeter counts.
Why does everyone want rails? They add a lot of height. I'm going to go non-adjustable. Every last millimeter counts.
#13
Brap Brap
Thread Starter

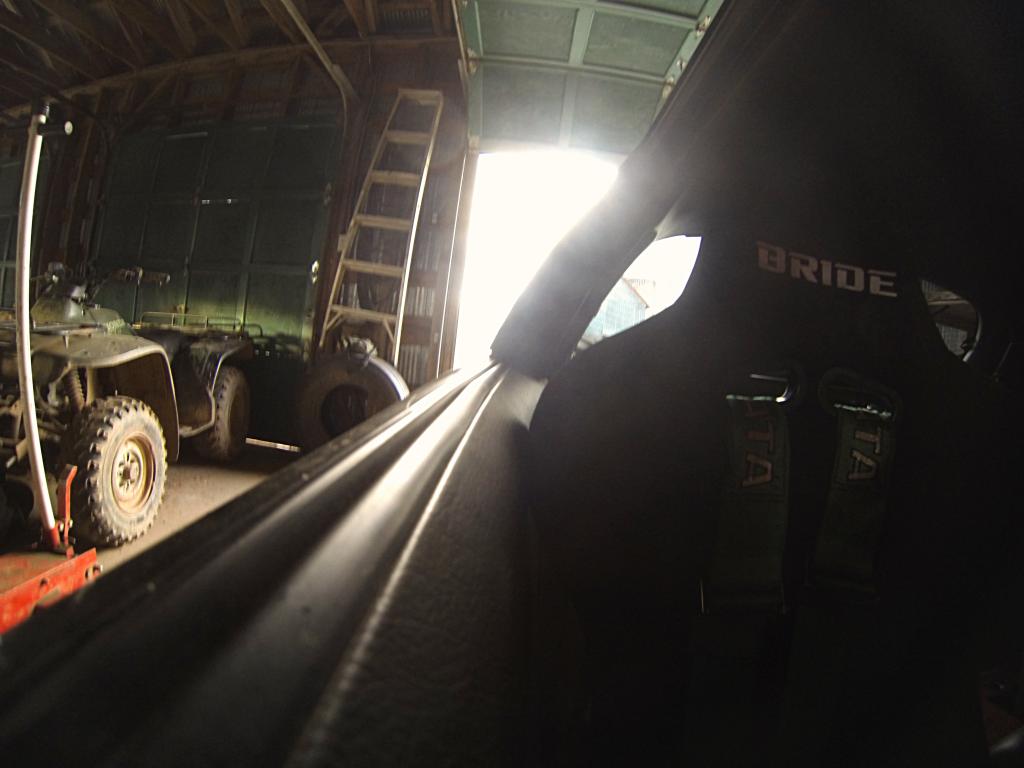

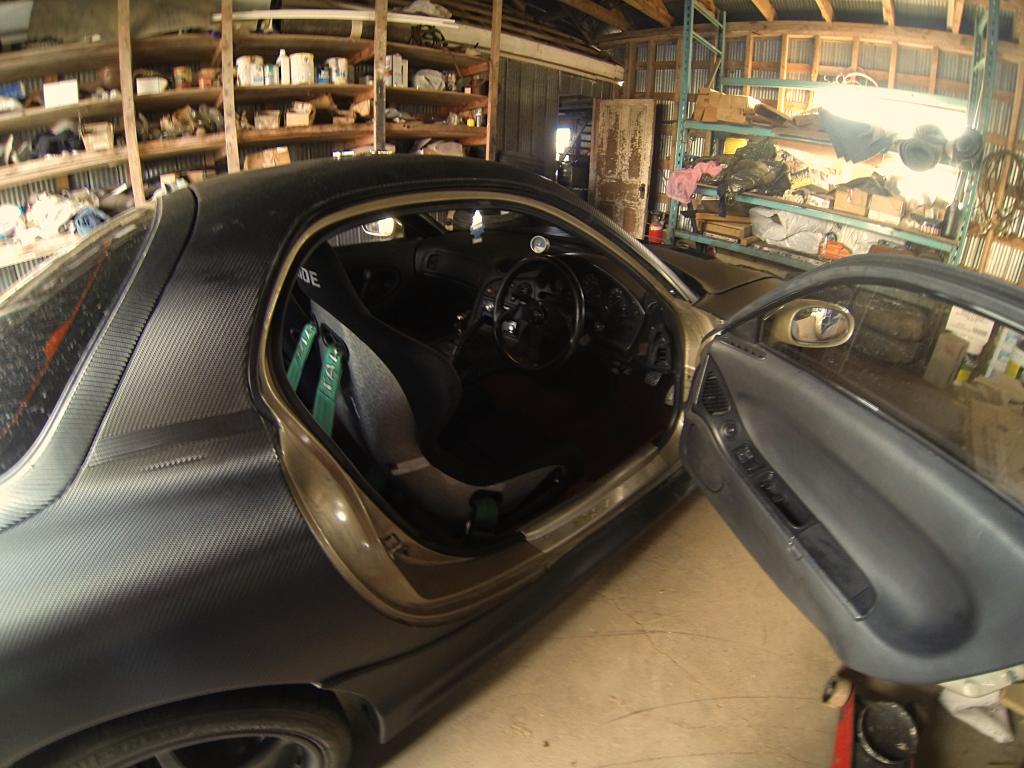

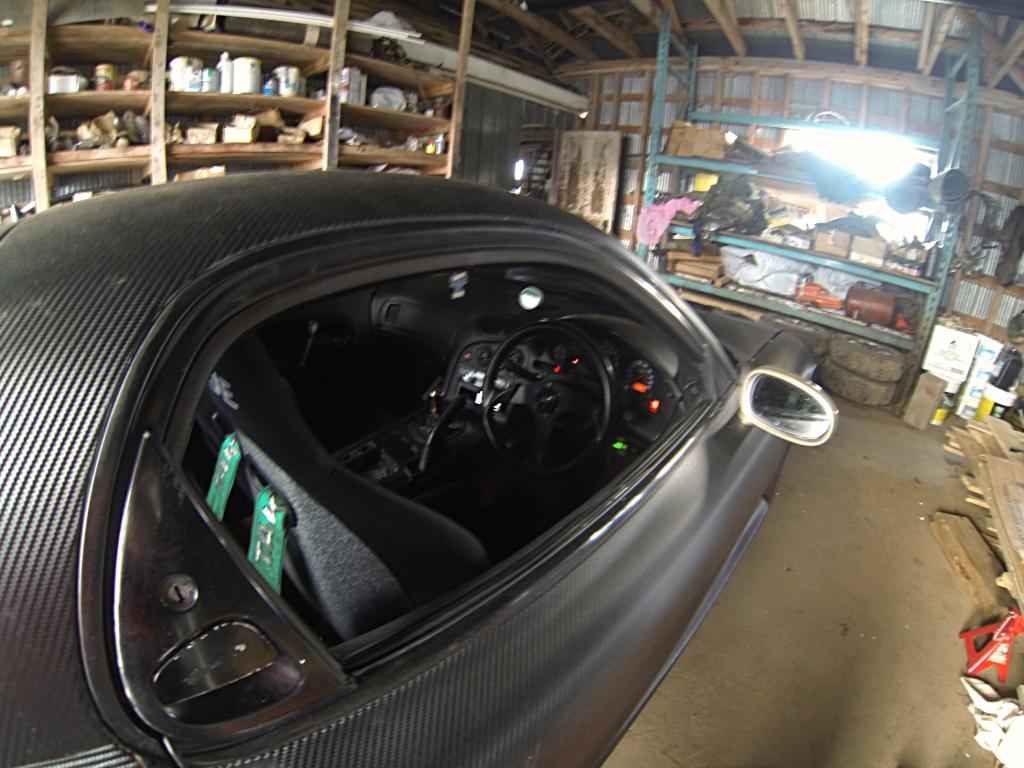

Hey guys. I'm going to upload some pics tomorrow with the seat in place. Its a Zeta III (normal size). I had no problems with getting it fitted, but it is a tight fit and has to be done right.
#14
Senior Member
iTrader: (7)
The only other thing I can think of in your case is to see if you can get rid of the "hump" that the brackets attach to and then weld your sliders to the floor.That may give you an inch or so extra downwards.
If you look at the way that the driver's sliders are placed,you see that "hump" where the bolt holes are..that reinforced stuff?..
Notice that the slider is On TOP of it?..that much space.
the adjuster may hit(cable like thing on the handle that pulls the locks to adjust the rails) ..just thinking about that..
anyhow check it and see what you think.
If you look at the way that the driver's sliders are placed,you see that "hump" where the bolt holes are..that reinforced stuff?..
Notice that the slider is On TOP of it?..that much space.
the adjuster may hit(cable like thing on the handle that pulls the locks to adjust the rails) ..just thinking about that..
anyhow check it and see what you think.
#15
Brap Brap
Thread Starter
#19
Alright guys so here is how I installed my Bride Zeta III seat in my FD. There was some custom work that I had to do because of the fact I need the seat as low as possible for me to fit in properly. (6ft tall)
Attachment 495196
I took the factory seat rails and took them down to just the plain rail without the slider on them. This way it save a lot of time with matching up the holes and stuff.
Attachment 495193
Then for the cross pieces I took two pieces of steel and welded them onto the rails and for extra safetyness I bolted the front down to the rails.
Attachment 495194
Finished product.
Attachment 495195
I've had it in the car and everything lines up and fits nice, kinda tight, but I expected that. If you guys have any thoughts on this please let me know.
Attachment 495196
I took the factory seat rails and took them down to just the plain rail without the slider on them. This way it save a lot of time with matching up the holes and stuff.
Attachment 495193
Then for the cross pieces I took two pieces of steel and welded them onto the rails and for extra safetyness I bolted the front down to the rails.
Attachment 495194
Finished product.
Attachment 495195
I've had it in the car and everything lines up and fits nice, kinda tight, but I expected that. If you guys have any thoughts on this please let me know.
