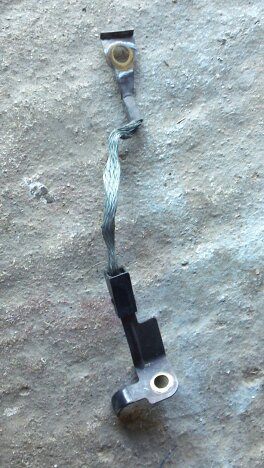

Where does this ground strap go or where does it attach? Thanks for the help.



It helps if you post what model RX7 you have so we don't have to go to your profile. Or just add that info to your signature.

I'm not sure of the exact location on a TII. My best guess.....from the intake manifold to the firewall. If there's an engine hanger mounted to the intake manifold it will probably use one of it's bolts. The end with the black tab will mount to the firewall, probably to a bracket also used by something else. Otherwise free bump.



what he said..make sure all the attaching surfaces are clean,bare metal,rust free etc. doesnt hurt to add extra grounds between engine,trans,frame and other points



Sorry about that. Thanks for the help.



it's an FD ground strap. it bolts to the engine lift hook top mount bolt at the backside of the UIM, other end attaches to the firewall between the ABS pump and UIM just above the brake booster hard line(same mount hole that the brake booster hard line mounts to the firewall with, the locating tab sits just under the hood seal at the top edge of the firewall).

FC ground strap bolts to the same firewall location but mounts on the other end to the top of the transmission with a 10mm bolt.



Thanks for that info. My FC has the firewall to the trans ground. I looked everywhere for where this one went. Until now it didn't dawn on me that it went to the upper FD manifold I had on my FC.



if it's an FC chassis, flatten out the locating tab and mount it to the stock FC firewall location.
