Current Project ~ Basic questions

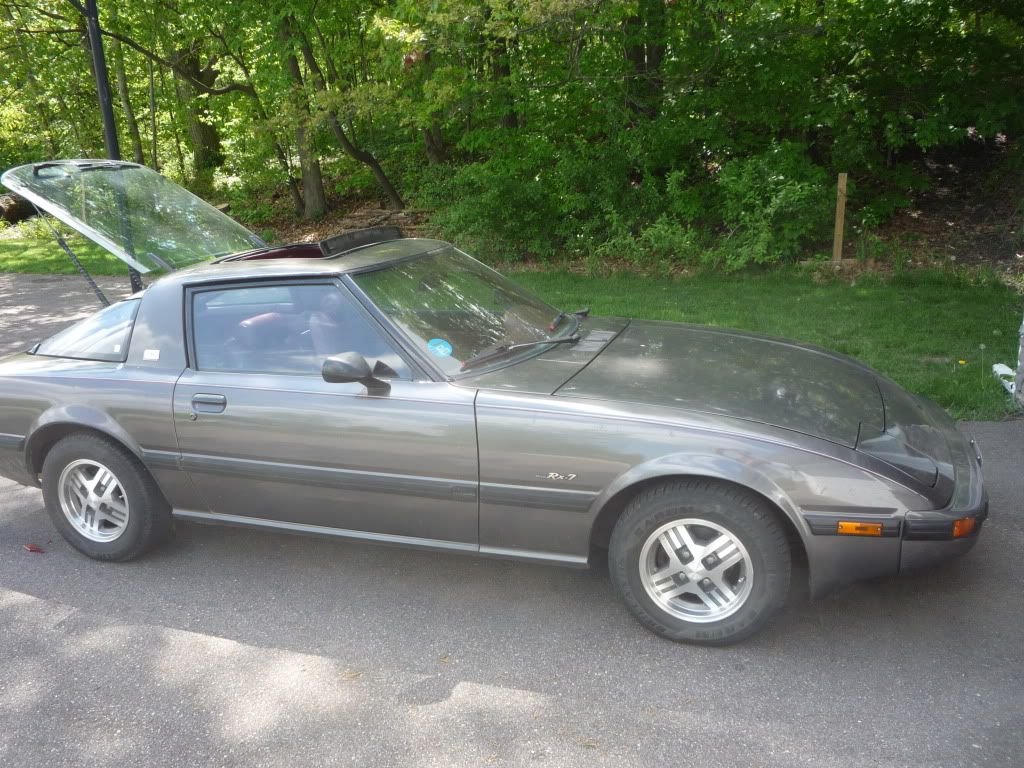

So here is my current RX-7. The outside is nice and pretty still.
Interior is in nice shape, Most the leather is nice, although the drives side is a bit worse the this side. And yes, that is my steering wheel in the grass... I've been working on the car all day, and some things are pulled apart.

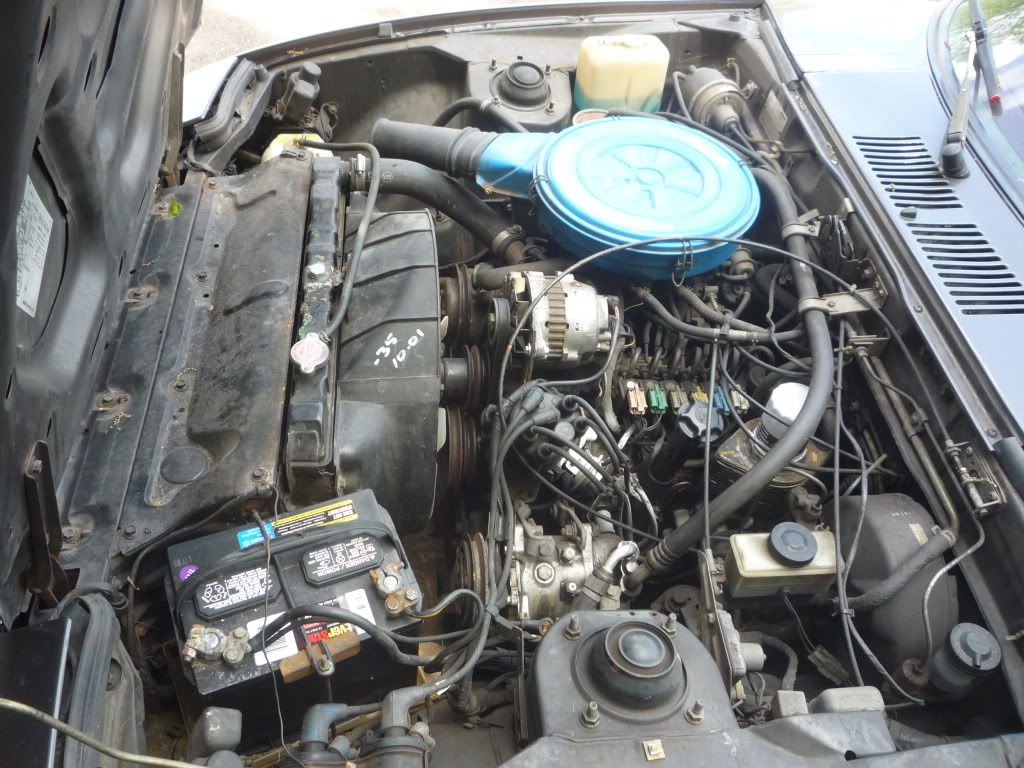

Things are a bit of a mess under the hood. Missing belts, AC doesn't work and I haven't bothered to attempt to fix yet, summers just aren't that hot up here. Coolant level sensor is replaced with a bolt, it stopped the leak temporarily. I had hoped to find a legit replacement at a local Upull, but have had little luck. My local store can't seem to find a replacement, so the bolt has stayed longer then expected. Any advice as to where to get a replacement? I have found some online, but the places seem sketchy, or are asking for $80+ for the sensor. Occasionally the car realizes the sensor isn't there and complains. An idea how I can ground sensor wire to store the occasional alarm? I am hesitant to try grounding/applying voltage, and I can't make heads or tails of the wiring diagram.
Interior is in nice shape, Most the leather is nice, although the drives side is a bit worse the this side. And yes, that is my steering wheel in the grass... I've been working on the car all day, and some things are pulled apart.
Things are a bit of a mess under the hood. Missing belts, AC doesn't work and I haven't bothered to attempt to fix yet, summers just aren't that hot up here. Coolant level sensor is replaced with a bolt, it stopped the leak temporarily. I had hoped to find a legit replacement at a local Upull, but have had little luck. My local store can't seem to find a replacement, so the bolt has stayed longer then expected. Any advice as to where to get a replacement? I have found some online, but the places seem sketchy, or are asking for $80+ for the sensor. Occasionally the car realizes the sensor isn't there and complains. An idea how I can ground sensor wire to store the occasional alarm? I am hesitant to try grounding/applying voltage, and I can't make heads or tails of the wiring diagram.
#2
rx7club's resident furry
iTrader: (1)
Join Date: Feb 2012
Location: Spokane, WA
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
coolant temp senders are common enough you will find one given some time. it's suppose to ground through the cooling system... I'm not sure the voltage.
Looks like a clean car and doesn't look like the GSL-SE engine bay I saw at the junkyard...
Where's the steering wheel?
Looks like a clean car and doesn't look like the GSL-SE engine bay I saw at the junkyard...
Where's the steering wheel?
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
steering wheel in grass.
it's a Moo-Moo wheel!..(groan!)
.......
you can just ground the sender wire for now if you are getting an alarm.It won't hurt anything.Take the harness wire and touch the body of the car..done.
it's a Moo-Moo wheel!..(groan!)
.......
you can just ground the sender wire for now if you are getting an alarm.It won't hurt anything.Take the harness wire and touch the body of the car..done.
#4
Full Member
Thread Starter
Join Date: Jul 2011
Location: MN
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
I am under the impression that that it is only a gsl, not a gsl-se. I also thought that the gsl-se didn't start till 84, and because mine is an 83 I would agree, the engine shouldn't look like a gsl-se. Don't know If I have all that info quite right, but that is the assumptions I have been working under. Perhaps I could run my vin somewhere to tell for sure?
Thanks for the tip, I'm actually going to do that before I go off to work this morning. Not really sure what a moo moo is unless your referring to leather? If that is what you were referring to it was a dry afternoon, there certainly wasn't any condensation to damage it. I really wish I had a table or something for parts and work, but I am at my parents house for the summer (college student) and I am happy I even get a spot in the garage.
Thanks for the tip, I'm actually going to do that before I go off to work this morning. Not really sure what a moo moo is unless your referring to leather? If that is what you were referring to it was a dry afternoon, there certainly wasn't any condensation to damage it. I really wish I had a table or something for parts and work, but I am at my parents house for the summer (college student) and I am happy I even get a spot in the garage.
#5
Full Member
Thread Starter
Join Date: Jul 2011
Location: MN
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
Anyhow, I was planning on only post this question in the first gen forums, but I guess here will work as well (hopefully) Long story short, my dash lights weren't working for a while, it bugged me so I took the dash off, found the board that dimmer was located on was fried and I re-soldered a bridge into place. Lights work. Sadly I have put it all back together and now my headlights are not going up or turning on.
When I turn the headlight switch (stalk) with the door open my warning goes off, so I think the stalk is fine. Fuses are all good, so are the fusible links on the drivers side. The other switch I dissembled and it seems to be in good mechanical order, no burns or shorts or anything. The switch gets ~12v when the stalk is turned to give the headlights power. I have been able to manually trigger the motors, they are not jammed/broken. I cannot get high or low beams to turn on at all.
Is there anything else I can check to try to get these things back and running?
When I turn the headlight switch (stalk) with the door open my warning goes off, so I think the stalk is fine. Fuses are all good, so are the fusible links on the drivers side. The other switch I dissembled and it seems to be in good mechanical order, no burns or shorts or anything. The switch gets ~12v when the stalk is turned to give the headlights power. I have been able to manually trigger the motors, they are not jammed/broken. I cannot get high or low beams to turn on at all.
Is there anything else I can check to try to get these things back and running?
