1987 rx7 na wiring help

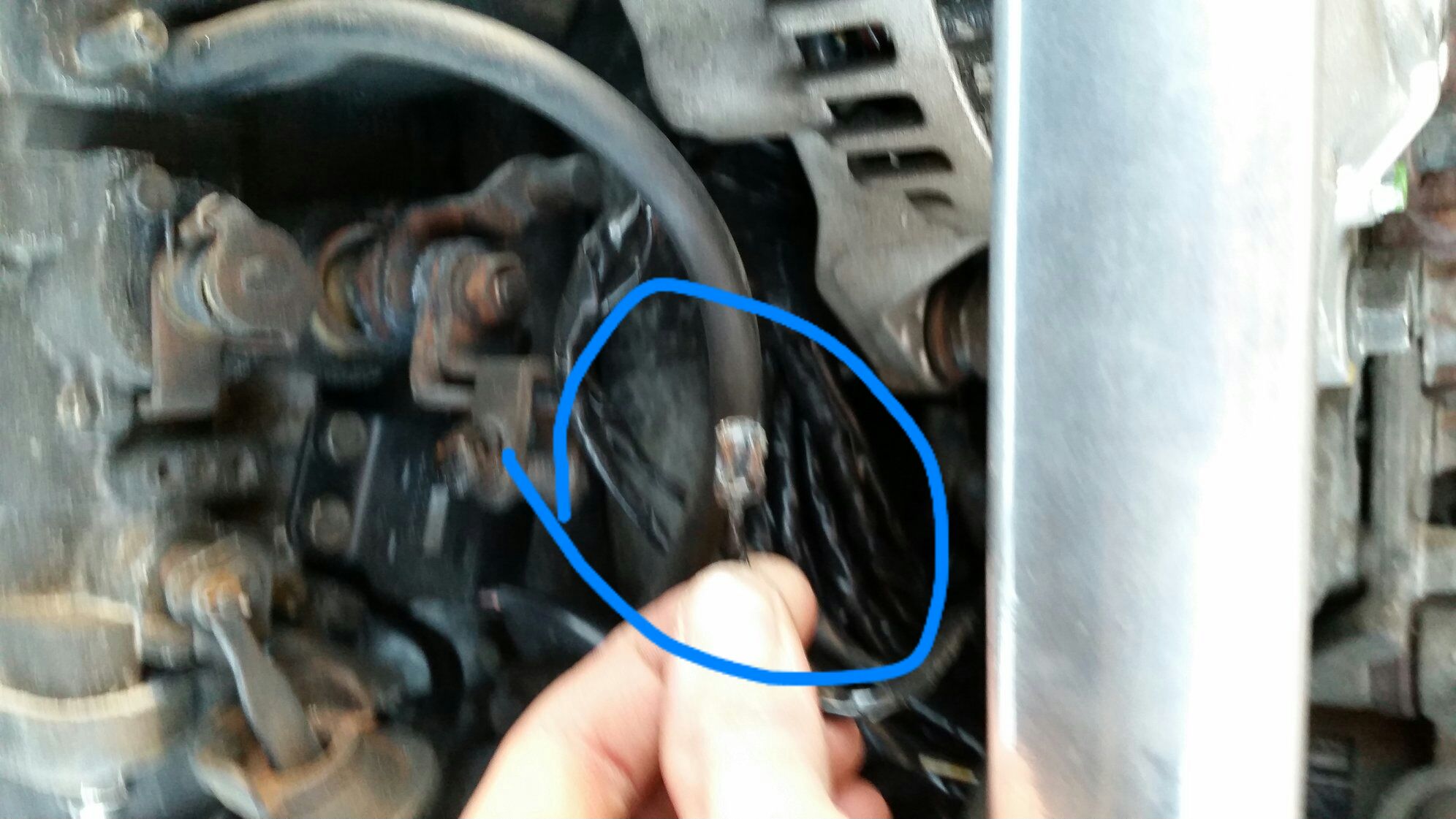

Car had an engine fire. I installed new vacuum line, fuel injection hose, and rewired nearly everything. I have no idea where the wire in the picture goes. It comes up under the lower intake on the driver side. Maybe a ground? Any info would be appreciated. Forgot to say I have been driving the car for about a month with the wire unconnected.
Last edited by jayman1; 03-12-16 at 01:01 AM. Reason: needed to enter more info
03-12-16, 12:55 AM
#2
Junior Member
Thread Starter
Join Date: Mar 2016
Location: Yankton,SD
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
1987 rx7 na wire location
I'm not sure where the wire in the picture goes. It could possibly go to the alternator. Any help from you guys would be appreciated. It comes from the harness between the intake and alternator. Thanks
Last edited by jayman1; 03-12-16 at 01:03 AM. Reason: needed to enter more info
03-13-16, 11:03 AM
#5
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
The Factory Service Manuals for all years of RX-7 (and many other rotary cars) can be downloaded for free here: Foxed.ca - Mazda RX-7 Manuals . They contain all common service information and more, and are an essential tool for any sort of service work that needs to be performed on these cars.
Additionally, the Haynes service manual for the 1986 thru 1991 RX-7 (both turbo and NA) can be found at most local auto parts stores or purchased from any good bookstore (ISBN number 1 56392 007 7). It is only about $25 and is a great quick reference for things like this. Not only does it contain most of the information in the FSM condensed into an easy to read format, but it includes full wiring diagrams as well.
These manuals will answer 99% of service related questions for the car and if you intend to do your own repair work, you will need at least one of them. Preferably both, since the FSM is a free download. The Haynes is a good quick reference covering 99% of questions, while the FSMs show complete and detailed procedures.
Additionally, the Haynes service manual for the 1986 thru 1991 RX-7 (both turbo and NA) can be found at most local auto parts stores or purchased from any good bookstore (ISBN number 1 56392 007 7). It is only about $25 and is a great quick reference for things like this. Not only does it contain most of the information in the FSM condensed into an easy to read format, but it includes full wiring diagrams as well.
These manuals will answer 99% of service related questions for the car and if you intend to do your own repair work, you will need at least one of them. Preferably both, since the FSM is a free download. The Haynes is a good quick reference covering 99% of questions, while the FSMs show complete and detailed procedures.
