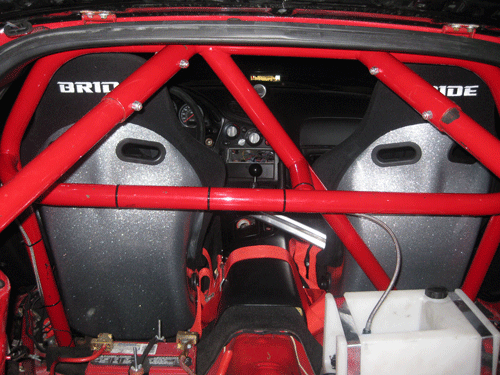

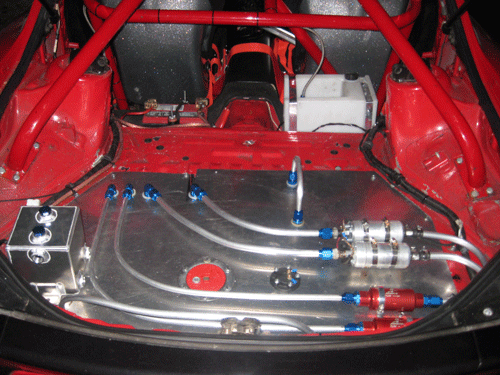

here are some pics of the fuel systom almost done. im just waiting on another pump for my surge tank so i can put it in. the new low max seats fit great too. i will put more pics up as i go. i shaving all the bolt holes on the car that are not being used and putting in the cage next week so will have some pics up then.



god dammm nice setup looks really good g/l with everything.



what size fuel tank is that? any pics from below? thanks.

looks like a very nice project. i take it you are building it for tracking.

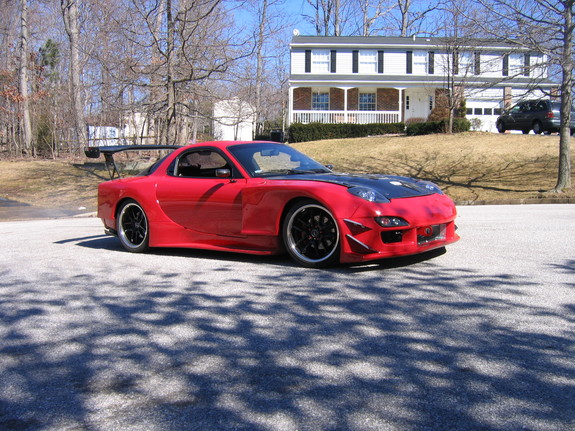

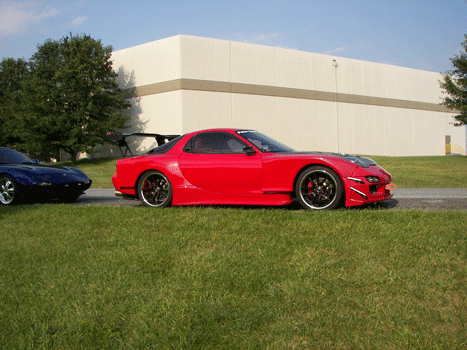

how bout some pics of the whole car



looks good man. alot different than what i had seen before when your car was at MIR a while back. Definitly looks professional though

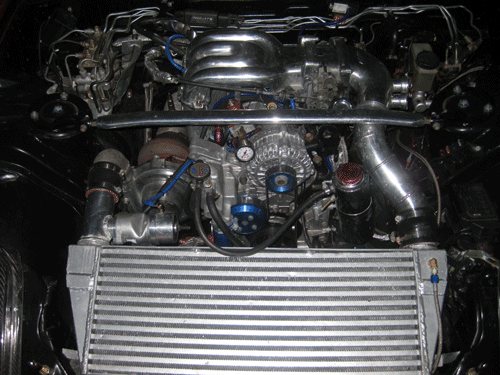

that was just the pre build. it was only going to take a year to pre fit everything but, i started a new job and didnt have time to work on it. well two years later it will be done by this spring. Im going full bridge with a gt42 and re-doing the body work with some custom carbon body and dash pieces. me and my boy are going to start putting in the krik 12 point roll cage next week,if the parts show up on time. then im going to start sanding her down for all new paint. dont know what color i wont to go with yet though. it will be white or blue. what color do you guys think it should be.



the cell is a 16 gallons.



i hate to be a PITA, but could you possibly send me your complete fuel set up? its similar to what i had in mind for mine.



looks awsome



thanks man



I just got the motor out and now is out with the four point roll bar and in with the 12 point cag. all the seems will be stick welded too. i will take pics at that time.



The motor should be done soon cant what. I got the new turbo too.

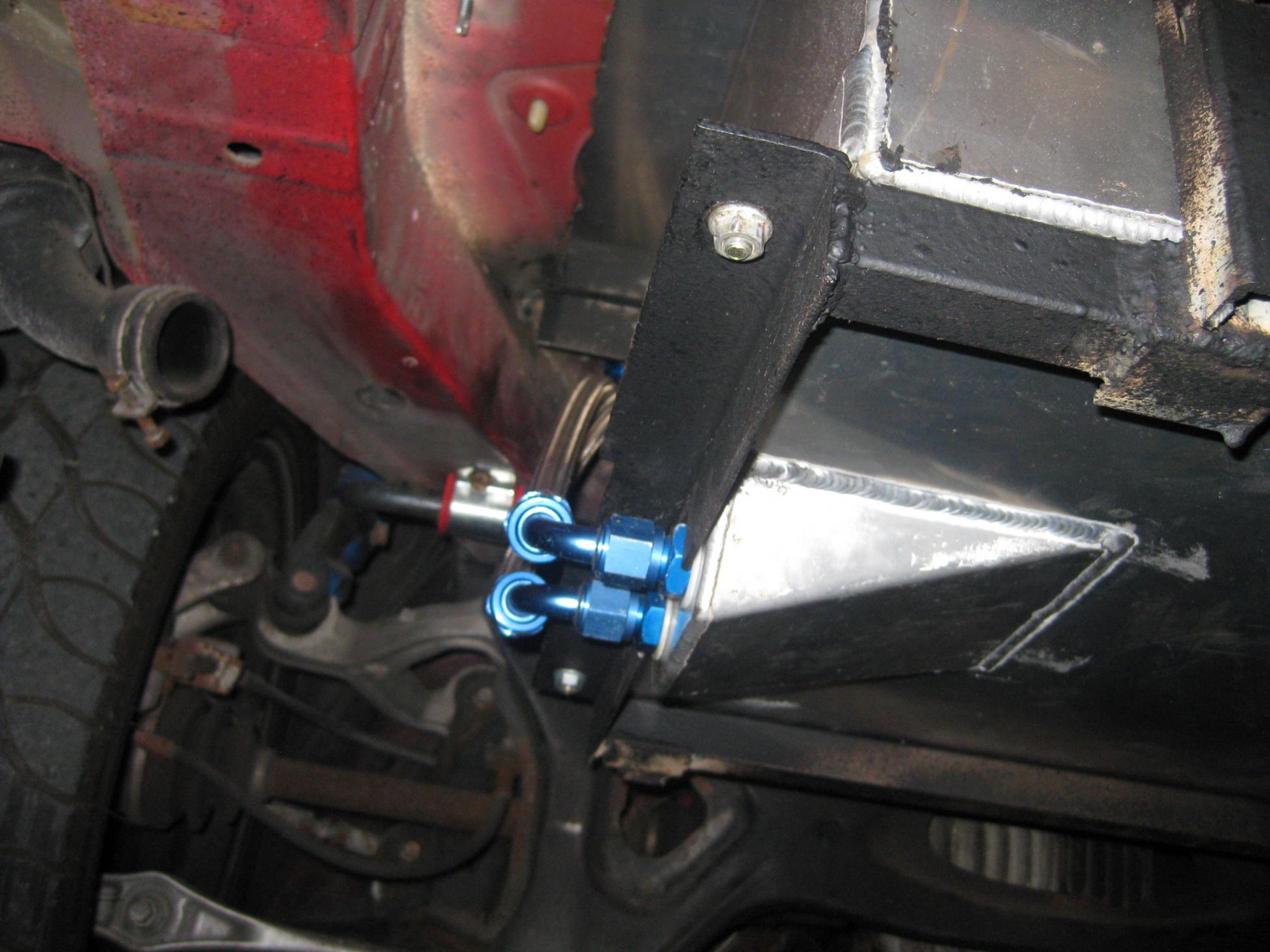

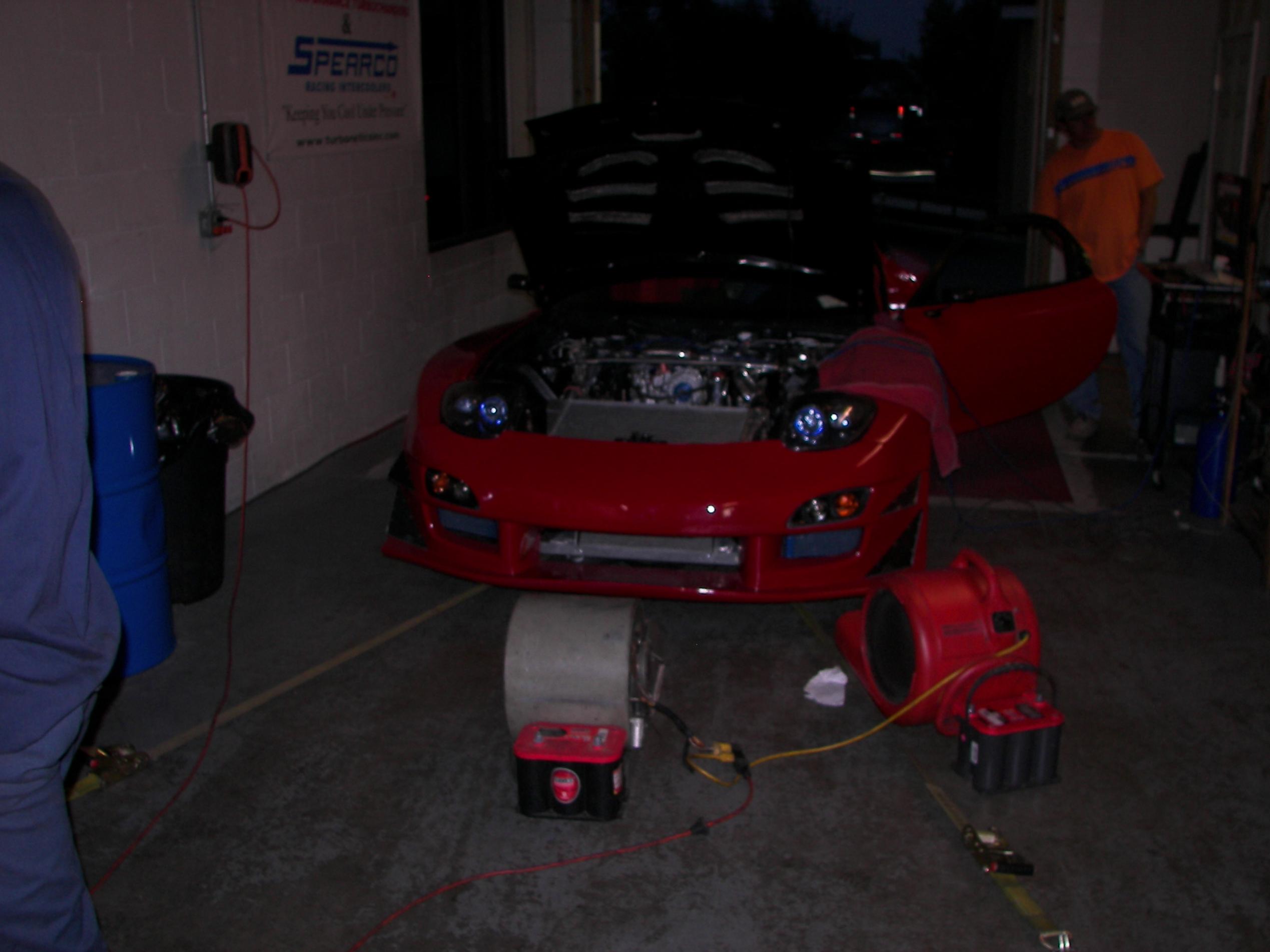

some more pics



why are your fuel lines on the side instead of the rear? if you make a hard left turn your not going to have any fuel!



That is what the surge tank on the left side of the trunk is for. There is a small pump that fills it up and is always full.
