best stock port frankenwankel
#1
best stock port frankenwankel
Due to some racing classes rotaries are poo-poo'd on and simple things like a streetport bumps you out of a class and/or turbos are not allowed. So how have some of you overcome this stock port rules for a 13b?
Whats the best (biggest) stock ports if you had to piece together something?
REW irons + s6 housings? Where are some other good suggestions? I've seen the mazdatrix using the renesis center iron that looked pretty cool and scalloping the rotors is an option. It is costly but nothing NA and rotary is cheap these days...
Whats the best (biggest) stock ports if you had to piece together something?
REW irons + s6 housings? Where are some other good suggestions? I've seen the mazdatrix using the renesis center iron that looked pretty cool and scalloping the rotors is an option. It is costly but nothing NA and rotary is cheap these days...
Last edited by fidelity101; 12-12-16 at 02:36 PM.
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
the cosmo end irons with the FD center, i believe is the biggest stock porting setup.
#4
Old [Sch|F]ool
If you're looking at entering stage rally, look closely at what the Group 2 rules say. I think they say the engine must be "Improved Touring" legal which means basically you're stuck with a 6-port since that's what's legal for your car.
#5
Rally-America
Rotary engines are allowed with stock OE porting and induction. The displacement for a rotary is subject to a multiplier of 1.8 which shall be applied to the 2 valve weight chart above.
1308cc*1.8 = 2354cc so it falls under 1030 kg (2271 lbs) requirement
Rotary engines are allowed with stock OE porting and induction. The displacement for a rotary is subject to a multiplier of 1.8 which shall be applied to the 2 valve weight chart above.
1308cc*1.8 = 2354cc so it falls under 1030 kg (2271 lbs) requirement
NASA:
puts you automatically in open 2wd heavy with a rotary.
3.3
Vehicle Class - Open 2WD Heavy and Light
Philosophy: Open class vehicles allow any modification you can dream up to the car, unless you are specifically told you can't do it by a rule within Section 3.
puts you automatically in open 2wd heavy with a rotary.
3.3
Vehicle Class - Open 2WD Heavy and Light
Philosophy: Open class vehicles allow any modification you can dream up to the car, unless you are specifically told you can't do it by a rule within Section 3.
ARA:
The engine is unrestricted, but must be derived from the product line offered by the vehicle manufacturer. The maximum adjusted displacement (1.8 for Open 2WD is 5100cc. Rotary engines are restricted to no more than two rotors. There is no minimum weight for Open 2WD. no PP porting for open 4WD
The engine is unrestricted, but must be derived from the product line offered by the vehicle manufacturer. The maximum adjusted displacement (1.8 for Open 2WD is 5100cc. Rotary engines are restricted to no more than two rotors. There is no minimum weight for Open 2WD. no PP porting for open 4WD
Last edited by fidelity101; 12-13-16 at 02:36 PM.
#6
Old [Sch|F]ool
OE porting and induction = hunt down a 13B-RE. Assuming that they mean OE for the engine and not OE for the chassis.
An engine with Turbo II rotor housings and FD intermediate housing and 13B-RE end housings is not "OE porting" by any stretch. For that matter you can buy bridge ported side housings from Mazda Motorsports.
An engine with Turbo II rotor housings and FD intermediate housing and 13B-RE end housings is not "OE porting" by any stretch. For that matter you can buy bridge ported side housings from Mazda Motorsports.
#7
Rotary Enthusiast
Banzai has this on their website:
Banzai Racing (Keefer 13B RX-7 Engine Installation)
I have tried looking for other stock porting 4 port 13B NA dynos but i haven't came up with anything. SCCA STL class allows engine swaps, you can submit an engine to be added to a list and i thought about the 4 port turbo motors minus the turbos, but they would need to make more power than the S5 NA motor to make sense.
Trending Topics
#8
OE porting and induction = hunt down a 13B-RE. Assuming that they mean OE for the engine and not OE for the chassis.
An engine with Turbo II rotor housings and FD intermediate housing and 13B-RE end housings is not "OE porting" by any stretch. For that matter you can buy bridge ported side housings from Mazda Motorsports.
An engine with Turbo II rotor housings and FD intermediate housing and 13B-RE end housings is not "OE porting" by any stretch. For that matter you can buy bridge ported side housings from Mazda Motorsports.
#9
Old [Sch|F]ool
I think the best option would be a Duratec with good rods and pistons with some compression, ITBs, and headers. Make waaaay more than any stock port/stock manifold rotary.
With mild cams this is a 300 crank HP engine. And you'll never put that much power down anyway. Group 2 legal. And you probably won't have to change the catalyst at every service!
Or just run anything in there until you get enough coefficients that you can run Group 5. Fun rotaries will always be hampered by the catalyst rule unless you find an SA rally car.
With mild cams this is a 300 crank HP engine. And you'll never put that much power down anyway. Group 2 legal. And you probably won't have to change the catalyst at every service!
Or just run anything in there until you get enough coefficients that you can run Group 5. Fun rotaries will always be hampered by the catalyst rule unless you find an SA rally car.
Last edited by peejay; 12-14-16 at 04:55 PM.
#10
I think the best option would be a Duratec with good rods and pistons with some compression, ITBs, and headers. Make waaaay more than any stock port/stock manifold rotary.
With mild cams this is a 300 crank HP engine. And you'll never put that much power down anyway. Group 2 legal. And you probably won't have to change the catalyst at every service!
Or just run anything in there until you get enough coefficients that you can run Group 5. Fun rotaries will always be hampered by the catalyst rule unless you find an SA rally car.
With mild cams this is a 300 crank HP engine. And you'll never put that much power down anyway. Group 2 legal. And you probably won't have to change the catalyst at every service!
Or just run anything in there until you get enough coefficients that you can run Group 5. Fun rotaries will always be hampered by the catalyst rule unless you find an SA rally car.
oh well, see you at snowdrift!

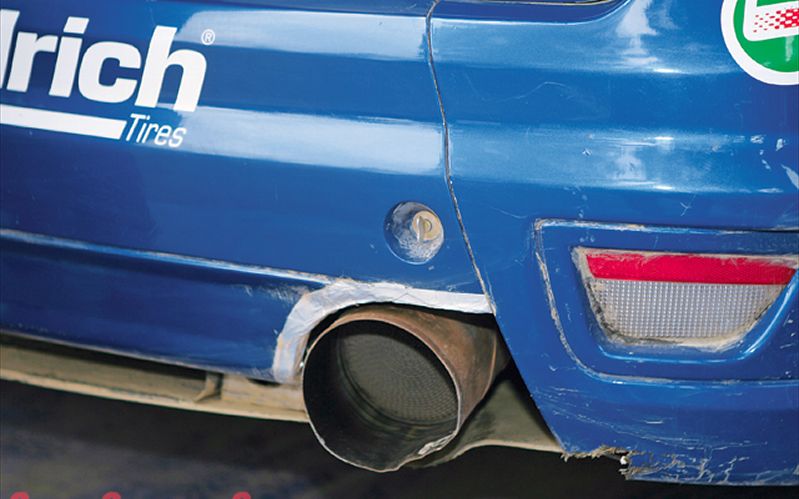

I also plan on putting the catalyst on the very back like so:
Last edited by fidelity101; 12-15-16 at 07:37 AM.
#11
spoon!
I talked to Mike Hurst about this via email - he said basically the rules were written to keep peripheral ports out of Group 2 but floated the idea of allowing street ports if anyone was going to bring a car. Especially given performance potential of other legal options in the class.
Following the rules as written, I think there's an argument for a Renesis, in the "bang the engine in and go run it" sense, or an S5 NA engine with aggressive tuning.
I do want to do a Duratec build though, just not in a 7. Peejay, did you see what Esslinger parts bin engineered? Apparently the TIVCT Focus head is really really good.
Following the rules as written, I think there's an argument for a Renesis, in the "bang the engine in and go run it" sense, or an S5 NA engine with aggressive tuning.
I do want to do a Duratec build though, just not in a 7. Peejay, did you see what Esslinger parts bin engineered? Apparently the TIVCT Focus head is really really good.
#12
I talked to Mike Hurst about this via email - he said basically the rules were written to keep peripheral ports out of Group 2 but floated the idea of allowing street ports if anyone was going to bring a car. Especially given performance potential of other legal options in the class.
Following the rules as written, I think there's an argument for a Renesis, in the "bang the engine in and go run it" sense, or an S5 NA engine with aggressive tuning.
I do want to do a Duratec build though, just not in a 7. Peejay, did you see what Esslinger parts bin engineered? Apparently the TIVCT Focus head is really really good.
Following the rules as written, I think there's an argument for a Renesis, in the "bang the engine in and go run it" sense, or an S5 NA engine with aggressive tuning.
I do want to do a Duratec build though, just not in a 7. Peejay, did you see what Esslinger parts bin engineered? Apparently the TIVCT Focus head is really really good.
#13
Old [Sch|F]ool
I talked to Mike Hurst about this via email - he said basically the rules were written to keep peripheral ports out of Group 2 but floated the idea of allowing street ports if anyone was going to bring a car. Especially given performance potential of other legal options in the class.
I do want to do a Duratec build though, just not in a 7. Peejay, did you see what Esslinger parts bin engineered? Apparently the TIVCT Focus head is really really good.
What I did remember from years back was a company in Kansas that was putting stacks, headers, and 12:1 compression in the Ranger-sourced Duratec, and getting 250hp from 5500-8500, stock head and cams. (NEED better rods to increase redline, period!) Upgrade the cams and the powerband doesn't fall flat, engine making about 300hp peak. Still untouched head casting.
I understand that the 2.5 has much bigger ports, but do you really need that if you can make that much power on untouched early castings? I believe that ports should be as small as possible to meet power goals, this helps make the powerband nice and broad.
Last edited by peejay; 12-16-16 at 12:59 PM.
#14
spoon!
Esslinger apparently moved to doing Duratec stuff too. They did a motor package for... I don't know what midget class exactly, but it mandates unported head, production block and crank and a 2.4L limit. So it's the Focus head with the direct injection ports plugged, which apparently has a really good port angle for tumble and in-cylinder motion, on a 2.5 block with a Ranger crank. Making well clear of 300hp apparently.
I actually want to get one of those heads to cut up and put on work's flowbench. Well, after I get my 13B flowbench adapter made.
I actually want to get one of those heads to cut up and put on work's flowbench. Well, after I get my 13B flowbench adapter made.
#15
Old [Sch|F]ool
2.4l, 300hp, rear drive, makes me think of the Opel Manta 400s.
A friend of mine HAD a Manta. He sold it before he did much with it. Kind of sad to see it go, that car was awesome and incredibly light too! Makes you understand how you see four or five people bodily lifting them out of a ditch somewhere in rural Finland
"Unported head, production block and crank" makes me think the class structure was written to allow K24s to run. At least, when I was looking up displacement breaks for pushrod vs. OHC engines, I saw that they were letting K24s run with heavy restriction.
A friend of mine HAD a Manta. He sold it before he did much with it. Kind of sad to see it go, that car was awesome and incredibly light too! Makes you understand how you see four or five people bodily lifting them out of a ditch somewhere in rural Finland
"Unported head, production block and crank" makes me think the class structure was written to allow K24s to run. At least, when I was looking up displacement breaks for pushrod vs. OHC engines, I saw that they were letting K24s run with heavy restriction.
Last edited by peejay; 12-16-16 at 06:14 PM.
#16
Red Pill Dealer
iTrader: (10)
Hybrid K24's are awesome. I dayly a K20 Z1 and know all about putting the head on a K24. The mods to make this even better are endless. I'm surprised at the offers I get for the car just because of the engine and the guys running this **** have fast cars. The first time I saw a K24 with a K20 head (with other performance goodies) go I was amazed. I'm now really searching the duratec just to get the info.
#17
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
Hybrid K24's are awesome. I dayly a K20 Z1 and know all about putting the head on a K24. The mods to make this even better are endless. I'm surprised at the offers I get for the car just because of the engine and the guys running this **** have fast cars. The first time I saw a K24 with a K20 head (with other performance goodies) go I was amazed. I'm now really searching the duratec just to get the info.
either that or an FD look good. torque is hard with the FD, but it looks good, and Mazda pays you if you win...
Mustang is choice 3, its expensive, and heavy.
#18
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
turns out cats want 3 things, which really dictate how you tune the engine.
1. they want an AFR that is 14.7 +/- about .5. 14.7 is almost optimum, the cat actually wants to see the AFR vary slightly.
2. the cat needs to be over 450c to work, and under 650c not to melt. the eagle eyed will notice that if the engine makes max power around 920c, and the cat melts at 650c, the cat may not live very long. i have an EGT on an FD ecu right now, and so far preturbo EGT's have been between 650-800c the whole time. or we all know that the OEM tune is rich up top, and this is partly why.
3. the exhaust pulses on a rotary are super sonic. piston engines are lazy, and the exhaust opens slowly, and velocity is slow, and it only happens once in a while. the Rotary is not lazy, the exhaust happens all the time, and it goes supersonic. its like hitting the cat with a hammer. anything you can do to slow down or even out the pulses will help a lot here.
