Hard starting/ Need map for 720 primaries - s4 13bt street port.
Mods..
difficulty starting/holding idle. fresh rebuild on 720 primaries. Anyone have a map?
Street port, 720 primaries/ 1680 secondaries.
I'm having a hard time getting the car to run right just on idle. Does anyone have a base map for 720's or something close??
I know the motor will run. It's a tuning issue thats keeping me from doing it.
Any help is appreciated.
difficulty starting/holding idle. fresh rebuild on 720 primaries. Anyone have a map?
Street port, 720 primaries/ 1680 secondaries.
I'm having a hard time getting the car to run right just on idle. Does anyone have a base map for 720's or something close??
I know the motor will run. It's a tuning issue thats keeping me from doing it.
Any help is appreciated.
#3
Brap Brap Brap
Thread Starter
Join Date: Oct 2002
Location: Corpus Christi, TX
Posts: 678
Likes: 0
Received 0 Likes
on
0 Posts
This is Himniracing's map.
I'm wondering if i set timing correctly.

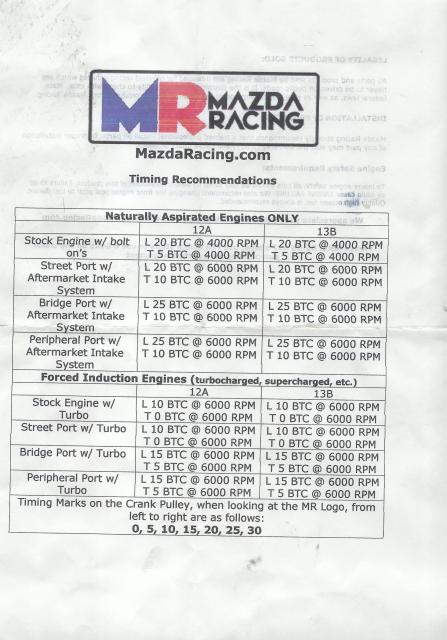

I'm usuing a mazda racing crank pulley and it has 7 marks for timing, and i have it at the 10 degree mark when stabbing the CAS. I need to see if the keyway is at the 9 oclock position and try stabbing again.
I could get it running, but it was only on one rotor and then figiting with the fuel, the second rotor would eventually try to kick on. I think its just way too rich and flooding the rotor.
I tried silverrotor's map for the idle screen. This hand controller is really upsetting me with the buttons, they don't work sometimes.
Thanks.
Idle
Screen 1
30" Hg ... 1.00
25" Hg ... 1.00
20" Hg ... 1.10
15" Hg ... 1.33
10" Hg ... 1.62
05" Hg ... 1.86
00" Hg ... 2.00
Load
Screen 3
30" ... 1.52
25" ... 1.48
20" ... 1.67
15" ... 2.00
10" ... 2.67
05" ... 3.33
00" ... 3.86
2psi ... 4.29
4psi ... 4.67
6psi ... 5.00
8psi ... 5.57
10psi ... 6.19
14psi ... 6.95
16psi ... 7.76
18psi ... 8.90
20psi ... 10.00
RPMwot
Screen 17
0500 ... +00%
1000 ... +00%
1500 ... +00%
2000 ... +00%
2500 ... +00%
3000 ... +00%
3500 ... +00%
4000 ... +00%
4500 ... +00%
5000 ... +00%
5500 ... +00%
6000 ... +00%
6500 ... -01%
7000 ... -02%
8000 ... -03%
9000 ... -04%
RPMcrs
Screen 18
0500 ... +00%
1000 ... +00%
1500 ... +00%
2000 ... +00%
2500 ... +00%
3000 ... +00%
3500 ... +00%
4000 ... +00%
4500 ... +00%
5000 ... +00%
5500 ... +00%
6000 ... +00%
6500 ... +00%
7000 ... +00%
7500 ... +00%
8000 ... +00%
9000 ... +00%
Pump
Screen 19
Pump1 Amt ... +10%
Pump1pulse ... +2%
Pump1Trig ... +14%
Pump1Stop ... 00"Hg
Pump2Start ...2000
Pump2Amt ... +25%
Pump2Time ... +10
Pump2Trig ... +16
Pump2Stop ... 00"Hg
Pump1ADV ... +5
Pump2ADV ... +5
Pump Dwell ... 3.00
Pump Timers ... NO
Pump1 Sync ... NO
Pump Spare ... +8%
Water
Screen 20
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +08%
60 C ... +12%
46 C ... +15%
38 C ... +20%
31 C ... +30%
24 C ... +35%
18 C ... +45%
11 C ... +50%
5 C ... +50%
-1 C ... +55%
-9 C ... +60%
-17 C ... +70%
-25 C ... +00%
Air_t
Screen 21
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +00%
60 C ... +00%
46 C ... +00%
38 C ... +00%
31 C ... +00%
24 C ... +00%
18 C ... +2%
11 C ... +3%
5 C ... +4%
-1 C ... +5%
-9 C ... +6%
-17 C ... +8%
-25 C ... +00%
Crank
Screen 22
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +05%
60 C ... +15%
46 C ... +20%
38 C ... +26%
31 C ... +31%
24 C ... +41%
18 C ... +50%
11 C ... +57%
5 C ... +62%
-1 C ... +67%
-9 C ... +72%
-17 C ... +72%
-25 C ... 72%
t* rpm
Screen 23
Idle ... +20
1000 ... +22
1500 ... +20
2000 ... +20
2500 ... +25
3000 ... +25
3500 ... +25
4000 ... +25
4500 ... +25
5000 ... +25
5500 ... +25
6000 ... +25
6500 ... +25
7000 ... +25
8000 ... +25
9000 ... +25
t*map
Screen 24
20 psi ... -13
18 psi ... -14
16 psi ... -12
14 psi ... -12
10 psi ... -10
8 psi ... -10
6 psi ... -06
4 psi ... -04
2 psi ... -02
00"Hg ... +00
05"Hg ... +00
10"Hg ... +02
15"Hg ... +03
20"Hg ... +04
25"Hg ... +05
t*air
Screen 25
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +00%
60 C ... +00%
46 C ... +00%
38 C ... +00%
31 C ... +00%
24 C ... +00%
18 C ... +00%
11 C ... +00%
5 C ... +00%
-1 C ... +00%
-9 C ... +00%
-17 C ... +00%
-25 C ... +00%
t*gap
Screen 26
0500 ... +15
1000 ... +15
1500 ... +15
2000 ... +14
2500 ... +12
3000 ... +10
3500 ... +10
4000 ... +10
4500 ... +10
5000 ... +10
5500 ... +10
6000 ... +10
6500 ... +10
7000 ... +10
8000 ... +10
9000 ... +10
t*Inj
Screen 27
0500 ... 120
1000 ... 150
1500 ... 150
2000 ... 150
2500 ... 150
3000 ... 150
3500 ... 180
4000 ... 180
4500 ... 210
5000 ... 210
5500 ... 210
6000 ... 240
6500 ... 240
7000 ... 270
8000 ... 270
9000 ... 270
t* wat
Screen 28
124 C ... +00
99 C ... +00
82 C ... +00
68 C ... +00
60 C ... +00
46 C ... +00
38 C ... +00
31 C ... +00
24 C ... +00
18 C ... +00
11 C ... +00
5 C ... +00
-1 C ... +00
-9 C ... +00
-17 C ... +00
-25 C ... +00
Option
Screen 30
Opt MIXtrm +00%
Opt TPScal +34%
Opt TIMtrm +00%
Opt Static +00%
Opt TIMmax +27
Opt RPMwot 04"Hg
Opt RPMcrs 17"Hg
Opt AF_ste +08%
Opt REVlim OFF
Opt REVcut OFF
Opt BstCUT OFF
Opt REVstg 3000
Opt MAPstg 04"Hg
Opt %stg +60%
Opt Decel OFF
Opt Dwell 3.00
Screen 31
Config +04 Cyl/R
Firing SEQUENTIAL
LOAD = MAP Sensor
DWELL = Time base
Input Trig +POS
Spark Trig SER4
Timing check OFF
Rpm_ON 2500 Log
Map_ON 02psi Log
Sample +00 Log
Spare +00 Log
SHIFT 9750 Dash
WATER 92 C Dash
Air_T 40 C Dash
BOOST 17psi Dash
I'm wondering if i set timing correctly.
I'm usuing a mazda racing crank pulley and it has 7 marks for timing, and i have it at the 10 degree mark when stabbing the CAS. I need to see if the keyway is at the 9 oclock position and try stabbing again.
I could get it running, but it was only on one rotor and then figiting with the fuel, the second rotor would eventually try to kick on. I think its just way too rich and flooding the rotor.
I tried silverrotor's map for the idle screen. This hand controller is really upsetting me with the buttons, they don't work sometimes.
Thanks.
Idle
Screen 1
30" Hg ... 1.00
25" Hg ... 1.00
20" Hg ... 1.10
15" Hg ... 1.33
10" Hg ... 1.62
05" Hg ... 1.86
00" Hg ... 2.00
Load
Screen 3
30" ... 1.52
25" ... 1.48
20" ... 1.67
15" ... 2.00
10" ... 2.67
05" ... 3.33
00" ... 3.86
2psi ... 4.29
4psi ... 4.67
6psi ... 5.00
8psi ... 5.57
10psi ... 6.19
14psi ... 6.95
16psi ... 7.76
18psi ... 8.90
20psi ... 10.00
RPMwot
Screen 17
0500 ... +00%
1000 ... +00%
1500 ... +00%
2000 ... +00%
2500 ... +00%
3000 ... +00%
3500 ... +00%
4000 ... +00%
4500 ... +00%
5000 ... +00%
5500 ... +00%
6000 ... +00%
6500 ... -01%
7000 ... -02%
8000 ... -03%
9000 ... -04%
RPMcrs
Screen 18
0500 ... +00%
1000 ... +00%
1500 ... +00%
2000 ... +00%
2500 ... +00%
3000 ... +00%
3500 ... +00%
4000 ... +00%
4500 ... +00%
5000 ... +00%
5500 ... +00%
6000 ... +00%
6500 ... +00%
7000 ... +00%
7500 ... +00%
8000 ... +00%
9000 ... +00%
Pump
Screen 19
Pump1 Amt ... +10%
Pump1pulse ... +2%
Pump1Trig ... +14%
Pump1Stop ... 00"Hg
Pump2Start ...2000
Pump2Amt ... +25%
Pump2Time ... +10
Pump2Trig ... +16
Pump2Stop ... 00"Hg
Pump1ADV ... +5
Pump2ADV ... +5
Pump Dwell ... 3.00
Pump Timers ... NO
Pump1 Sync ... NO
Pump Spare ... +8%
Water
Screen 20
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +08%
60 C ... +12%
46 C ... +15%
38 C ... +20%
31 C ... +30%
24 C ... +35%
18 C ... +45%
11 C ... +50%
5 C ... +50%
-1 C ... +55%
-9 C ... +60%
-17 C ... +70%
-25 C ... +00%
Air_t
Screen 21
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +00%
60 C ... +00%
46 C ... +00%
38 C ... +00%
31 C ... +00%
24 C ... +00%
18 C ... +2%
11 C ... +3%
5 C ... +4%
-1 C ... +5%
-9 C ... +6%
-17 C ... +8%
-25 C ... +00%
Crank
Screen 22
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +05%
60 C ... +15%
46 C ... +20%
38 C ... +26%
31 C ... +31%
24 C ... +41%
18 C ... +50%
11 C ... +57%
5 C ... +62%
-1 C ... +67%
-9 C ... +72%
-17 C ... +72%
-25 C ... 72%
t* rpm
Screen 23
Idle ... +20
1000 ... +22
1500 ... +20
2000 ... +20
2500 ... +25
3000 ... +25
3500 ... +25
4000 ... +25
4500 ... +25
5000 ... +25
5500 ... +25
6000 ... +25
6500 ... +25
7000 ... +25
8000 ... +25
9000 ... +25
t*map
Screen 24
20 psi ... -13
18 psi ... -14
16 psi ... -12
14 psi ... -12
10 psi ... -10
8 psi ... -10
6 psi ... -06
4 psi ... -04
2 psi ... -02
00"Hg ... +00
05"Hg ... +00
10"Hg ... +02
15"Hg ... +03
20"Hg ... +04
25"Hg ... +05
t*air
Screen 25
124 C ... +00%
99 C ... +00%
82 C ... +00%
68 C ... +00%
60 C ... +00%
46 C ... +00%
38 C ... +00%
31 C ... +00%
24 C ... +00%
18 C ... +00%
11 C ... +00%
5 C ... +00%
-1 C ... +00%
-9 C ... +00%
-17 C ... +00%
-25 C ... +00%
t*gap
Screen 26
0500 ... +15
1000 ... +15
1500 ... +15
2000 ... +14
2500 ... +12
3000 ... +10
3500 ... +10
4000 ... +10
4500 ... +10
5000 ... +10
5500 ... +10
6000 ... +10
6500 ... +10
7000 ... +10
8000 ... +10
9000 ... +10
t*Inj
Screen 27
0500 ... 120
1000 ... 150
1500 ... 150
2000 ... 150
2500 ... 150
3000 ... 150
3500 ... 180
4000 ... 180
4500 ... 210
5000 ... 210
5500 ... 210
6000 ... 240
6500 ... 240
7000 ... 270
8000 ... 270
9000 ... 270
t* wat
Screen 28
124 C ... +00
99 C ... +00
82 C ... +00
68 C ... +00
60 C ... +00
46 C ... +00
38 C ... +00
31 C ... +00
24 C ... +00
18 C ... +00
11 C ... +00
5 C ... +00
-1 C ... +00
-9 C ... +00
-17 C ... +00
-25 C ... +00
Option
Screen 30
Opt MIXtrm +00%
Opt TPScal +34%
Opt TIMtrm +00%
Opt Static +00%
Opt TIMmax +27
Opt RPMwot 04"Hg
Opt RPMcrs 17"Hg
Opt AF_ste +08%
Opt REVlim OFF
Opt REVcut OFF
Opt BstCUT OFF
Opt REVstg 3000
Opt MAPstg 04"Hg
Opt %stg +60%
Opt Decel OFF
Opt Dwell 3.00
Screen 31
Config +04 Cyl/R
Firing SEQUENTIAL
LOAD = MAP Sensor
DWELL = Time base
Input Trig +POS
Spark Trig SER4
Timing check OFF
Rpm_ON 2500 Log
Map_ON 02psi Log
Sample +00 Log
Spare +00 Log
SHIFT 9750 Dash
WATER 92 C Dash
Air_T 40 C Dash
BOOST 17psi Dash
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Those values look reasonable, I don't know what to tell you.
The easiest thing to do at this point to prove it's too much fuel is to adjust the MixTrim value negative until the engine cleans up. Then you can look at the PWM times being output and apply those to the idle screens.
The easiest thing to do at this point to prove it's too much fuel is to adjust the MixTrim value negative until the engine cleans up. Then you can look at the PWM times being output and apply those to the idle screens.
#6
Brap Brap Brap
Thread Starter
Join Date: Oct 2002
Location: Corpus Christi, TX
Posts: 678
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rx72c
Load
00" ... 2.3
2psi ... 2.6
Change these 2 values as they will affect your start up.
Whats is your staging set at?
50%?
99%?
00" ... 2.3
2psi ... 2.6
Change these 2 values as they will affect your start up.
Whats is your staging set at?
50%?
99%?
I'm lost.. what do you mean staging?
Load settings will effect idle??
I'm still learning a lot of this system.. its hard to learn so far.
Thanks for your help.
Justin
Trending Topics
#8
Brap Brap Brap
Thread Starter
Join Date: Oct 2002
Location: Corpus Christi, TX
Posts: 678
Likes: 0
Received 0 Likes
on
0 Posts
I set timing in accordance with the mazda racing pulley setup chart below
i set it at the ten degree mark.
I'm really thinking of going with the stock pulley for simplicity though..
-Justin
i set it at the ten degree mark.
I'm really thinking of going with the stock pulley for simplicity though..
-Justin
#9
www.lms-efi.com
iTrader: (27)
Originally Posted by Mx6-Rx7 Addict
I set timing in accordance with the mazda racing pulley setup chart below
i set it at the ten degree mark.
I'm really thinking of going with the stock pulley for simplicity though..
-Justin
i set it at the ten degree mark.
I'm really thinking of going with the stock pulley for simplicity though..
-Justin
If you aligned the marks on the CAS and then dropped it in with the pulley set at 10* BTDC your timing is off by 15*. And have you shot it with a timing light to confirm it's zeroed?
The MT zeros at TDC. So with the timing locked you should have the TDC mark on the pulley aligned with the timing indicator. No need to swap pulleys. Just make sure it's properly adjusted.
#11
Sharp Claws
iTrader: (30)
as far as i read it in the manual they want you to set it at 5*ATDC mark to zero it out. that is how i have been doing it but who knows.. maybe i have been doing it wrong. all the cars i have set at the stock 5* marks idle perfect so i would take a stab that that is where they want it.
as for maps, it would have to be the same exact setup. 720 primaries doesn't mean much, unless everything else is in line with your setup it just needs to be fine tuned by you.
as for maps, it would have to be the same exact setup. 720 primaries doesn't mean much, unless everything else is in line with your setup it just needs to be fine tuned by you.
Thread
Thread Starter
Forum
Replies
Last Post
Skeese
Adaptronic Engine Mgmt - AUS
65
03-28-17 03:30 PM
