Hardware: MS2 on a 13B
Firmware: ms2extra_pre3.3alpha5_gslender_v2.8_a
4 Injection Channels

8 Injectors
2 x front Rotor
2 x rear Rotor
2 x front Rotor staged
2 x rear Rotor staged

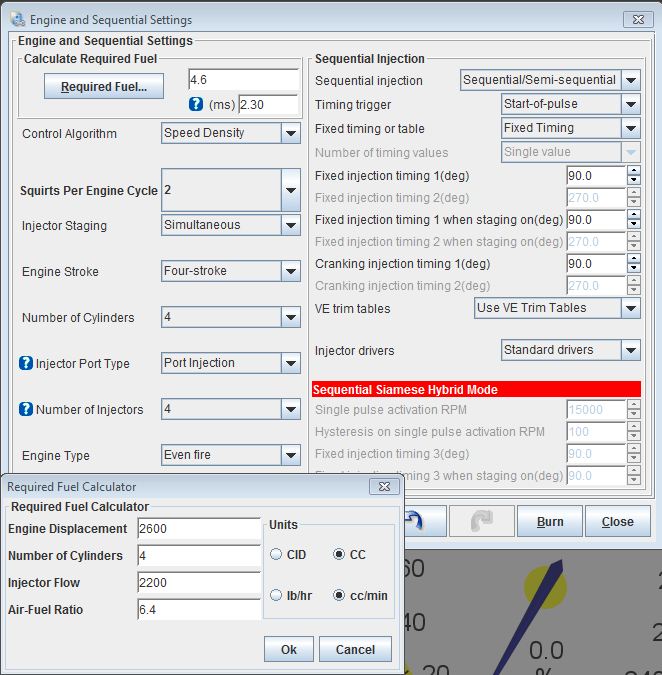

I do not have the Rotary Mode in the Engine and Sequential Settings in this Firmware. :-(
What settings do i have to take?

Req Fuel:
Displacement 1300 or 2600?
No of Cylinders 2 or 4?

Squirts by engine cycle 2?
4stroke or 2stroke?
4 Injectors or 8?



IIRC, Starting in 3.3.1, they put the Rotary Mode in "Engine Stroke". There should be 2-stroke, 4-stroke, and Rotary. Hope that helps.



ok, i switch to ms2extra_3.3.2



I'm not an expert but I believe you want:

Rotary
1300cc
4 Injectors( other 4 injectors setup in the staged menu)

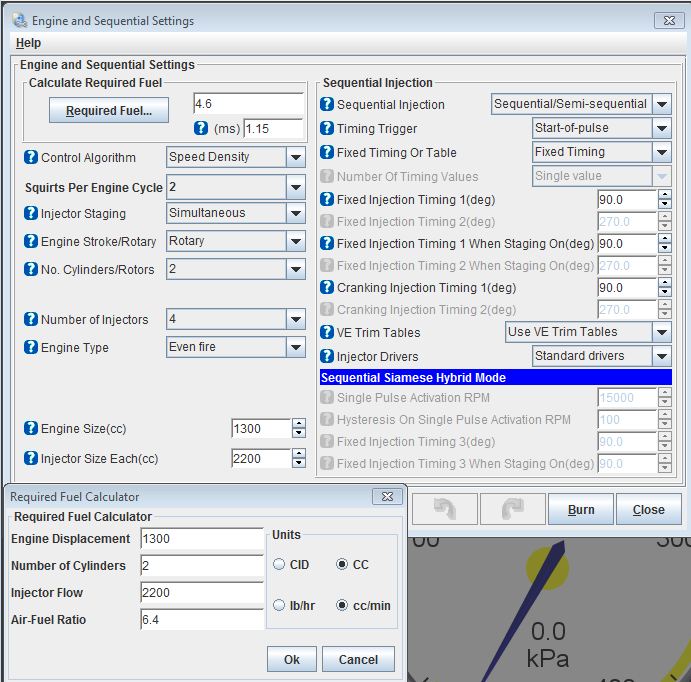

ok, new firmware ms2extra_3.3.2_release

maybe now looks better



I think that you cant do sequential injection with ms2 and rotary engines



http://jbperf.com/sequential/index.html

Shouldn't it be no different than sequential and staged injection on a 4 cylinder?



I believe theres a limits on the ms2 ship that don't allow you to do seq. on rotaries



sequential and ms2 on a rotory don't mix. The ignition setup won't allow it



We use the timers you would use for the 2nd and 3rd injectors to run trailing ignition.



That means rotary and sequential injection won't work on MS2?



no you need ms3 to do that



Correct.
