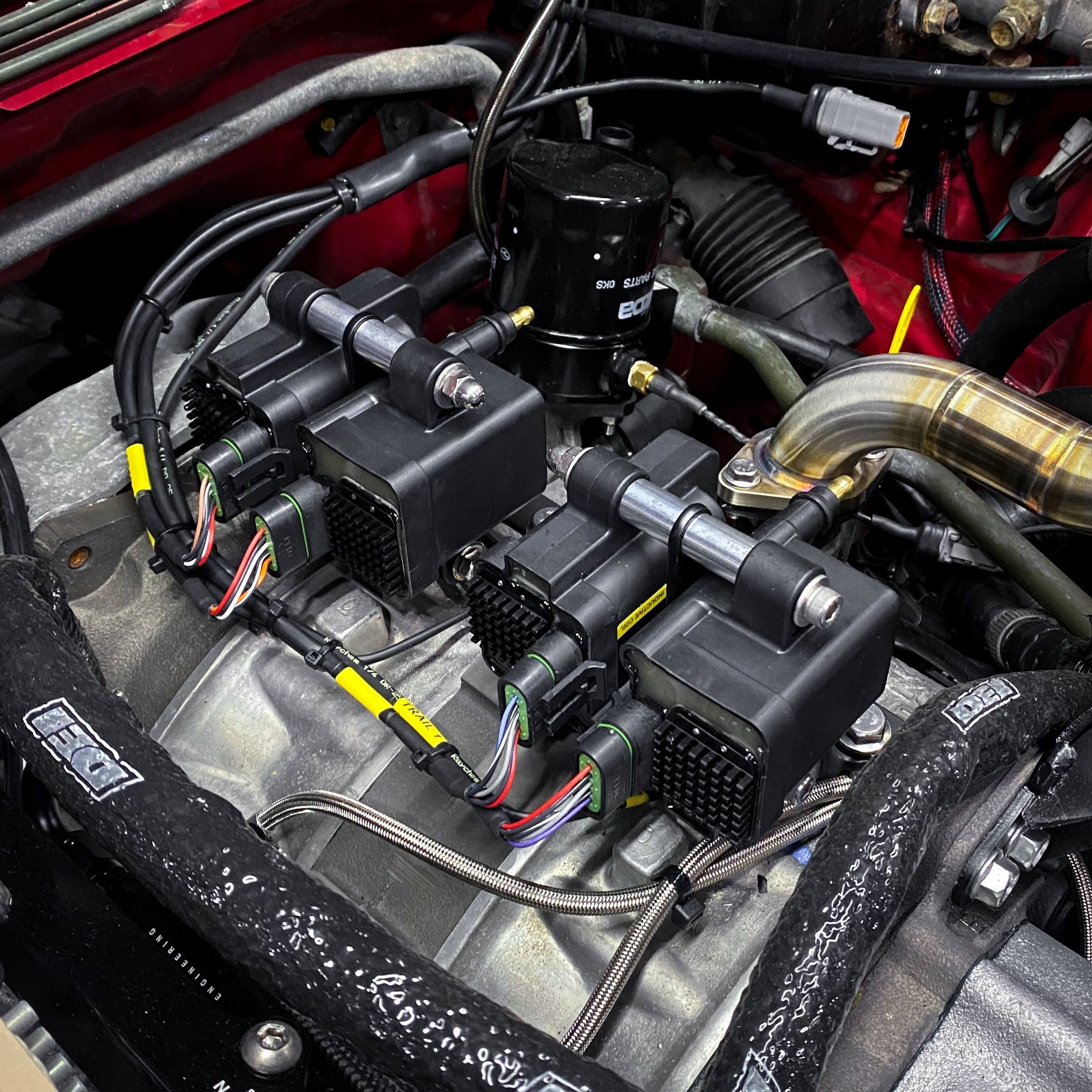

https://www.irperformance.com/produc...nition-system/Introducing our newest iteration of our IGN-1A Ignition System. This version is compatible with LHD or RHD single turbo cars and mounts discretely underneath the Upper Intake Manifold.

The IGN-1A Smart coils are becoming the new standard in the High Performance Community and the perfect solution for high horsepower FD’s. When upgrading to marine coils many have solutions that require modification to the factory wiring to get them working. We have designed a complete plug and play package for anyone looking for a easy upgrade solution. Simply Tap Power, Connect the proper grounds and plug in the igniter connector to the factory wiring; it is that simple.

Some additional upgrades are increased independent grounding points, DR-25 sheathing & mil-spec components used wherever possible.

IGN-1A Smart Ignition coils

Originally designed for marine engines requiring strong spark, these coils prove to be the best option for a rotary application.

The IGN-1A Ignition Smart Coils are perfect for boosted, high RPM, high compression, High HP rotary vehicles!

The IRP IGN-1A Plug & Play Ignition System allows you to easily and effortlessly install these High-Output coils.

Coils Highlights:

• Haltech IGN-1A Smart Coils provide
• Robust construction for long life
• Minimum Output Voltage (no load, at recommended dwell): 40,000 volts
• Maximum Output Voltage: up to 81,000 volts (+/- 10%)
• Output energy: 103 mJ
• Spark duration: 2.9 ms
• Primary resistance: 0.5 ohms (not directly measurable)
• Primary inductance: 4.8 mH (not directly measurable)
• Secondary resistance: 8,500 ohms
• Secondary inductance: 22.5 H
• Turns ratio: 71.1
• Maximum current: 19 amps
• Maximum battery voltage: 17 volts
• Nominal dwell: 3.0 ms**
• Weather and Shockproof design
• Harness connectors and terminals included
  **Excessive dwell or duty cycle may cause meltdown. As with any race coil, the manufacturer does not provide a warranty.

Mounting kit:

• Completely assembled and bolt on ready right out of the package.
• Black powder coated lightweight aluminum mount
• Stainless steel mounting hardware
• Allows you to retain cruise control
• Does not work with factory sequential solenoid rack. Will fit with most Parallel conversions and Single Turbo Kits that have removed the sequential solenoid rack.

Plug Wires

• Includes Custom Length MSD SuperConductor Spark plug wires for a factory feel, plug-and-play coil solution!
• All plug wires made in-house to ensure quality before they are installed or ship to the customer

Plug and Play Harness Adapter

This kit is fitted with a DTM 6 Pin connector to easily integrate with aftermarket Engine Management systems like Haltech. We also have an option to provide a DTM to Factory Ignitor Plug & Play Adaptor for this kit. Installing our harness requires absolutely no re-pinning of the factory igniter connector. It is 100% Plug and Play. There is no cutting or splicing required!
Highlights:

• Tefzel Mil-spec M22759/32 & /16 Wiring
• 40 amp Weather proof sealed relay
• Separate engine grounds for each rotor, Chassis Ground and Battery Negative
• Weather proof sealed fuse holder
• Raychem DR-25, SCL & ATUM Construction
• Additional strain reliefs at any stress points
• ALL Connections and Cables are Labeled for effortless installation
• Easy install (no cutting, re-pinning or splicing required)
• All harnesses made in-house to ensure quality before they are installed or ship to the customer

Currently about 1 week or less lead-time.
Orders are non-refundable once placed.
Due to supply chain difficulties due to COVID-19 these kits and other items may be delayed past their estimated lead time. Please bear with us during these unprecedented times.
