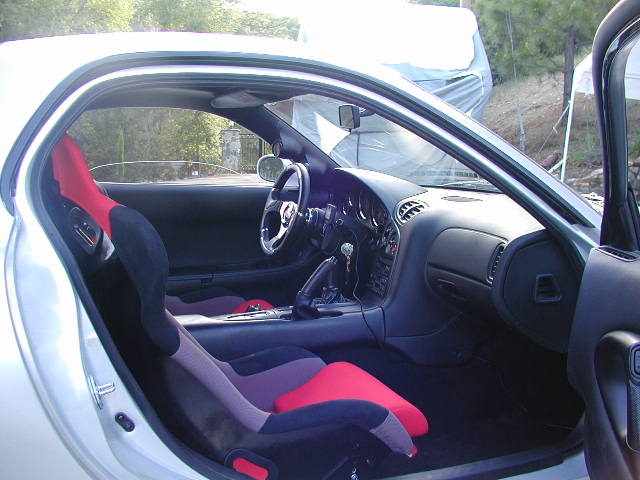

ok finally got some pics of my seat...buddy club with bride fg rail







oh ya...harness isnt hooked up if anyone is wondering why its just hanging behind the seat ^_^



MOMO race seats.



What's the headroom like with the buddy club with bride fg rail setup?

David



Patfat those seem to fit good!! I am surprised how much room between the gas cap popper and the side and the rails. I am impressed



how comfortable are those corbeau cr1's? do they have any decent lumbar support? i also wonder do these aftermarket seats sit at the same height as the stock ones?

the stock seats kill my back sometimes.



hmm its about the same as stock...i think the buddy club might be slightly lower than stock...



About $800 per seat.....they are identical except the SPA has a carbon/kevlar shell, the SPG has a fiberglass shell.

And for those interested in Recaros....the Bride seat rails for FDs fit the SPG/SPA perfectly.



A bit late, but just got a chance to snap some pics of my recently installed MemoryFab carbon fiber buckets. 13lbs each, with optional bolt-in sliders :



^^^I just found my new seats!!! THose looks awesome. I was gonna get brides but I didn't like how they attracted so much attention. But those memory fabs are awesome!!!



rxmfr7.... i would really suggest getting a harness bar instead of using your strut bar... the harness is only affective if is at a 45degree or just a bitter higher... scince yours is at a lower point if you get into even a minor collision the harness will crush your shoulders and compress them into your back.

btw... this has been tested.



He IS using a proper "RaceShop" harness bar.

DI



Hello Taikutsu

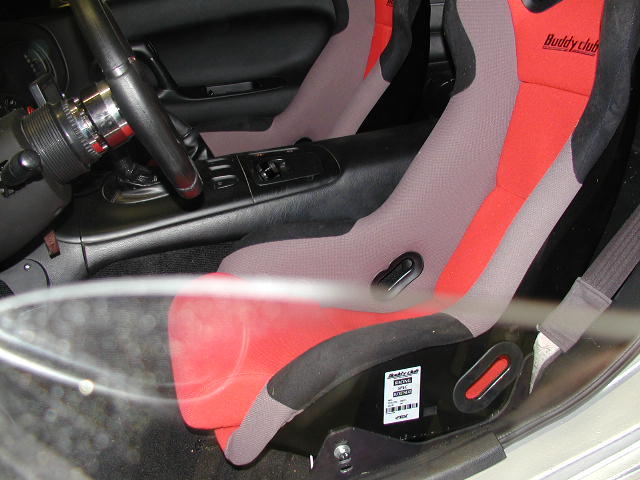

Thanks for the advice on these Buddy Club seats. They are pretty good quality when it comes to race seats. I like your more subtle color but, finally decided to take the leap and go for the red ones to intruduce a bit more color into my FD interior. I like them.

I decided to intall them just with the Cobra sidemount plates and no sliders. This way I could keep the installed weight down to 17 lbs. (13.5 seat and 3 lbs for Cobra plates, plus hardware), a savings of 17+ lbs per seat.

I really do not understand why most people have to use sliders. Sliders are heavy. The stock ones are close to 10lbs per seat. I suspect most owners are the only drivers of their cars so, there is really no need to install all that adjustibility into both seats.

Albert



axr6:
How did you install just the side mounts?



I used 6" long 1" wide 1/8 steel flatbars to mount the inside (next to the transmission tunnel) Cobra plates to the stock front mounting holes (with some offset angles) and used a short piece of the same flatbar to mount the back side to the factory seat mount hole. I also mounted the backside through the floor, as well, for added security.

On the door side I mounted the Cobra plates to the floor after strenghtening it with a couple of pieces of 1/16" metal plates on the outside and some aluminum 1" tall block on the inside so that the doorside rail had the same height and angle as the inside rail.

I mounted the stock seat belt clips to the Cobra brackets.

It is a tight fit but, definitely doable.

Albert



I don't know what you're smoking, man, but the shoulder harnesses are almost perfectly horizontal with that setup. They are certainly well within the acceptable angle ranges set by SCCA and NASA.



are u sure... lookin at that pic the harness looks like its mounted lower than its supose to be

dude.. im just sayin for saftey... ya.. it is kinda a impotant thing u kno



wow nice i found the site www.memoryfab.com

how do you like the seats? are they comfortable? whats the seating height? how tall are u? im amazed these cf seats are under $500.



You're right. But....you can clearly see in the pic that the harness is horizontal. Do you even have an FD? You can go out see that the harness bar (which replaces stock shock tower brace) is pretty much dead even with where the shoulder harnesses come through.



I have blitz by konegg, When i get them back in the car I'll take some pics.



i have bride vios3, alittle pricey but bracket fits nice and is very sturdy.



ooo looks good! ^_^ i was thinking of swapping my seat to some red ones



If you can't have Momo/sparco/recaro, I love those MemoryFab ones because they don't say "MemoryFab" blattantly on them. I'm not a label hound necessarily, but there's no way in hell I could run around with anything blattantly branded "Buddy Club" on it. Sounds like a gay afterhours joint. "Bride" isn't much better. I guess I could have that as a passenger seat and get mine custom embroidered to say "Groom".



^
When you are sitting in the car you can't see snap right?

And if you get in an accident, it's quality thats the most important?

I'll stick with the known ones.



Well, I know what you mean about those labels on the back. Buddy Club, Bride... hmmm... Also, Momo sounds like baby yepping and Recaro is so Latino Gay...

Oh, well... we could just duct tape over those labels or, just swallow our prides and take the 34 lbs weight savings and all the discomfort that goes with racing seats over those slippery leather ones.

Having racing blood flowing my arteries, I'd do FAR more for just the weight savings than have a silly logo behind my back...

Albert



Are buddy club seats FIA approved. Are Memory Fabs???

What the deal with seats without a Approval sticker??? Every seat I'v ever had in my race cars were FIA approved so I'v never seen what will happen if you don't have a sticker.
