DamonB

Here are the plans for the DamonB subwoofer enclosure. I produced dozens of these as kits years ago from 1/2" MDF panels that were CNC cut to shape which the user merely glued together. There is no need for this project to be CNC cut but since I have access to that equipment I used it to produce the kits. There is absolutely no reason you can't build this with nothing more than a circular saw to cut the parts and a jigsaw to cut the woofer hole.

This box is a sealed enclosure and has about a .75 cubic foot internal volume. It will hold one 10" (or smaller) woofer. If you want it to hold something different design your own box The enclosure fits under the stock rear strut tower bar and the front face is sloped leaving about a 2.5" gap behind the stock cargo divider. Leaving the cargo divider in place allows you to mount an amp, crossover etc to the front of the enclosure and yet have the equipment and cables hidden by the divider while remaining easy to get to. The enclosure does not block access to the spare tire or fuel pump cover in any way and nothing in the car is cut or drilled to fit the enclosure. The box fits between the shock towers nicely and is held in place by the stock rear strut tower bar pressing it down into the carpet. If finished nicely it looks damn near stock and won't attract attention. My enclosure has been in place for years and years and I never remove it for racing events. It stays firmly in place.

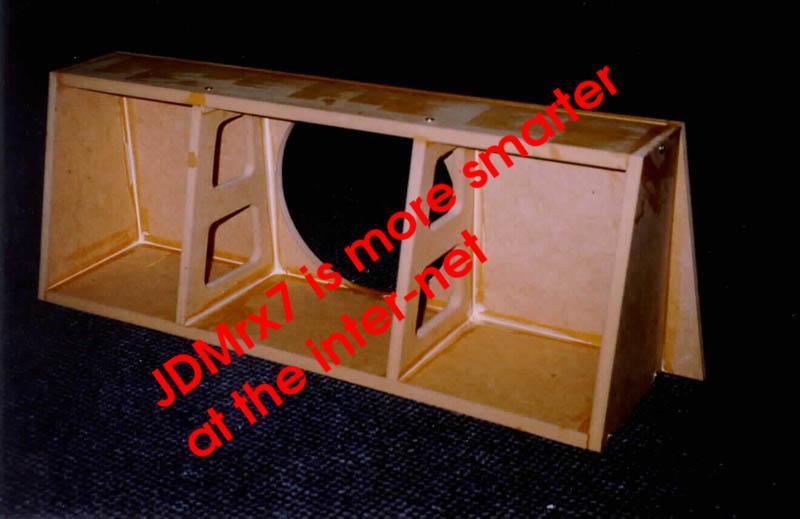

All of the dimensions listed are external dimensions. I built mine from 1/2" MDF but you could use something else if you desire. Because the front of the enclosure is sloped to match the angle of the cargo divider some of the cuts must be bevel cuts. This can still be accomplished with nothing more than a circular saw if you are careful and use a guide. A table saw would of course make it easier but it is not required. The rear side of the enclosure is a trapezoid shape to nicely fill the space between the strut towers. It is in effect a false face because the sides behind it are still vertical in order to make construction simple. I also recommend fitting braces inside to either side of the woofer hole to greatly strengthen the enclosure.

I covered my enclosure in black vinyl that matches the texture of the trunk plastics and fitted a finely perforated grill to protect the woofer from flying groceries. These can be obtained from www.partsexpress.com:

black vinyl

10" fine mesh speaker grill

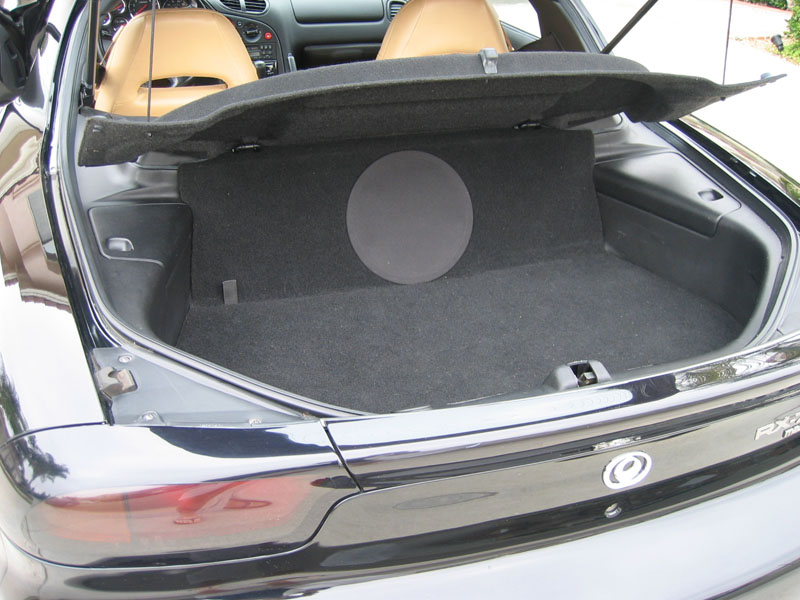

Below are a drawing with dimensions and a pic of the enclosure installed. Remember that these are external dimensions for the enclosure and you must take into account the thickness of your material when you actually cut the parts. I'll add more installed pics tonight.
