Haltech P1000: FFE Wheel + Stock Coils Issue
#1
P1000: FFE Wheel + Stock Coils Issue
Having a small issue here. So I got FFE all setup and working however ran into a "small" snag. When picking the RX-8 trigger wheel, the ECU Manager won't let me pick the Distributor option under ignition For the stock FC trailing ignition coil. I got the car running under waste spark, however only the leading coil is firing since the Ignition settings aren't setup correctly. Anyone have an idea about how to get this going correctly. Why is the Haltech so restrictive in the software arg...

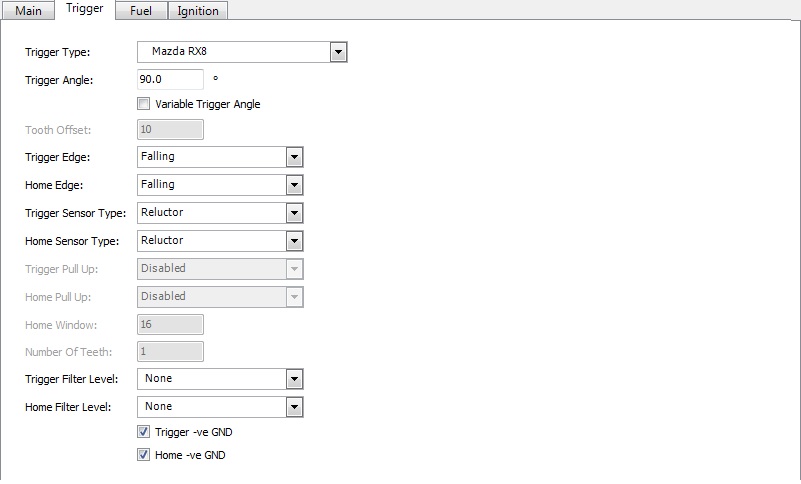

Also, on a side note, with a timing light on the wheel, it seems to be 180 off. I'm pretty sure I got the wheel settings correct but I posted anyway.
At least the car is running, so that is half the battle right lol.
thewird
Also, on a side note, with a timing light on the wheel, it seems to be 180 off. I'm pretty sure I got the wheel settings correct but I posted anyway.
At least the car is running, so that is half the battle right lol.
thewird
#2
Well to solve the problem we did the Trailing coil mod where you get 2 trailing coils and modify it so it runs like an FD setup with no toggle. Car now runs reasonably well at idle. Stupid Haltech thinking users are retarded and can't pick their own settings.
Now we still have the timing marks being off by 180*. However, after a bunch of experimenting and talking, realized the motor has an S4 pulley on a S5 motor, duh. Ok so now looking for an S5 pulley to swap in and we should be set.
So if anyone has similar symptoms/issues, you know the "easy" solution lol.
thewird
Now we still have the timing marks being off by 180*. However, after a bunch of experimenting and talking, realized the motor has an S4 pulley on a S5 motor, duh. Ok so now looking for an S5 pulley to swap in and we should be set.
So if anyone has similar symptoms/issues, you know the "easy" solution lol.
thewird
#4
Registered User
iTrader: (13)
Well to solve the problem we did the Trailing coil mod where you get 2 trailing coils and modify it so it runs like an FD setup with no toggle. Car now runs reasonably well at idle. Stupid Haltech thinking users are retarded and can't pick their own settings.
Now we still have the timing marks being off by 180*. However, after a bunch of experimenting and talking, realized the motor has an S4 pulley on a S5 motor, duh. Ok so now looking for an S5 pulley to swap in and we should be set.
So if anyone has similar symptoms/issues, you know the "easy" solution lol.
thewird
Now we still have the timing marks being off by 180*. However, after a bunch of experimenting and talking, realized the motor has an S4 pulley on a S5 motor, duh. Ok so now looking for an S5 pulley to swap in and we should be set.
So if anyone has similar symptoms/issues, you know the "easy" solution lol.
thewird
Ludwig is correct the wasted spark coil will show intermittent 180 out (hence wasted).
Make sure you check timing on all of the leads to ensure they are where they are supposed to be.
#5
We finally got it running properly. It was a combination of of wrong pulley, incorrect coil setup, too much premix in the gas, fouling plugs. timing light not working often time. Now running 15 PSi well on the BNR stage 3 turbo.
Nothing wrong with the FFE wheel, worked like a Charm once we got it zeroed once solving all the other issues. Trigger angle was at 80 degrees once zero'd for reference.
thewird
Nothing wrong with the FFE wheel, worked like a Charm once we got it zeroed once solving all the other issues. Trigger angle was at 80 degrees once zero'd for reference.
thewird
