mounting ls1 coils

so where do you guys mount them? pics are appreciated
Reply
Old Jul 30, 2006 | 01:41 AM
  #2
rx7lover0147's Avatar
Thread Starter
flamehead
Tenured Member 05 Years

Joined: Oct 2002
Posts: 250
Likes: 0
From: moore, oklahoma
nobody wants to give up their secrets huh lol? i can do it myself but i was just wondering how other people are doing it.
Reply
Old Aug 1, 2006 | 01:18 AM
  #3
fc3s.org's Avatar
OG
Tenured Member 10 Years

Joined: Mar 2001
Posts: 1,350
Likes: 0
From: Charlotte NC
In FC's you can mount them on the frame rail under where the A/C and PS go right next to the strut tower, or on FD's we mount them under the UIM. On dune buggies, we mount them on the bolt holes on the side of the front cover where the PS/AC bracket bolts on. I'll try to dig up some pics of the locations, but that should give you an idea.
Reply
Old Aug 1, 2006 | 12:31 PM
  #4
13BT510's Avatar
Junior Member
Tenured Member 05 Years

Joined: Oct 2004
Posts: 47
Likes: 0
From: Aus
i mount them wherever they look good.
Reply
Old Aug 1, 2006 | 04:14 PM
  #5
Claudio RX-7's Avatar
EFI Tech Wannabe
Tenured Member: 20 Years
iTrader: (1)

Joined: Sep 2003
Posts: 2,415
Likes: 10
From: D.R., USA, the world...
Originally Posted by 13BT510
i mount them wherever they look good.
I second that! As well ask keeping plug wires short enough.
Reply
Old Aug 1, 2006 | 10:54 PM
  #6
fc3s.org's Avatar
OG
Tenured Member 10 Years

Joined: Mar 2001
Posts: 1,350
Likes: 0
From: Charlotte NC
Originally Posted by Claudio RX-7
I second that! As well ask keeping plug wires short enough.
Definately, especially when you use LS1 coils. They tend to yield alot of noise if they are close to the pickups.
Reply
Old Aug 5, 2006 | 04:02 PM
  #7
rx7lover0147's Avatar
Thread Starter
flamehead
Tenured Member 05 Years

Joined: Oct 2002
Posts: 250
Likes: 0
From: moore, oklahoma
what kind of wires do you guys use then. i heard something about 99 suburban wires but would that be off of a v8 or v6 or does gm use the same coils on both styles.
Reply
Old Aug 7, 2006 | 01:47 AM
  #8
GUITARJUNKIE28's Avatar
multipersonality disorder
Tenured Member 05 Years

Joined: Feb 2002
Posts: 5,656
Likes: 0
From: so. cal
currently...

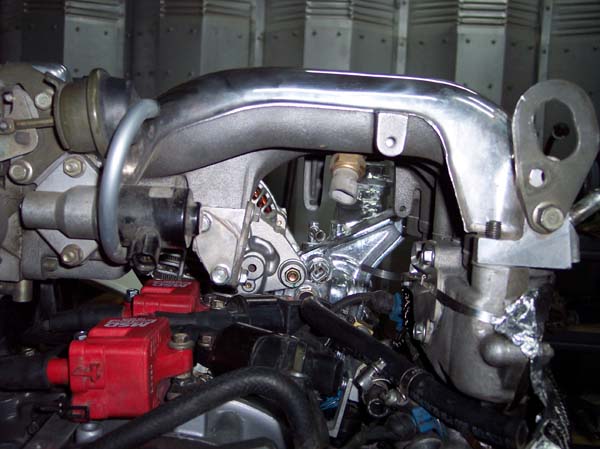

i've got the scoot ripoff hood, so there's always a bountiful supply of ambient air cooling them off.
Attached Thumbnails mounting ls1 coils-coils.jpg   mounting ls1 coils-under-manifold.jpg
