FC3S PS1K Fuel Pump Relay Connection
Sorry to bother, but I am not great at wiring diagrams and just want to make sure I'm about to start playing with the right sparks. I've looked at the FSM and I think that I need to run the Haltech orange/blue fuel pump signal wire to the connection currently filled by the blue/red wire so that the Haltech signal will simulate the AFM flapper telling the fuel pump to turn on. Car is an '87 TII.

Is this correct?

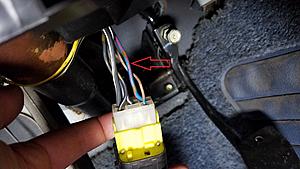

Attached Thumbnails FC3S PS1K Fuel Pump Relay Connection-fuel-wiring.jpg   FC3S PS1K Fuel Pump Relay Connection-20180219_161637.jpg
Mourty is offline
Reply Like
Old 02-20-18, 08:45 AM
  #2
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
IMO, the right way to do it is to run the haltech wire all the way to the pump itself.
