Tell me is this rotor good
Hi guys

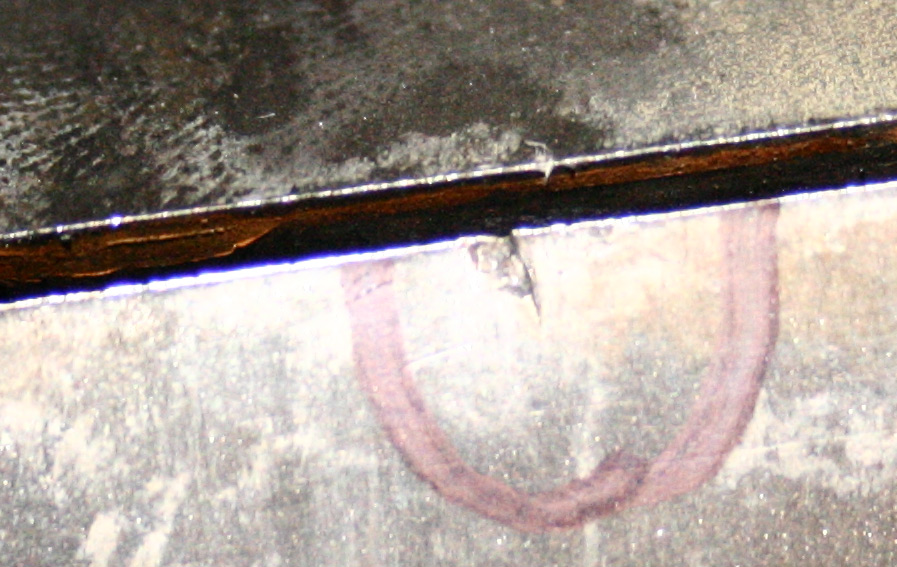

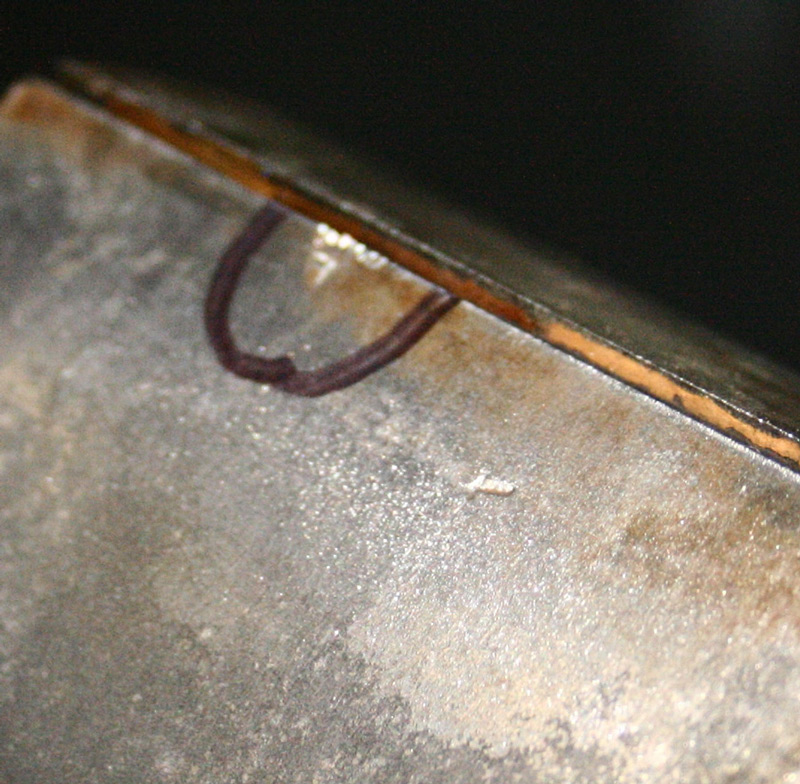

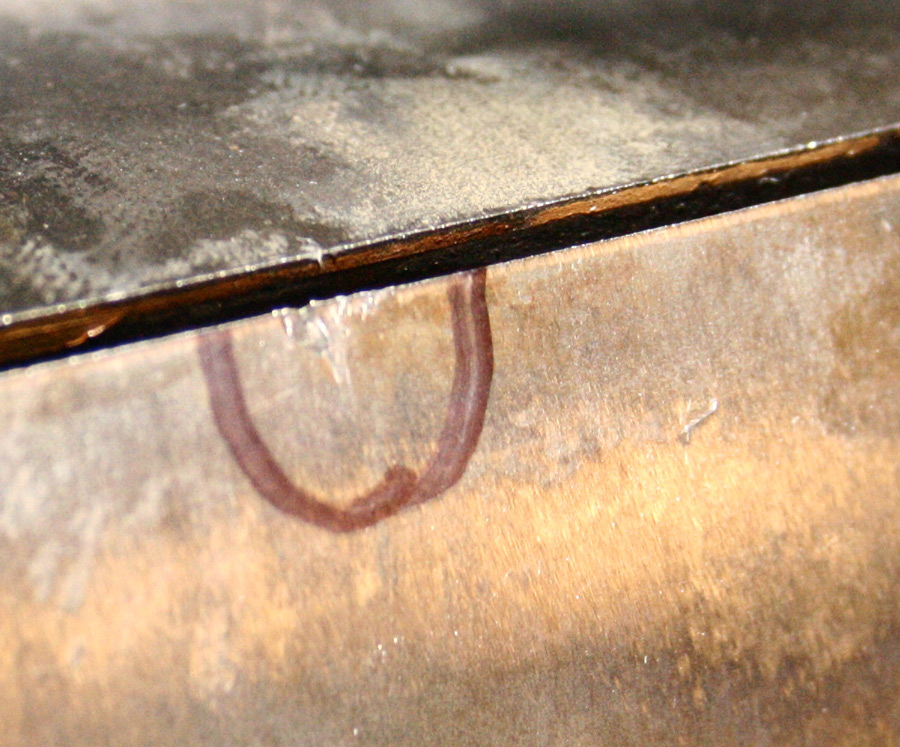

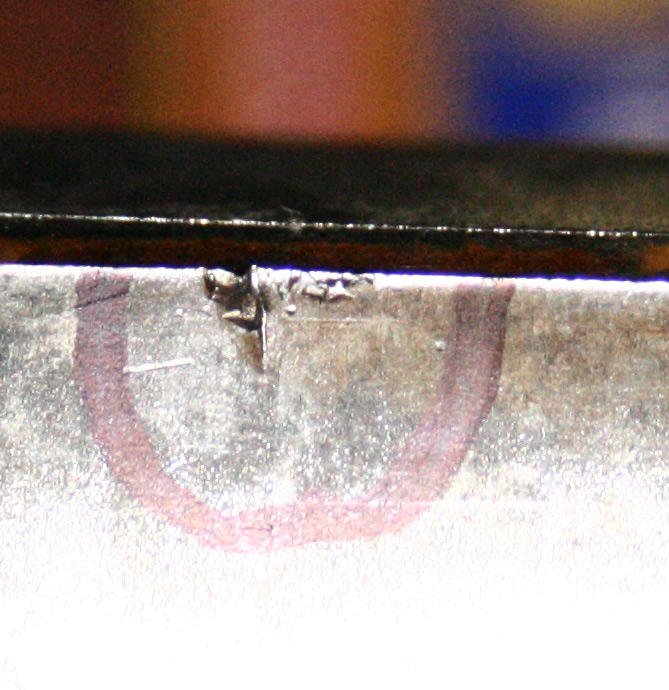

About 3 months ago a bought an 87' GSL that had a turbo swap and did some trouble shooting, found out the front rotor had no compression so I started disassembling it with the idea that I was gonna port it and rebuild it with rx-8 stationary gears and e-shaft. well I got the thing apart and I need to replace the rotor housing cause there are two 1/32in deep gouges in one (one by the spark plug and the other by the exhaust where the apex seal went out) the other rotor housing just as a smaller gouge by the spark plug. now it was easy to tell that the front rotor wasn't gonna be usable since the apex groove was splayed open but I am questioning using the other rotor here are some pics of the the little gouge by the apex seal groove. tell me what you guys thing any advise would be nice two since this is my first engine rebuild. Thanks
About 3 months ago a bought an 87' GSL that had a turbo swap and did some trouble shooting, found out the front rotor had no compression so I started disassembling it with the idea that I was gonna port it and rebuild it with rx-8 stationary gears and e-shaft. well I got the thing apart and I need to replace the rotor housing cause there are two 1/32in deep gouges in one (one by the spark plug and the other by the exhaust where the apex seal went out) the other rotor housing just as a smaller gouge by the spark plug. now it was easy to tell that the front rotor wasn't gonna be usable since the apex groove was splayed open but I am questioning using the other rotor here are some pics of the the little gouge by the apex seal groove. tell me what you guys thing any advise would be nice two since this is my first engine rebuild. Thanks
#4
Back at it again!!
iTrader: (3)
Join Date: Jun 2003
Location: Western Colorado
Posts: 1,324
Likes: 0
Received 0 Likes
on
0 Posts
If you're desperate, you can file it down on all sides. On the face and where the apex seal sits. I've seen rotors with worse in that same area that were filed down and worked fine.
#5
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts
I will probably just replace both rotors just to be on the safe side. I do have another question though I am thinking about doing a standard bridge port with the RB template this is gonna be a boosted motor, I was told that you need carbon apex seals for a bridge port and also told that carbon seasl arent good fore boosted applications what do you guys suggest, or can you use 2-piece steel apex seals?
Trending Topics
#9
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts
so you can use two piece apex seals on a bridge port? I will also take some pictures of the front rotor to show you guys how bad that was it looks like it had been hit with a sharp object going about 300mph, its a pitty too there was really no wear in the chrome of the housings but they both have some gouges in them I will take pics of those too. thanks for all the input
#10
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts

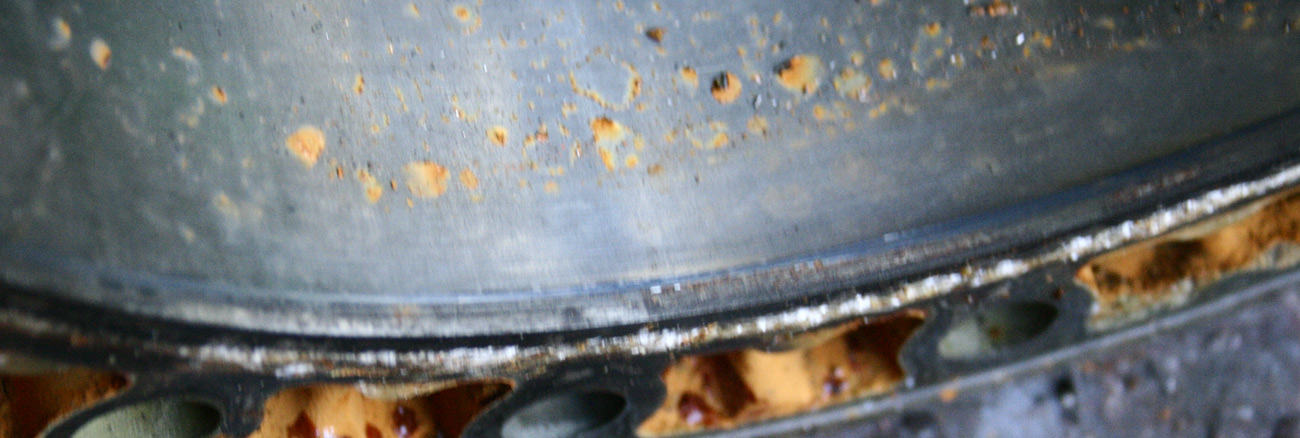

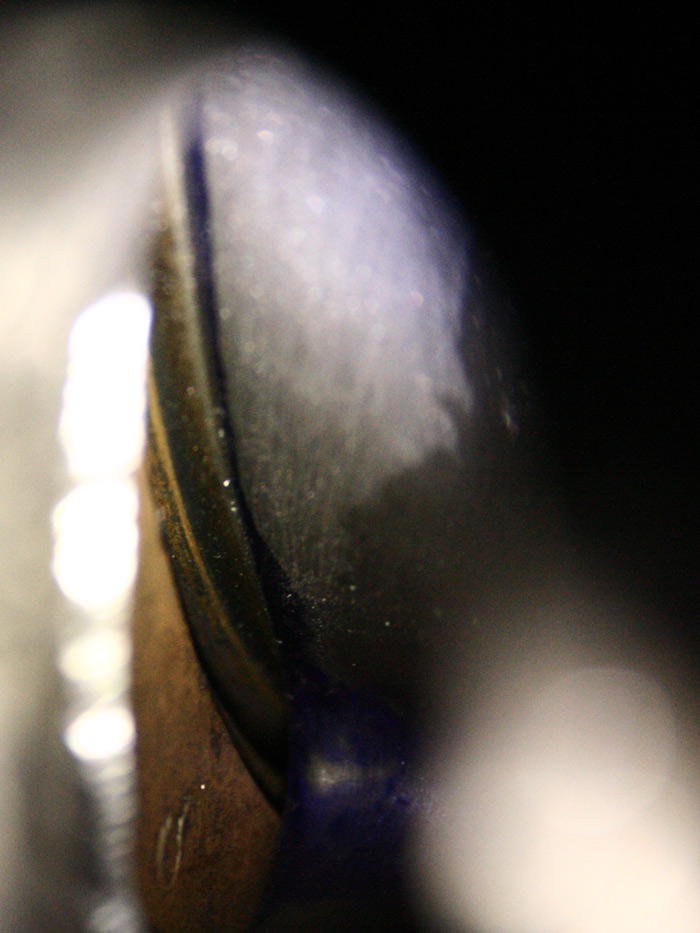

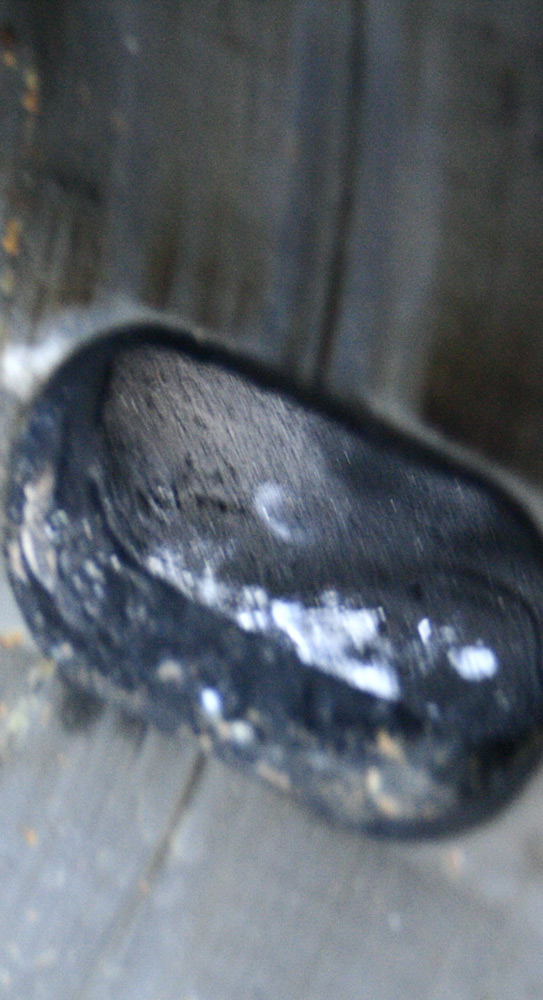

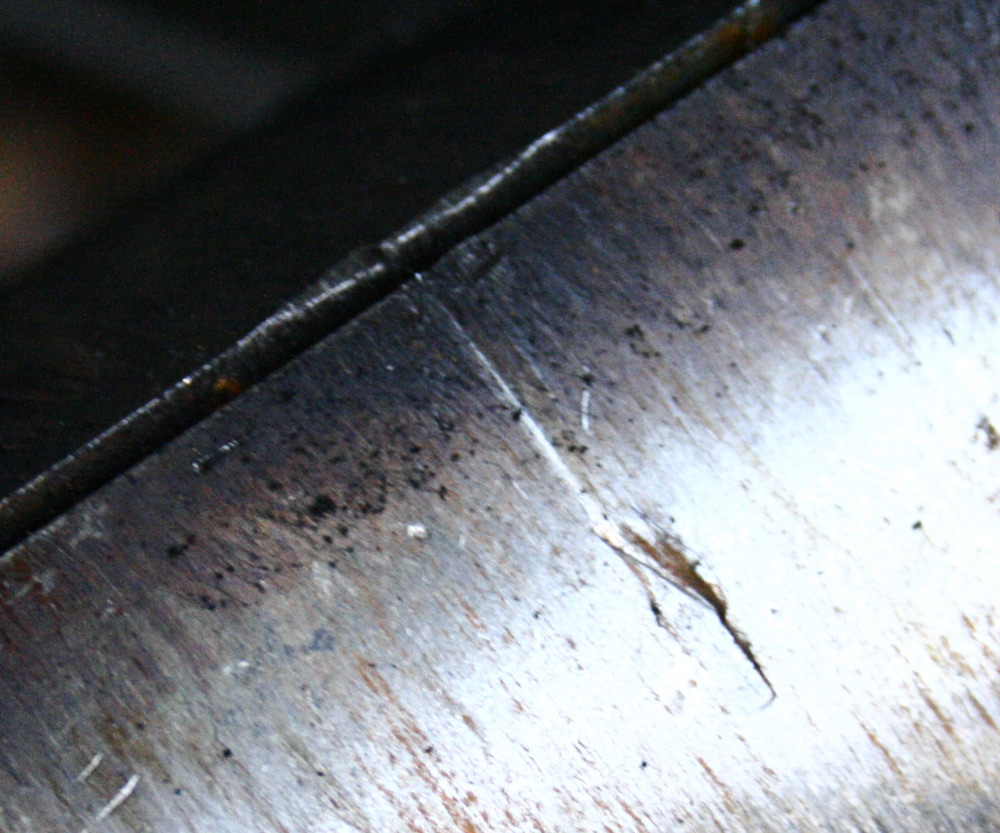

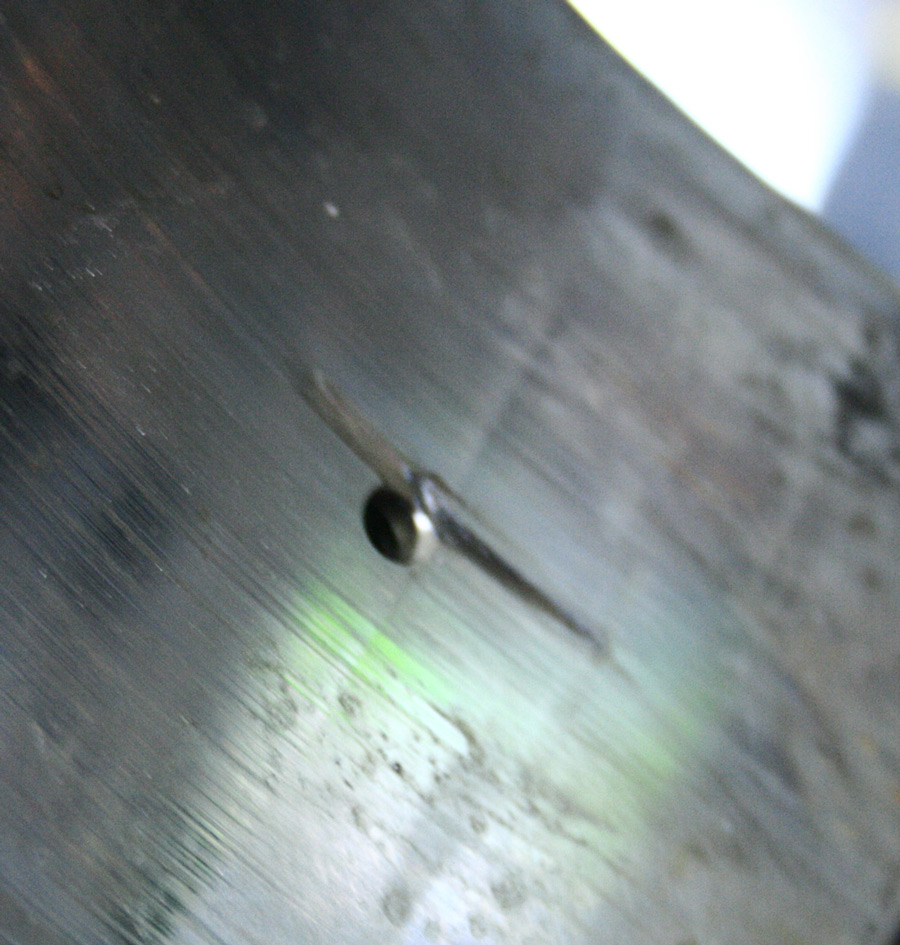

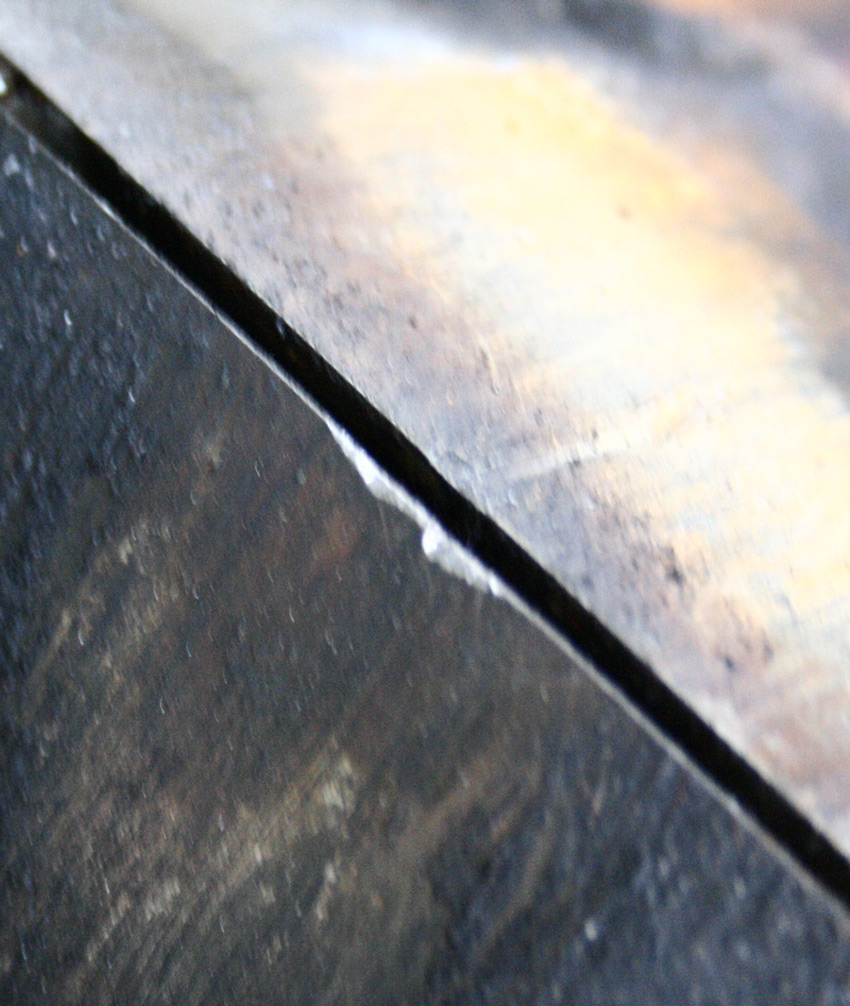

ok a two part question first here are the pictures of the other rotor and rotor housings, tell me what you think. there is obviously large scratches on by the leading plug hole and the exhaust not really any chrome flaking but there is some wear on the very outer edges of the housings.
#11
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts

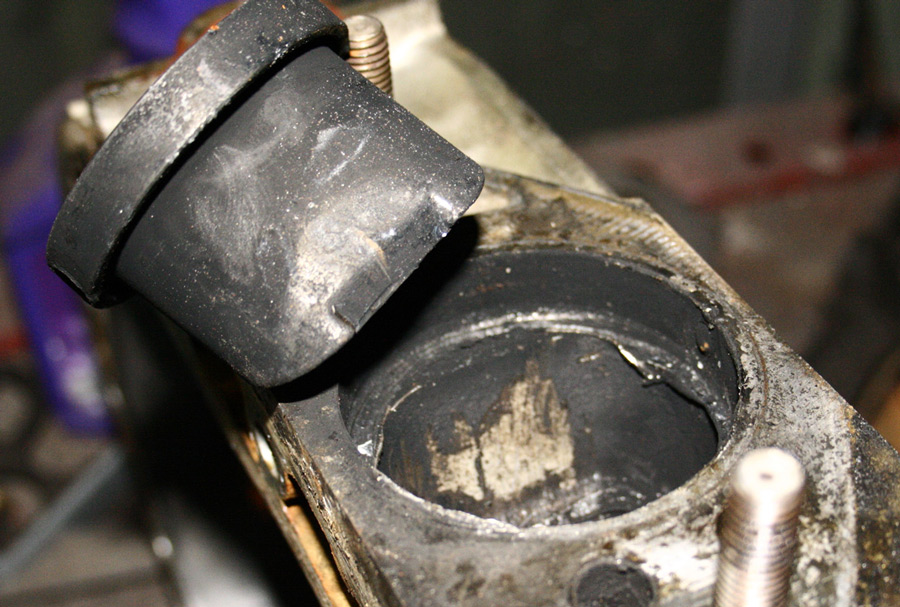

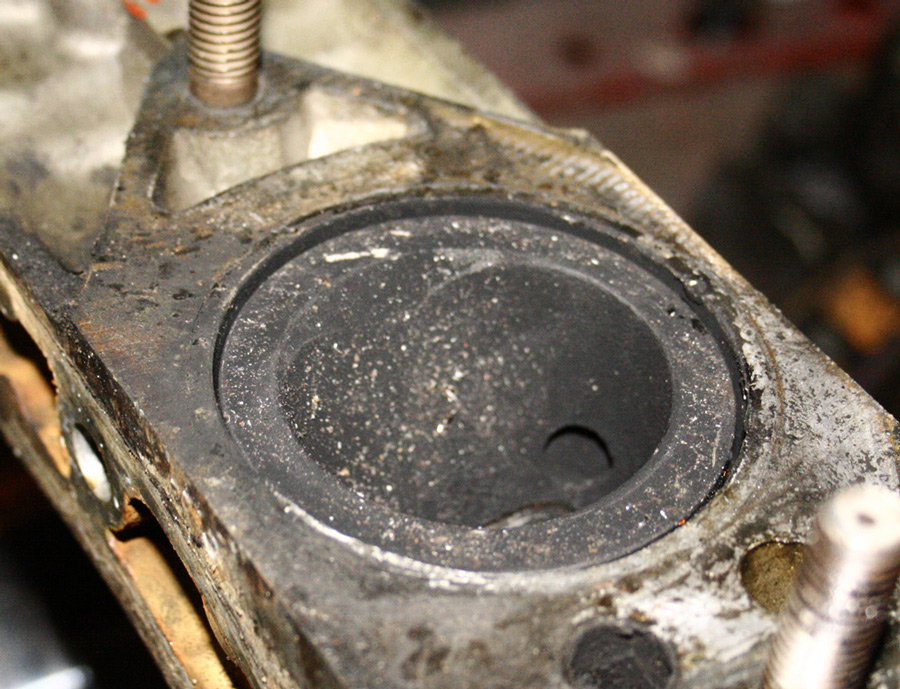

ok second part. when I was disassembling the engine there was a steel insert that goes in the exhaust port that fell out and I was wondering what that was all about should it be there??
#12
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts

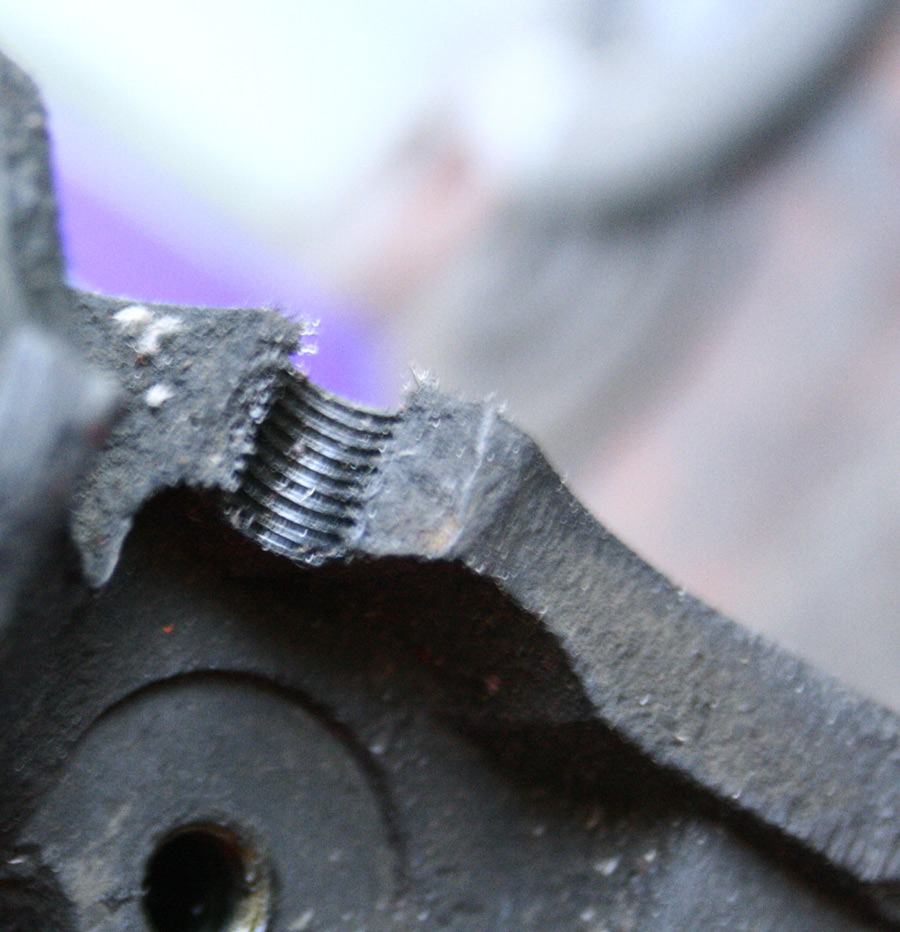

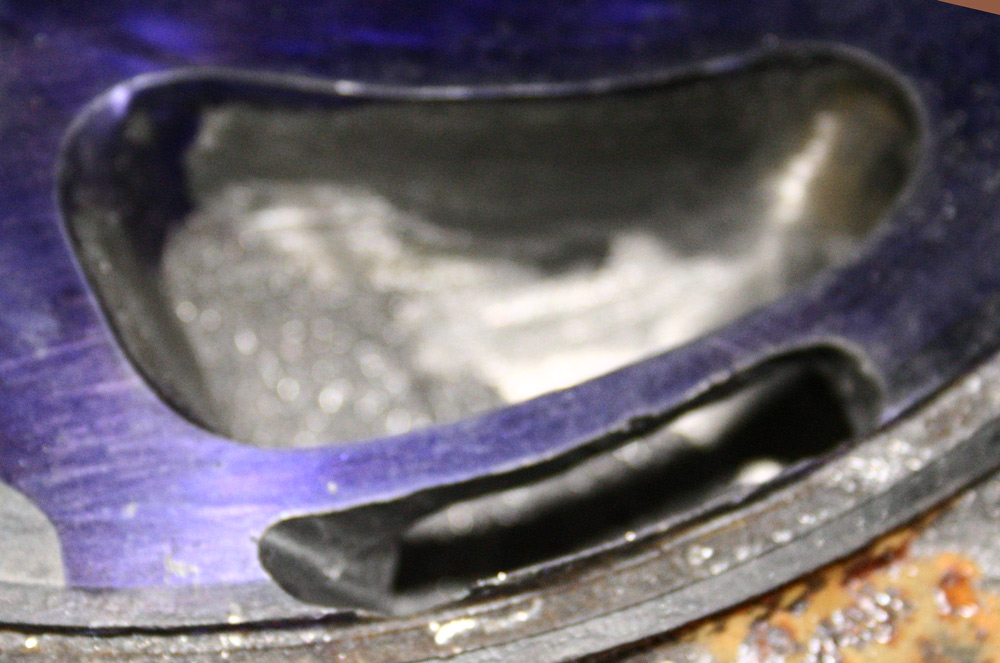

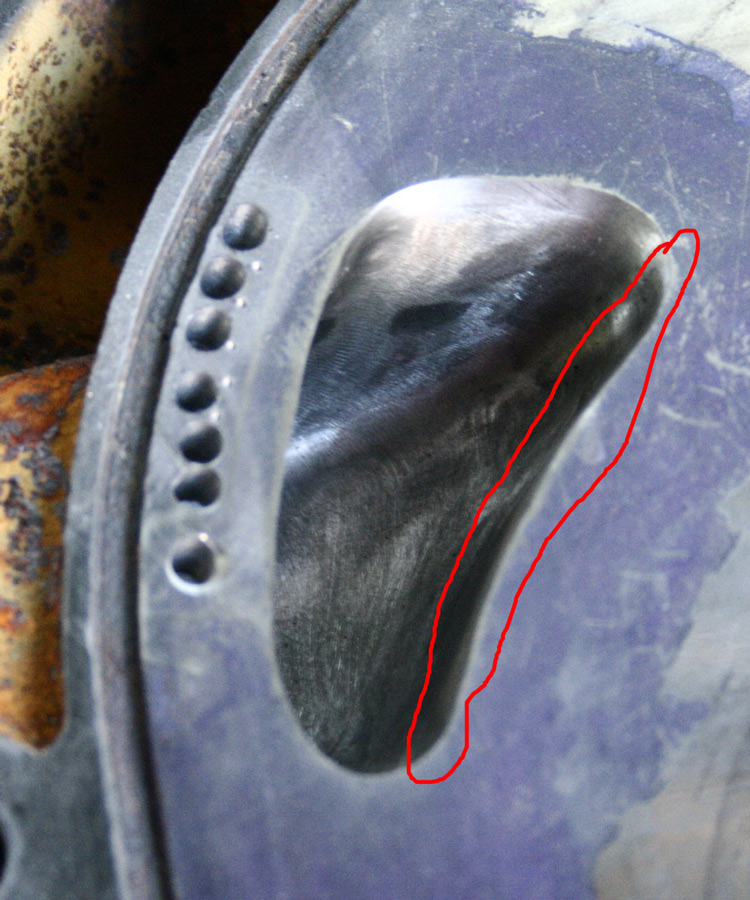

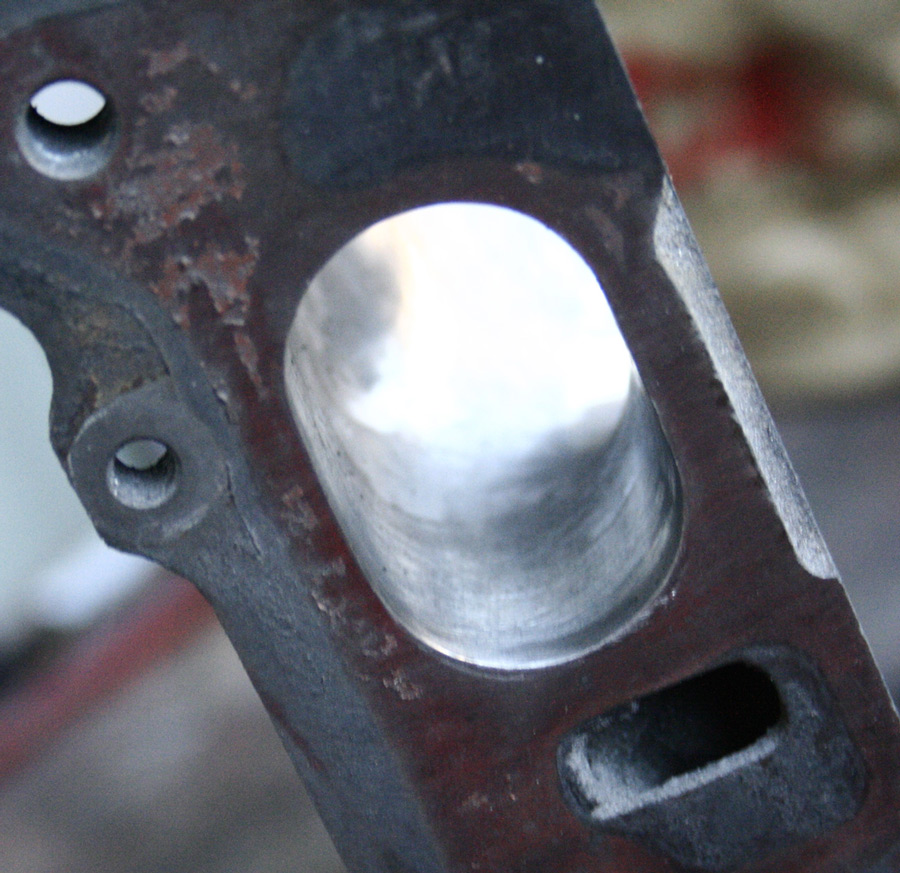

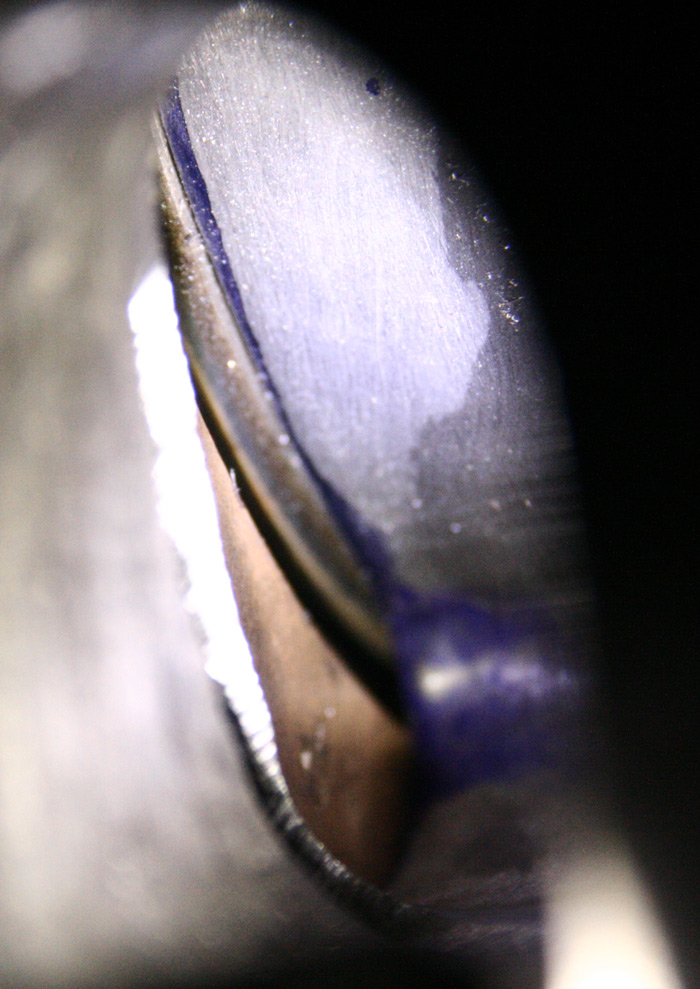

last but not least I know if you guys are like me you love pictures so here are some more I started porting my rear side iron cause it has a broken bolt hole that is what connects to the bell housing so since this is my first time porting I am not to partial to the side since I might have to replace it anyways. well I took some pictures of my porting and I also have a question about the inner curve of the intake port if you touch that at all will the intake port over lap the oil control rings to much or is there a little bit of lee-way?
Last edited by Endofcomment; 10-13-07 at 10:51 PM.
#14
Back at it again!!
iTrader: (3)
Join Date: Jun 2003
Location: Western Colorado
Posts: 1,324
Likes: 0
Received 0 Likes
on
0 Posts
Oh yeah, don't touch that part of the port. I ported like 2mm's or so forward there on my first large streetported 6-port and it caked my rotors with oil, lowered my oil pressure somewhat, burned oil somewhat and was just overall undesireable.
#15
Full Member
Thread Starter
Join Date: Aug 2007
Location: California
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts
yeah I probably cut about 2mm's off it but this was my first attempt at a port job so being that there is a bolt hole broken off on the bell housing mount I kinda wanted to replace it anyways.
