General Rotary Tech Support Use this forum for tech questions not specific to a certain model year

Seeking advice removing rear iron

Old 12-23-17, 11:36 PM
  #1
Money talks.Mine says bye
Thread Starter
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 675
Received 0 Likes on 0 Posts
Seeking advice removing rear iron

Hey gang, After a recent S5TII rebuild, the engine has been pooling oil at the joint between the rear rotor housing to iron near the oil filter. The oil filter pedestal orings were changed and the leak remains, so presumably something's wrong with the oring at the upper dowel pin interface. I was going to let it leak, but now oil is migrating to the clutch plate causing slippage, so the engine has to come out (again).
The question is: what are the chances that I can remove the rear iron only with the oil pan, UIM, and turbo manifold in place, fix the oring, and reassemble the keg without causing water seal and oil pan leaks. I really want to avoid unstacking the entire keg to fix this. Anyone have experience successfully removing the aft iron?

Last edited by cone_crushr; 12-24-17 at 10:34 PM.
cone_crushr is offline
Old 12-24-17, 01:32 AM
  #2
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,094
Received 148 Likes on 131 Posts
Yes, been done before. Well, probably want to remove oil pan.
Probably easier to pull the engine and do this than try to drop the trans and do this from under the car.

Clamp all the other housings together before loosening the tension bolts for best results.

Check rear side housing carefully for crack at the upper dowel area, this is what usually causes the oil leak in the area you mention.
BLUE TII is offline
Old 12-26-17, 12:48 PM
  #3
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Received 100 Likes on 87 Posts
Didn't Buckey do this before?..
I remember a thread where a guy had wired the rest of the engine together with cable,etc to prevent the parts from moving.
misterstyx69 is offline
Old 12-27-17, 07:53 AM
  #4
rotorhole

Join Date: May 2017
Location: retired rotorist
Posts: 700
Received 67 Likes on 63 Posts
i've done it plenty of times, but i certainly wouldn't follow buckey's advice.... all you need is a few wood clamps from the front iron to the rear rotor housing, snug to keep the stack from coming apart.
insightful is offline
Old 12-27-17, 11:41 PM
  #5
Money talks.Mine says bye
Thread Starter
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 675
Received 0 Likes on 0 Posts
I appreciate the comments. Here are my thoughts:

Originally Posted by BLUE TII View Post
Well, probably want to remove oil pan.
Why's that? (I'd really rather not)

Originally Posted by BLUE TII View Post
Clamp all the other housings together before loosening the tension bolts for best results.
That's the plan, the devil's in the details. I'll figure it out once I pull the engine.

Originally Posted by BLUE TII View Post
Check rear side housing carefully for crack at the upper dowel area, this is what usually causes the oil leak in the area you mention.
Agreed, upper dowel land cracking is a common problem and something to check, but seems unlikely in my case since my new aft iron has the reinforced dowel boss.

Originally Posted by misterstyx69 View Post
Didn't Buckey do this before?..
I remember a thread where a guy had wired the rest of the engine together with cable,etc to prevent the parts from moving.
Yup, there's a thread like this but 1) it's not what I'd call a well engineered solution and 2) the pics were on Photobucket, so nothing to see now.

Originally Posted by insightful View Post
i've done it plenty of times, but i certainly wouldn't follow buckey's advice.... all you need is a few wood clamps from the front iron to the rear rotor housing, snug to keep the stack from coming apart.
My main insight is that the rear rotor side-seals will be uncompressed so the sole force to the aft rotor housing will be one set of water orings. The main force to resist with clamps is between the front and center irons.
I won't be able to start this project for a few weeks so it may take a while to find out.
cone_crushr is offline
Old 12-28-17, 02:39 AM
  #6
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,094
Received 148 Likes on 131 Posts
Quote:
Originally Posted by BLUE TII
Well, probably want to remove oil pan.
Why's that? (I'd really rather not)
So you don't get the dreaded oil pan leaks once you are done. Its just going to be harder to get a good seal between the rear iron and the oil pan when you are sliding the rear iron onto the dowels and scrapping any sealant off the oil pan in the process (ie, the rear side housing can only be guided straight onto the dowel pins, no angling to get it on and sealed against the two perpendicular surfaces without displacing the sealant).

I have done a couple front covers in car and once I saw what I was up against putting the front cover back on with the oil pan in place I resigned myself to doing oil pan and front cover.

Quote:
Originally Posted by BLUE TII
Check rear side housing carefully for crack at the upper dowel area, this is what usually causes the oil leak in the area you mention.
Agreed, upper dowel land cracking is a common problem and something to check, but seems unlikely in my case since my new aft iron has the reinforced dowel boss.
I have cracked reinforced rear side housings, intermediate housings and a front housing, but never had a leak at a dowel pin o-ring- so, what seems unlikely is relative in this case.
BLUE TII is offline
Old 12-28-17, 03:02 AM
  #7
Money talks.Mine says bye
Thread Starter
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 675
Received 0 Likes on 0 Posts
****, you're right on both counts BLUE.
cone_crushr is offline
Old 12-28-17, 08:38 AM
  #8
rotorhole

Join Date: May 2017
Location: retired rotorist
Posts: 700
Received 67 Likes on 63 Posts
Originally Posted by cone_crushr View Post


My main insight is that the rear rotor side-seals will be uncompressed so the sole force to the aft rotor housing will be one set of water orings. The main force to resist with clamps is between the front and center irons.
I won't be able to start this project for a few weeks so it may take a while to find out.

don't stop at the center iron then, there is studs on the exhaust in the rotor housing and if its a S5 a knock sensor thread on the other side, or if you have something to thread into a spark plug hole you can use that as an anchor point as well. or if once you removed the oil pan you can use a flat plate with a few holes drilled into it down there, there's also the emissions rack bolt holes on the top of the rotor housing.... lots of places and ways to clamp it all together.

you don't have to go crazy with the clamping force, just trying to keep the sandwich snugly together.
insightful is offline
Old 02-26-18, 10:13 PM
  #9
Money talks.Mine says bye
Thread Starter
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 675
Received 0 Likes on 0 Posts
Ready for rr iron extraction

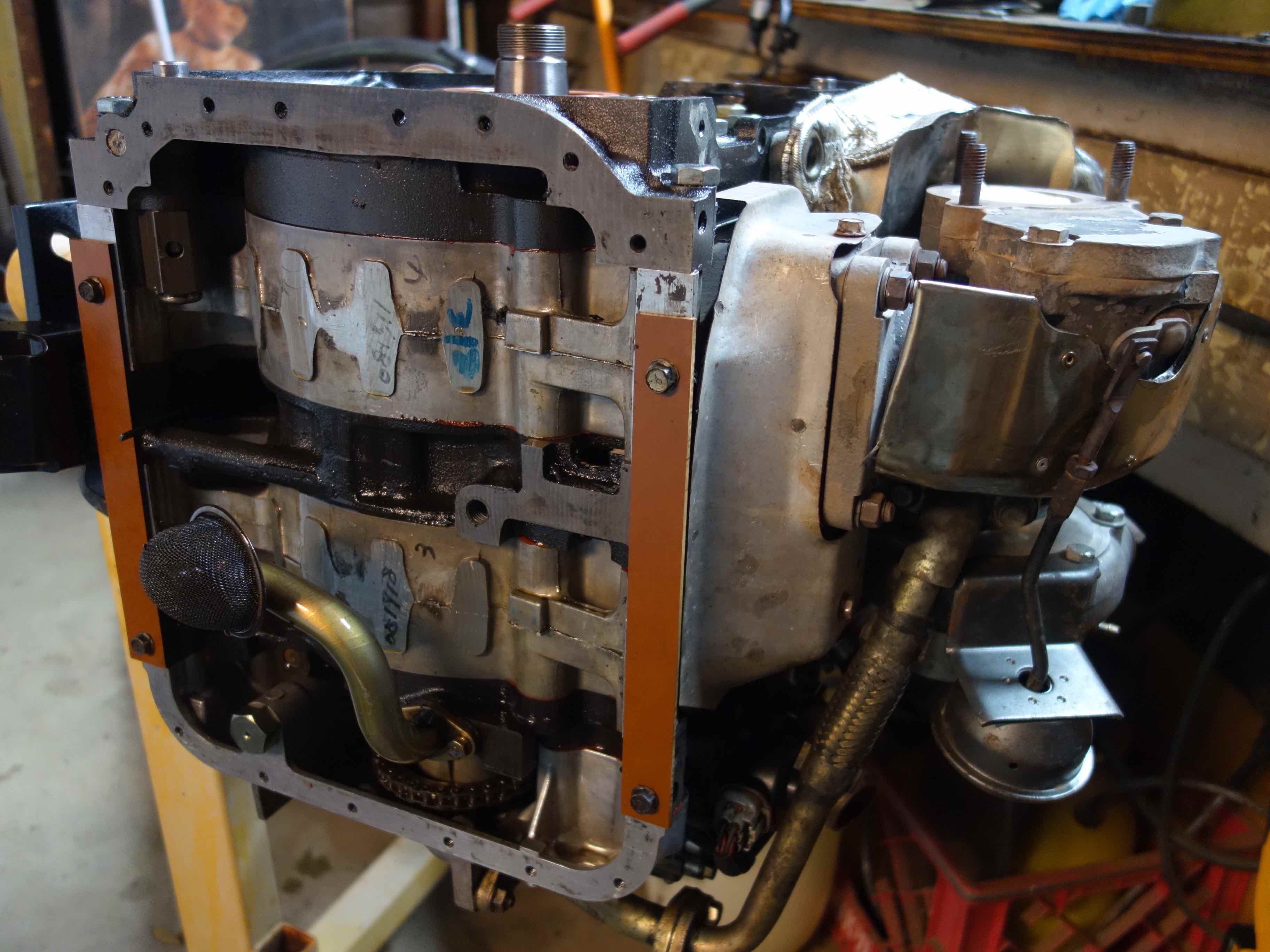

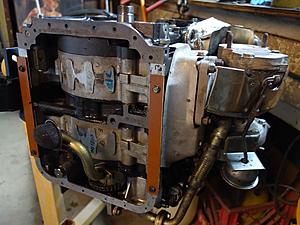

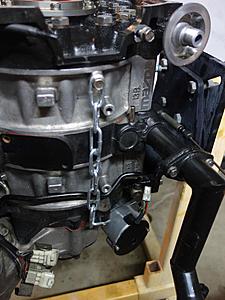

OK, I'm ready to remove the rear iron. Here are some pics of my approach for holding the stack together. Two strips of Garolite at the oil pan flange and a chain from the front iron to rear rotor housing. LIM and turbo remain installed since I wanted to keep the engine as fully assembled as possible. All this just to check the upper dowel o-ring since I never made enough power to crack the beefy late production dowel land. So is this tactic going to work?

Oh, and removing a perfectly sealed oil pan was painful.
Attached Thumbnails Seeking advice removing rear iron-dsc01681.jpg   Seeking advice removing rear iron-dsc01679.jpg

Last edited by cone_crushr; 02-26-18 at 10:30 PM.
cone_crushr is offline
