Rotary Alx

Engine :

13b s4 N.A

:Rebuild two years ago , not started , just been standing dry on the "shelf" .
Well lubed when assembled .

Situation : During first start up / brake in .

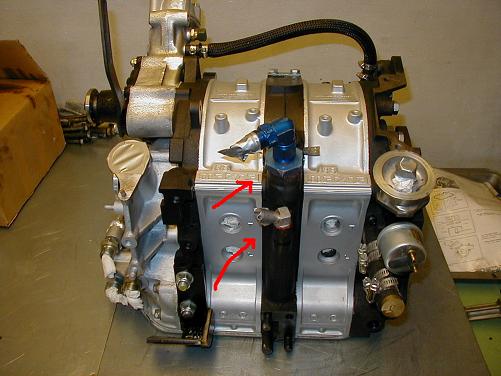

Problem : After a couple of minutes on idle " first start up " , i noticed that a little oil had been seeping out between the front rotor housing and intermediate plate , at the spark plug area . ( see pics ) . Illustration only .

The ammount is very small , maby a tenth of a " t-spoon" .

: It is not comming from elsewhere , no spilling , leaks from filler tube etc , just to make myself clear .

Anyone got some inputs ? , i have the same diagnose / oil-leak on my 110k miles
12a .

Thanks in advance :-)

diabolical1

iTrader: (3)

possible missing or pinched dowel o-ring?

Rotary Alx

Thanks for the input mr !

RotaryResurrection

iTrader: (8)

ON the 86+ rotaries the only way oil could leak from there is if the o-ring were bad (reused from a very old engine?), pinched (mis-installed), or left out. Even on very high mileage engines the o-rings flatten down a little but oil still does not leak there.

Now on the older, 85 and earlier engines there was always an issue with oil leakage there.

Rotary Alx

Hey !

Thanks for a great informative replay mr R.R !

By the way , i bought a mazda digital comp tester frome you on ebay 5 months ago , or so , ive repaird the box , and now its super . Thanks again

RotaryResurrection

iTrader: (8)

Yes, I recall that. I hardly used it, as I am pretty keen at telling when an engine is blown just by eye or ear, so I did not want to take time and repair it.
