Engine cuts on high rpm
08-09-13, 02:06 PM
#1
Full Member
Thread Starter
Join Date: Nov 2012
Location: Austritt
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Engine cuts on high rpm
Hello guys, got a little problem!!!
Got a fd non seq. with stock engine, turbo and injectors !! But a bigger fuel pump
If I run my engine with 0.5 bar it works fine but soon as I rise the boost on .8 or .9 bar
The engine cuts when I reach 5k+ rpm
Changed plugs and coils(got used coils from my spare engine) but still the same !!
Could it be the secondary injectors??
Got a fd non seq. with stock engine, turbo and injectors !! But a bigger fuel pump
If I run my engine with 0.5 bar it works fine but soon as I rise the boost on .8 or .9 bar
The engine cuts when I reach 5k+ rpm
Changed plugs and coils(got used coils from my spare engine) but still the same !!
Could it be the secondary injectors??
08-09-13, 05:50 PM
#2
Full Member
Join Date: Apr 2013
Location: Bay Area
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
what engine and what car you got bro? we cant help you if we don't know anything about the engine
Not knowing what engine you are using for sure I would definitely test the secondaries. if your engine is REAL old it could be you got some worn APEX slots and the higher RPM's are causing some compression problems the latter here I am leaning towards as it sounds when you boost more you are losing compression and this will happen at higher RPM's.
Not knowing what engine you are using for sure I would definitely test the secondaries. if your engine is REAL old it could be you got some worn APEX slots and the higher RPM's are causing some compression problems the latter here I am leaning towards as it sounds when you boost more you are losing compression and this will happen at higher RPM's.
08-09-13, 08:21 PM
#5
some ideas to be had ... https://www.rx7club.com/3rd-generati...13brew-907252/
08-11-13, 08:13 AM
#7
"Elusive, not deceptive!”
Make sure the mixtures are not getting too rich. (<11.0 AFR)
If mixtures are right than a HKS TwinPower will solve the problem (or mercury coils).
Barry
If mixtures are right than a HKS TwinPower will solve the problem (or mercury coils).
Barry
Trending Topics
08-11-13, 08:22 AM
#8
Full Member
Thread Starter
Join Date: Nov 2012
Location: Austritt
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Hey Barry thx, I got it tuned on a dyno from a tuner!! I have a wideband AEM but he used his!

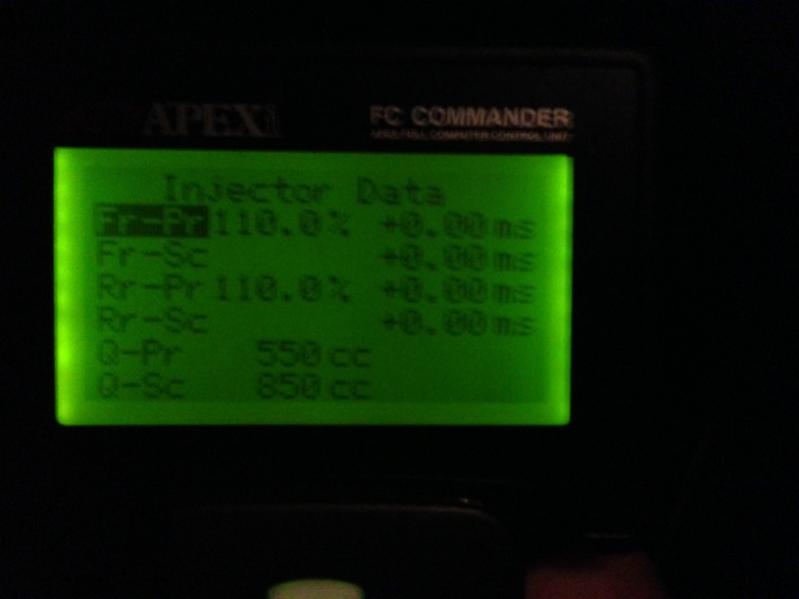

I looked at the commander and the Injectors are set on 110% so I asked him why so much
He told me that that's the only way to run the engine with the right afr! He tried with less% but the avr was not correct
I looked at the commander and the Injectors are set on 110% so I asked him why so much
He told me that that's the only way to run the engine with the right afr! He tried with less% but the avr was not correct
08-12-13, 08:07 PM
#9
Junior Member
Join Date: Jul 2013
Location: Columbus, OH
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Things to try:
Secondary Injectors
Fuel Filter
Fuel Pump
Just a thought, I'm no expert!
Good luck, mine is in the shop right now with a similar problem (Cutting out when hitting boost)! I suspect mine has something to do with my secondaries.
Secondary Injectors
Fuel Filter
Fuel Pump
Just a thought, I'm no expert!
Good luck, mine is in the shop right now with a similar problem (Cutting out when hitting boost)! I suspect mine has something to do with my secondaries.
08-13-13, 05:07 AM
#11
Full Member
Thread Starter
Join Date: Nov 2012
Location: Austritt
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
@ rotaryrevolution, well he told me that's the spark or coils so I changed them but still the same problem!! I'm in Austria so it's kinda difficult to get some parts or even a tuner!! So a good tuner from England came and tuned it! He is really a good one! So I got the parts I needed, after 2 weeks!!! until then he left the country!!! That was a pain in the ***!! But he got me a good tuning settings!
08-13-13, 05:11 AM
#12
Full Member
Thread Starter
Join Date: Nov 2012
Location: Austritt
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
GMD wish you good luck and let me know if you got something!!! Will do the same!! And thx for your tips !! By the way how are your spark wires? I measured them and I'm 1-1,5 kilo ohm over the value
08-13-13, 09:32 AM
#13
well, the FD coils don't work ok down low and crap out at high revs unless you are stressing them and that boost level should not be stressing them so i wouldn't assume there is anything wrong with the coils but i would make sure all 4 are firing and that they are attached to the proper plug wires.
plug wires and plugs sound a bit more realistic and i would hope the plugs were fairly new before tuning, so i would rule them out. plug wires can give misleading results, corroded/loose terminals or rips in the silicone sheathing can allow the spark to arc right out of the wire and won't show on a simple ohm test.
plug wires and plugs sound a bit more realistic and i would hope the plugs were fairly new before tuning, so i would rule them out. plug wires can give misleading results, corroded/loose terminals or rips in the silicone sheathing can allow the spark to arc right out of the wire and won't show on a simple ohm test.
08-14-13, 07:56 AM
#18
how knowledgeable is this person with rotary's and FD's I mean honestly it seems like it shouldnt be that out of this world to figure out whats wrong . specially since it works fine at lower boost levels .
how high is your boost ? if the ECU has some sort of boost control and its overboosting then fuel cutting . This could be another reason why it happens when you up the boost.
what boost controller and engine management system are you using ?
how high is your boost ? if the ECU has some sort of boost control and its overboosting then fuel cutting . This could be another reason why it happens when you up the boost.
what boost controller and engine management system are you using ?
